ASL30L-PFTEKK (2011)
Toyota Sienna
Production
Sep 2011
-
Aug 2013
Engine
1ARFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 4 OF 4(1109- )
Click highlighted areas on diagram
ROOF RACK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63407C - CARRIER SUB-ASSY, ROOF, RH | ||||
| 63407-08030 |
ASL30 |
1 | ||
| 63408C - CARRIER SUB-ASSY, ROOF, LH | ||||
| 63408-08030 |
ASL30 |
1 | ||
| 63486A - CUSHION, ROOF RACK LEG, FRONT RH | ||||
| 63486-08020 |
ASL30 |
1 | ||
| 63487A - CUSHION, ROOF RACK LEG, FRONT LH | ||||
| 63487-08020 |
ASL30 |
1 | ||
| 63488 - CUSHION, ROOF RACK LEG, REAR RH | ||||
| 63488-08020 |
ASL30 |
1 | ||
| 63489 - CUSHION, ROOF RACK LEG, REAR LH | ||||
| 63489-08020 |
ASL30 |
1 | ||
| 63491 - COVER, ROOF RACK LEG, FRONT RH | ||||
| 63491-08020 |
ASL30 |
1 | ||
| 63492 - COVER, ROOF RACK LEG, FRONT LH | ||||
| 63492-08020 |
ASL30 |
1 | ||
| 63493 - COVER, ROOF RACK LEG, REAR RH | ||||
| 63493-08020 |
ASL30 |
1 | ||
| 63494 - COVER, ROOF RACK LEG, REAR LH | ||||
| 63494-08020 |
ASL30 |
1 | ||
| Common parts | ||||
| 90080-14039 | ||||
| 90162-50016 | ||||

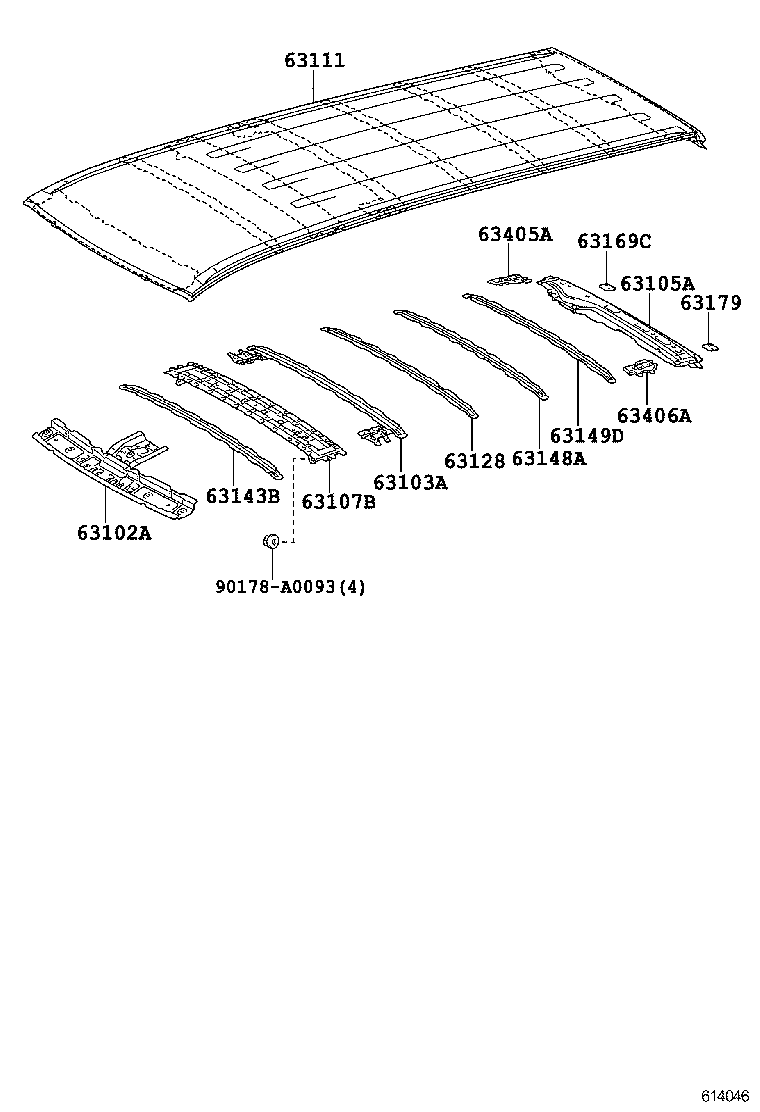

ILLUST NO. 1 OF 4(1109- )ASL30
Click highlighted areas on diagram
ROOF PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-08020 |
ASL30 |
1 | ||
| 63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL | ||||
| 63103-08010 |
ASL30 |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-08020 |
ASL30 |
1 | ||
| 63107B - REINFORCEMENT SUB-ASSY, ROOF PANEL, RH | ||||
| 63107-08010 |
ASL30 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-08060 |
ASL30 |
1 | ||
| 63128 - REINFORCEMENT, ROOF PANEL, NO.6 | ||||
| 63128-08010 |
ASL30 |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-08030 |
ASL30 |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-08010 |
ASL30 |
1 | ||
| 63149D - REINFORCEMENT, ROOF PANEL, NO.8 | ||||
| 63149-08010 |
ASL30 |
1 | ||
| 63169C - RETAINER, ROOF REINFORCEMENT, NO.2 | ||||
| 63169-0E020 |
ASL30 |
1 | ||
| 63179 - PLATE, ROOF PANEL REINFORCEMENT, LH | ||||
| 63179-0E020 |
ASL30 |
1 | ||
| 63405A - SUPPORT SUB-ASSY, ROOF RACK, REAR | ||||
| 63405-08010 |
ASL30 |
1 | ||
| 63406A - SUPPORT SUB-ASSY, ROOF RACK, REAR LH | ||||
| 63406-08010 |
ASL30 |
1 | ||
| Common parts | ||||
| 90178-A0093 | ||||
