USK65L-GKTZKV (2009)

Toyota Sequoia

Production Nov 2009 - Sep 2016
Engine 3URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

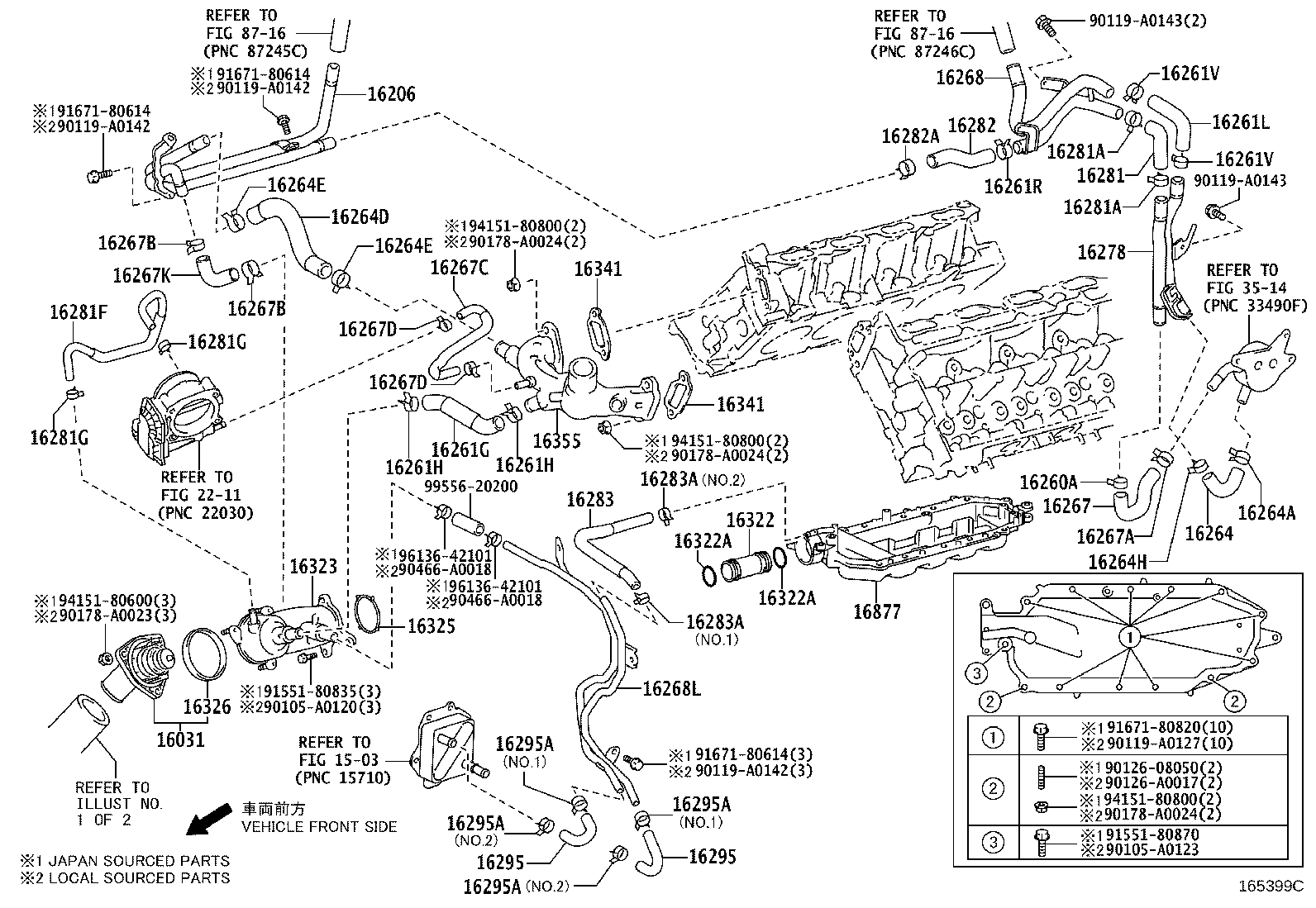

ILLUST NO. 2 OF 2(1308- )

Click highlighted areas on diagram

diagram 1201 1503 16031 16206 16260A 16261G 16261H 16261H 16261L 16261R 16261V 16261V 16264 16264A 16264D 16264E 16264E 16264H 16267 16267A 16267B 16267B 16267C 16267D 16267D 16267K 16268 16268L 16278 16279 16281 16281A 16281A 16281F 16281G 16281G 16282 16282A 16283 16283A 16283A 16293 16293A 16293A 16295 16295 16295A 16295A 16295A 16295A 16297 16297A 16297A 16322 16322A 16322A 16323 16325 16326 16341 16341 16355 16877 2211 3514 8716 8716 90105A0120 90105A0123 90119A0127 90119A0142 90119A0142 90119A0142 90119A0143 90119A0143 9012608050 90126A0017 90178A0023 90178A0024 90178A0024 90178A0024 90466A0018 90466A0018 9155180835 9155180870 9167180612 9167180614 9167180614 9167180614 9167180820 9415180600 9415180800 9415180800 9415180800 9613642101 9613642101 9955620200
Part # Description Qty Price
16031 - WATER INLET SUB-ASSY, W/THERMOSTAT
16031-0S010

3URFE..USK6#

(L)

 1
16031-38010

3URFE..USK6#

(J)

 1
16031-38010

3URFE..USK6#

 1
16206 - PIPE SUB-ASSY, WATER BY-PASS
16206-38091

3URFE..USK6#

 1
16206-38090

3URFE..USK6#

 1
16260A - CLIP(FOR WATER BY-PASS HOSE ASSY)
96136-42501

3URFE..USK6#

 1
90466-A0023

3URFE..USK6#

 1
16261G - HOSE, WATER BY-PASS, NO.1
16261-0S030

3URFE..USK6#

(L)

 1
16261-38020

3URFE..USK6#

 1
16261-38020

3URFE..USK6#

(J)

 1
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
96136-42101

3URFE..USK6#

(J)

 2
96136-52101

3URFE..USK6#

 2
90466-A0018

3URFE..USK6#

(L)

 2
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
96136-42101

3URFE..USK6#

(J)

 2
96136-52101

3URFE..USK6#

 2
90466-A0018

3URFE..USK6#

(L)

 2
16261L - HOSE, WATER BY-PASS
16261-0S010

3URFE..USK6#

 1
16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE)
90466-A0023

3URFE..USK6#

 1
96136-42501

3URFE..USK6#

 1
16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90466-A0023

3URFE..USK6#

 2
96136-42501

3URFE..USK6#

 2
16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90466-A0023

3URFE..USK6#

 2
96136-42501

3URFE..USK6#

 2
16264 - HOSE, WATER BY-PASS, NO.2
16264-0S011

3URFE..USK6#

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96136-42501

3URFE..USK6#

 1
90466-A0023

3URFE..USK6#

 1
16264D - HOSE, WATER BY-PASS, NO.2
16264-0S030

3URFE..USK6#

(L)

 1
16264-38040

3URFE..USK6#

 1
16264-38040

3URFE..USK6#

(J)

 1
16264E - CLIP(FOR WATER BY-PASS HOSE NO.2)
96136-42501

3URFE..USK6#

 2
96136-42501

3URFE..USK6#

(J)

 2
90466-A0023

3URFE..USK6#

(L)

 2
16264E - CLIP(FOR WATER BY-PASS HOSE NO.2)
96136-42501

3URFE..USK6#

 2
96136-42501

3URFE..USK6#

(J)

 2
90466-A0023

3URFE..USK6#

(L)

 2
16264H - CLIP(FOR WATER BY-PASS HOSE NO.3)
96136-42501

3URFE..USK6#

 1
90466-A0023

3URFE..USK6#

 1
16267 - HOSE, WATER BY-PASS, NO.3
16267-0S011

3URFE..USK6#

 1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
96136-42501

3URFE..USK6#

 1
90466-A0023

3URFE..USK6#

 1
16267B - CLIP(FOR WATER BY-PASS HOSE)
90466-A0023

3URFE..USK6#

(L)

 2
96136-42501

3URFE..USK6#

(J)

 2
96136-42501

3URFE..USK6#

 2
16267B - CLIP(FOR WATER BY-PASS HOSE)
90466-A0023

3URFE..USK6#

(L)

 2
96136-42501

3URFE..USK6#

(J)

 2
96136-42501

3URFE..USK6#

 2
16267C - HOSE, WATER BY-PASS, NO.4
16281-38080

3URFE..USK6#

 1
16281-38010

3URFE..USK6#

 1
16267D - CLIP(FOR WATER BY-PASS HOSE NO.4)
96136-41501

3URFE..USK6#

 2
90466-A0016

3URFE..USK6#

(L)

 2
96136-41501

3URFE..USK6#

(J)

 2
16267D - CLIP(FOR WATER BY-PASS HOSE NO.4)
96136-41501

3URFE..USK6#

 2
90466-A0016

3URFE..USK6#

(L)

 2
96136-41501

3URFE..USK6#

(J)

 2
16267K - HOSE, WATER BY-PASS, NO.3
16267-38020

3URFE..USK6#

 1
16267-38020

3URFE..USK6#

(J)

 1
16267-0S030

3URFE..USK6#

(L)

 1
16268 - PIPE, WATER BY-PASS, NO.1
16268-0S030

3URFE..USK6#

 1
16268-0S010

3URFE..USK6#

 1
16268L - PIPE, WATER BY-PASS
16268-38030

3URFE..USK6#

 1
16268-38090

3URFE..USK6#

 1
16278 - PIPE, WATER BY-PASS, NO.2
16278-0S010

3URFE..USK6#

 1
16279 - PIPE, WATER BY-PASS, NO.3
16279-38040

3URFE..USK6#

 1
16281 - HOSE, WATER BY-PASS, NO.4
16281-0S010

3URFE..USK6#

 1
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
90466-A0023

3URFE..USK6#

 2
96136-42501

3URFE..USK6#

 2
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
90466-A0023

3URFE..USK6#

 2
96136-42501

3URFE..USK6#

 2
16281F - HOSE, WATER BY-PASS, NO.5
16282-38010

3URFE..USK6#

 1
16282-0S030

3URFE..USK6#

(L)

 1
16282-38010

3URFE..USK6#

(J)

 1
16281G - CLIP(FOR WATER BY-PASS HOSE NO.5)
96136-41501

3URFE..USK6#

(J)

 2
90466-A0016

3URFE..USK6#

(L)

 2
96136-41501

3URFE..USK6#

 2
16281G - CLIP(FOR WATER BY-PASS HOSE NO.5)
96136-41501

3URFE..USK6#

(J)

 2
90466-A0016

3URFE..USK6#

(L)

 2
96136-41501

3URFE..USK6#

 2
16282 - HOSE, WATER BY-PASS, NO.5
16282-0S011

3URFE..USK6#

 1
16282-0S020

3URFE..USK6#

 1
16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
96136-42501

3URFE..USK6#

 1
90466-A0023

3URFE..USK6#

 1
16283 - HOSE, WATER BY-PASS, NO.6
16283-38010

3URFE..USK6#

 1
16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
90466-A0018

3URFE..USK6#

(L),NO.2

 1
96136-52101

3URFE..USK6#

NO.1

 1
96136-52101

3URFE..USK6#

NO.1 & NO.2

 2
96136-42101

3URFE..USK6#

(J),NO.2

 1
16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
90466-A0018

3URFE..USK6#

(L),NO.2

 1
96136-52101

3URFE..USK6#

NO.1

 1
96136-52101

3URFE..USK6#

NO.1 & NO.2

 2
96136-42101

3URFE..USK6#

(J),NO.2

 1
16293 - HOSE, WATER BY-PASS, NO.10
16293-38020

3URFE..USK6#

 1
16293A - CLIP(FOR WATER BY-PASS HOSE NO.10)
90466-A0016

3URFE..USK6#

(L)

 2
96136-41501

3URFE..USK6#

(J)

 2
16293A - CLIP(FOR WATER BY-PASS HOSE NO.10)
90466-A0016

3URFE..USK6#

(L)

 2
96136-41501

3URFE..USK6#

(J)

 2
16295 - HOSE, WATER BY-PASS, NO.7
16295-38010

3URFE..USK6#

 2
16295 - HOSE, WATER BY-PASS, NO.7
16295-38010

3URFE..USK6#

 2
16295A - CLIP(FOR WATER BY-PASS HOSE NO.7)
96136-42101

3URFE..USK6#

(J),NO.2

 2
96136-52101

3URFE..USK6#

NO.1 & NO.2

 4
96136-52101

3URFE..USK6#

NO.1

 2
90466-A0018

3URFE..USK6#

(L),NO.2

 2
16295A - CLIP(FOR WATER BY-PASS HOSE NO.7)
96136-52101

3URFE..USK6#

NO.1

 2
96136-42101

3URFE..USK6#

(J),NO.2

 2
96136-52101

3URFE..USK6#

NO.1 & NO.2

 4
90466-A0018

3URFE..USK6#

(L),NO.2

 2
16295A - CLIP(FOR WATER BY-PASS HOSE NO.7)
96136-42101

3URFE..USK6#

(J),NO.2

 2
96136-52101

3URFE..USK6#

NO.1 & NO.2

 4
96136-52101

3URFE..USK6#

NO.1

 2
90466-A0018

3URFE..USK6#

(L),NO.2

 2
16295A - CLIP(FOR WATER BY-PASS HOSE NO.7)
96136-42101

3URFE..USK6#

(J),NO.2

 2
96136-52101

3URFE..USK6#

NO.1 & NO.2

 4
96136-52101

3URFE..USK6#

NO.1

 2
90466-A0018

3URFE..USK6#

(L),NO.2

 2
16297 - HOSE, WATER BY-PASS, NO.9
16297-38050

3URFE..USK6#

 1
16297A - CLIP(FOR WATER BY-PASS HOSE NO.9)
90466-A0016

3URFE..USK6#

(L)

 2
96136-41501

3URFE..USK6#

(J)

 2
16297A - CLIP(FOR WATER BY-PASS HOSE NO.9)
90466-A0016

3URFE..USK6#

(L)

 2
96136-41501

3URFE..USK6#

(J)

 2
16322 - PIPE, WATER INLET
16322-38010

3URFE..USK6#

(J)

 1
16322-38010

3URFE..USK6#

 1
16322-0S010

3URFE..USK6#

(L)

 1
16322A - RING, O(FOR WATER INLET)
96761-35035

3URFE..USK6#

 2
16322A - RING, O(FOR WATER INLET)
96761-35035

3URFE..USK6#

 2
16323 - HOUSING, WATER INLET
16323-38020

3URFE..USK6#

(J)

 1
16323-38020

3URFE..USK6#

 1
16323-0S010

3URFE..USK6#

(L)

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-38010

3URFE..USK6#

 1
16326 - GASKET, WATER INLET HOUSING, NO.2
16326-38010

3URFE..USK6#

 1
16341 - GASKET, WATER OUTLET
16341-38030

3URFE..USK6#

 2
16341 - GASKET, WATER OUTLET
16341-38030

3URFE..USK6#

 2
16355 - JOINT, WATER BY-PASS, FRONT
16355-38060

3URFE..USK6#

 1
16355-38010

3URFE..USK6#

 1
16877 - COVER, HEAT EXCHANGER, NO.1
16870-38010

3URFE..USK6#

 1
Common parts
90105-A0120
90105-A0123
90119-A0127
90119-A0142
90119-A0143
90126-08050
90126-A0017
90178-A0023
90178-A0024
90466-A0018
91551-80835
91551-80870
91671-80612
91671-80614
91671-80820
94151-80600
94151-80800
96136-42101
99556-20200
Linked diagrams
1201
1503
2211
3514
8716

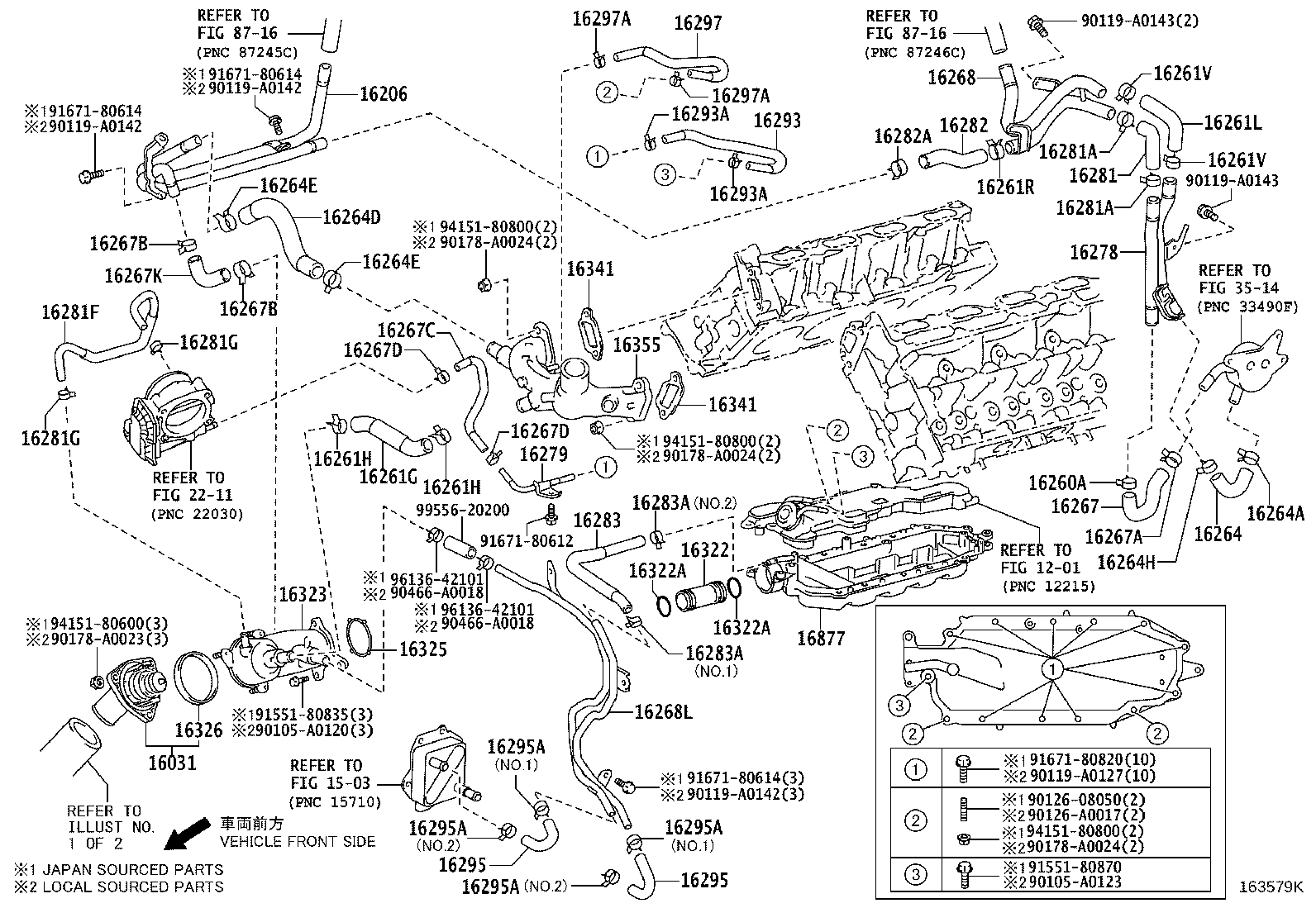

ILLUST NO. 2 OF 2(0811-1308)

Click highlighted areas on diagram

diagram 1503 16031 16206 16260A 16261G 16261H 16261H 16261L 16261R 16261V 16261V 16264 16264A 16264D 16264E 16264E 16264H 16267 16267A 16267B 16267B 16267C 16267D 16267D 16267K 16268 16268L 16278 16281 16281A 16281A 16281F 16281G 16281G 16282 16282A 16283 16283A 16283A 16295 16295 16295A 16295A 16295A 16295A 16322 16322A 16322A 16323 16325 16326 16341 16341 16355 16877 2211 3514 8716 8716 90105A0120 90105A0123 90119A0127 90119A0142 90119A0142 90119A0142 90119A0143 90119A0143 9012608050 90126A0017 90178A0023 90178A0024 90178A0024 90178A0024 90466A0018 90466A0018 9155180835 9155180870 9167180614 9167180614 9167180614 9167180820 9415180600 9415180800 9415180800 9415180800 9613642101 9613642101 9955620200
Part # Description Qty Price
16031 - WATER INLET SUB-ASSY, W/THERMOSTAT
16031-0S010

3URFE..USK6#

(L)

 1
16031-38010

3URFE..USK6#

(J)

 1
16031-38010

3URFE..USK6#

 1
16206 - PIPE SUB-ASSY, WATER BY-PASS
16206-38091

3URFE..USK6#

 1
16206-38090

3URFE..USK6#

 1
16260A - CLIP(FOR WATER BY-PASS HOSE ASSY)
96136-42501

3URFE..USK6#

 1
90466-A0023

3URFE..USK6#

 1
16261G - HOSE, WATER BY-PASS, NO.1
16261-0S030

3URFE..USK6#

(L)

 1
16261-38020

3URFE..USK6#

 1
16261-38020

3URFE..USK6#

(J)

 1
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
96136-42101

3URFE..USK6#

(J)

 2
96136-52101

3URFE..USK6#

 2
90466-A0018

3URFE..USK6#

(L)

 2
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
96136-42101

3URFE..USK6#

(J)

 2
96136-52101

3URFE..USK6#

 2
90466-A0018

3URFE..USK6#

(L)

 2
16261L - HOSE, WATER BY-PASS
16261-0S010

3URFE..USK6#

 1
16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE)
90466-A0023

3URFE..USK6#

 1
96136-42501

3URFE..USK6#

 1
16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90466-A0023

3URFE..USK6#

 2
96136-42501

3URFE..USK6#

 2
16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90466-A0023

3URFE..USK6#

 2
96136-42501

3URFE..USK6#

 2
16264 - HOSE, WATER BY-PASS, NO.2
16264-0S011

3URFE..USK6#

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96136-42501

3URFE..USK6#

 1
90466-A0023

3URFE..USK6#

 1
16264D - HOSE, WATER BY-PASS, NO.2
16264-0S030

3URFE..USK6#

(L)

 1
16264-38040

3URFE..USK6#

 1
16264-38040

3URFE..USK6#

(J)

 1
16264E - CLIP(FOR WATER BY-PASS HOSE NO.2)
96136-42501

3URFE..USK6#

 2
96136-42501

3URFE..USK6#

(J)

 2
90466-A0023

3URFE..USK6#

(L)

 2
16264E - CLIP(FOR WATER BY-PASS HOSE NO.2)
96136-42501

3URFE..USK6#

 2
96136-42501

3URFE..USK6#

(J)

 2
90466-A0023

3URFE..USK6#

(L)

 2
16264H - CLIP(FOR WATER BY-PASS HOSE NO.3)
96136-42501

3URFE..USK6#

 1
90466-A0023

3URFE..USK6#

 1
16267 - HOSE, WATER BY-PASS, NO.3
16267-0S011

3URFE..USK6#

 1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
96136-42501

3URFE..USK6#

 1
90466-A0023

3URFE..USK6#

 1
16267B - CLIP(FOR WATER BY-PASS HOSE)
90466-A0023

3URFE..USK6#

(L)

 2
96136-42501

3URFE..USK6#

(J)

 2
96136-42501

3URFE..USK6#

 2
16267B - CLIP(FOR WATER BY-PASS HOSE)
90466-A0023

3URFE..USK6#

(L)

 2
96136-42501

3URFE..USK6#

(J)

 2
96136-42501

3URFE..USK6#

 2
16267C - HOSE, WATER BY-PASS, NO.4
16281-38080

3URFE..USK6#

 1
16281-38010

3URFE..USK6#

 1
16267D - CLIP(FOR WATER BY-PASS HOSE NO.4)
96136-41501

3URFE..USK6#

 2
90466-A0016

3URFE..USK6#

(L)

 2
96136-41501

3URFE..USK6#

(J)

 2
16267D - CLIP(FOR WATER BY-PASS HOSE NO.4)
96136-41501

3URFE..USK6#

 2
90466-A0016

3URFE..USK6#

(L)

 2
96136-41501

3URFE..USK6#

(J)

 2
16267K - HOSE, WATER BY-PASS, NO.3
16267-38020

3URFE..USK6#

 1
16267-38020

3URFE..USK6#

(J)

 1
16267-0S030

3URFE..USK6#

(L)

 1
16268 - PIPE, WATER BY-PASS, NO.1
16268-0S030

3URFE..USK6#

 1
16268-0S010

3URFE..USK6#

 1
16268L - PIPE, WATER BY-PASS
16268-38030

3URFE..USK6#

 1
16268-38090

3URFE..USK6#

 1
16278 - PIPE, WATER BY-PASS, NO.2
16278-0S010

3URFE..USK6#

 1
16281 - HOSE, WATER BY-PASS, NO.4
16281-0S010

3URFE..USK6#

 1
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
90466-A0023

3URFE..USK6#

 2
96136-42501

3URFE..USK6#

 2
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
90466-A0023

3URFE..USK6#

 2
96136-42501

3URFE..USK6#

 2
16281F - HOSE, WATER BY-PASS, NO.5
16282-38010

3URFE..USK6#

 1
16282-0S030

3URFE..USK6#

(L)

 1
16282-38010

3URFE..USK6#

(J)

 1
16281G - CLIP(FOR WATER BY-PASS HOSE NO.5)
96136-41501

3URFE..USK6#

(J)

 2
90466-A0016

3URFE..USK6#

(L)

 2
96136-41501

3URFE..USK6#

 2
16281G - CLIP(FOR WATER BY-PASS HOSE NO.5)
96136-41501

3URFE..USK6#

(J)

 2
90466-A0016

3URFE..USK6#

(L)

 2
96136-41501

3URFE..USK6#

 2
16282 - HOSE, WATER BY-PASS, NO.5
16282-0S011

3URFE..USK6#

 1
16282-0S020

3URFE..USK6#

 1
16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
96136-42501

3URFE..USK6#

 1
90466-A0023

3URFE..USK6#

 1
16283 - HOSE, WATER BY-PASS, NO.6
16283-38010

3URFE..USK6#

 1
16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
90466-A0018

3URFE..USK6#

(L),NO.2

 1
96136-52101

3URFE..USK6#

NO.1

 1
96136-52101

3URFE..USK6#

NO.1 & NO.2

 2
96136-42101

3URFE..USK6#

(J),NO.2

 1
16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
90466-A0018

3URFE..USK6#

(L),NO.2

 1
96136-52101

3URFE..USK6#

NO.1

 1
96136-52101

3URFE..USK6#

NO.1 & NO.2

 2
96136-42101

3URFE..USK6#

(J),NO.2

 1
16295 - HOSE, WATER BY-PASS, NO.7
16295-38010

3URFE..USK6#

 2
16295 - HOSE, WATER BY-PASS, NO.7
16295-38010

3URFE..USK6#

 2
16295A - CLIP(FOR WATER BY-PASS HOSE NO.7)
96136-42101

3URFE..USK6#

(J),NO.2

 2
96136-52101

3URFE..USK6#

NO.1 & NO.2

 4
96136-52101

3URFE..USK6#

NO.1

 2
90466-A0018

3URFE..USK6#

(L),NO.2

 2
16295A - CLIP(FOR WATER BY-PASS HOSE NO.7)
96136-42101

3URFE..USK6#

(J),NO.2

 2
96136-52101

3URFE..USK6#

NO.1 & NO.2

 4
96136-52101

3URFE..USK6#

NO.1

 2
90466-A0018

3URFE..USK6#

(L),NO.2

 2
16295A - CLIP(FOR WATER BY-PASS HOSE NO.7)
96136-42101

3URFE..USK6#

(J),NO.2

 2
96136-52101

3URFE..USK6#

NO.1 & NO.2

 4
96136-52101

3URFE..USK6#

NO.1

 2
90466-A0018

3URFE..USK6#

(L),NO.2

 2
16295A - CLIP(FOR WATER BY-PASS HOSE NO.7)
96136-42101

3URFE..USK6#

(J),NO.2

 2
96136-52101

3URFE..USK6#

NO.1 & NO.2

 4
96136-52101

3URFE..USK6#

NO.1

 2
90466-A0018

3URFE..USK6#

(L),NO.2

 2
16322 - PIPE, WATER INLET
16322-38010

3URFE..USK6#

(J)

 1
16322-38010

3URFE..USK6#

 1
16322-0S010

3URFE..USK6#

(L)

 1
16322A - RING, O(FOR WATER INLET)
96761-35035

3URFE..USK6#

 2
16322A - RING, O(FOR WATER INLET)
96761-35035

3URFE..USK6#

 2
16323 - HOUSING, WATER INLET
16323-38020

3URFE..USK6#

(J)

 1
16323-38020

3URFE..USK6#

 1
16323-0S010

3URFE..USK6#

(L)

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-38010

3URFE..USK6#

 1
16326 - GASKET, WATER INLET HOUSING, NO.2
16326-38010

3URFE..USK6#

 1
16341 - GASKET, WATER OUTLET
16341-38030

3URFE..USK6#

 2
16341 - GASKET, WATER OUTLET
16341-38030

3URFE..USK6#

 2
16355 - JOINT, WATER BY-PASS, FRONT
16355-38060

3URFE..USK6#

 1
16355-38010

3URFE..USK6#

 1
16877 - COVER, HEAT EXCHANGER, NO.1
16870-38010

3URFE..USK6#

 1
Common parts
90105-A0120
90105-A0123
90119-A0127
90119-A0142
90119-A0143
90126-08050
90126-A0017
90178-A0023
90178-A0024
90466-A0018
91551-80835
91551-80870
91671-80614
91671-80820
94151-80600
94151-80800
96136-42101
99556-20200
Linked diagrams
1503
2211
3514
8716
