USK60L-GKTZKV (2008)

Toyota Sequoia

Production Nov 2008 - Sep 2016
Engine 3URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )

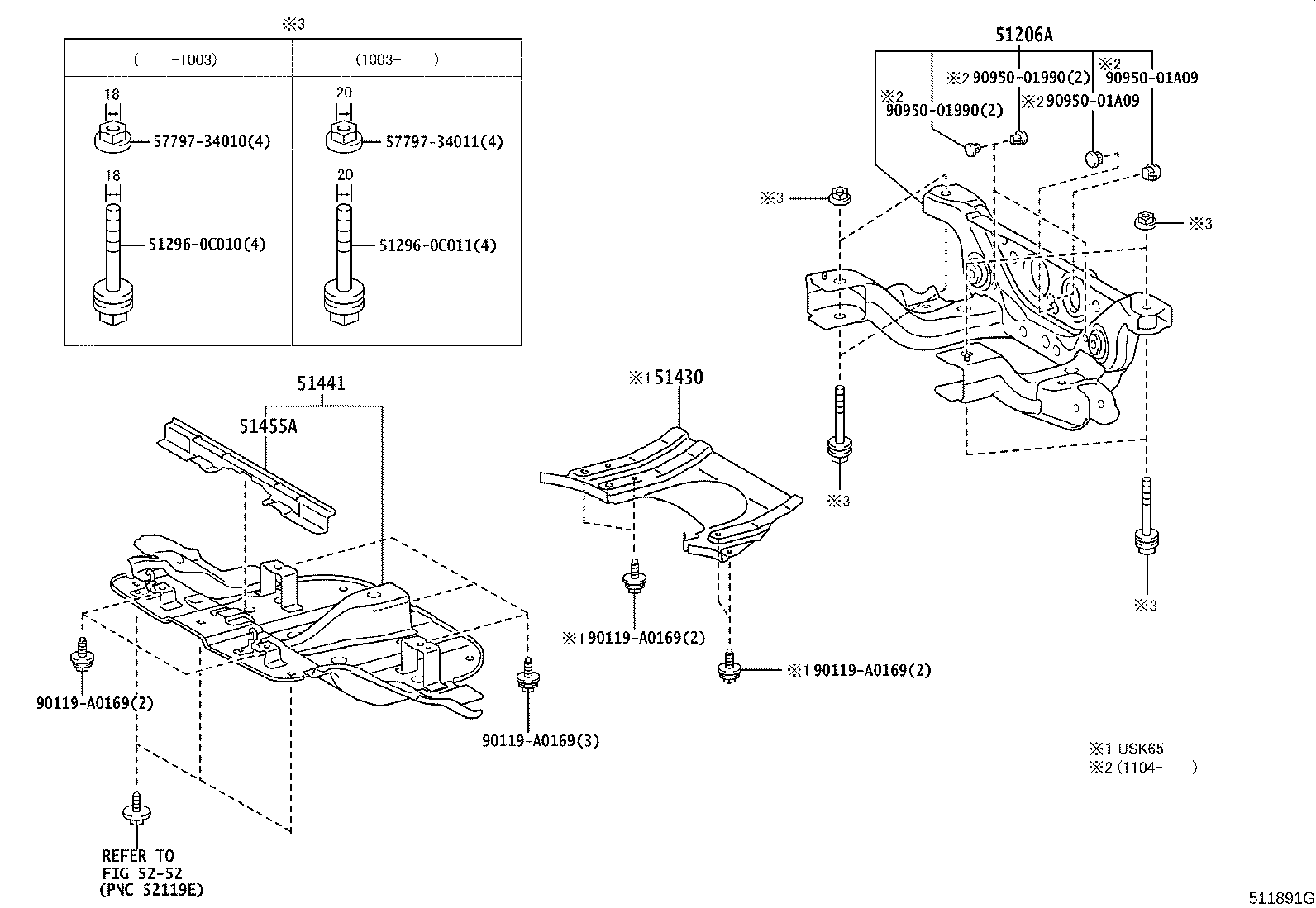

Click highlighted areas on diagram

diagram 51206A 512960C010 512960C011 51430 51441 51455A 5252 5779734010 5779734011 90119A0169 90119A0169 90119A0169 90119A0169 9095001990 9095001990 9095001A09 9095001A09
Part # Description Qty Price
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51270-0C010

USK6#

 1
51270-0C011

USK6#

 1
51270-0C012

USK6#

 1
51441 - COVER, ENGINE UNDER, NO.1
51410-0C010

USK6#

 1
51455A - SEAL, ENGINE UNDER COVER, NO.1
51455-0C010

USK6#

 1
Common parts
51296-0C010
51296-0C011
57797-34010
57797-34011
90119-A0169
90950-01990
90950-01A09
Linked diagrams
5252
