Toyota Sequoia USK60 SPEAKER - JDM Part Detective

USK60L-GKTSKV (2008)

Toyota Sequoia

Production Nov 2008 - Sep 2016

Engine 3URFE

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0811- )

Click highlighted areas on diagram

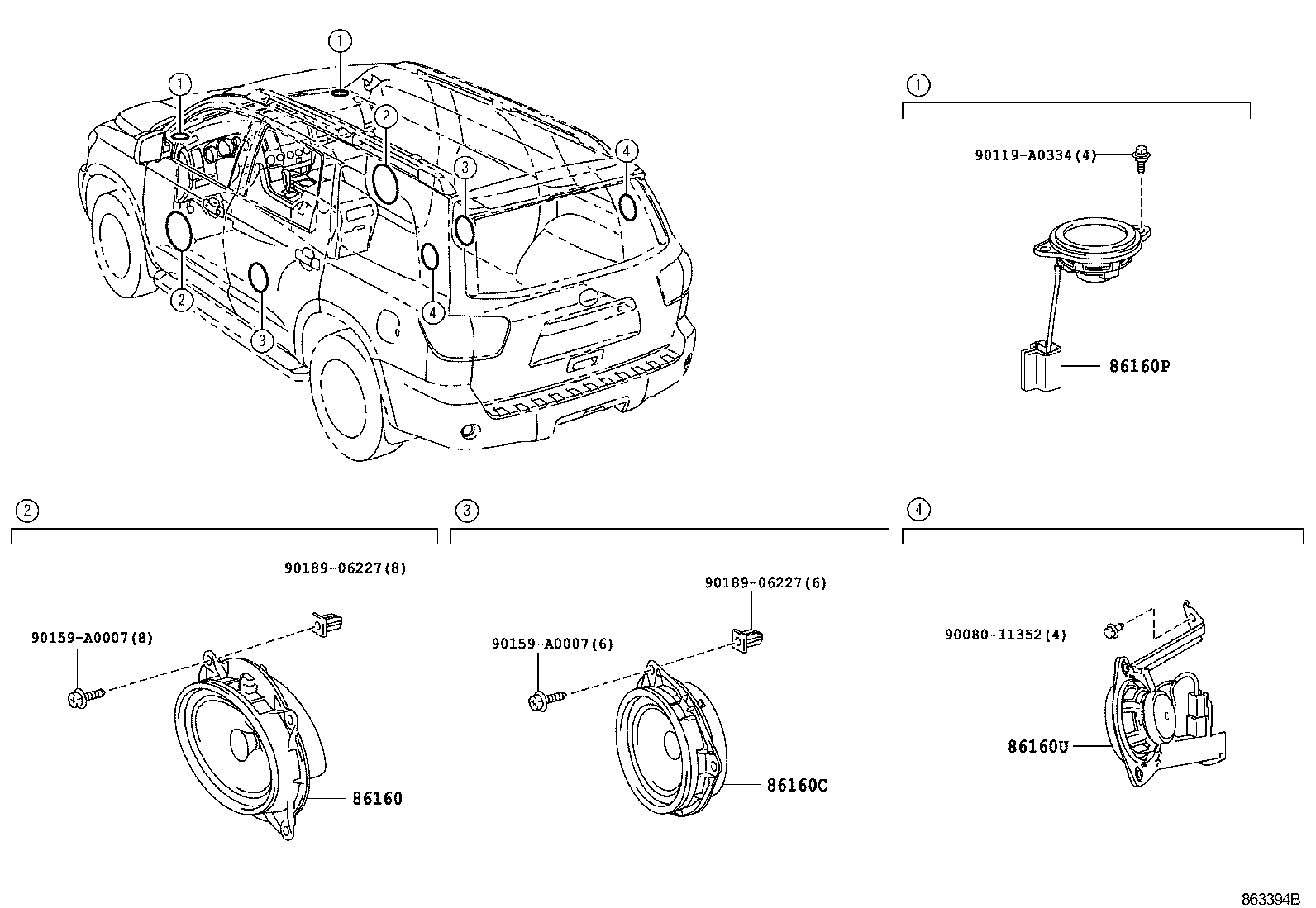

8 SPEAKER

Part #	Description	Period	Qty
86160 - SPEAKER ASSY, FRONT NO.1
86160-0C150	USK6#..SR5 AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL	11/2008 - 08/2014	2
86160-AA440	USK6#..SR5	11/2008 - 09/2016	2
86160C - SPEAKER SET, REAR
86160-AC290	USK6#..SR5	11/2008 - 11/2011	2
86160-0C140	USK6#..SR5	12/2011 - 09/2016	2
86160-AC280	USK6#..SR5 AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL	11/2008 - 08/2014	2
86160P - SPEAKER ASSY, FRONT NO.2
86160-AE010	USK6#..SR5	11/2008 - 09/2016	2
86160-0C160	USK6#..SR5 AUDIO-*DA(DELUXE) 12SPEAKER	08/2014 - 09/2016	2
86160-0C070	USK6#..SR5 AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL	11/2008 - 08/2014	2
86160U - SPEAKER ASSY, QUARTER SIDE
86160-0C110	USK6#..SR5 AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL,LH	11/2008 - 08/2014	1
86160-0C090	USK6#..SR5 LH	11/2008 - 09/2016	1
86160-0C120	USK6#..SR5 AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL,RH	11/2008 - 08/2014	1
86160-0C100	USK6#..SR5 RH	11/2008 - 09/2016	1
86160-0C190	USK6#..SR5 AUDIO-*DA(DELUXE) 12SPEAKER,LH	08/2014 - 09/2016	1
86160-0C200	USK6#..SR5 AUDIO-*DA(DELUXE) 12SPEAKER,RH	08/2014 - 09/2016	1
Common parts
90080-11352
90119-A0334
90159-A0007
90189-06227

(0811- )

Click highlighted areas on diagram

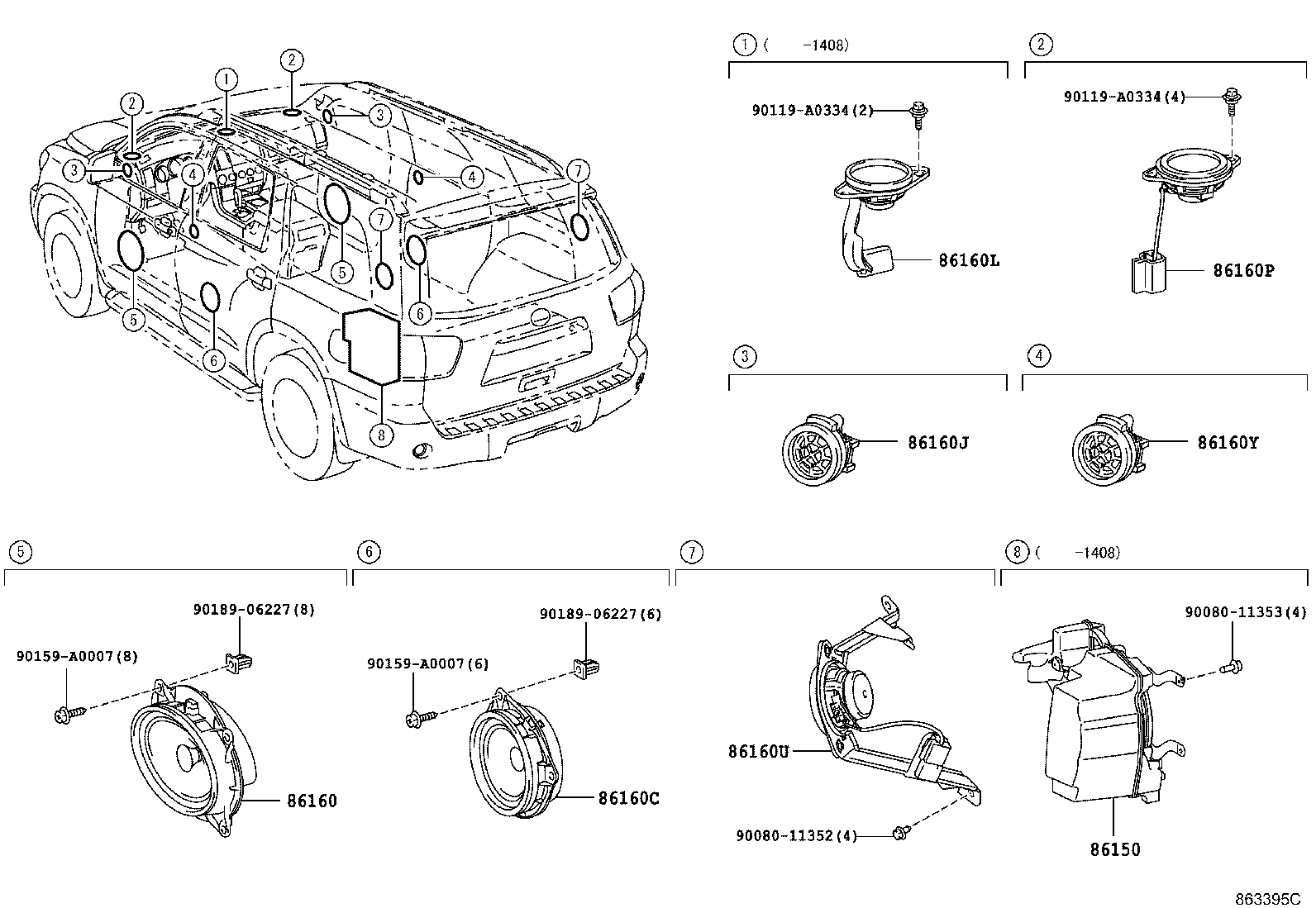

14 SPEAKER

Part #	Description	Period	Qty
86150 - SPEAKER ASSY, W/BOX, NO.1
86150-0C030	USK6#..SR5 AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL	11/2008 - 08/2014	1
86160 - SPEAKER ASSY, FRONT NO.1
86160-0C150	USK6#..SR5 AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL	11/2008 - 08/2014	2
86160-AA440	USK6#..SR5	11/2008 - 09/2016	2
86160C - SPEAKER SET, REAR
86160-AC290	USK6#..SR5	11/2008 - 11/2011	2
86160-0C140	USK6#..SR5	12/2011 - 09/2016	2
86160-AC280	USK6#..SR5 AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL	11/2008 - 08/2014	2
86160J - SPEAKER ASSY, FRONT NO.3
86160-AC450	USK6#..SR5 AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL	11/2008 - 08/2014	2
86160-0C130	USK6#..SR5 AUDIO-*DA(DELUXE) 12SPEAKER	08/2014 - 09/2016	2
86160L - SPEAKER ASSY, FRONT NO.4
86160-AC260	USK6#..SR5 AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL	11/2008 - 08/2014	1
86160P - SPEAKER ASSY, FRONT NO.2
86160-AE010	USK6#..SR5	11/2008 - 09/2016	2
86160-0C160	USK6#..SR5 AUDIO-*DA(DELUXE) 12SPEAKER	08/2014 - 09/2016	2
86160-0C070	USK6#..SR5 AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL	11/2008 - 08/2014	2
86160U - SPEAKER ASSY, QUARTER SIDE
86160-0C110	USK6#..SR5 AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL,LH	11/2008 - 08/2014	1
86160-0C090	USK6#..SR5 LH	11/2008 - 09/2016	1
86160-0C120	USK6#..SR5 AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL,RH	11/2008 - 08/2014	1
86160-0C100	USK6#..SR5 RH	11/2008 - 09/2016	1
86160-0C190	USK6#..SR5 AUDIO-*DA(DELUXE) 12SPEAKER,LH	08/2014 - 09/2016	1
86160-0C200	USK6#..SR5 AUDIO-*DA(DELUXE) 12SPEAKER,RH	08/2014 - 09/2016	1
86160Y - SPEAKER ASSY, REAR NO.2
86160-AC450	USK6#..SR5 AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL	11/2008 - 08/2014	2
86160-0C130	USK6#..SR5 AUDIO-*DA(DELUXE) 12SPEAKER	08/2014 - 09/2016	2
Common parts
90080-11352
90080-11353
90119-A0334
90159-A0007
90189-06227

(0811- )

Click highlighted areas on diagram

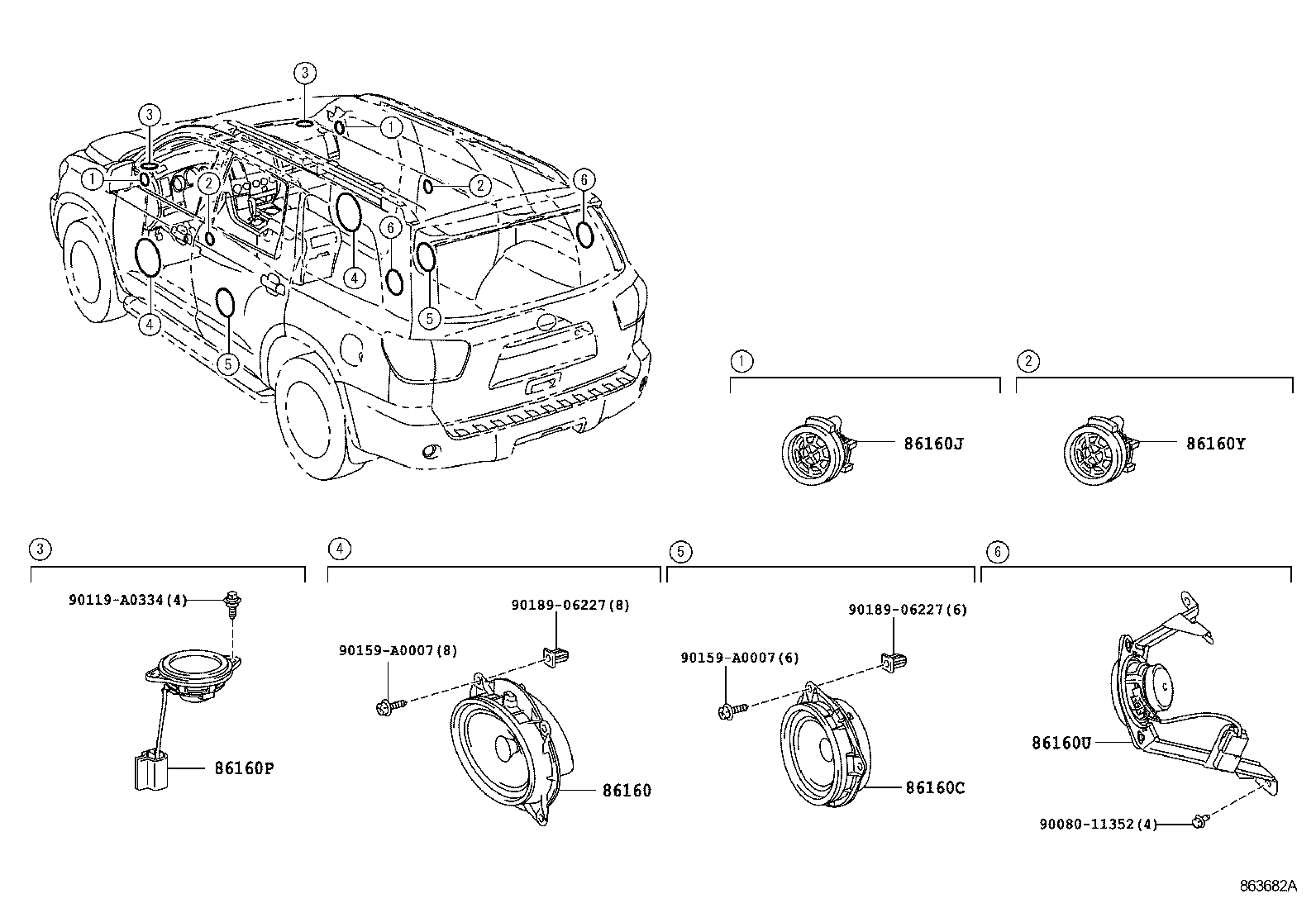

12 SPEAKER

Part #	Description	Period	Qty
86160 - SPEAKER ASSY, FRONT NO.1
86160-0C150	USK6#..SR5 AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL	11/2008 - 08/2014	2
86160-AA440	USK6#..SR5	11/2008 - 09/2016	2
86160C - SPEAKER SET, REAR
86160-AC290	USK6#..SR5	11/2008 - 11/2011	2
86160-0C140	USK6#..SR5	12/2011 - 09/2016	2
86160-AC280	USK6#..SR5 AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL	11/2008 - 08/2014	2
86160J - SPEAKER ASSY, FRONT NO.3
86160-AC450	USK6#..SR5 AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL	11/2008 - 08/2014	2
86160-0C130	USK6#..SR5 AUDIO-*DA(DELUXE) 12SPEAKER	08/2014 - 09/2016	2
86160P - SPEAKER ASSY, FRONT NO.2
86160-AE010	USK6#..SR5	11/2008 - 09/2016	2
86160-0C160	USK6#..SR5 AUDIO-*DA(DELUXE) 12SPEAKER	08/2014 - 09/2016	2
86160-0C070	USK6#..SR5 AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL	11/2008 - 08/2014	2
86160U - SPEAKER ASSY, QUARTER SIDE
86160-0C110	USK6#..SR5 AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL,LH	11/2008 - 08/2014	1
86160-0C090	USK6#..SR5 LH	11/2008 - 09/2016	1
86160-0C120	USK6#..SR5 AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL,RH	11/2008 - 08/2014	1
86160-0C100	USK6#..SR5 RH	11/2008 - 09/2016	1
86160-0C190	USK6#..SR5 AUDIO-*DA(DELUXE) 12SPEAKER,LH	08/2014 - 09/2016	1
86160-0C200	USK6#..SR5 AUDIO-*DA(DELUXE) 12SPEAKER,RH	08/2014 - 09/2016	1
86160Y - SPEAKER ASSY, REAR NO.2
86160-AC450	USK6#..SR5 AUDIO-AM/FM 6CD-CHANGER 14SPEAKER JBL	11/2008 - 08/2014	2
86160-0C130	USK6#..SR5 AUDIO-*DA(DELUXE) 12SPEAKER	08/2014 - 09/2016	2
Common parts
90080-11352
90119-A0334
90159-A0007
90189-06227
