USK60L-GKTSKV (2008)

Toyota Sequoia

Production Nov 2008 - Sep 2016
Engine 3URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

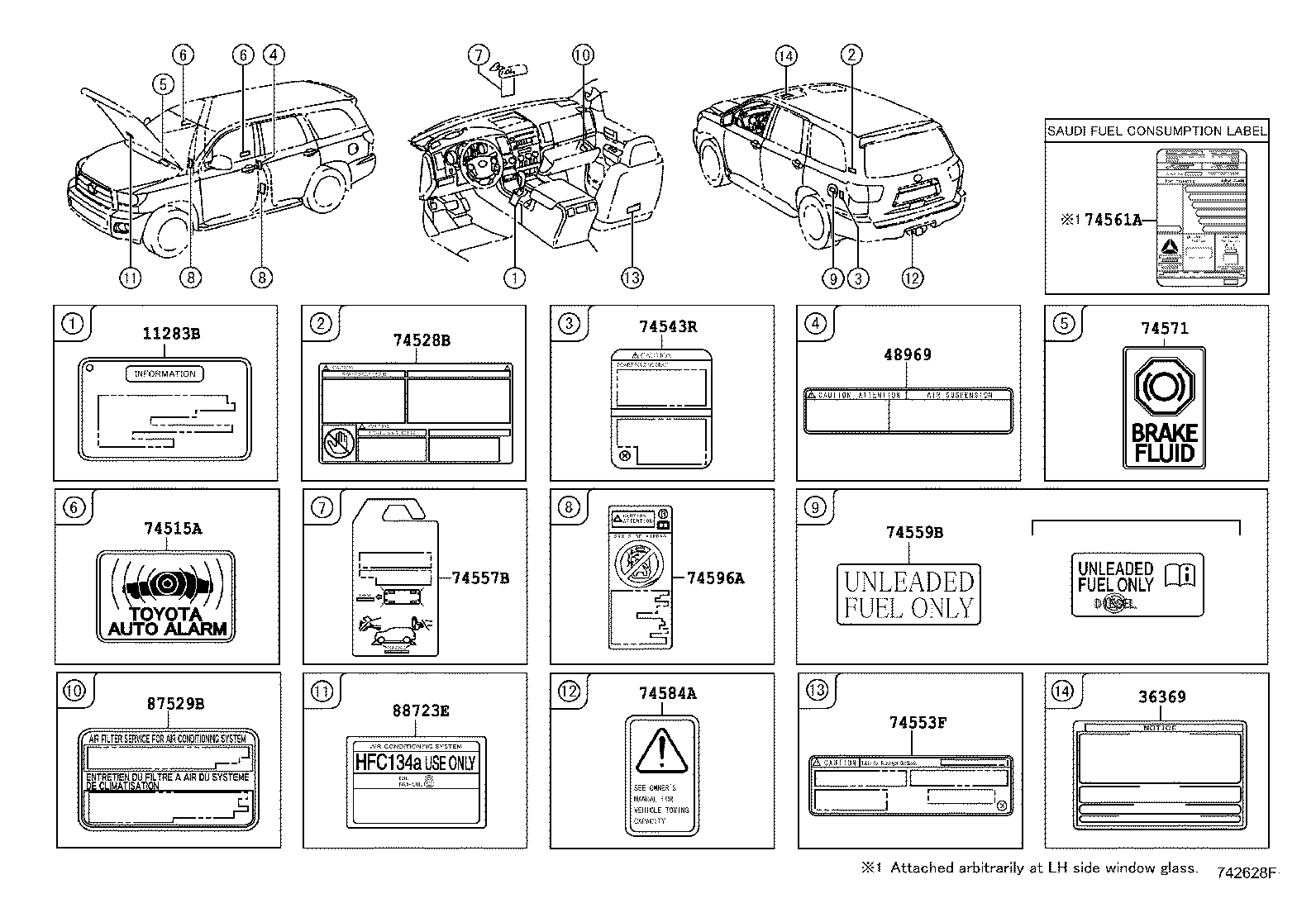

ILLUST NO. 1 OF 2(0811- )

Click highlighted areas on diagram

diagram 11283B 36369 48969 74515A 74528B 74543R 74553F 74557B 74559B 74561A 74571 74584A 74596A 87529B 88723E
Part # Description Qty Price
11283B - LABEL, LEAK DETECTION PUMP INFORMATION
11294-28010

3URFE..USK60

 1
48969 - LABEL, JACK UP CAUTION
48969-0C010

USK60..SR5

REAR SUSPENSION-AIR SUSPENSION

 1
74515A - PLATE, THEFT WARNING
74515-33020

USK6#

 2
74515-06010

USK6#

 2
74553F - LABEL, FRONT SEAT CAUTION
74553-0C050

USK60..SR5

D-POWER SEAT PACKAGE

 1
74557B - LABEL, TRANSPORT HOOK CAUTION
74557-0C010

USK6#..SR5

REAR SUSPENSION-AIR SUSPENSION

 1
74559B - LABEL, FUEL INFORMATION
74559-20140

USK6#

 1
74559-14050

USK6#

 1
74561A - LABEL, FUEL CONSUMPTION INFORMATION
74561-34011

USK6#

FUEL CONSUMPTION LABEL-WITH(FOR SAUDI ARABIA)

 1
74561-34010

USK6#

FUEL CONSUMPTION LABEL-WITH(FOR SAUDI ARABIA)

 1
74561-34021

USK60

FUEL CONSUMPTION LABEL-WITH(FOR SAUDI ARABIA)

 1
74561-34020

USK6#

FUEL CONSUMPTION LABEL-WITH(FOR SAUDI ARABIA)

 1
74571 - PLATE, BRAKE FLUID CAUTION
47287-28020

USK6#

 1
74584A - LABEL, TOWING CAUTION
74584-0C010

USK6#

 1
74596A - LABEL, SIDE AIR BAG CAUTION
74596-0C020

USK6#

 2
87529B - LABEL, A/C FILTER INFORMATION
87529-0E010

USK6#

 1
88723E - LABEL, COOLER SERVICE CAUTION
88723-07040

USK6#

 1

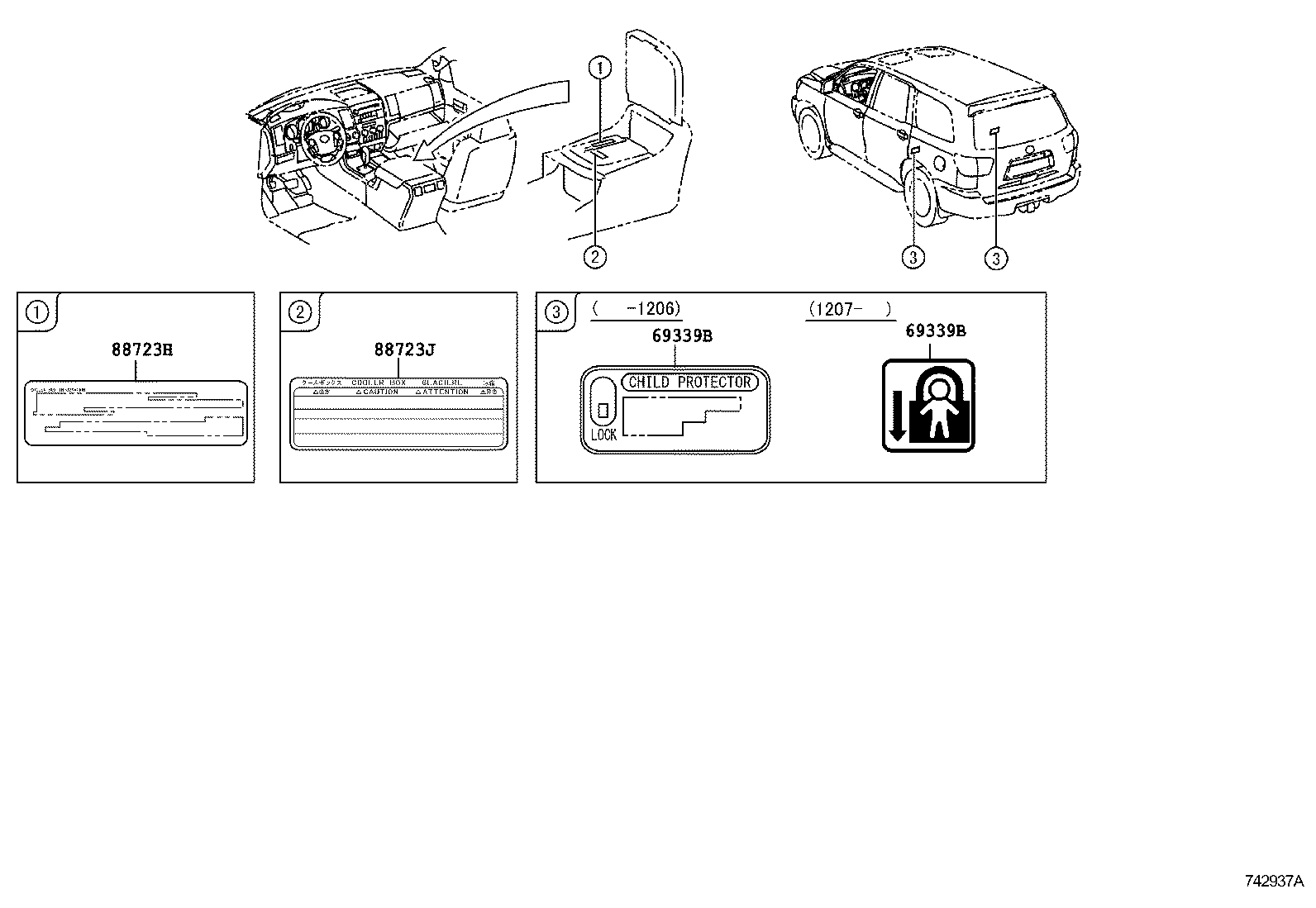

ILLUST NO. 2 OF 2(0811- )

Click highlighted areas on diagram

diagram 69339B 69339B 88723H 88723J
Part # Description Qty Price
69339B - PLATE, CHILD PROTECTOR LOCK CAUTION
69339-06040

USK6#

 2
69339-AA020

USK6#

 2
69339B - PLATE, CHILD PROTECTOR LOCK CAUTION
69339-06040

USK6#

 2
69339-AA020

USK6#

 2
88723H - LABEL, COOLER SERVICE CAUTION
88733-0C010

USK6#..LIMD,SR5

COOL BOX-WITH

 1
88723J - LABEL, COOLER SERVICE CAUTION, NO.2
88723-0C080

USK6#..LIMD,SR5

COOL BOX-WITH

 1
