USK60L-GKTSKV (2008)
Toyota Sequoia
Production
Nov 2008
-
Sep 2016
Engine
3URFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0811- )

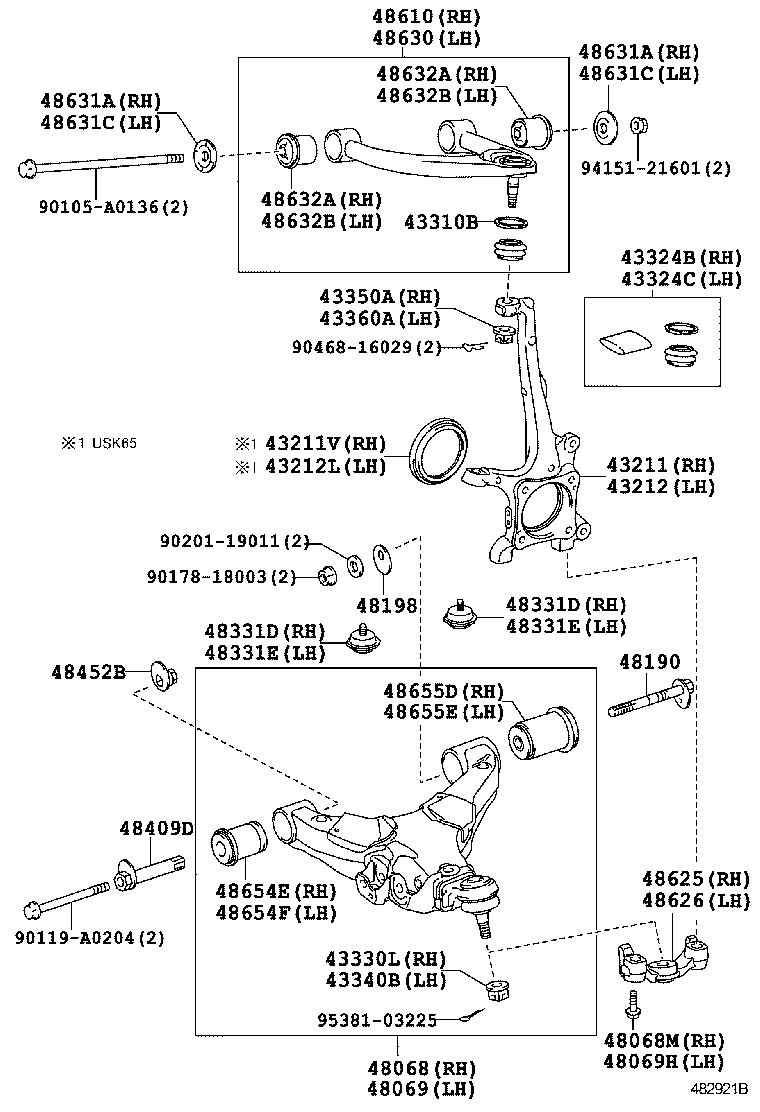

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-0C012 |
USK6# |
1 | ||
| 43211-0C020 |
USK6# |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-0C020 |
USK6# |
1 | ||
| 43212-0C012 |
USK6# |
1 | ||
| 43310B - RING, SET (FOR DUST COVER) | ||||
| 90580-10001 |
USK6# |
2 | ||
| 43324B - COVER, FRONT UPPER BALL JOINT DUST, RH | ||||
| 43324-69085 |
USK6# |
1 | ||
| 43324-69015 |
USK60 |
1 | ||
| 43324C - COVER, FRONT UPPER BALL JOINT DUST, LH | ||||
| 43324-69015 |
USK60 |
1 | ||
| 43324-69085 |
USK6# |
1 | ||
| 43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90171-18004 |
USK6# |
1 | ||
| 43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90171-18004 |
USK6# |
1 | ||
| 43350A - NUT (FOR FRONT UPPER BALL JOINT RH) | ||||
| 90171-A0001 |
USK6# |
1 | ||
| 43360A - NUT (FOR FRONT UPPER BALL JOINT LH) | ||||
| 90171-A0001 |
USK6# |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-09100 |
USK6# |
1 | ||
| 48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH) | ||||
| 90105-A0135 |
USK6# |
2 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-09090 |
USK6# |
1 | ||
| 48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH) | ||||
| 90105-A0135 |
USK6# |
2 | ||
| 48190 - CAM ASSY, CAMBER ADJUST | ||||
| 48190-34010 |
USK6# |
2 | ||
| 48198 - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-34010 |
USK6# |
2 | ||
| 48331D - BUMPER, FRONT SPRING, NO.1 RH | ||||
| 48304-0C030 |
USK6# |
2 | ||
| 48331D - BUMPER, FRONT SPRING, NO.1 RH | ||||
| 48304-0C030 |
USK6# |
2 | ||
| 48331E - BUMPER, FRONT SPRING, NO.1 LH | ||||
| 48304-0C030 |
USK6# |
2 | ||
| 48331E - BUMPER, FRONT SPRING, NO.1 LH | ||||
| 48304-0C030 |
USK6# |
2 | ||
| 48409D - CAM SUB-ASSY, FRONT SUSPENSION TOE ADJUST | ||||
| 48409-34041 |
USK6# |
2 | ||
| 48452B - PLATE, FRONT SUSPENSION TOE ADJUST, NO.2 | ||||
| 48452-34011 |
USK6# |
2 | ||
| 48610 - ARM ASSY, FRONT SUSPENSION UPPER, RH | ||||
| 48610-0C010 |
USK60 |
1 | ||
| 48610-0C011 |
USK6# |
1 | ||
| 48625 - ATTACHMENT, FRONT LOWER BALL JOINT, RH | ||||
| 48625-0C011 |
USK6# |
1 | ||
| 48626 - ATTACHMENT, FRONT LOWER BALL JOINT, LH | ||||
| 48626-0C011 |
USK6# |
1 | ||
| 48630 - ARM ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48630-0C010 |
USK60 |
1 | ||
| 48630-0C011 |
USK6# |
1 | ||
| 48631A - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM RH) | ||||
| 90948-A2007 |
USK6# |
2 | ||
| 48631A - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM RH) | ||||
| 90948-A2007 |
USK6# |
2 | ||
| 48631C - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM LH) | ||||
| 90948-A2007 |
USK6# |
2 | ||
| 48631C - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM LH) | ||||
| 90948-A2007 |
USK6# |
2 | ||
| 48632A - BUSH, FRONT SUSPENSION UPPER ARM, RH | ||||
| 48632-0C010 |
USK6# |
2 | ||
| 48632A - BUSH, FRONT SUSPENSION UPPER ARM, RH | ||||
| 48632-0C010 |
USK6# |
2 | ||
| 48632B - BUSH, FRONT SUSPENSION UPPER ARM, LH | ||||
| 48632-0C010 |
USK6# |
2 | ||
| 48632B - BUSH, FRONT SUSPENSION UPPER ARM, LH | ||||
| 48632-0C010 |
USK6# |
2 | ||
| 48654E - BUSH, FRONT LOWER ARM, NO.1 RH | ||||
| 48654-0C010 |
USK6# |
1 | ||
| 48654F - BUSH, FRONT LOWER ARM, NO.1 LH | ||||
| 48654-0C010 |
USK6# |
1 | ||
| 48655D - BUSH, FRONT LOWER ARM, NO.2 RH | ||||
| 48655-0C010 |
USK6# |
1 | ||
| 48655E - BUSH, FRONT LOWER ARM, NO.2 LH | ||||
| 48655-0C010 |
USK6# |
1 | ||
| Common parts | ||||
| 90105-A0136 | ||||
| 90119-A0204 | ||||
| 90178-18003 | ||||
| 90201-19011 | ||||
| 90468-16029 | ||||
| 94151-21601 | ||||
| 95381-03225 | ||||
