F850RE-GQQFM (2018)
Toyota Rush
Production
Dec 2018
-
Sep 9999
Engine
2NRVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1812- )

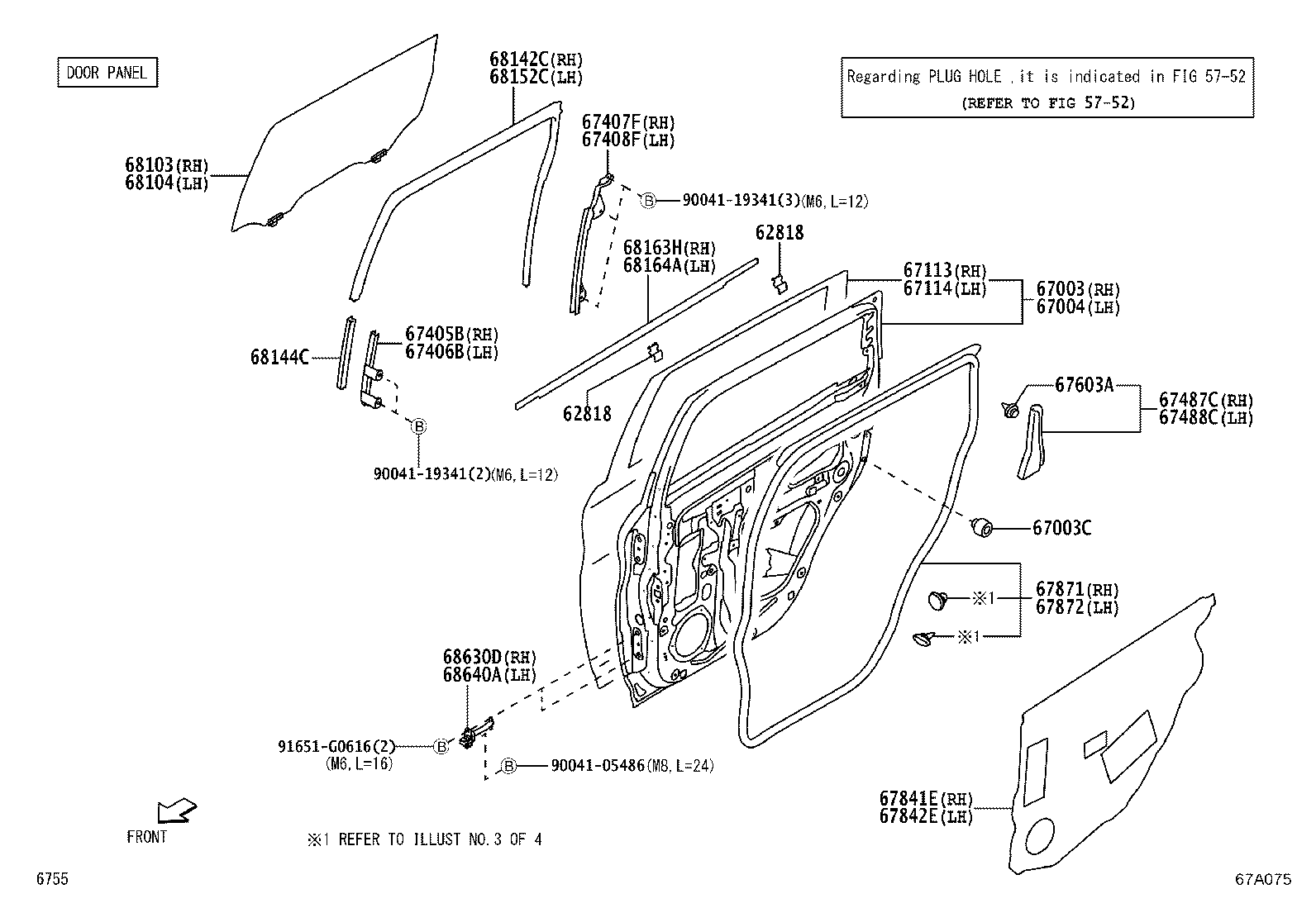

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62818 - STOPPER, REAR WINDOW GLASS | ||||
| 67216-BZ140 |
F850 |
4 | ||
| 62818 - STOPPER, REAR WINDOW GLASS | ||||
| 67216-BZ140 |
F850 |
4 | ||
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-BZ690 |
F850 |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09069 |
F850 |
2 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-BZ690 |
F850 |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-BZ410 |
F850 |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-BZ410 |
F850 |
1 | ||
| 67405B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH | ||||
| 67405-BZ060 |
F850 |
1 | ||
| 67406B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH | ||||
| 67406-BZ060 |
F850 |
1 | ||
| 67407F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH | ||||
| 67407-BZ180 |
F850 |
1 | ||
| 67408F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH | ||||
| 67408-BZ180 |
F850 |
1 | ||
| 67487C - SEAL, REAR DOOR REAR GUIDE, RH | ||||
| 67487-BZ070 |
F850 |
1 | ||
| 67488C - SEAL, REAR DOOR REAR GUIDE, LH | ||||
| 67488-BZ070 |
F850 |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-B2010 |
F850 |
6 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-BZ410 |
F850 |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-BZ090 |
F850 |
1 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-BZ210 |
F850 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-BZ200 |
F850 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-BZ411 |
F850 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-BZ411 |
F850 |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-BZ190 |
F850 |
1 | ||
| 68144C - RUN, REAR DOOR GLASS, LOWER FRONT | ||||
| 68144-BZ090 |
F850 |
2 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-BZ190 |
F850 |
1 | ||
| 68163H - WEATHERSTRIP, REAR DOOR GLASS, OUTER RH | ||||
| 68163-BZ191 |
F850 |
1 | ||
| 68163-BZ200 |
F850 |
1 | ||
| 68164A - WEATHERSTRIP, REAR DOOR GLASS, OUTER LH | ||||
| 68164-BZ181 |
F850 |
1 | ||
| 68164-BZ190 |
F850 |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-BZ160 |
F850 |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68630-BZ160 |
F850 |
1 | ||
| Common parts | ||||
| 90041-05486 | ||||
| 90041-19341 | ||||
| 91651-G0616 | ||||
| Linked diagrams | ||||
| 5752 | ||||

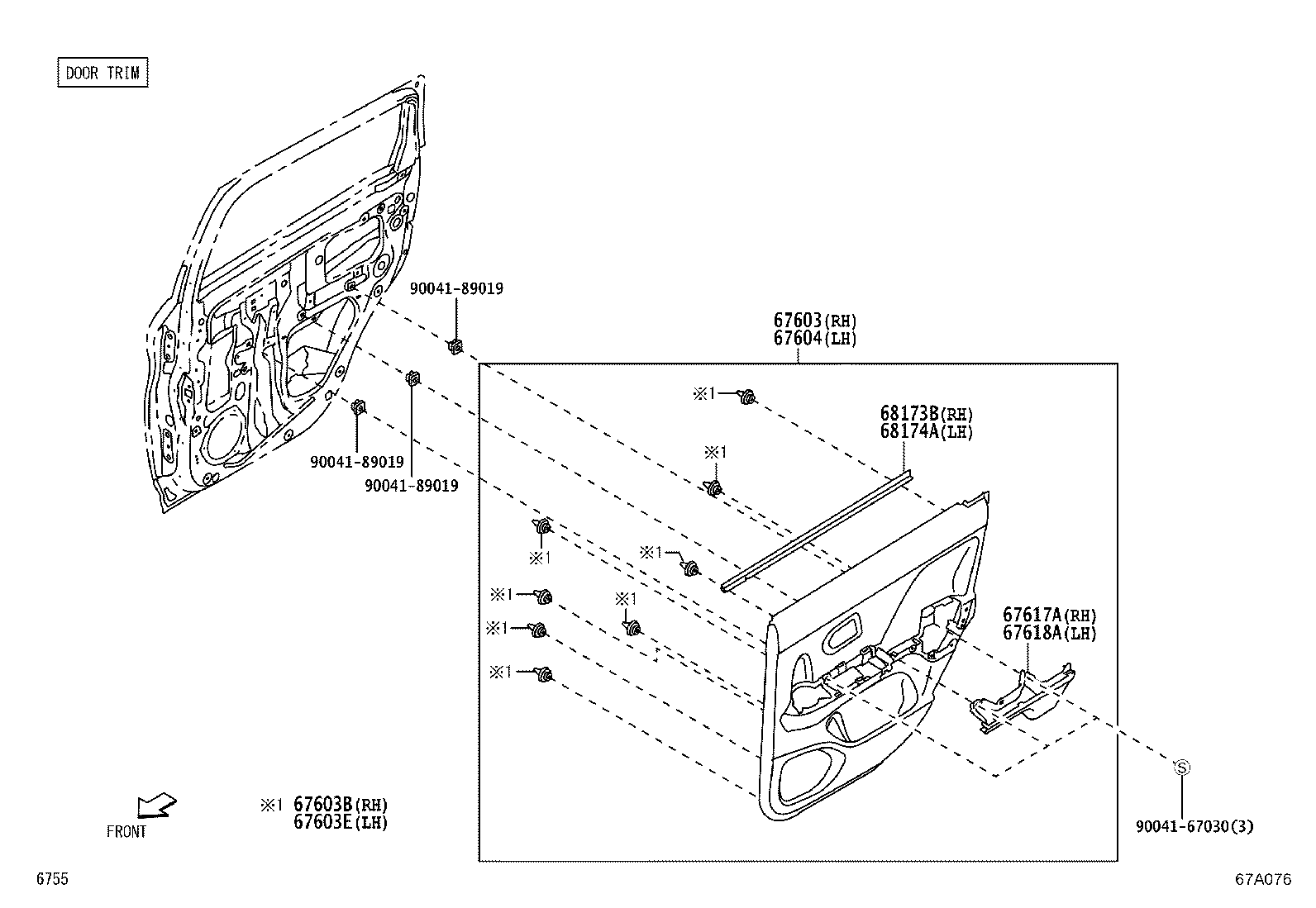

(1812- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-BZ640C1 |
F850 -,TRIM1# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
F850 |
8 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
F850 |
8 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-BZ640C1 |
F850 -,TRIM1# |
1 | ||
| 67617A - BASE, REAR DOOR TRIM, RH | ||||
| 74647-BZ050E0 |
F850 IVORY,TRIM1# |
1 | ||
| 67618A - BASE, REAR DOOR TRIM, LH | ||||
| 74648-BZ050E0 |
F850 IVORY,TRIM1# |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-BZ240 |
F850 |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-BZ200 |
F850 |
1 | ||
| Common parts | ||||
| 90041-67030 | ||||
| 90041-89019 | ||||

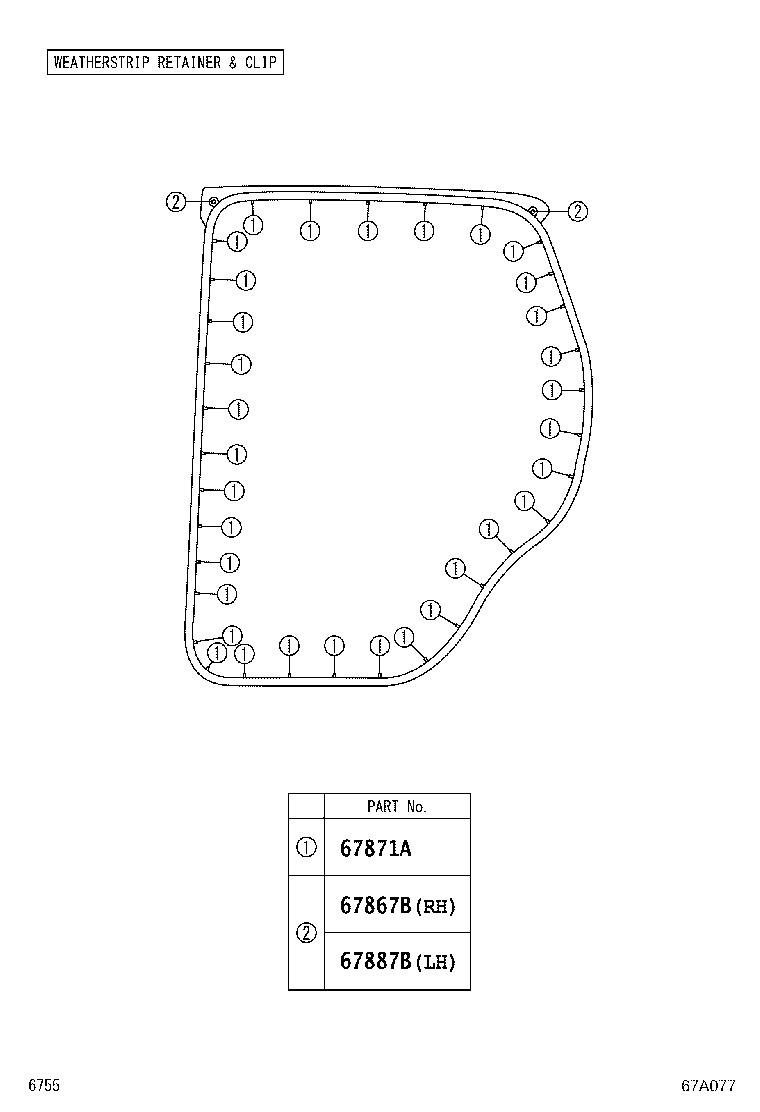

(1812- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) | ||||
| 90467-06084 |
F850 |
2 | ||
| 67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP) | ||||
| 67867-BZ110 |
F850 |
33 | ||
| 67887B - CLIP(FOR REAR DOOR WEATHERSTRIP) | ||||
| 90467-06084 |
F850 |
2 | ||

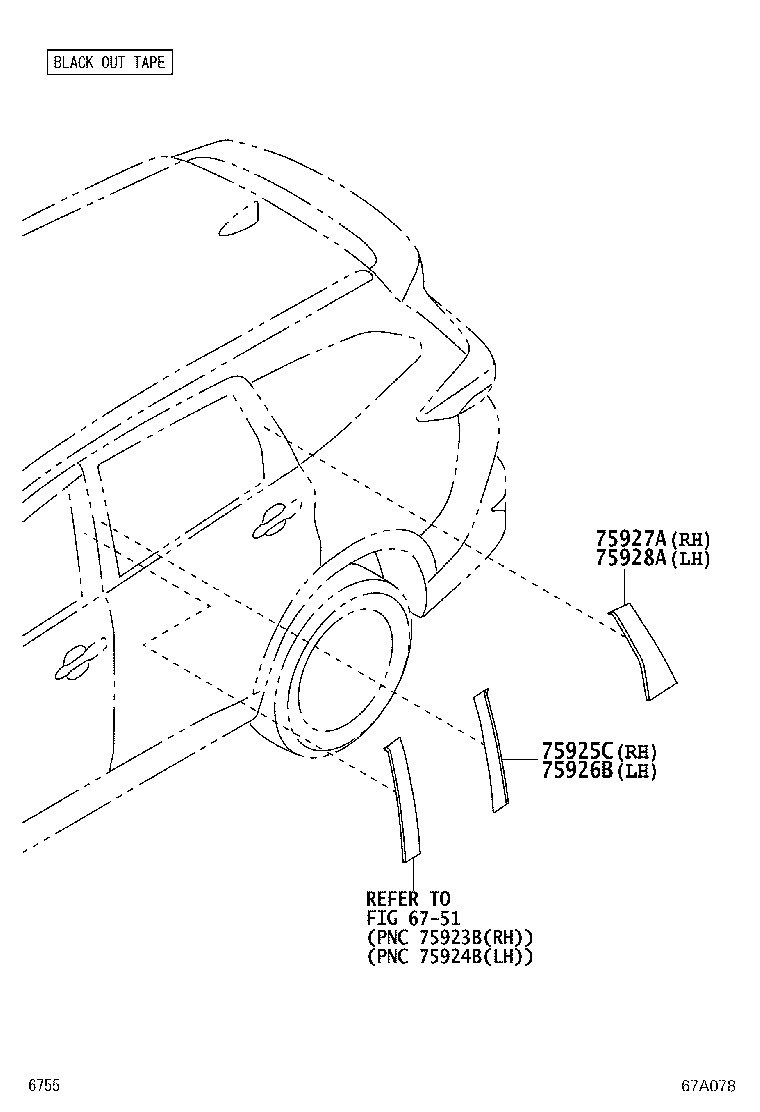

(1812- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75925C - TAPE, BLACK OUT, NO.3 RH | ||||
| 75925-BZ130C0 |
F850 TUYAKESI BLACK DUMMYCOLOR,B77 ,B85 ,R68 ,S28 ,S43 ,W09 |
1 | ||
| 75926B - TAPE, BLACK OUT, NO.3 LH | ||||
| 75926-BZ120C0 |
F850 TUYAKESI BLACK DUMMYCOLOR,B77 ,B85 ,R68 ,S28 ,S43 ,W09 |
1 | ||
| 75927A - TAPE, BLACK OUT, NO.4 RH | ||||
| 75927-BZ050C0 |
F850 TUYAKESI BLACK DUMMYCOLOR,B77 ,B85 ,R68 ,S28 ,S43 ,W09 |
1 | ||
| 75928A - TAPE, BLACK OUT, LH | ||||
| 75928-BZ050C0 |
F850 TUYAKESI BLACK DUMMYCOLOR,B77 ,B85 ,R68 ,S28 ,S43 ,W09 |
1 | ||
| Linked diagrams | ||||
| 6751 | ||||
