Toyota Rush F850 DISC WHEEL & WHEEL CAP

Home Blog About Contact Search

F850RE-GQQFM (2018)

Toyota Rush

Production Dec 2018 - Sep 9999

Engine 2NRVE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

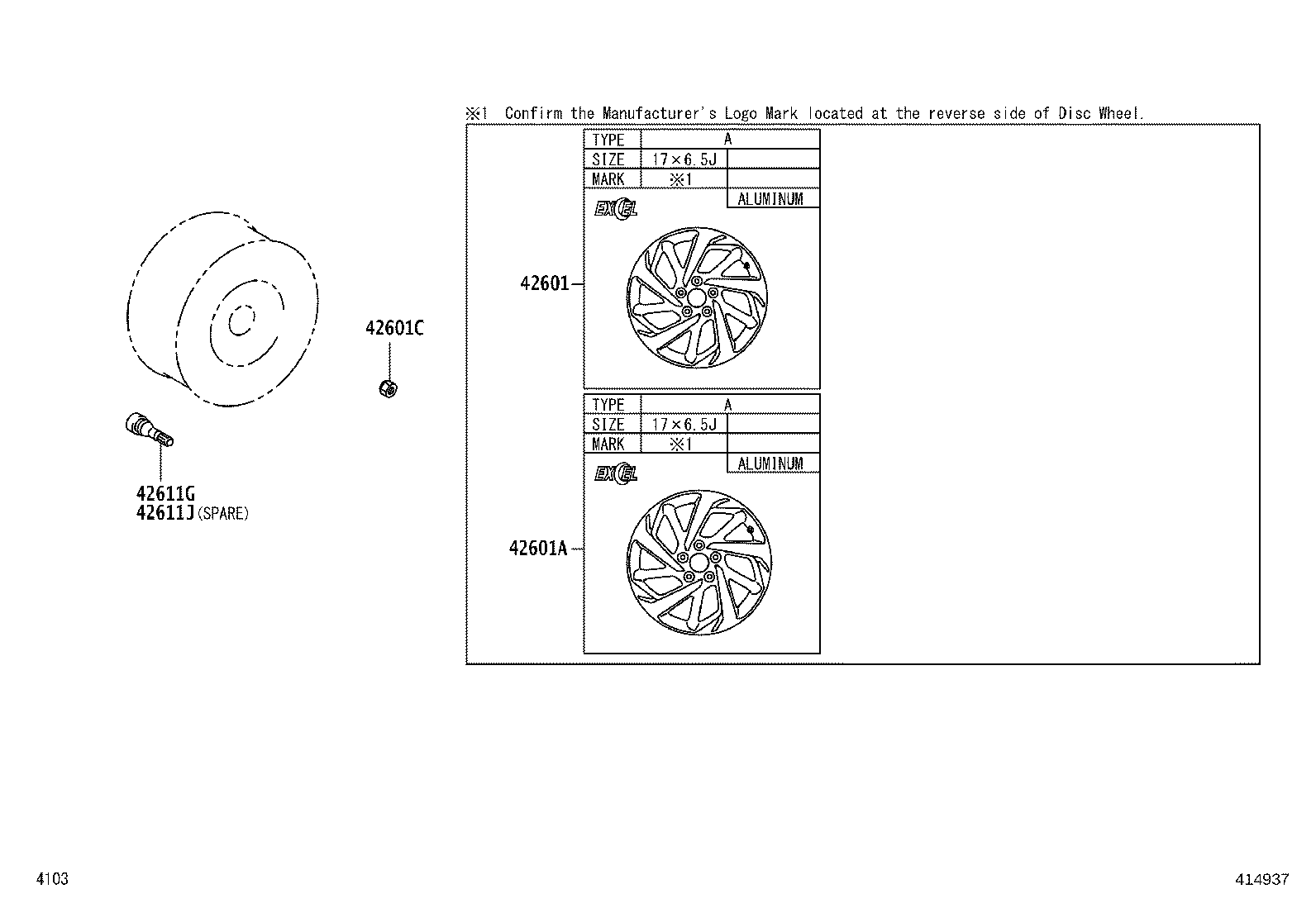

DISC WHEEL

Part #	Description	Period	Qty
42601 - WHEEL, DISC
42611-BZB70	F850 17X6.5J(AL),TYPE A EXCEL	12/2018 - 12/2999	4
42601A - WHEEL, DISC (FOR SPARE)
42611-BZB70	F850 17X6.5J(AL),TYPE A EXCEL	12/2018 - 12/2999	1
42601C - NUT, HUB (FOR AXLE)
9004A-94084	F850	03/2019 - 12/2999	20
9004A-94124	F850	12/2018 - 02/2019	20
42611G - VALVE (FOR TUBELESS TIRE)
9004A-94004	F850	12/2018 - 12/2999	4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
9004A-94004	F850	12/2018 - 12/2999	1

Click highlighted areas on diagram

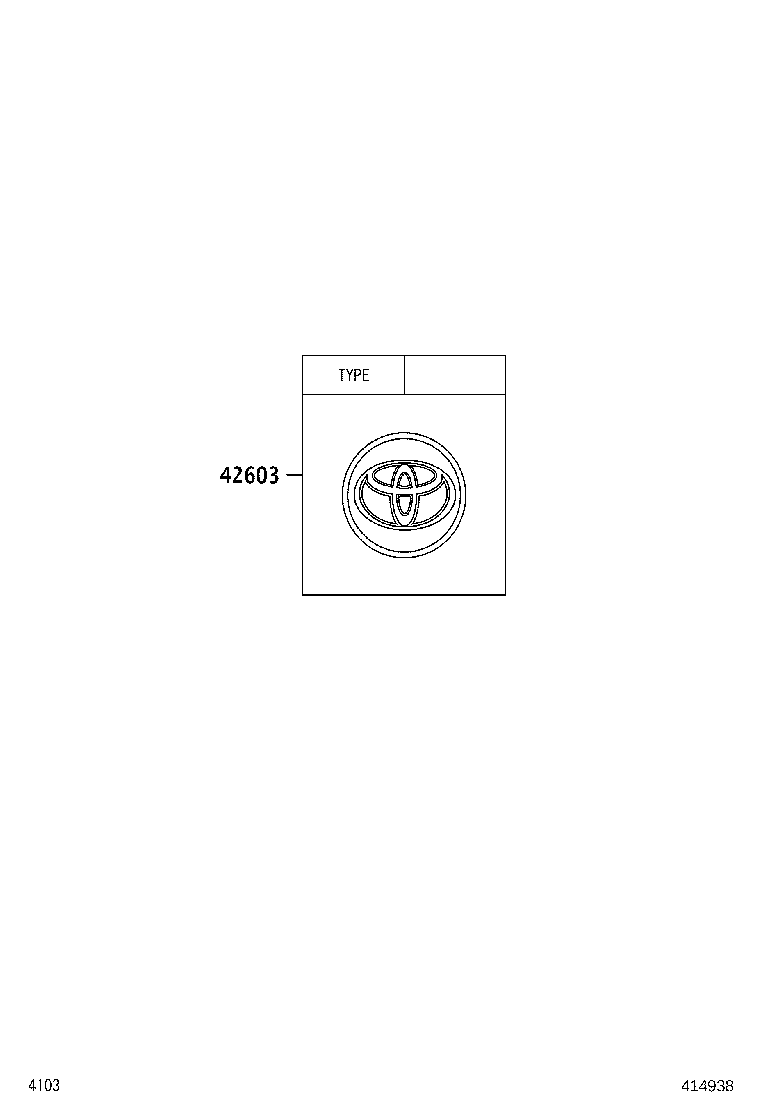

ONAMENT

Part #	Description	Period	Qty	Price
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42638-BZ420	F850	12/2018 - 12/2999	4

Part #

Description

Qty

Price

42603 - ORNAMENT SUB-ASSY, WHEEL HUB

42638-BZ420

F850

Click highlighted areas on diagram

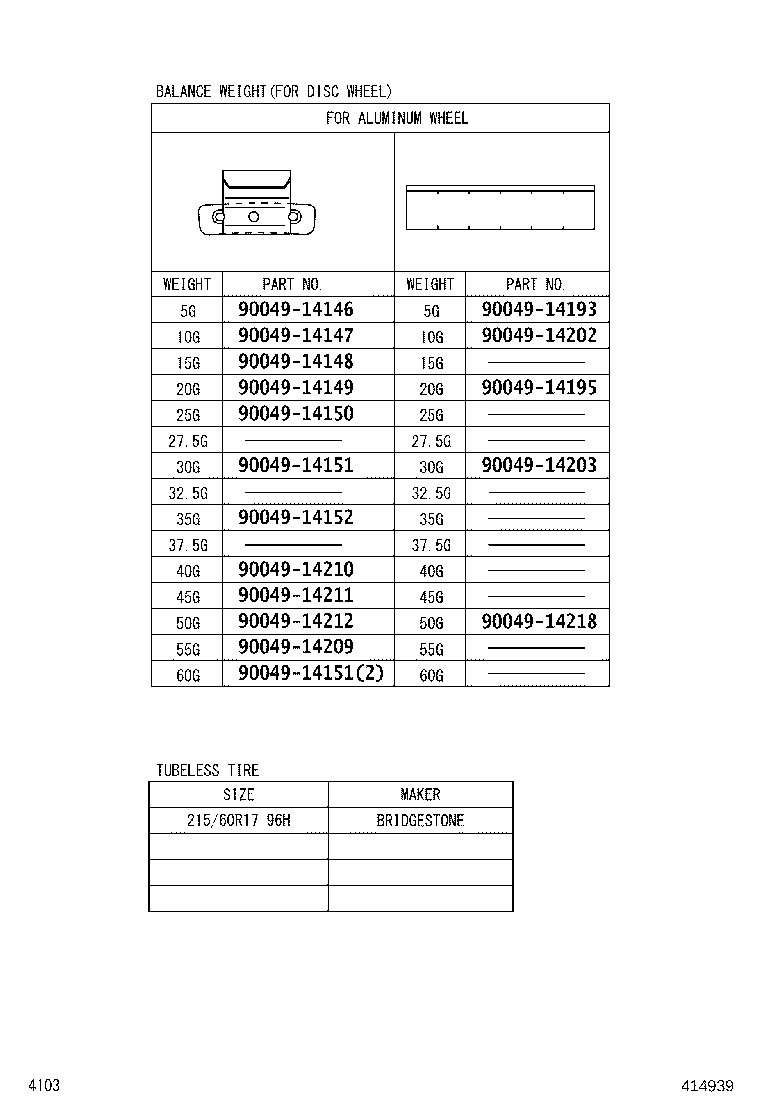

BALANCE WEIGHT
