F850RE-GQQFM (2018)
Toyota Rush
Production
Dec 2018
-
Sep 9999
Engine
2NRVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

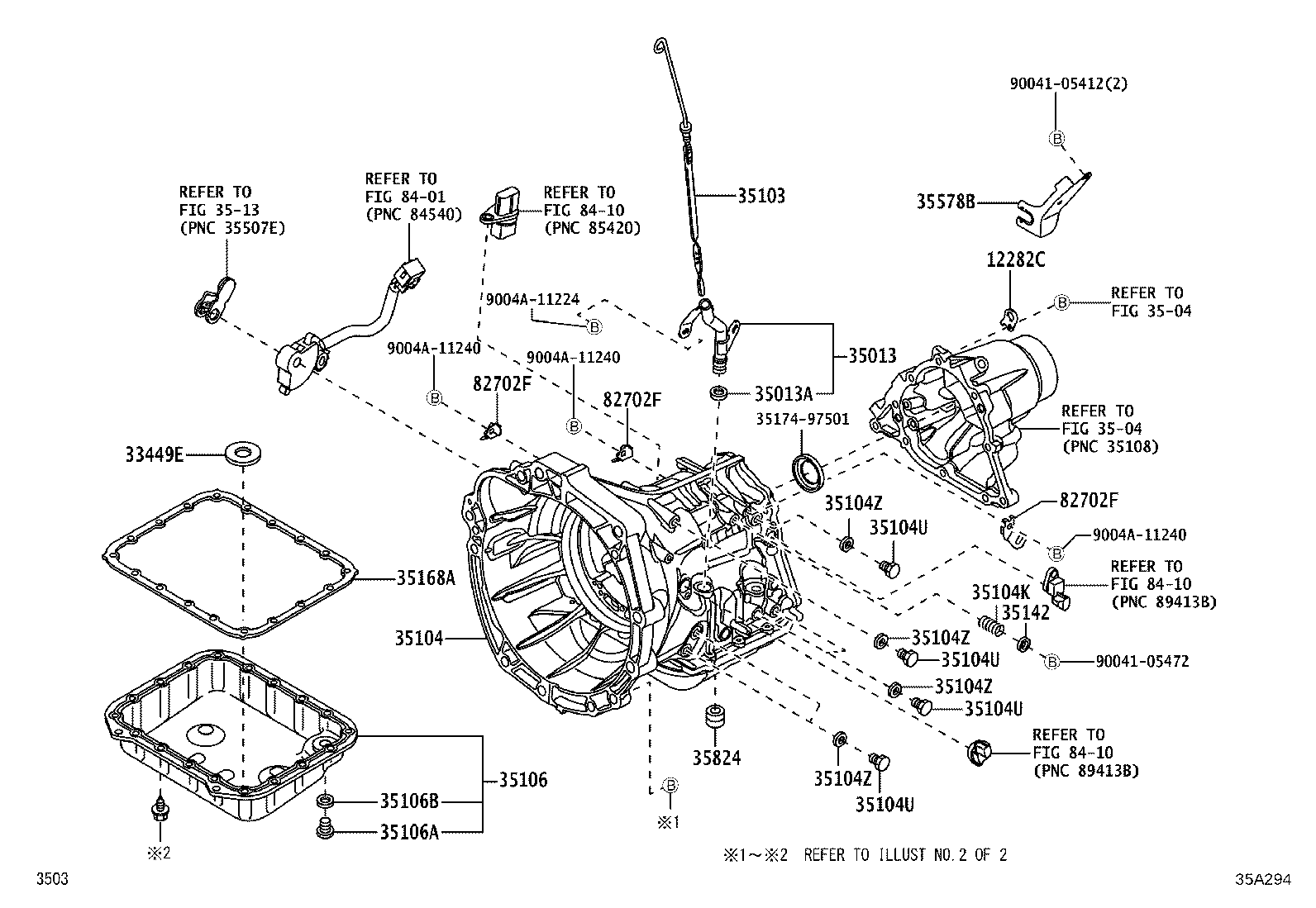

ILLUST NO. 1 OF 2(1812- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12282C - HANGER, ENGINE, NO.2 | ||||
| 12282-B1020 |
2NRVE..F850 |
1 | ||
| 33449E - MAGNET, TRANSAXLE | ||||
| 33449-B2010 |
F850 |
1 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-B1050 |
F850 |
1 | ||
| 35013A - RING, O(FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90043-01193 |
F850 |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-BZ040 |
F850 |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35141-B1070 |
F850 |
1 | ||
| 35104K - COMPRESSION SPRING, TRANSAXLE CASE | ||||
| 90045-01951 |
F850 |
1 | ||
| 35104U - BOLT (FOR TRANSAXLE CASE) | ||||
| 90041-05404 |
F850 |
6 | ||
| 35104U - BOLT (FOR TRANSAXLE CASE) | ||||
| 90041-05404 |
F850 |
6 | ||
| 35104U - BOLT (FOR TRANSAXLE CASE) | ||||
| 90041-05404 |
F850 |
6 | ||
| 35104U - BOLT (FOR TRANSAXLE CASE) | ||||
| 90041-05404 |
F850 |
6 | ||
| 35104Z - GASKET (FOR TRANSAXLE CASE) | ||||
| 90044-30317 |
F850 |
6 | ||
| 35104Z - GASKET (FOR TRANSAXLE CASE) | ||||
| 90044-30317 |
F850 |
6 | ||
| 35104Z - GASKET (FOR TRANSAXLE CASE) | ||||
| 90044-30317 |
F850 |
6 | ||
| 35104Z - GASKET (FOR TRANSAXLE CASE) | ||||
| 90044-30317 |
F850 |
6 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35160-B1050 |
F850 |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90043-41041 |
F850 |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 90044-30281 |
F850 |
1 | ||
| 35142 - GASKET, TRANSMISSION CASE(ATM) | ||||
| 90044-30330 |
F850 |
1 | ||
| 35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN | ||||
| 35168-B1060 |
F850 |
1 | ||
| 35578B - BRACKET, TRANSMISSION CONTROL CABLE | ||||
| 33524-B1040 |
F850 |
1 | ||
| 35824 - SEAL, BRAKE CYLINDER | ||||
| 35824-97501 |
F850 |
1 | ||
| 82702F - BRACKET SUB-ASSY, WIRING HARNESS | ||||
| 82715-BZA40 |
F850 |
3 | ||
| 82702F - BRACKET SUB-ASSY, WIRING HARNESS | ||||
| 82715-BZA40 |
F850 |
3 | ||
| 82702F - BRACKET SUB-ASSY, WIRING HARNESS | ||||
| 82715-BZA40 |
F850 |
3 | ||
| Common parts | ||||
| 35174-97501 | ||||
| 90041-05412 | ||||
| 90041-05472 | ||||
| 9004A-11224 | ||||
| 9004A-11240 | ||||
| Linked diagrams | ||||
| 3504 | ||||
| 3513 | ||||
| 8401 | ||||
| 8410 | ||||

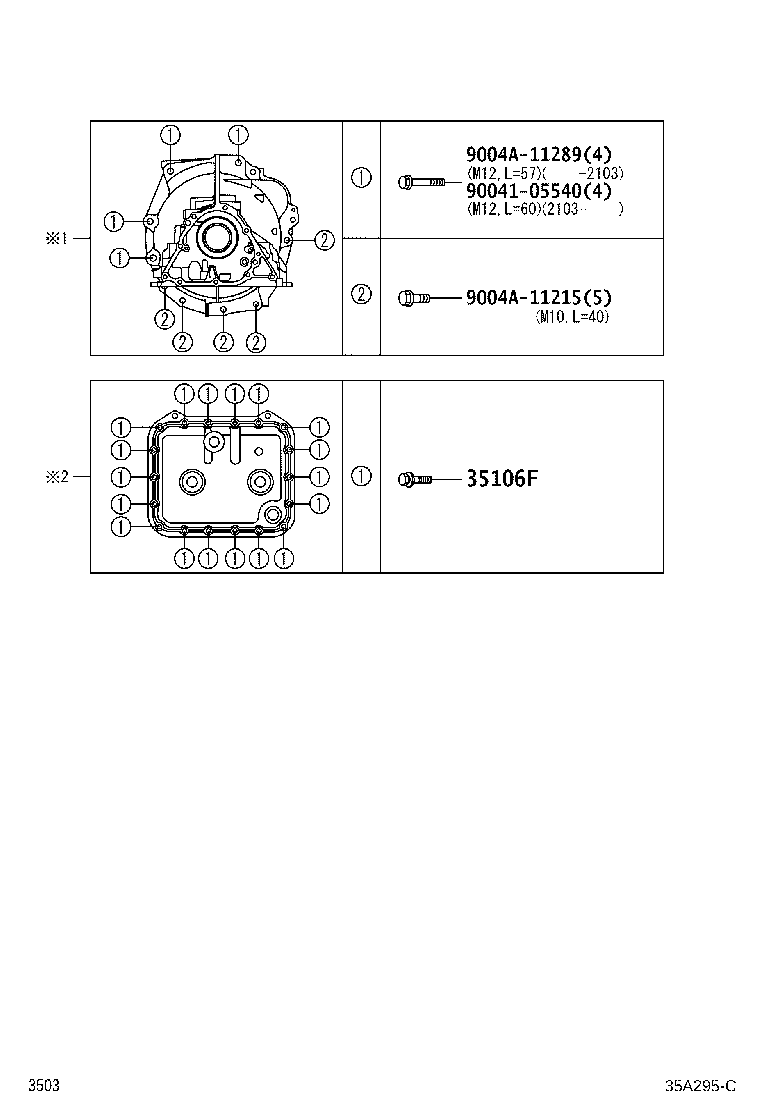

ILLUST NO. 2 OF 2(1812- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90041-20203 |
F850 |
18 | ||
| Common parts | ||||
| 90041-05540 | ||||
| 9004A-11215 | ||||
| 9004A-11289 | ||||
