F850RE-GQGFM (2018)

Toyota Rush

Production Dec 2018 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1812- )

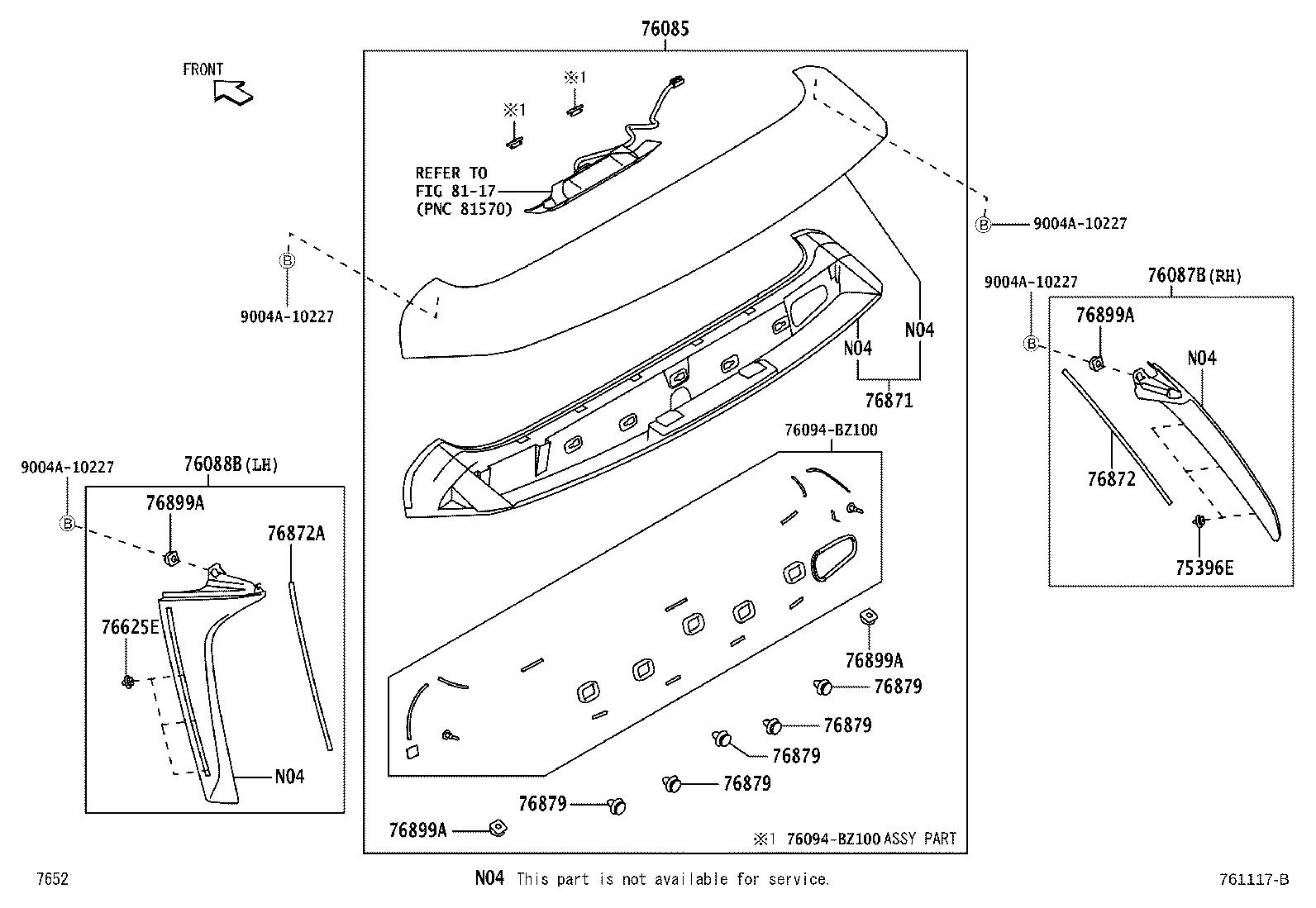

Click highlighted areas on diagram

diagram 75396E 76085 76087B 76088B 76094BZ100 76094BZ100 76625E 76871 76872 76872A 76879 76879 76879 76879 76879 76899A 76899A 76899A 76899A 8117 9004A10227 9004A10227 9004A10227 9004A10227
Part # Description Qty Price
75396E - CLIP, OUTSIDE MOULDING, NO.2
90044-67500

F850

 3
76085 - SPOILER SUB-ASSY, REAR
76085-BZ230D0

F850

RED ME.,R68

 1
76085-BZ230B1

F850

GRAY ME,S43

 1
76085-BZ230A0

F850

WHITE,W09

 1
76085-BZ230B0

F850

SILVER ME.,S28

 1
76085-BZ230J0

F850

BLUE ME.,B77

 1
76085-BZ230J1

F850

BLUE MICA,B85

 1
76087B - SPOILER SUB-ASSY, REAR SIDE, RH
76087-BZ050

F850

 1
76088B - SPOILER SUB-ASSY, REAR SIDE, LH
76088-BZ040

F850

 1
76625E - CLIP
90044-67500

F850

 3
76871 - SPOILER, REAR
76091-BZ240

F850

 1
76872 - PROTECTOR, REAR SPOILER, NO.1
76872-BZ120

F850

 1
76872A - PROTECTOR, REAR SPOILER, NO.1
76872-BZ120

F850

 1
76879 - CLIP, REAR SPOILER, NO.1
90044-67578

F850

 5
76879 - CLIP, REAR SPOILER, NO.1
90044-67578

F850

 5
76879 - CLIP, REAR SPOILER, NO.1
90044-67578

F850

 5
76879 - CLIP, REAR SPOILER, NO.1
90044-67578

F850

 5
76879 - CLIP, REAR SPOILER, NO.1
90044-67578

F850

 5
76899A - NUT, REAR SPOILER
76899-B0010

F850

 4
76899A - NUT, REAR SPOILER
76899-B0010

F850

 4
76899A - NUT, REAR SPOILER
76899-B0010

F850

 4
76899A - NUT, REAR SPOILER
76899-B0010

F850

 4
Common parts
76094-BZ100
9004A-10227
Linked diagrams
8117

(1812- )

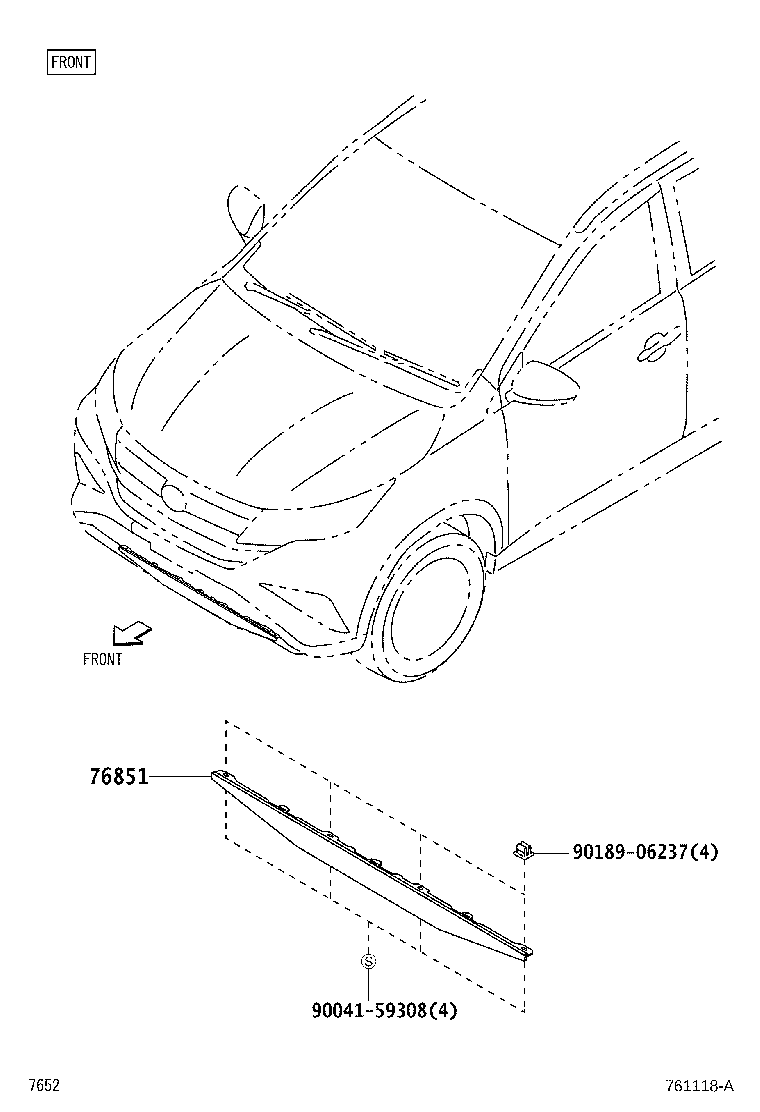

Click highlighted areas on diagram

diagram 76851 9004159308 9018906237
Part # Description Qty Price
76851 - COVER, FRONT SPOILER
76851-BZ130

F850

 1
Common parts
90041-59308
90189-06237
