F850RE-GQGFM (2018)
Toyota Rush
Production
Dec 2018
-
Sep 9999
Engine
2NRVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1812- )

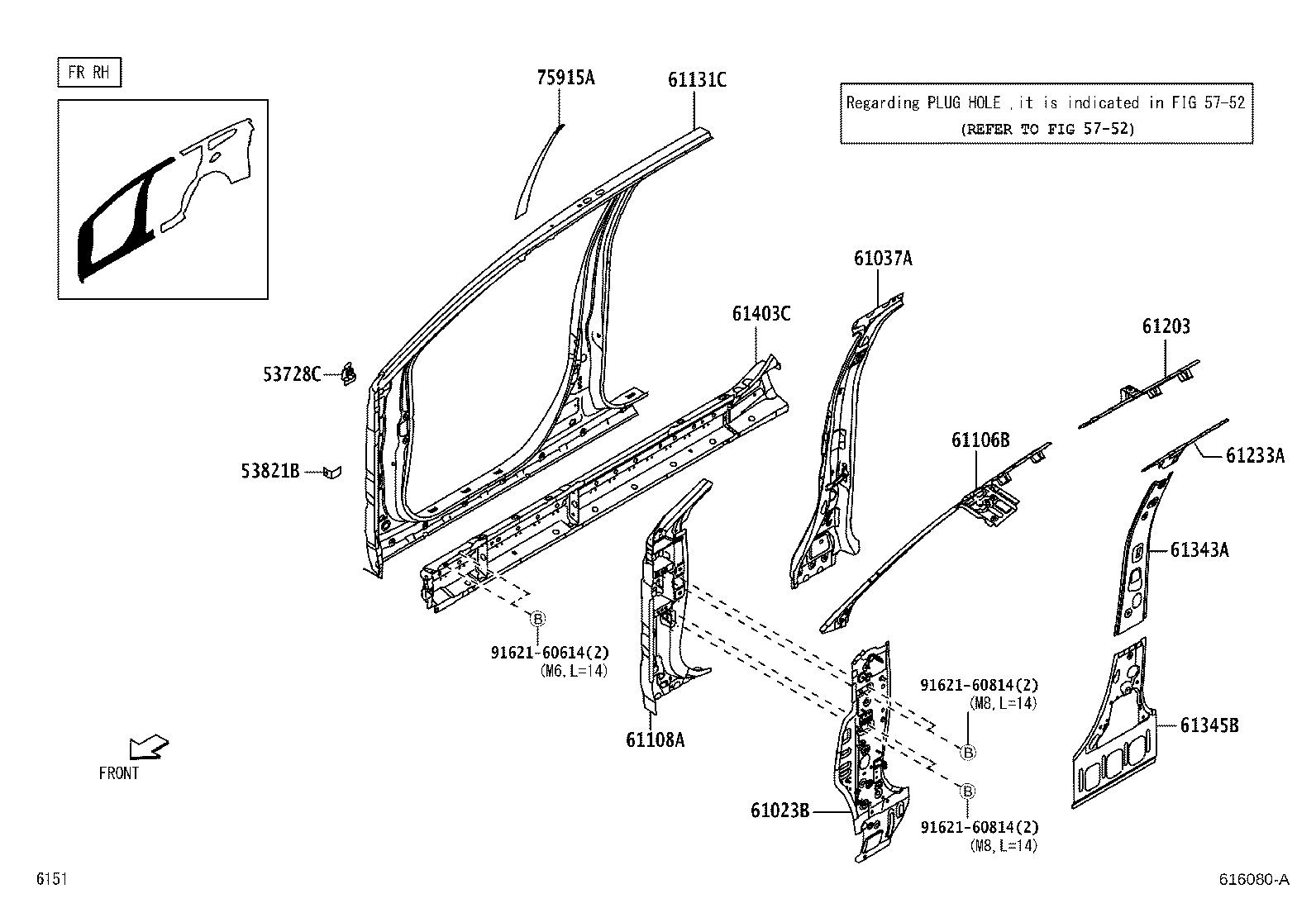

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53728C - BRACKET, FENDER APRON, RH | ||||
| 53728-BZ110 |
F850 |
1 | ||
| 53821B - BRACKET, FRONT FENDER, REAR RH | ||||
| 58139-BZ070 |
F850 |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-BZ390 |
F850 |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-BZ320 |
F850 |
1 | ||
| 61106B - PILLAR SUB-ASSY, FRONT, RH | ||||
| 61106-BZ070 |
F850 |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-BZ230 |
F850 |
1 | ||
| 61131C - PILLAR, FRONT BODY, OUTER RH | ||||
| 61131-BZ500 |
F850 |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61203-BZ120 |
F850 |
1 | ||
| 61233A - RAIL, ROOF SIDE, INNER NO.2 RH | ||||
| 61233-BZ100 |
F850 |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-BZ200 |
F850 |
1 | ||
| 61345B - PILLAR, CENTER BODY, INNER LOWER RH | ||||
| 61345-BZ150 |
F850 |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-BZ150 |
F850 |
1 | ||
| 75915A - TAPE, BLACK OUT CENTER PILLAR, RH | ||||
| 75915-BZ070C0 |
F850 TUYAKESI BLACK DUMMYCOLOR,B77 ,B85 ,R68 ,S28 ,S43 ,W09 |
1 | ||
| Common parts | ||||
| 91621-60614 | ||||
| 91621-60814 | ||||
| Linked diagrams | ||||
| 5752 | ||||
(1812- )

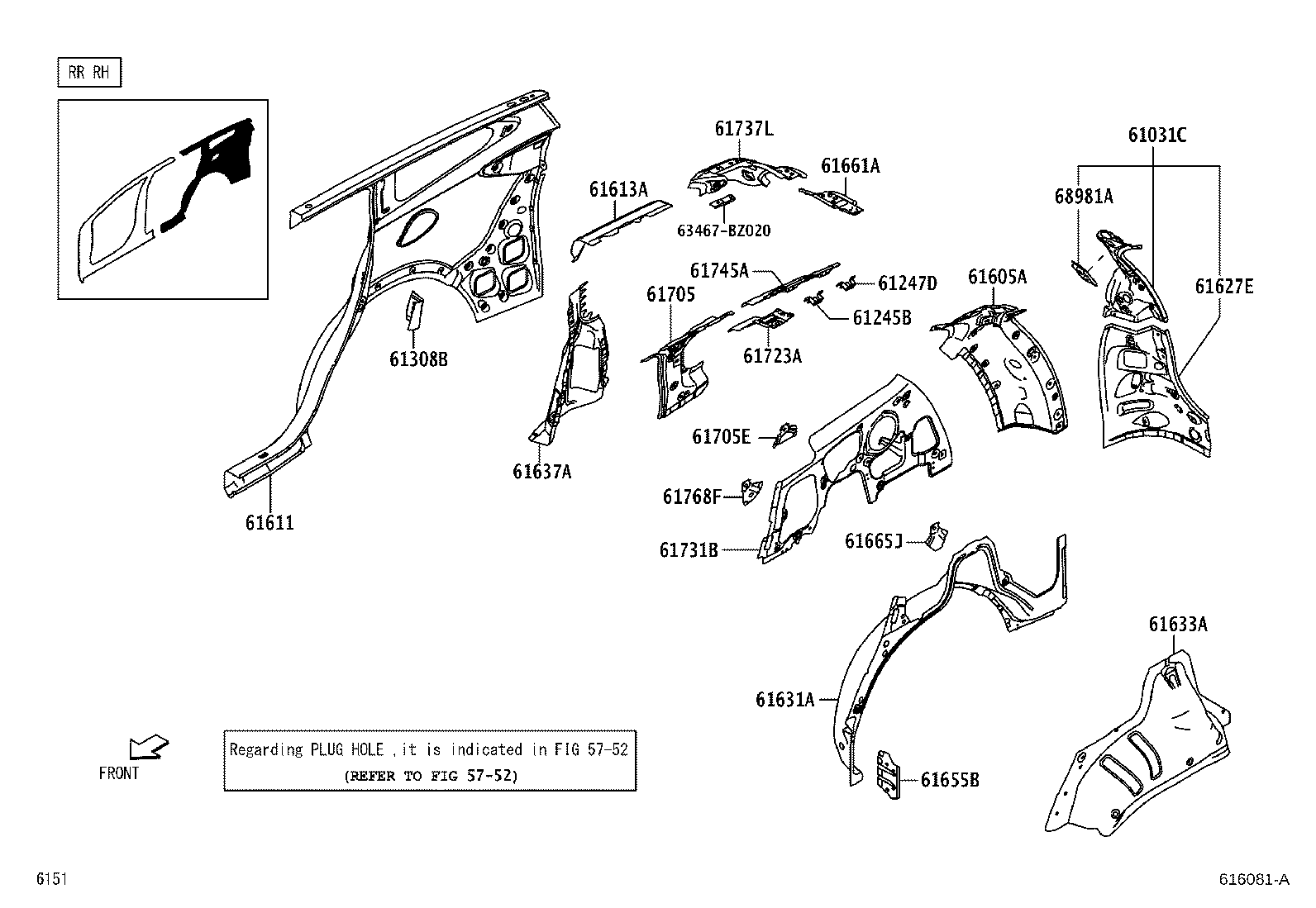

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61031C - EXTENSION SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 61031-BZ210 |
F850 |
1 | ||
| 61245B - BRACKET, ASSIST GRIP, NO.3 RH | ||||
| 61237-BZ080 |
F850 |
1 | ||
| 61247D - BRACKET, ASSIST GRIP, RH | ||||
| 61235-BZ080 |
F850 |
1 | ||
| 61308B - RETAINER SUB-ASSY, DOOR LOCK STRIKER, RH | ||||
| 61308-BZ100 |
F850 |
1 | ||
| 61605A - REINFORCEMENT SUB-ASSY, QUARTER PANEL, RH | ||||
| 61605-BZ140 |
F850 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-BZ440 |
F850 |
1 | ||
| 61613A - EXTENSION, QUARTER PANEL REAR, RH | ||||
| 61727-BZ020 |
F850 |
1 | ||
| 61627E - EXTENSION, QUARTER PANEL, REAR LOWER RH | ||||
| 61627-BZ090 |
F850 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-BZ160 |
F850 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61633-BZ200 |
F850 |
1 | ||
| 61637A - BRACE, QUARTER PANEL, RH | ||||
| 61637-BZ100 |
F850 |
1 | ||
| 61655B - GUSSET, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61645-BZ100 |
F850 |
1 | ||
| 61661A - EXTENSION, QUARTER PANEL TO UPPER BACK, RH | ||||
| 61661-BZ120 |
F850 |
1 | ||
| 61665J - PLATE, SEAT BELT ANCHORAGE, RH | ||||
| 61665-BZ120 |
F850 |
1 | ||
| 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61705-BZ110 |
F850 |
1 | ||
| 61705E - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH | ||||
| 61756-BZ020 |
F850 |
1 | ||
| 61723A - REINFORCEMENT, QUARTER WINDOW OPENING, RH NO.1 | ||||
| 61723-BZ020 |
F850 |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-BZ350 |
F850 |
1 | ||
| 61737L - REINFORCEMENT, ROOF SIDE, INNER RH | ||||
| 61737-BZ090 |
F850 |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-BZ110 |
F850 |
1 | ||
| 61768F - REINFORCE, BELT ANCHOR TO QUARTER, INNER LOWER RH | ||||
| 61768-BZ130 |
F850 |
1 | ||
| 68981A - RETAINER, BACK DOOR STAY, RH | ||||
| 68981-BZ060 |
F850 |
1 | ||
| Common parts | ||||
| 63467-BZ020 | ||||
| Linked diagrams | ||||
| 5752 | ||||

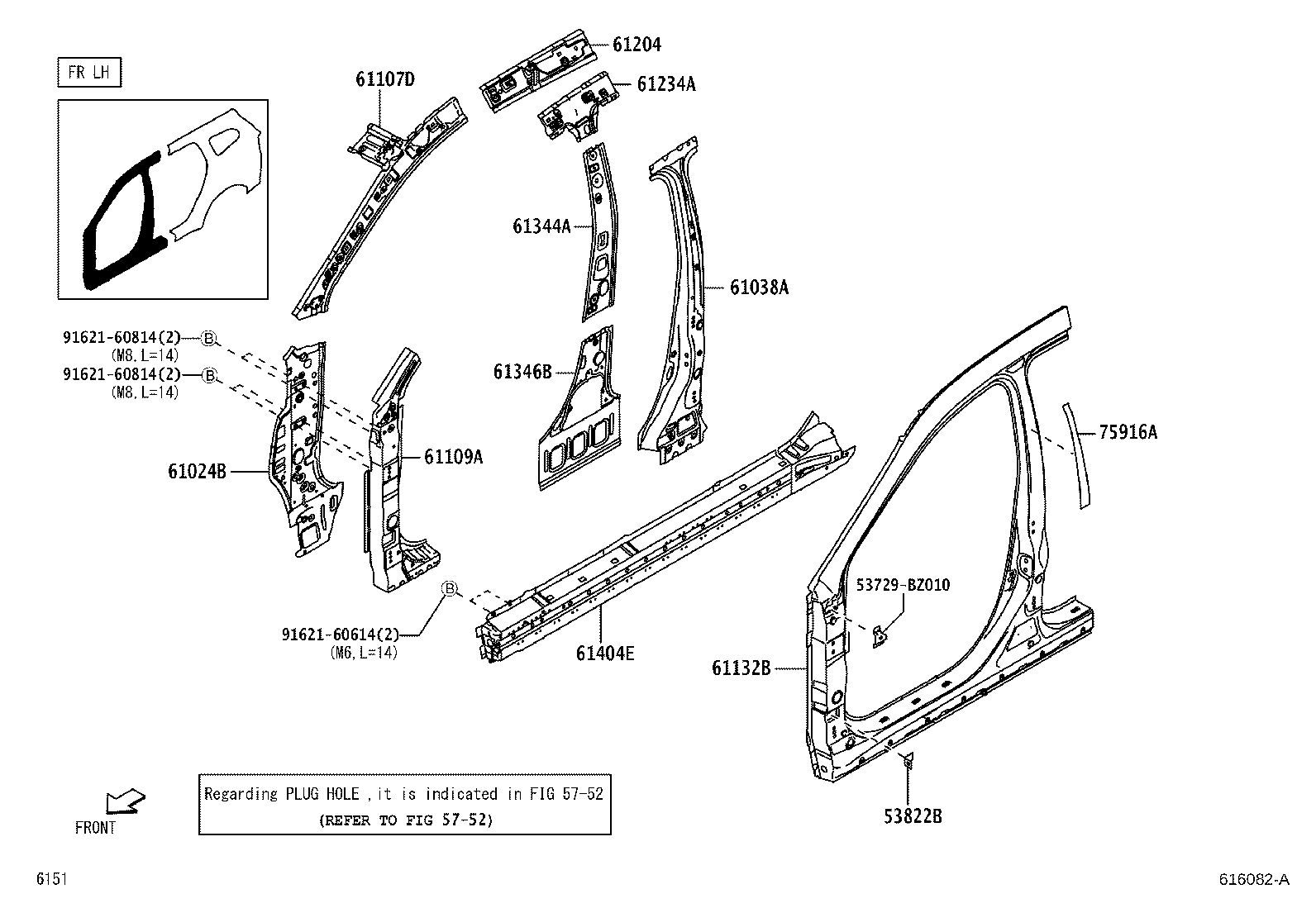

(1812- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53822B - BRACKET, FRONT FENDER, REAR LH | ||||
| 58139-BZ070 |
F850 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-BZ320 |
F850 |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-BZ350 |
F850 |
1 | ||
| 61107D - PILLAR SUB-ASSY, FRONT, LH | ||||
| 61107-BZ090 |
F850 |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-BZ210 |
F850 |
1 | ||
| 61132B - PILLAR, FRONT BODY, OUTER LH | ||||
| 61132-BZ480 |
F850 |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61204-BZ110 |
F850 |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61234-BZ100 |
F850 |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-BZ210 |
F850 |
1 | ||
| 61346B - PILLAR, CENTER BODY, INNER LOWER LH | ||||
| 61346-BZ150 |
F850 |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-BZ180 |
F850 |
1 | ||
| 75916A - TAPE, BLACK OUT CENTER PILLAR, LH | ||||
| 75916-BZ070C0 |
F850 TUYAKESI BLACK DUMMYCOLOR,B77 ,B85 ,R68 ,S28 ,S43 ,W09 |
1 | ||
| Common parts | ||||
| 53729-BZ010 | ||||
| 91621-60614 | ||||
| 91621-60814 | ||||
| Linked diagrams | ||||
| 5752 | ||||
(1812- )

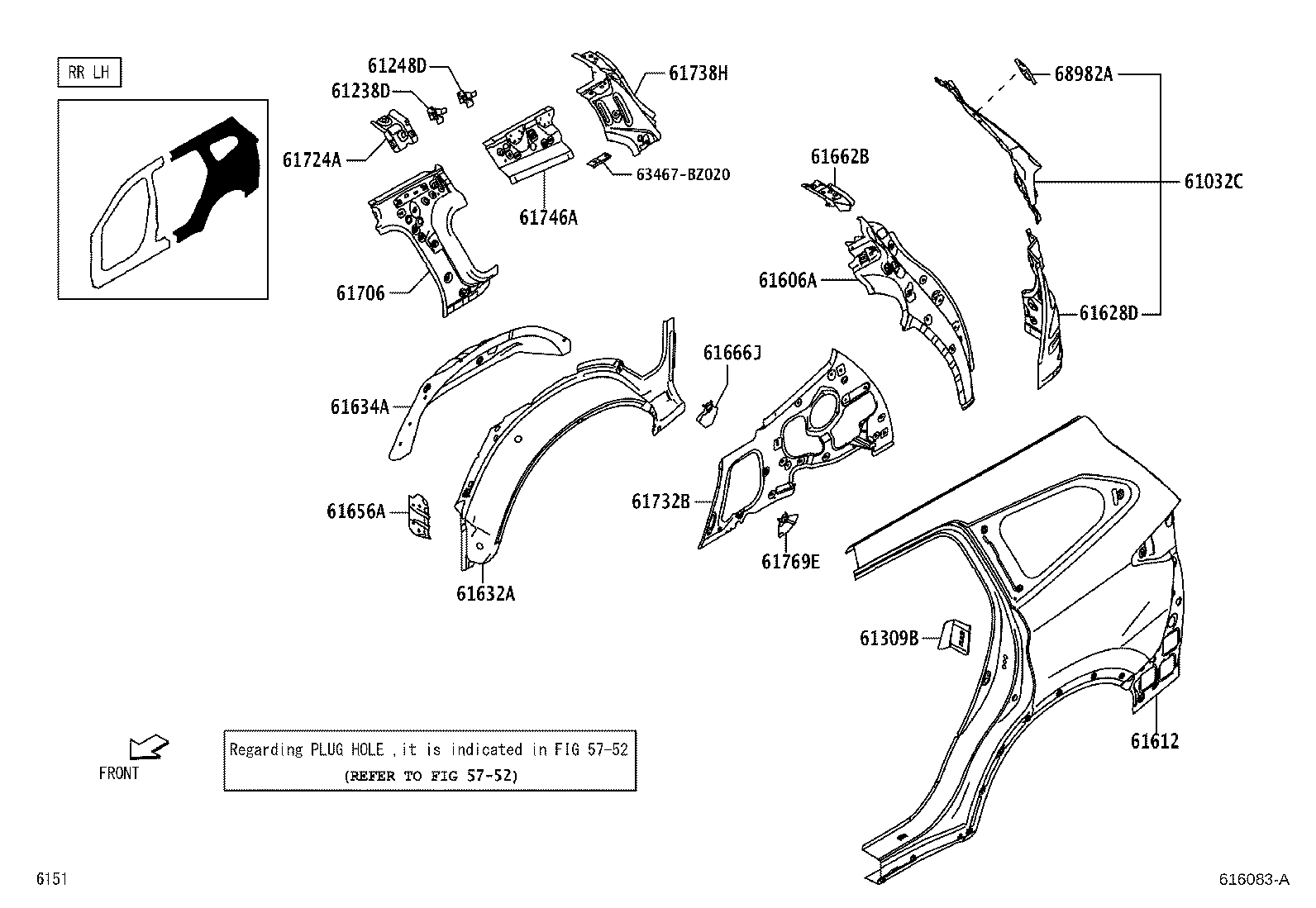

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61032C - EXTENSION SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 61032-BZ230 |
F850 |
1 | ||
| 61238D - BRACKET, ASSIST GRIP, NO.2 LH | ||||
| 61237-BZ080 |
F850 |
1 | ||
| 61248D - BRACKET, ASSIST GRIP, LH | ||||
| 61235-BZ080 |
F850 |
1 | ||
| 61309B - RETAINER SUB-ASSY, DOOR LOCK STRIKER, LH | ||||
| 61309-BZ020 |
F850 |
1 | ||
| 61606A - REINFORCEMENT SUB-ASSY, QUARTER PANEL, LH | ||||
| 61606-BZ100 |
F850 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-BZ480 |
F850 |
1 | ||
| 61628D - EXTENSION, QUARTER PANEL, REAR LOWER LH | ||||
| 61628-BZ140 |
F850 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-BZ160 |
F850 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61634-BZ220 |
F850 |
1 | ||
| 61656A - GUSSET, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61646-BZ130 |
F850 |
1 | ||
| 61662B - EXTENSION, QUARTER PANEL TO UPPER BACK, LH | ||||
| 61662-BZ140 |
F850 |
1 | ||
| 61666J - PLATE, SEAT BELT ANCHORAGE, LH | ||||
| 61666-BZ090 |
F850 |
1 | ||
| 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61706-BZ110 |
F850 |
1 | ||
| 61724A - REINFORCEMENT, QUARTER WINDOW OPENING, LH NO.1 | ||||
| 61724-BZ030 |
F850 |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-BZ340 |
F850 |
1 | ||
| 61738H - REINFORCEMENT, ROOF SIDE, INNER LH | ||||
| 61738-BZ100 |
F850 |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-BZ080 |
F850 |
1 | ||
| 61769E - REINFORCEMENT, BELT ANCHOR TO QUARTER, INNER LOWER LH | ||||
| 61769-BZ150 |
F850 |
1 | ||
| 68982A - RETAINER, BACK DOOR STAY, LH | ||||
| 68981-BZ060 |
F850 |
1 | ||
| Common parts | ||||
| 63467-BZ020 | ||||
| Linked diagrams | ||||
| 5752 | ||||
(1812- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|
