F800RE-GQMFJ (2017)

Toyota Rush

Production Dec 2017 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1712- )

Click highlighted areas on diagram

FR SIDE MEMBER

diagram 51777D 51961G 51961H 53078A 57025C 57026B 57101 57102 57111 57112 57145A 57146A 57147B 57148A 57151A 57152 57153 57154 57155 57156 57157C 57158B 57167F 57168G 57195A 57196A 57301B 57302D 57315A 57316A 57335 57401C 57402A 5752 9004A10168 9004A10168 9004A10240 9004A10240
Part # Description Qty Price
51777D - ARM, FRONT STEP, RH
52141-BZ060

F800..RHD

 1
51961H - HOOK, FRONT LH
51962-BZ060

F800..RHD

 1
53078A - EXTENSION SUB-ASSY, FRONT FENDER APRON, LH
53078-BZ090

F800

 1
57025C - MEMBER SUB-ASSY, FRONT SIDE, OUTER RH
57113-BZ020

F800

 1
57026B - MEMBER SUB-ASSY, FRONT SIDE, OUTER LH
57114-BZ030

F800

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-BZ580

F800..RHD

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-BZ660

F800..RHD

 1
57111 - MEMBER, FRONT SIDE, RH
57111-BZ211

F800

 1
57112 - MEMBER, FRONT SIDE, LH
57112-BZ231

F800

 1
57145A - REINFORCEMENT, FRONT SIDE MEMBER, REAR RH
51501-BZ060

F800

 1
57146A - REINFORCEMENT, FRONT SIDE MEMBER, REAR LH
51502-BZ070

F800

 1
57147B - PLATE, FRONT SIDE MEMBER, REAR RH
57147-BZ010

F800

 1
57148A - PLATE, FRONT SIDE MEMBER, REAR LH
57148-BZ010

F800

 1
57151A - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH
57151-BZ110

F800

 1
57152 - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH
57152-BZ130

F800

 1
57153 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH
57153-BZ020

F800

 1
57154 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH
57154-BZ070

F800

 1
57156 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH
57156-BZ020

F800..RHD

 1
57157C - BRACKET, FLEXIBLE HOSE, FRONT RH
57157-BZ010

F800

 1
57158B - BRACKET, FLEXIBLE HOSE, FRONT LH
57158-BZ010

F800

 1
57167F - REINFORCEMENT, FRONT CROSSMEMBER SIDE, RH
57167-BZ011

F800

 1
57168G - MEMBER, FRONT FLOOR, LH
57168-BZ110

F800

 1
57195A - REINFORCEMENT, FRONT SIDE MEMBER, FRONT RH
57195-BZ050

F800

 1
57196A - REINFORCEMENT, FRONT SIDE MEMBER, FRONT LH
57196-BZ030

F800

 1
57301B - OUTRIGGER SUB-ASSY, NO.1 RH
57301-BZ090

F800

 1
57302D - OUTRIGGER SUB-ASSY, NO.1 LH
57302-BZ090

F800..RHD;F800..LHD..5F

 1
57315A - OUTRIGGER SUB-ASSY, NO.3 RH
57307-BZ010

F800

 1
57316A - OUTRIGGER SUB-ASSY, NO.3 LH
57308-BZ010

F800

 1
57335 - OUTRIGGER, NO.2 FRONT RH
57335-BZ040

F800

 1
57401C - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57401-BZ370

F800..RHD

 1
57402A - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57402-BZ370

F800..RHD

 1
Common parts
9004A-10168
9004A-10240
Linked diagrams
5752

ILLUST NO. 2 OF 2(1712- )

Click highlighted areas on diagram

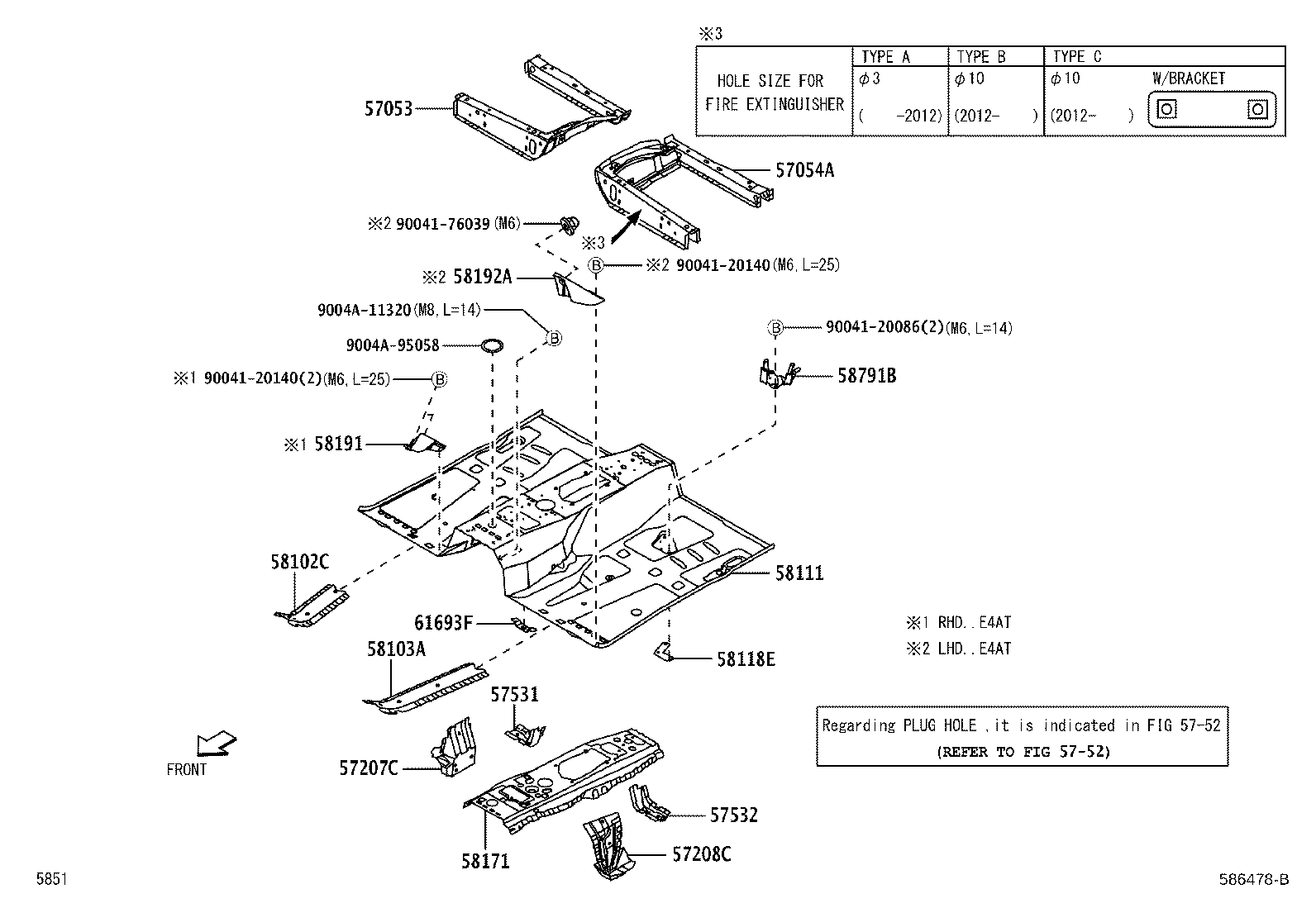

FR FLOOR PAN

diagram 57053 57054A 57207C 57208C 5752 57531 57532 58102C 58103A 58111 58118E 58171 58191 58192A 58791B 61693F 9004120086 9004120140 9004120140 9004176039 9004A11320 9004A95058
Part # Description Qty Price
57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH
57053-BZ030

F800

 1
57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH
57054-BZ051

F800..IDN

TYPE B

 1
57054-BZ020

F800..IDN

INDONESIA(FROM '18/10),TYPE C

 1
57054-BZ050

F800

TYPE A

 1
57207C - BRACKET SUB-ASSY, ENGINE REAR MOUNTING, RH
57207-BZ050

F800

 1
57208C - BRACKET SUB-ASSY, ENGINE REAR MOUNTING, LH
57208-BZ060

F800

 1
57531 - BRACKET, FRONT FLOOR CENTER BRACE, RH
51568-BZ010

F800

 1
57532 - BRACKET, FRONT FLOOR CENTER BRACE, LH
51568-BZ020

F800

 1
58102C - REINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, RH
58102-BZ180

F800

 1
58103A - REINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, LH
58103-BZ070

F800

 1
58111 - PAN, FRONT FLOOR
58111-BZ340

F800

 1
58118E - BRACKET, JACK SET
58793-BZ010

F800

LH

 1
58171 - REINFORCEMENT, PARKING BRAKE BASE
58107-BZ120

F800

 1
58191 - FOOTREST, FRONT FLOOR
58191-BZ010

F800..RHD..E4AT

RH

 1
58791B - CARRIER, JACK
58791-BZ060

F800

 1
61693F - BRACKET, FRONT FLOOR
17163-BZ020

F800

LH

 1
Common parts
90041-20086
90041-20140
90041-76039
9004A-11320
9004A-95058
Linked diagrams
5752
