F800RE-GQMFJ (2017)
Toyota Rush
Production
Dec 2017
-
Sep 9999
Engine
2NRVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

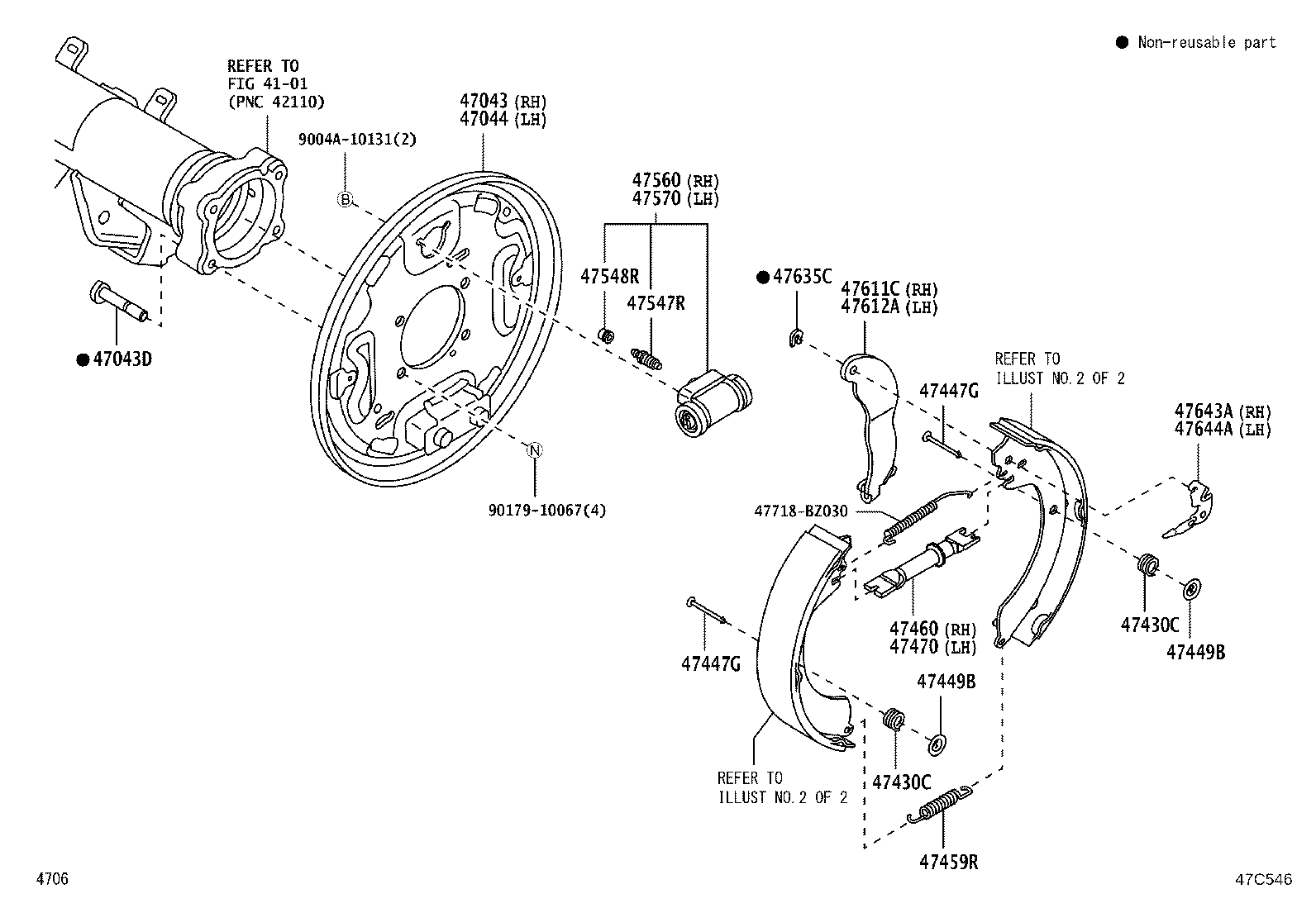

ILLUST NO. 1 OF 2(1712- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-BZ110 |
F800..E4AT..IDN |
1 | ||
| 47043D - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 46791-BZ020 |
F800 |
8 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-BZ130 |
F800..E4AT..IDN |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 47446-BZ070 |
F800 |
4 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 47446-BZ070 |
F800 |
4 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-87603 |
F800 |
4 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-87603 |
F800 |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-BZ030 |
F800 |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-BZ030 |
F800 |
4 | ||
| 47459R - SPRING, SHOE RETURN(FOR REAR BRAKE) | ||||
| 47459-BZ130 |
F800 |
2 | ||
| 47460 - ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE) | ||||
| 47460-BZ050 |
F800 |
1 | ||
| 47470 - ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE) | ||||
| 47470-BZ050 |
F800 |
1 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-BZ120 |
F800 |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 47548-BZ080 |
F800 |
2 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-BZ011 |
F800 |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47560-BZ011 |
F800 |
1 | ||
| 47611C - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-BZ070 |
F800 |
1 | ||
| 47612A - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-BZ070 |
F800 |
1 | ||
| 47635C - RETAINER, ADJUSTING BOLT SPRING | ||||
| 47635-BZ030 |
F800 |
2 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-BZ040 |
F800 |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47644-BZ040 |
F800 |
1 | ||
| Common parts | ||||
| 47718-BZ030 | ||||
| 9004A-10131 | ||||
| 90179-10067 | ||||
| Linked diagrams | ||||
| 4101 | ||||

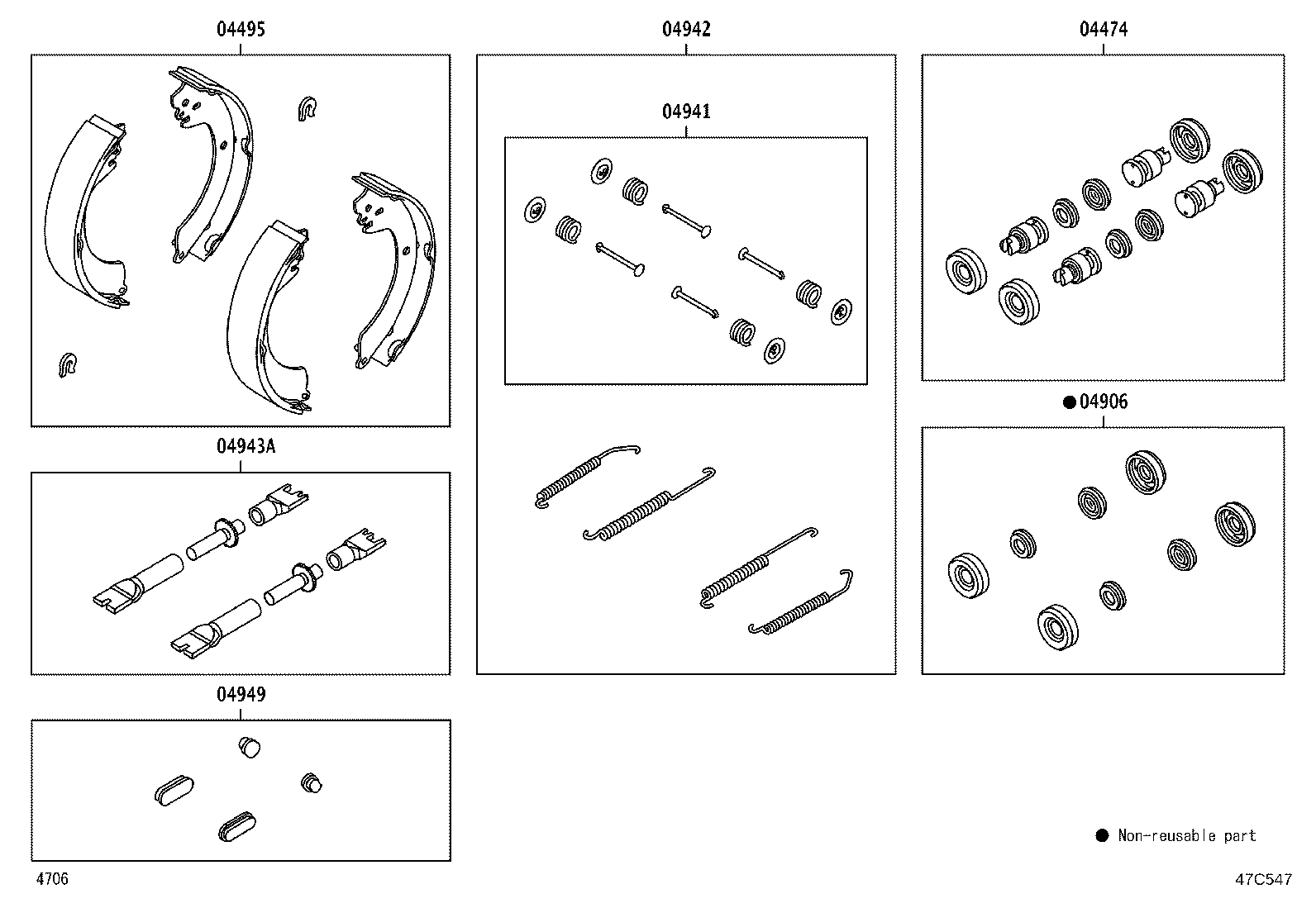

ILLUST NO. 2 OF 2(1712- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-B1040 |
F800 |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-BZ160 |
F800 MARK AK L608 EE-A |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-BZ020 |
F800 |
1 | ||
| 04941 - SPRING KIT, REAR BRAKE SHOE HOLD DOWN | ||||
| 04941-BZ060 |
F800 |
2 | ||
| 04942 - SPRING KIT, REAR BRAKE | ||||
| 04942-BZ070 |
F800 |
1 | ||
| 04943A - STRUT KIT, REAR BRAKE | ||||
| 04943-BZ050 |
F800 |
1 | ||
| 04949 - PLUG KIT, REAR BRAKE | ||||
| 04949-BZ050 |
F800 |
1 | ||
