F800RE-GQMFJ (2017)

Toyota Rush

Production Dec 2017 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1712- )E4AT

Click highlighted areas on diagram

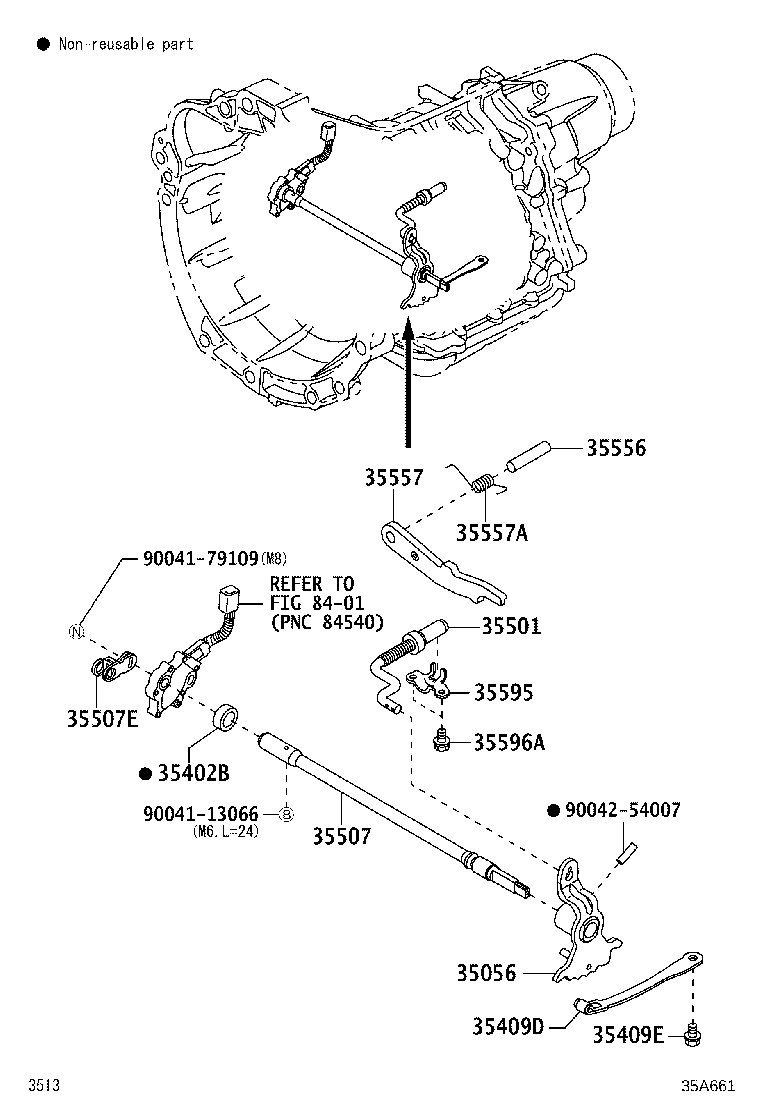

diagram 35056 35402B 35409D 35409E 35501 35507 35507E 35556 35557 35557A 35595 35596A 8401 9004113066 9004179109 9004254007
Part # Description Qty Price
35056 - LEVER SUB-ASSY, PARKING LOCK W/ROLLER
35057-B1010

F800..E4AT

 1
35402B - SEAL,OIL(FOR MANUAL VALVE)
90043-11256

F800..E4AT

 1
35409D - SPRING SUB-ASSY, MANUAL DETENT
35409-B1020

F800..E4AT

 1
35409E - BOLT(FOR MANUAL DETENT SPRING)
90041-05511

F800..E4AT

 1
35501 - ROD SUB-ASSY, PARKING LOCK
35501-B5010

F800..E4AT

 1
35507 - SHAFT SUB-ASSY, TRANSMISSION CONTROL INTERMEDIATE
33511-B1010

F800..E4AT

 1
35507E - LEVER,TRANSMISSION CONTROL SHAFT
35507-87402

F800..E4AT

 1
35556 - SHAFT, PARKING LOCK PAWL
35556-87502

F800..E4AT

 1
35557 - PAWL, PARKING LOCK
35557-B1030

F800..E4AT

 1
35557-B1020

F800..E4AT

 1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90045-08419

F800..E4AT

 1
35595 - BRACKET, PARKING LOCK PAWL
35595-B1020

F800..E4AT

 1
35596A - BOLT (FOR PAWL STOPPER PLATE)
90041-05412

F800..E4AT

 2
Common parts
90041-13066
90041-79109
90042-54007
Linked diagrams
8401
