F800RE-GQMFJ (2017)
Toyota Rush
Production
Dec 2017
-
Sep 9999
Engine
2NRVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1712- )

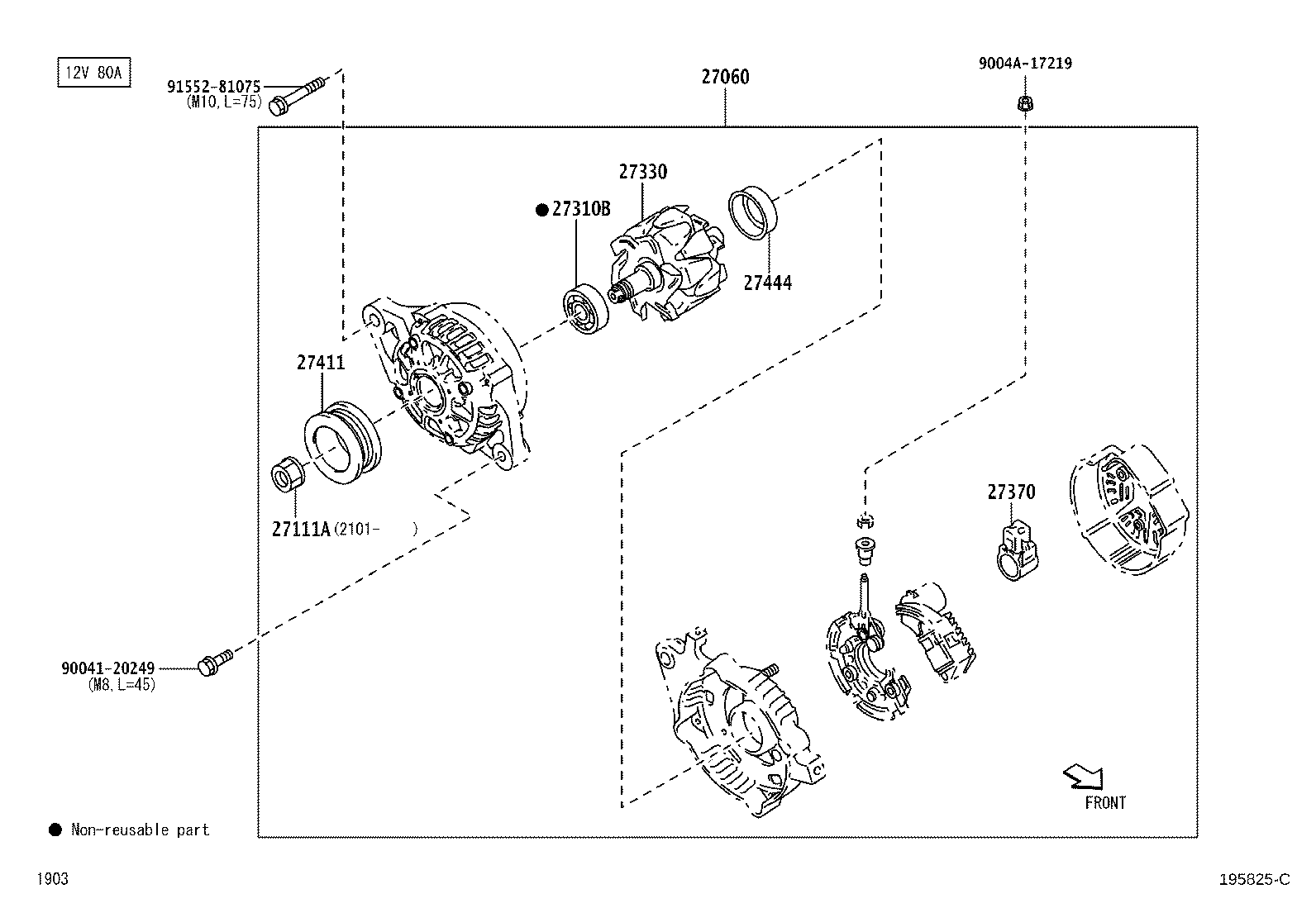

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27060 - ALTERNATOR ASSY, W/REGULATOR | ||||
| 27060-BZ310 |
2NRVE..F800 |
1 | ||
| 27111A - NUT, ALTERNATOR | ||||
| 90099-05171 |
2NRVE..F800 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 9004C-37008 |
2NRVE..F800 |
1 | ||
| 9004B-37016 |
2NRVE..F800 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-BZ060 |
2NRVE..F800 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-B1020 |
2NRVE..F800 |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-BZ100 |
2NRVE..F800 |
1 | ||
| 27444 - PACKING, ALTERNATOR BEARING COVER | ||||
| 27444-BZ010 |
2NRVE..F800 |
1 | ||
| Common parts | ||||
| 90041-20249 | ||||
| 9004A-17219 | ||||
| 91552-81075 | ||||
