F800RE-GQGFJ (2017)
Toyota Rush
Production
Dec 2017
-
Sep 9999
Engine
2NRVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1712- )

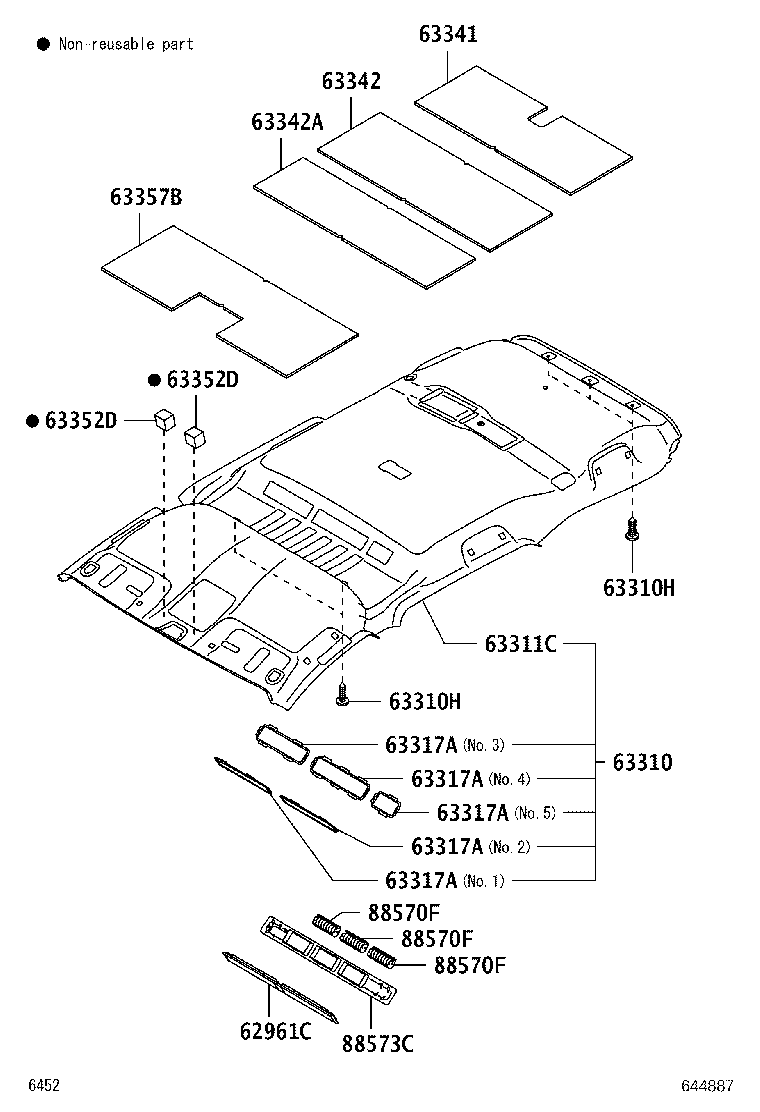

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62961C - GRILLE, ROOM VENT | ||||
| 62961-BZ010B1 |
F800 LT.GRAY,TRIM1# |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-BZB20B0 |
F800..RHD LT.GRAY,TRIM1# |
1 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 9004A-46358B0 |
F800 LT.GRAY,TRIM1# |
5 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 9004A-46358B0 |
F800 LT.GRAY,TRIM1# |
5 | ||
| 63311C - HEADLINING, ROOF | ||||
| 63311-BZ450B0 |
F800..RHD LT.GRAY,TRIM1# |
1 | ||
| 63317A - RETAINER, ROOF HEADLINING | ||||
| 63317-BZ150 |
F800 NO.5 |
1 | ||
| 63317-BZ040 |
F800 NO.4 |
1 | ||
| 63317-BZ010 |
F800 NO.1 |
1 | ||
| 63317-BZ030 |
F800 NO.3 |
1 | ||
| 63317-BZ020 |
F800 NO.2 |
1 | ||
| 63317A - RETAINER, ROOF HEADLINING | ||||
| 63317-BZ150 |
F800 NO.5 |
1 | ||
| 63317-BZ040 |
F800 NO.4 |
1 | ||
| 63317-BZ010 |
F800 NO.1 |
1 | ||
| 63317-BZ030 |
F800 NO.3 |
1 | ||
| 63317-BZ020 |
F800 NO.2 |
1 | ||
| 63317A - RETAINER, ROOF HEADLINING | ||||
| 63317-BZ150 |
F800 NO.5 |
1 | ||
| 63317-BZ040 |
F800 NO.4 |
1 | ||
| 63317-BZ010 |
F800 NO.1 |
1 | ||
| 63317-BZ030 |
F800 NO.3 |
1 | ||
| 63317-BZ020 |
F800 NO.2 |
1 | ||
| 63317A - RETAINER, ROOF HEADLINING | ||||
| 63317-BZ150 |
F800 NO.5 |
1 | ||
| 63317-BZ040 |
F800 NO.4 |
1 | ||
| 63317-BZ010 |
F800 NO.1 |
1 | ||
| 63317-BZ030 |
F800 NO.3 |
1 | ||
| 63317-BZ020 |
F800 NO.2 |
1 | ||
| 63317A - RETAINER, ROOF HEADLINING | ||||
| 63317-BZ150 |
F800 NO.5 |
1 | ||
| 63317-BZ040 |
F800 NO.4 |
1 | ||
| 63317-BZ010 |
F800 NO.1 |
1 | ||
| 63317-BZ030 |
F800 NO.3 |
1 | ||
| 63317-BZ020 |
F800 NO.2 |
1 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63342-BZ190 |
F800 |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-BZ180 |
F800 |
1 | ||
| 63342A - SILENCER, ROOF, NO.2 | ||||
| 63342-BZ010 |
F800 |
1 | ||
| 63352D - PAD, ROOF HEADLINING, NO.2 | ||||
| 63352-BZ010 |
F800 |
2 | ||
| 63352D - PAD, ROOF HEADLINING, NO.2 | ||||
| 63352-BZ010 |
F800 |
2 | ||
| 63357B - SILENCER, ROOF | ||||
| 63357-BZ050 |
F800 |
1 | ||
| 88570F - GRILLE ASSY, AIR OUTLET | ||||
| 87125-BZ030B1 |
F800 LT.GRAY,TRIM1# |
3 | ||
| 88570F - GRILLE ASSY, AIR OUTLET | ||||
| 87125-BZ030B1 |
F800 LT.GRAY,TRIM1# |
3 | ||
| 88570F - GRILLE ASSY, AIR OUTLET | ||||
| 87125-BZ030B1 |
F800 LT.GRAY,TRIM1# |
3 | ||
| 88573C - BASE, GRILLE | ||||
| 88573-BZ010B1 |
F800 LT.GRAY,TRIM1# |
1 | ||
