F800RE-GQGFJ (2017)
Toyota Rush
Production
Dec 2017
-
Sep 9999
Engine
2NRVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1712- )

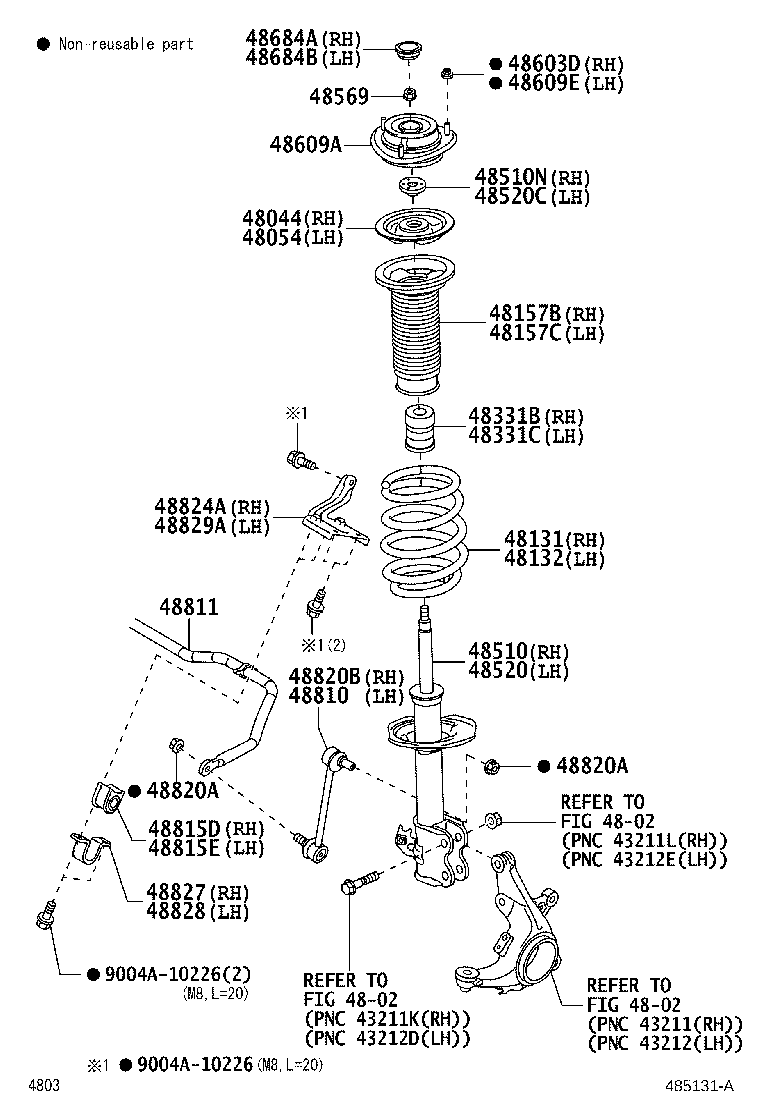

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48044 - SEAT SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48044-BZ080 |
F800 RH |
1 | ||
| 48054 - SEAT SUB-ASSY, FRONT SPRING, NO.2 | ||||
| 48044-BZ080 |
F800 LH |
1 | ||
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-BZ860 |
F800..IDN |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-BZ860 |
F800..IDN |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-BZ100 |
F800 |
1 | ||
| 48157-BZ040 |
F800 |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-BZ100 |
F800 |
1 | ||
| 48157-BZ040 |
F800 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-BZ110 |
F800 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-BZ110 |
F800 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-BZD00 |
F800..IDN MARK 48510-BZD00 |
1 | ||
| 48510N - BUSH(FOR FRONT SHOCK ABSORBER RH) | ||||
| 90043-85174 |
F800 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-BZ840 |
F800..IDN MARK 48520-BZ840 |
1 | ||
| 48520C - BUSH(FOR FRONT SHOCK ABSORBER LH) | ||||
| 90043-85174 |
F800 |
1 | ||
| 48569 - NUT, SHOCK ABSORBER PISTON | ||||
| 90041-79316 |
F800 COLOR:GREEN |
2 | ||
| 90041-77018 |
F800 COLOR:RED |
2 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 9004A-17256 |
F800 |
3 | ||
| 48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION | ||||
| 48609-BZ070 |
F800 |
2 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 9004A-17256 |
F800 |
3 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-BZ010 |
F800 |
1 | ||
| 48684-BZ110 |
F800 |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-BZ010 |
F800 |
1 | ||
| 48684-BZ110 |
F800 |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-BZ070 |
F800 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-BZ280 |
F800 |
1 | ||
| 48815D - BUSH, FRONT STABILIZER BAR, RH | ||||
| 48815-BZ290 |
F800 |
1 | ||
| 48815E - BUSH, FRONT STABILIZER BAR, LH | ||||
| 48815-BZ290 |
F800 |
1 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 9004A-17255 |
F800 |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 9004A-17255 |
F800 |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-BZ070 |
F800 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48809-BZ010 |
F800 |
1 | ||
| 48827 - BRACKET, FRONT STABILIZER, NO.2 RH | ||||
| 48824-BZ010 |
F800 |
1 | ||
| 48828 - BRACKET, FRONT STABILIZER, NO.2 LH | ||||
| 48824-BZ010 |
F800 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48807-BZ010 |
F800 |
1 | ||
| Common parts | ||||
| 9004A-10226 | ||||
| Linked diagrams | ||||
| 4802 | ||||
