F800RE-GMMFJ (2017)

Toyota Rush

Production Dec 2017 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1712- )

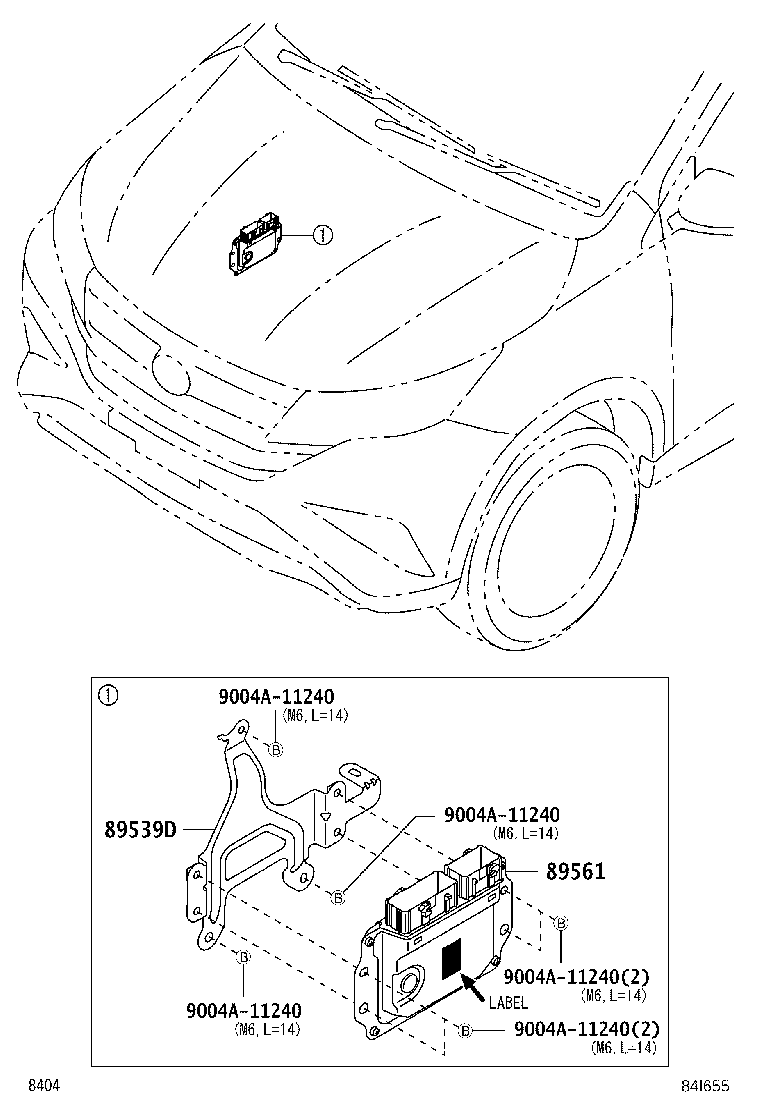

Click highlighted areas on diagram

diagram 89539D 89561 9004A11240 9004A11240 9004A11240 9004A11240 9004A11240
Part # Description Qty Price
89539D - BRACKET, COMPUTER
89539-BZ130

F800..IDN

MALAYSIA&ANTI-THEFT SYSTEM-E+THATCHAM BY UMWT

 1
89539-BZ130

F800

 1
89561 - COMPUTER, FUEL INJECTION
89560-BZV40

F800..5F..IDN

FUJITSU TEN,MALAYSIA&ANTI-THEFT SYSTEM-E+THATCHAM BY UMWT,W/PART NUMBER LABEL

 1
89560-BZV40

F800..5F..IDN

FUJITSU TEN,W/PART NUMBER LABEL

 1
89560-BZS90

F800..5F..IDN

FUJITSU TEN,INDONESIA(FROM '18/10),W/PART NUMBER LABEL

 1
Common parts
9004A-11240
