F800RE-GMMFJ (2017)
Toyota Rush
Production
Dec 2017
-
Sep 9999
Engine
2NRVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

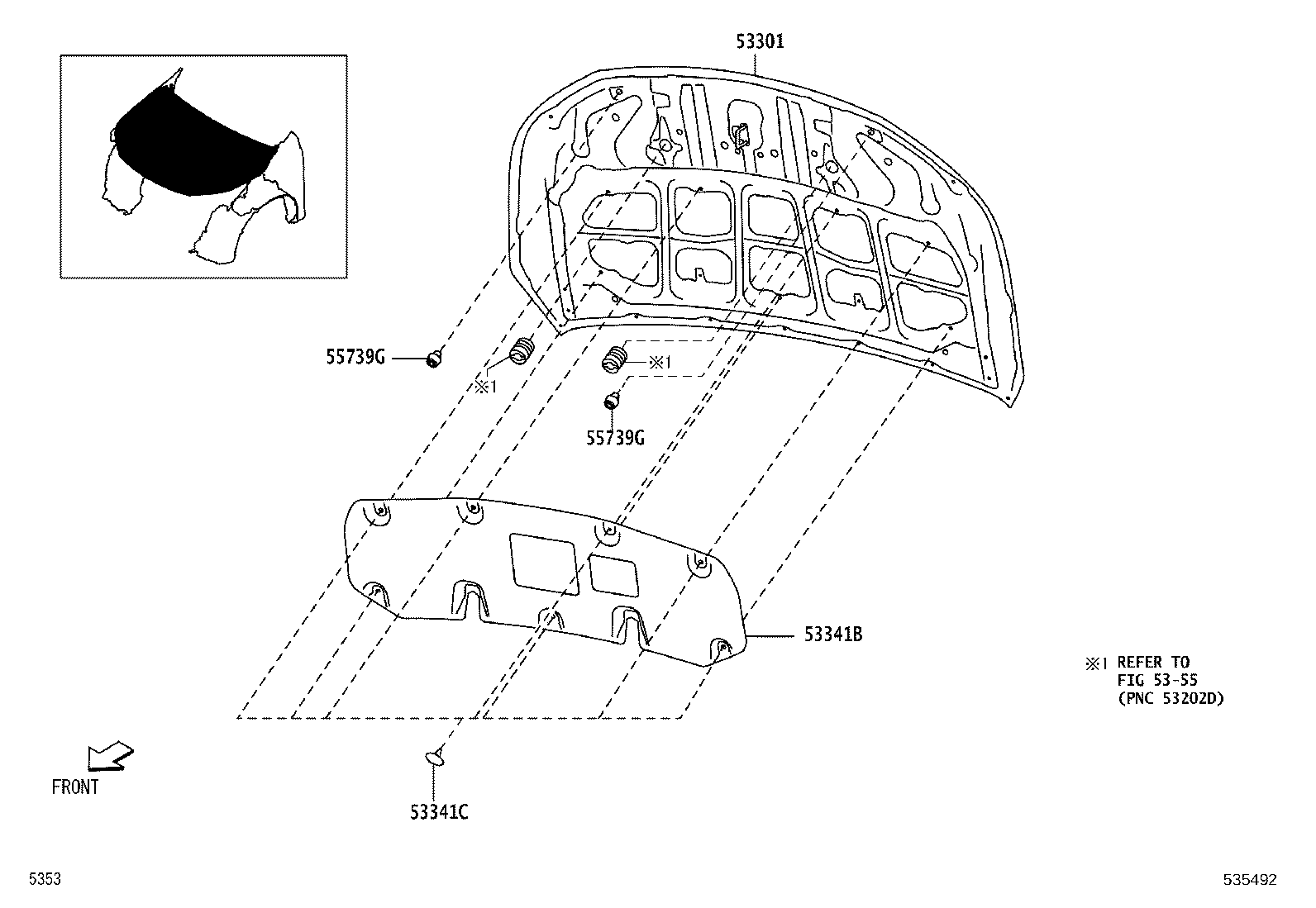

ILLUST NO. 1 OF 3(1712- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-BZ390 |
F800 |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-BZ130 |
F800 |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 9004A-46258 |
F800 |
7 | ||
| 55739G - STOPPER, HOOD | ||||
| 55738-52050 |
F800 |
2 | ||
| 55739G - STOPPER, HOOD | ||||
| 55738-52050 |
F800 |
2 | ||
| Linked diagrams | ||||
| 5355 | ||||
ILLUST NO. 2 OF 3(1712- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53805 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, RH | ||||
| 53805-BZ110 |
F800 |
1 | ||
| 53806 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, LH | ||||
| 53806-BZ010 |
F800 |
1 | ||
| 53875C - CLIP, FRONT FENDER LINER | ||||
| 9004A-46323 |
F800 |
20 | ||
| Common parts | ||||
| 9004A-15057 | ||||
| 90189-06237 | ||||
ILLUST NO. 3 OF 3(1712- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53395B - CLIP(FOR HOOD TO FRONT END PANEL SEAL) | ||||
| 9004A-46336 |
F800..IDN |
2 | ||
| 90044-67637 |
F800 |
2 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53811-BZ560 |
F800 |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53812-BZ550 |
F800 |
1 | ||
| 53865C - PLATE, FRONT FENDER EXTENSION, RH | ||||
| 53865-BZ120 |
F800 |
1 | ||
| 53866A - CLIP(FOR FRONT FENDER TO COWL SIDE SEAL) | ||||
| 90044-67637 |
F800 |
2 | ||
| 9004A-46336 |
F800..IDN |
2 | ||
| 53866G - PLATE, FRONT FENDER EXTENSION, LH | ||||
| 53866-BZ110 |
F800 |
1 | ||
| Common parts | ||||
| 9004A-11217 | ||||
| Linked diagrams | ||||
| 5354 | ||||
