F800RE-GMMFJ (2017)

Toyota Rush

Production Dec 2017 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1712- )

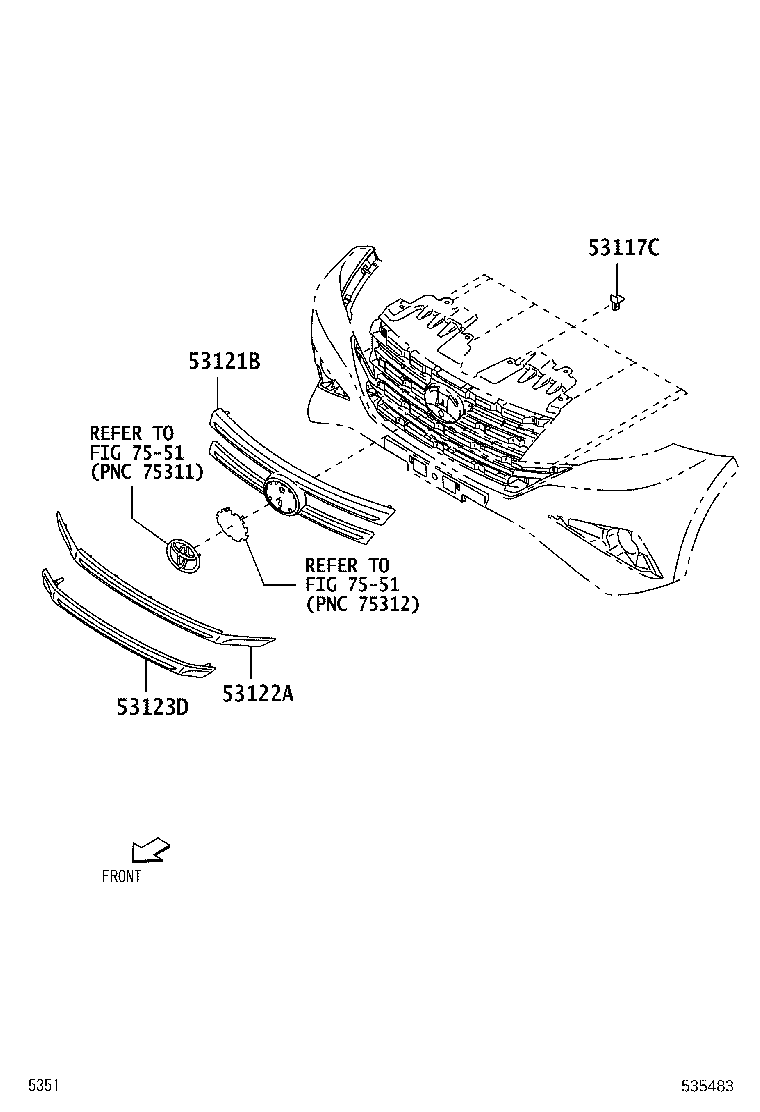

Click highlighted areas on diagram

diagram 53117C 53121B 53122A 53123D 7551 7551
Part # Description Qty Price
53117C - RETAINER, RADIATOR GRILLE, NO.1
76854-BZ010

F800

 7
53121B - MOULDING, RADIATOR GRILLE, UPPER
53121-BZ470

F800..HI;F800..MID..IDN

 1
53122A - MOULDING, RADIATOR GRILLE, LOWER
53122-BZ180

F800..HI;F800..MID..IDN

 1
53123D - MOULDING, RADIATOR GRILLE, LOWER
53123-BZ200

F800..HI;F800..MID..IDN

 1
Linked diagrams
7551
