F800RE-GMMFJ (2017)

Toyota Rush

Production Dec 2017 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1712- )5F

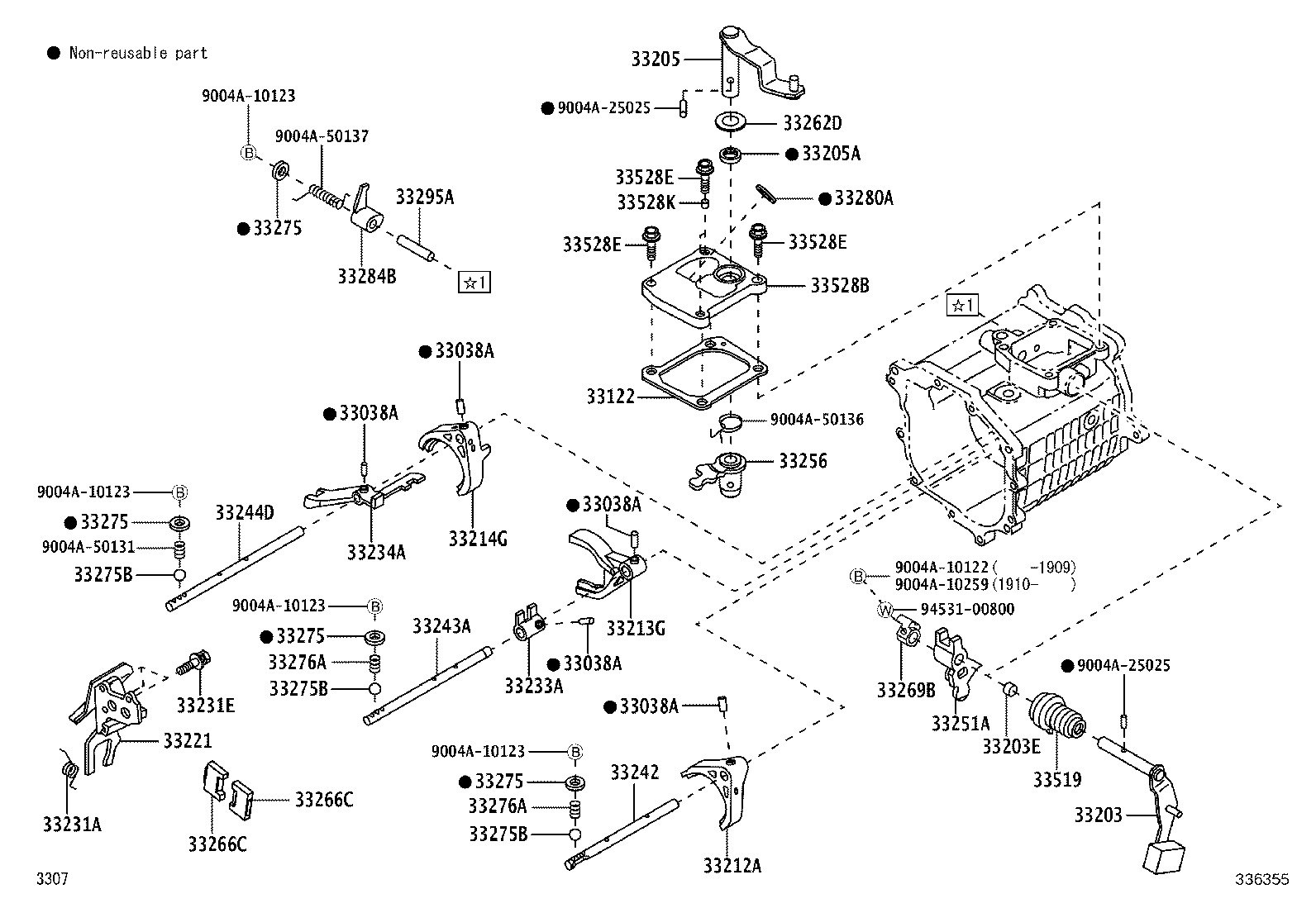

Click highlighted areas on diagram

diagram 33038A 33038A 33038A 33038A 33038A 33122 33203 33203E 33205 33205A 33212A 33213G 33214G 33221 33231A 33231E 33233A 33234A 33242 33243A 33244D 33251A 33256 33262D 33266C 33266C 33269B 33275 33275 33275 33275 33275B 33275B 33275B 33276A 33276A 33280A 33284B 33295A 33519 33528B 33528E 33528E 33528E 33528K 9004A10122 9004A10123 9004A10123 9004A10123 9004A10123 9004A10259 9004A25025 9004A25025 9004A50131 9004A50136 9004A50137 9453100800
Part # Description Qty Price
33038A - PIN, SLOTTED SPRING
9004A-25024

F800..5F

 5
33038A - PIN, SLOTTED SPRING
9004A-25024

F800..5F

 5
33038A - PIN, SLOTTED SPRING
9004A-25024

F800..5F

 5
33038A - PIN, SLOTTED SPRING
9004A-25024

F800..5F

 5
33038A - PIN, SLOTTED SPRING
9004A-25024

F800..5F

 5
33122 - GASKET, MANUAL TRANSMISSION CASE COVER
33122-BZ070

F800..5F

 1
33203 - SHAFT SUB-ASSY, SHIFT LEVER, NO.1
33203-BZ101

F800..5F

 1
33203E - BUSH(FOR SHIFT LEVER SHAFT)
33518-BZ020

F800..5F

 1
33205 - SHAFT SUB-ASSY, SELECT LEVER
33205-BZ080

F800..5F

 1
33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)
9004A-31017

F800..5F

 1
33212A - FORK, GEAR SHIFT, NO.1
33212-BZ060

F800..5F

 1
33213G - FORK, GEAR SHIFT, NO.2
33213-BZ090

F800..5F

 1
33214G - FORK, GEAR SHIFT, NO.3
33214-BZ070

F800..5F

 1
33221 - ARM, REVERSE SHIFT
33201-BZ011

F800..5F

 1
33231A - SPRING, REVERSE SHIFT RESTRICT
9004A-50130

F800..5F

 1
33231E - BOLT(FOR REVERSE SHIFT HEAD)
9004A-11228

F800..5F

 3
33233A - HEAD, GEAR SHIFT, NO.2
33233-BZ010

F800..5F

 1
33234A - HEAD, GEAR SHIFT, NO.3
33234-BZ010

F800..5F

 1
33242 - SHAFT, GEAR SHIFT FORK, NO.1
33242-BZ050

F800..5F

 1
33243A - SHAFT, GEAR SHIFT FORK, NO.2
33243-BZ090

F800..5F

 1
33244D - SHAFT, GEAR SHIFT FORK, NO.3
33244-BZ070

F800..5F

 1
33251A - LEVER, SHIFT, INNER NO.1
33251-BZ060

F800..5F

 1
33256 - LEVER, SELECT INNER
33256-BZ060

F800..5F

 1
33262D - WASHER, PLATE (FOR SELECT LEVER SHAFT)
9004A-20015

F800..5F

 1
33266C - PLATE, SHIFT INTER LOCK
33266-BZ050

F800..5F

 2
33266C - PLATE, SHIFT INTER LOCK
33266-BZ050

F800..5F

 2
33269B - HEAD,LEVER SHAFT NEUTRAL DETECTION
33269-BZ020

F800..5F

 1
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
9004A-43005

F800..5F

0D=17

 4
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
9004A-43005

F800..5F

0D=17

 4
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
9004A-43005

F800..5F

0D=17

 4
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
9004A-43005

F800..5F

0D=17

 4
33275B - BALL, SHAFT DETENT
9004A-36044

F800..5F

 3
33275B - BALL, SHAFT DETENT
9004A-36044

F800..5F

 3
33275B - BALL, SHAFT DETENT
9004A-36044

F800..5F

 3
33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
9004A-50028

F800..5F

 2
33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
9004A-50028

F800..5F

 2
33280A - GASKET, REVERSE RESTRICT PIN
9004A-43007

F800..5F

 1
33284B - PIN, REVERSE RESTRICT, NO.2
33284-BZ040

F800..5F

 1
33295A - SHAFT, REVERSE RESTRICT
33283-BZ080

F800..5F

 1
33519 - BOOT, CONTROL SHAFT DUST
33519-BZ010

F800..5F

 1
33528B - COVER, CONTROL SHAFT
33528-BZ030

F800..5F

 1
33528E - BOLT (FOR CONTROL SHAFT COVER)
9004A-10190

F800..5F

 4
33528E - BOLT (FOR CONTROL SHAFT COVER)
9004A-10190

F800..5F

 4
33528E - BOLT (FOR CONTROL SHAFT COVER)
9004A-10190

F800..5F

 4
33528K - PIN, RING (FOR CONTROL SHAFT COVER SET BOLT)
9004A-25029

F800..5F

 2
Common parts
9004A-10122
9004A-10123
9004A-10259
9004A-25025
9004A-50131
9004A-50136
9004A-50137
94531-00800
