F800RE-GMGFJ (2017)
Toyota Rush
Production
Dec 2017
-
Sep 9999
Engine
2NRVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

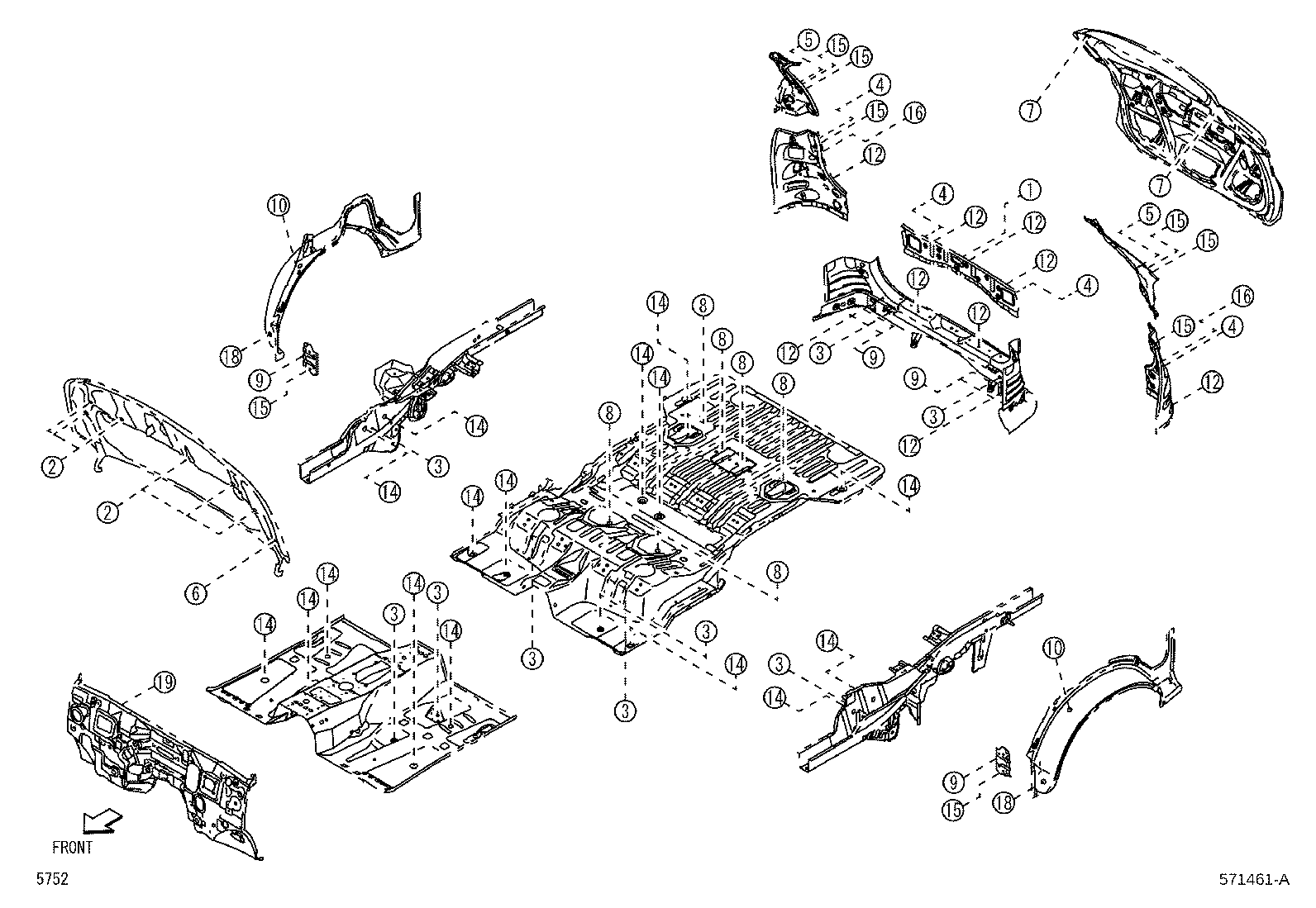

ILLUST NO. 1 OF 3(1712- )
Click highlighted areas on diagram
ILLUST NO.1 OF 3

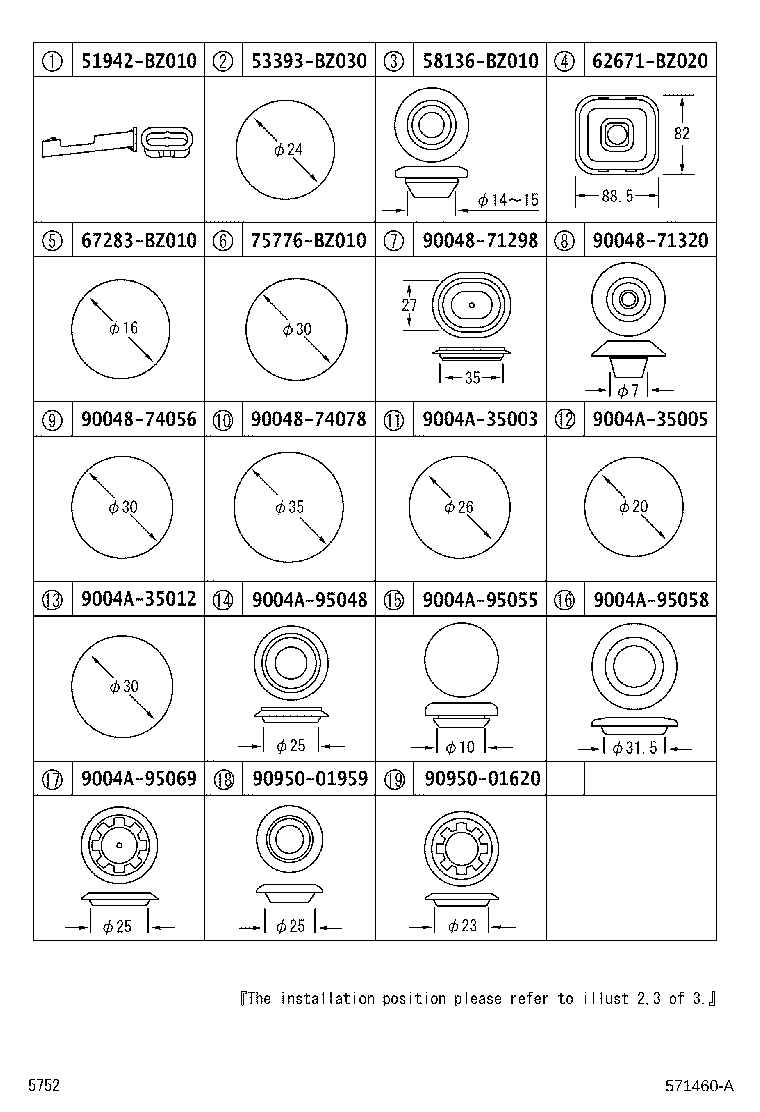

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 51942-BZ010 | ||||
| 53393-BZ030 | ||||
| 58136-BZ010 | ||||
| 62671-BZ020 | ||||
| 67283-BZ010 | ||||
| 75776-BZ010 | ||||
| 90048-71298 | ||||
| 90048-71320 | ||||
| 90048-74056 | ||||
| 90048-74078 | ||||
| 9004A-35003 | ||||
| 9004A-35005 | ||||
| 9004A-35012 | ||||
| 9004A-95048 | ||||
| 9004A-95055 | ||||
| 9004A-95058 | ||||
| 9004A-95069 | ||||
| 90950-01620 | ||||
| 90950-01959 | ||||
ILLUST NO. 2 OF 3(1712- )
Click highlighted areas on diagram
ILLUST NO.2 OF 3
| Part # | Description | Qty | Price |
|---|

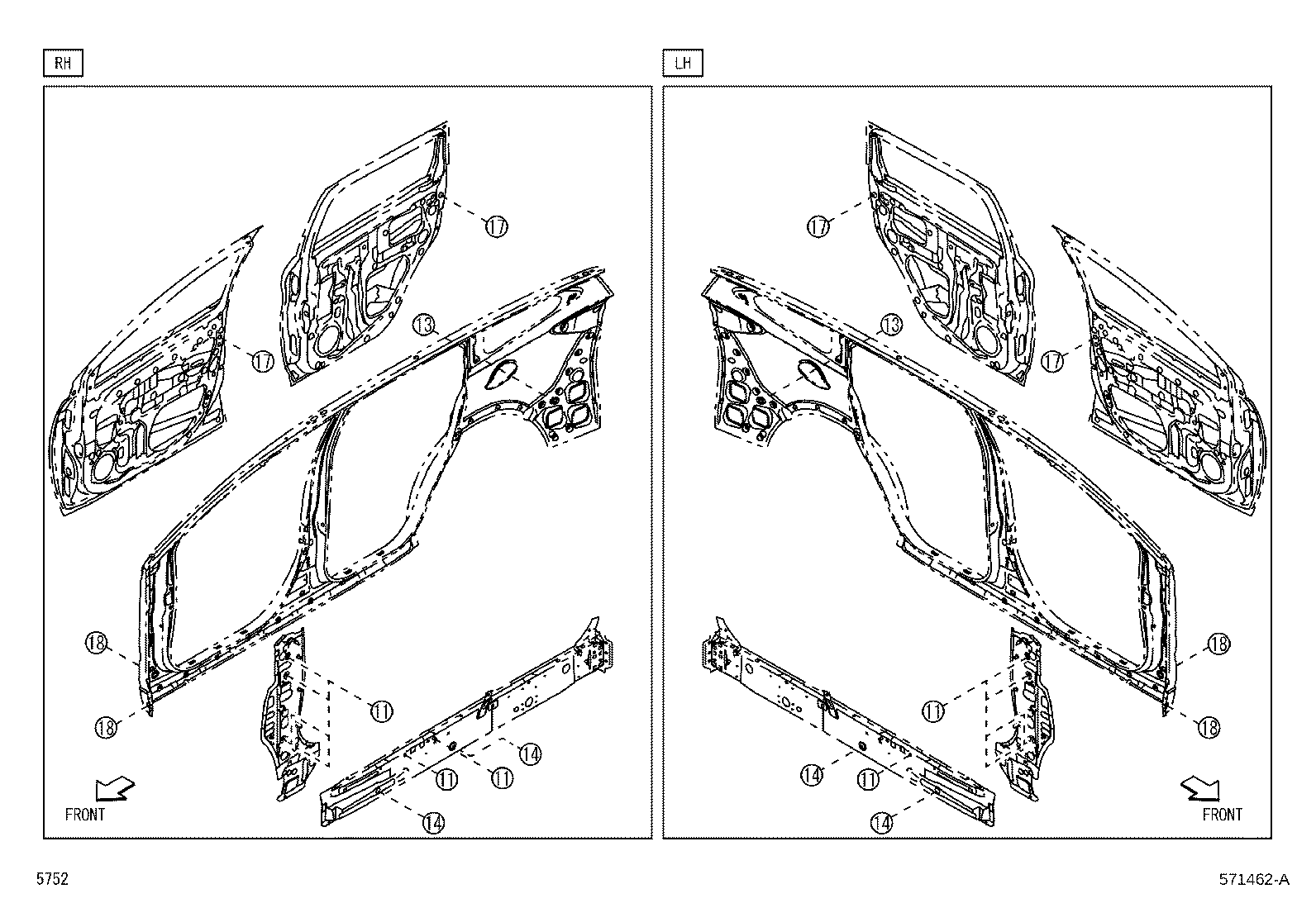

ILLUST NO. 3 OF 3(1712- )
Click highlighted areas on diagram
ILLUST NO.3 OF 3
| Part # | Description | Qty | Price |
|---|
