F800RE-GMGFJ (2017)

Toyota Rush

Production Dec 2017 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1712- )

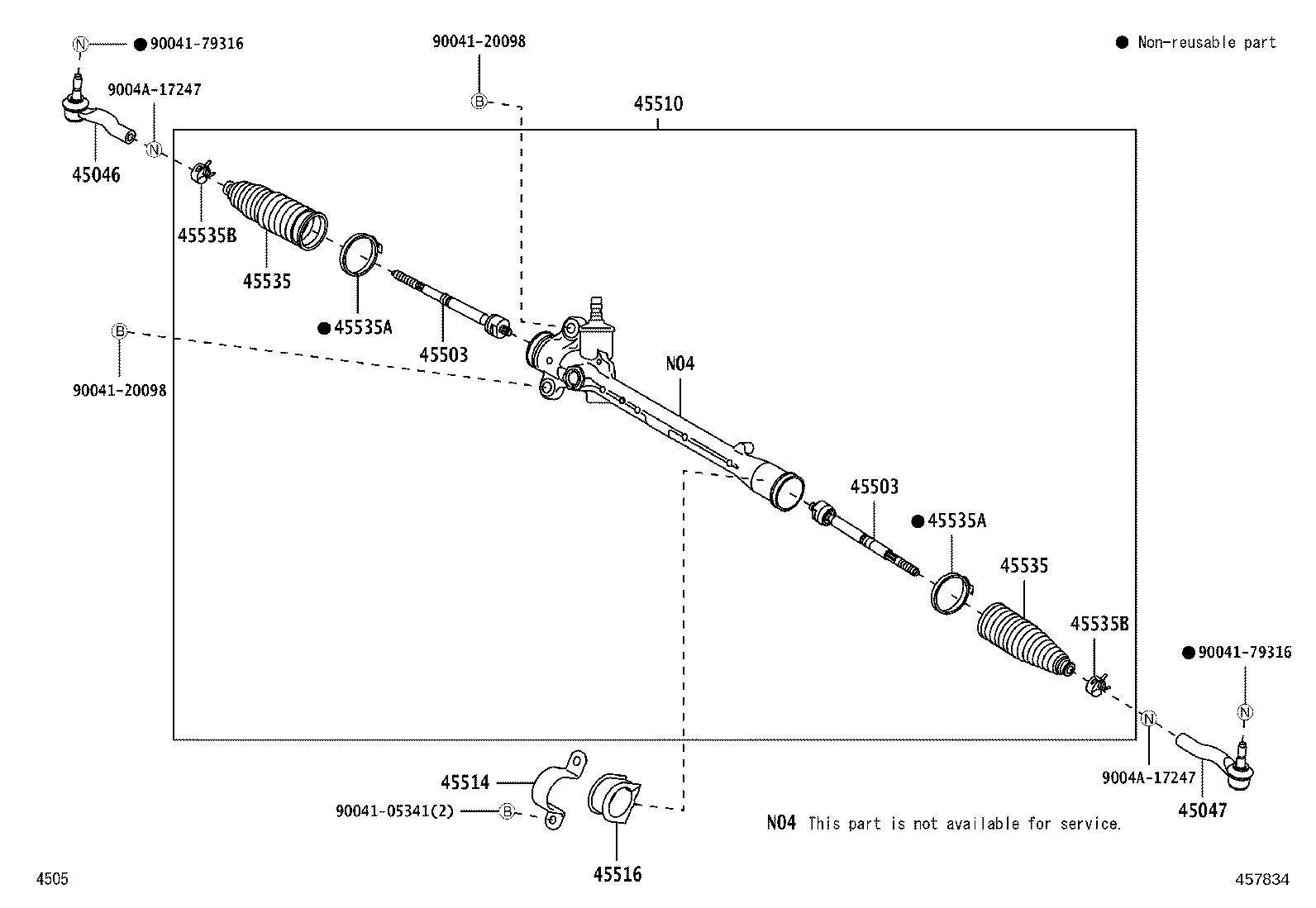

Click highlighted areas on diagram

diagram 45046 45047 45503 45503 45510 45514 45516 45535 45535 45535A 45535A 45535B 45535B 9004105341 9004120098 9004120098 9004179316 9004179316 9004A17247 9004A17247
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-BZ210

F800

 1
45047 - END SUB-ASSY, TIE ROD, LH
45046-BZ210

F800

 1
45503 - END SUB-ASSY, STEERING RACK
45503-BZ210

F800

 2
45503 - END SUB-ASSY, STEERING RACK
45503-BZ210

F800

 2
45510 - GEAR ASSY, STEERING
45510-BZ360

F800..RHD

 1
45514 - BRACKET, STEERING RACK HOUSING, NO.1
45514-BZ120

F800

 1
45516 - GROMMET, STEERING RACK HOUSING, NO.1
45516-BZ120

F800

 1
45535 - BOOT, STEERING RACK, NO.1
45535-BZ110

F800

 2
45535 - BOOT, STEERING RACK, NO.1
45535-BZ110

F800

 2
45535A - CLAMP(FOR STEERING RACK BOOT)
45538-BZ050

F800

 2
45535A - CLAMP(FOR STEERING RACK BOOT)
45538-BZ050

F800

 2
45535B - CLIP(FOR STEERING RACK BOOT)
45537-BZ030

F800

 2
45535B - CLIP(FOR STEERING RACK BOOT)
45537-BZ030

F800

 2
Common parts
90041-05341
90041-20098
90041-79316
9004A-17247
