F800LE-GQMF (2018)
Toyota Rush
Production
Apr 2018
-
Sep 9999
Engine
2NRVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1804- )LHD

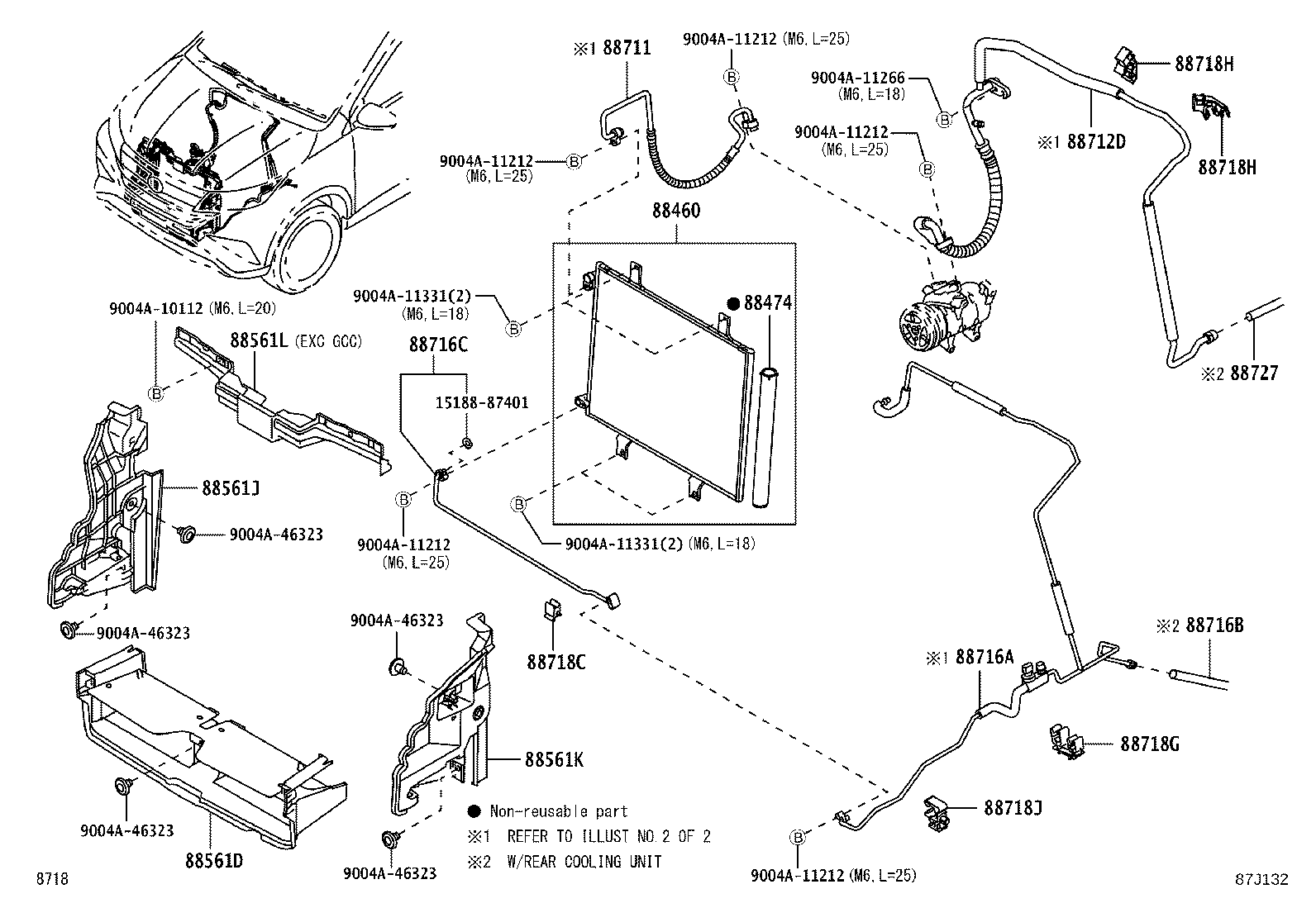

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-BZ240 |
F800..GEN,IDN,PH,VN |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-B2010 |
F800 |
1 | ||
| 88561D - GRILLE, AIR INLET NO.3 | ||||
| 88561-BZ460 |
F800 |
1 | ||
| 88561J - GRILLE, AIR INLET NO.1 | ||||
| 88561-BZ440 |
F800 |
1 | ||
| 88561K - GRILLE, AIR INLET NO.2 | ||||
| 88561-BZ450 |
F800 |
1 | ||
| 88561L - GRILLE, AIR INLET NO.4 | ||||
| 88561-BZ500 |
F800..GEN,IDN,PH,VN |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-BZ561 |
F800..GEN,IDN,PH,VN |
1 | ||
| 88712D - HOSE, SUCTION | ||||
| 88712-BZ610 |
F800..LHD..(GEN,PH,VN) |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-BZB52 |
F800..LHD CONNECTOR BLACK |
1 | ||
| 88716-BZB51 |
F800..LHD CONNECTOR BLACK |
1 | ||
| 88716-BZB50 |
F800..LHD CONNECTOR GRAY |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-BZ730 |
F800 |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-BZB70 |
F800 |
1 | ||
| 88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-BZ280 |
F800 |
1 | ||
| 88718G - CLAMP, NO.2(FOR COOLER REFRIGERANT HOSE) | ||||
| 88718-BZ550 |
F800 |
1 | ||
| 88718H - CLAMP, NO.3(FOR COOLER REFRIGERANT HOSE) | ||||
| 88718-BZ650 |
F800..LHD |
2 | ||
| 88718H - CLAMP, NO.3(FOR COOLER REFRIGERANT HOSE) | ||||
| 88718-BZ650 |
F800..LHD |
2 | ||
| 88718J - CLAMP, NO.4(FOR COOLER REFRIGERANT HOSE) | ||||
| 88718-BZ660 |
F800 |
1 | ||
| 88727 - TUBE, SUCTION, NO.2 | ||||
| 88717-BZ401 |
F800 |
1 | ||
| Common parts | ||||
| 15188-87401 | ||||
| 9004A-10112 | ||||
| 9004A-11212 | ||||
| 9004A-11266 | ||||
| 9004A-11331 | ||||
| 9004A-46323 | ||||
(1804- )LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-87601 |
F800 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-87601 |
F800 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-87603 |
F800 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-87601 |
F800 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-BZ561 |
F800..GEN,IDN,PH,VN |
1 | ||
| 88711B - RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE) | ||||
| 15188-87402 |
F800 |
2 | ||
| 88711B - RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE) | ||||
| 15188-87402 |
F800 |
2 | ||
| 88712A - RING, O(FOR COOLER REFRIGERANT SUCTION HOSE) | ||||
| 15188-87403 |
F800 |
2 | ||
| 88712A - RING, O(FOR COOLER REFRIGERANT SUCTION HOSE) | ||||
| 15188-87403 |
F800 |
2 | ||
| 88712D - HOSE, SUCTION | ||||
| 88712-BZ610 |
F800..LHD..(GEN,PH,VN) |
1 | ||
| 88714B - RING, O(FOR COOLER REFRIGERANT LIQUID HOSE) | ||||
| 15188-87401 |
F800 |
2 | ||
| 88714B - RING, O(FOR COOLER REFRIGERANT LIQUID HOSE) | ||||
| 15188-87401 |
F800 |
2 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-BZB52 |
F800..LHD CONNECTOR BLACK |
1 | ||
| 88716-BZB51 |
F800..LHD CONNECTOR BLACK |
1 | ||
| 88716-BZB50 |
F800..LHD CONNECTOR GRAY |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-B2020 |
F800..LHD CONNECTOR BLACK |
1 | ||
| 88719-B2010 |
F800..LHD CONNECTOR GRAY |
1 | ||
