F800LE-GQMF (2018)
Toyota Rush
(2006- )LHD..GEN

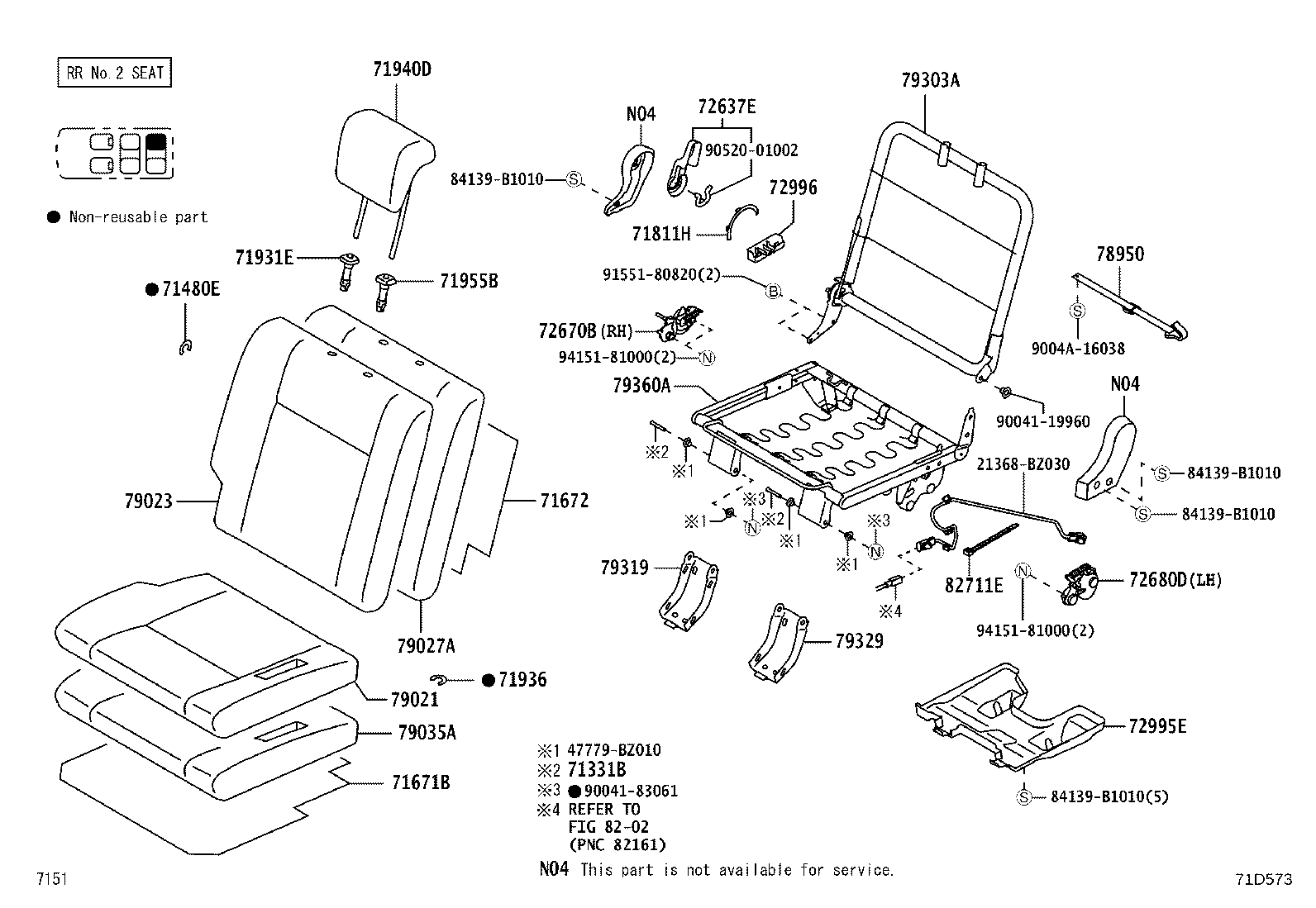

COSTA RICA/REAR NO.2 SEAT RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71331B - PIN, REAR SEAT HINGE, RH | ||||
| 71331-BZ040 |
F800..HI..PH;F800..GCC,GEN,IDN,VN |
2 | ||
| 71331-BZ040 |
F800..LHD..GEN ECUADOR |
2 | ||
| 71480E - CLIP, REAR SEAT BACK, RH | ||||
| 9004A-46143 |
F800..LHD..GEN COSTA RICA |
3 | ||
| 71671B - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71622-BZ080 |
F800..LHD..GEN ECUADOR |
1 | ||
| 71622-BZ080 |
F800..HI..PH;F800..GCC,GEN,IDN,VN |
1 | ||
| 71672 - PAD, REAR SEAT BACK SILENCER, B | ||||
| 71672-BZ080 |
F800..HI..PH;F800..GCC,GEN,IDN,VN |
1 | ||
| 71672-BZ080 |
F800..LHD..GEN ECUADOR |
1 | ||
| 71811H - COVER, RECLINING ADJUSTER, RH | ||||
| 71875-BZ020B0 |
F800..LHD..GEN COSTA RICA,DK.GRAY,TRIM1# |
1 | ||
| 71931E - SUPPORT ASSY, REAR NO.3 SEAT HEADREST | ||||
| 71930-BZ040B0 |
F800..MID..(GCC,GEN,VN) W(LOCK),DK.GRAY,TRIM1#,LH |
1 | ||
| 71931-BZ060B0 |
F800..LHD..GEN W/O(LOCK),COSTA RICA,DK.GRAY,TRIM1# |
1 | ||
| 71930-BZ040B0 |
F800..LHD..MID..GEN W(LOCK),ECUADOR,DK.GRAY,TRIM1#,LH |
1 | ||
| 71936 - CLIP | ||||
| 9004A-46143 |
F800..HI..PH;F800..GCC,GEN,IDN,VN |
31 | ||
| 9004A-46143 |
F800..LHD..GEN COSTA RICA |
12 | ||
| 9004A-46143 |
F800..LHD..GEN ECUADOR |
31 | ||
| 71940D - HEADREST ASSY, REAR NO.2 SEAT, RH | ||||
| 71970-BZ220C0 |
F800..LHD..MID..GEN COSTA RICA,BLACK,TRIM1# |
1 | ||
| 71970-BZ120C0 |
F800..LHD..MID..GEN ECUADOR,BLACK,TRIM1# |
1 | ||
| 71970-BZ120C0 |
F800..MID..(GCC,GEN,VN) BLACK,TRIM1# |
1 | ||
| 71955B - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-BZ030B0 |
F800..MID..(GCC,GEN,VN) DK.GRAY,TRIM1#,RH |
1 | ||
| 71930-BZ050B0 |
F800..LHD..GEN COSTA RICA,DK.GRAY,TRIM1# |
1 | ||
| 71931-BZ030B0 |
F800..LHD..MID..GEN ECUADOR,DK.GRAY,TRIM1#,RH |
1 | ||
| 72637E - HANDLE, REAR SEAT LOCK, RH | ||||
| 72637-BZ110B0 |
F800..LHD..GEN COSTA RICA,DK.GRAY,TRIM1# |
1 | ||
| 72670B - LOCK ASSY, REAR SEAT CUSHION, RH | ||||
| 72670-BZ170 |
F800..LHD..GEN ECUADOR |
1 | ||
| 72670-BZ170 |
F800..HI..PH;F800..GCC,GEN,IDN,VN |
1 | ||
| 72680D - LOCK ASSY, FRONT SEAT CUSHION, LH | ||||
| 72670-BZ170 |
F800..LHD..GEN COSTA RICA |
1 | ||
| 72995E - COVER, REAR SEAT CUSHION | ||||
| 72995-BZ230C0 |
F800..LHD..GEN COSTA RICA,BLACK,TRIM1# |
1 | ||
| 72996 - COVER, REAR SEAT BACK, RH | ||||
| 72996-BZ200 |
F800..LHD..GEN COSTA RICA |
1 | ||
| 78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1 | ||||
| 78980-BZ090B0 |
F800..LHD..GEN ECUADOR,DK.GRAY,TRIM1# |
1 | ||
| 78980-BZ090B0 |
F800..HI..PH;F800..GCC,GEN,IDN,VN DK.GRAY,TRIM1# |
1 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79021-BZ840C0 |
F800..MID..(GCC,GEN,VN) BLACK,TRIM1# |
1 | ||
| 79021-BZA90C0 |
F800..LHD..MID..GEN COSTA RICA,BLACK,TRIM1# |
1 | ||
| 79021-BZ840C0 |
F800..LHD..MID..GEN ECUADOR,BLACK,TRIM1# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79023-BZA50C0 |
F800..LHD..MID..GEN COSTA RICA,BLACK,TRIM1# |
1 | ||
| 79023-BZ790C0 |
F800..MID..(GCC,GEN,VN) BLACK,TRIM1# |
1 | ||
| 79023-BZ790C0 |
F800..LHD..MID..GEN ECUADOR,BLACK,TRIM1# |
1 | ||
| 79027A - PAD SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79027-BZ050 |
F800..HI..PH;F800..GCC,GEN,IDN,VN |
1 | ||
| 79027-BZ060 |
F800..LHD..GEN COSTA RICA |
1 | ||
| 79027-BZ050 |
F800..LHD..GEN ECUADOR |
1 | ||
| 79035A - PAD SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79035-BZ240 |
F800..LHD..GEN ECUADOR |
1 | ||
| 79035-BZ240 |
F800..HI..PH;F800..GCC,GEN,IDN,VN |
1 | ||
| 79037-BZ260 |
F800..LHD..GEN COSTA RICA |
1 | ||
| 79303A - FRAME SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79203-BZ080 |
F800..LHD..GEN COSTA RICA |
1 | ||
| 79303-BZ190 |
F800..HI..PH;F800..GCC,GEN,IDN,VN |
1 | ||
| 79303-BZ190 |
F800..LHD..GEN ECUADOR |
1 | ||
| 79319 - BRACKET, NO.3 SEAT LEG, RR RH | ||||
| 79318-BZ070 |
F800..HI..PH;F800..GCC,GEN,IDN,VN |
1 | ||
| 79318-BZ070 |
F800..LHD..GEN ECUADOR |
1 | ||
| 79329 - BRACKET, NO.3 SEAT LEG, RR LH | ||||
| 79328-BZ070 |
F800..HI..PH;F800..GCC,GEN,IDN,VN |
1 | ||
| 79328-BZ070 |
F800..LHD..GEN ECUADOR |
1 | ||
| 79360A - SPRING ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79360-BZ090 |
F800..HI..PH;F800..GCC,GEN,IDN,VN |
1 | ||
| 79360-BZ110 |
F800..LHD..GEN COSTA RICA |
1 | ||
| 79360-BZ090 |
F800..LHD..GEN ECUADOR |
1 | ||
| 82711E - CLAMP, WIRING HARNESS | ||||
| 90044-63270 |
F800..LHD..GEN COSTA RICA |
3 | ||
| 90044-63270 |
F800..HI..PH;F800..GCC,GEN,IDN,VN |
1 | ||
| 90044-63270 |
F800..LHD..GEN ECUADOR |
1 | ||
| Common parts | ||||
| 21368-BZ030 | ||||
| 47779-BZ010 | ||||
| 84139-B1010 | ||||
| 90041-19960 | ||||
| 90041-83061 | ||||
| 9004A-16038 | ||||
| 90520-01002 | ||||
| 91551-80820 | ||||
| 94151-81000 | ||||
| Linked diagrams | ||||
| 8202 | ||||
(2006- )LHD..GEN
COSTA RICA/REAR NO.2 SEAT LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71331C - PIN, REAR SEAT HINGE, LH | ||||
| 71331-BZ040 |
F800..HI..PH;F800..GCC,GEN,IDN,VN |
2 | ||
| 71331-BZ040 |
F800..LHD..GEN ECUADOR |
2 | ||
| 71490A - CLIP, REAR SEAT BACK, LH | ||||
| 9004A-46143 |
F800..LHD..GEN COSTA RICA |
3 | ||
| 71672A - PAD, REAR SEAT CUSHION SILENCER, B | ||||
| 71622-BZ080 |
F800..HI..PH;F800..GCC,GEN,IDN,VN |
1 | ||
| 71622-BZ080 |
F800..LHD..GEN ECUADOR |
1 | ||
| 71673 - PAD, REAR SEAT BACK SILENCER, C | ||||
| 71672-BZ080 |
F800..HI..PH;F800..GCC,GEN,IDN,VN |
1 | ||
| 71672-BZ080 |
F800..LHD..GEN ECUADOR |
1 | ||
| 71812E - COVER, RECLINING ADJUSTER, LH | ||||
| 71876-BZ020B0 |
F800..LHD..GEN COSTA RICA,DK.GRAY,TRIM1# |
1 | ||
| 71812J - CLIP, REAR SEAT COVER | ||||
| 9004A-46143 |
F800..LHD..GEN COSTA RICA |
13 | ||
| 71940E - HEADREST ASSY, NO.2 SEAT | ||||
| 71970-BZ120C0 |
F800..LHD..MID..GEN ECUADOR,BLACK,TRIM1# |
1 | ||
| 71970-BZ120C0 |
F800..MID..(GCC,GEN,VN) BLACK,TRIM1# |
1 | ||
| 71970-BZ220C0 |
F800..LHD..MID..GEN COSTA RICA,BLACK,TRIM1# |
1 | ||
| 71970B - SUPPORT ASSY, REAR SEAT HEADREST, RH | ||||
| 71931-BZ030B0 |
F800..HI..PH;F800..GCC,GEN,IDN,VN DK.GRAY,TRIM1#,RH |
1 | ||
| 71931-BZ030B0 |
F800..LHD..GEN ECUADOR,DK.GRAY,TRIM1#,RH |
1 | ||
| 71931-BZ060B0 |
F800..LHD..GEN COSTA RICA,DK.GRAY,TRIM1# |
1 | ||
| 71990A - SUPPORT ASSY, REAR SEAT HEADREST, LH | ||||
| 71930-BZ050B0 |
F800..LHD..GEN COSTA RICA,DK.GRAY,TRIM1# |
1 | ||
| 71930-BZ040B0 |
F800..HI..PH;F800..GCC,GEN,IDN,VN DK.GRAY,TRIM1#,LH |
1 | ||
| 71930-BZ040B0 |
F800..LHD..GEN ECUADOR,DK.GRAY,TRIM1#,LH |
1 | ||
| 72638 - HANDLE, REAR SEAT LOCK, LH | ||||
| 72637-BZ110B0 |
F800 DK.GRAY,TRIM1# |
1 | ||
| 72670C - LOCK ASSY, REAR SEAT CUSHION, NO.2 RH | ||||
| 72680-BZ230 |
F800..LHD..GEN COSTA RICA |
1 | ||
| 72680B - LOCK ASSY, REAR SEAT CUSHION, LH | ||||
| 72680-BZ230 |
F800..LHD..GEN COSTA RICA |
1 | ||
| 72996D - COVER, REAR NO.2 SEAT BACK, LH | ||||
| 72996-BZ200 |
F800..LHD..GEN COSTA RICA |
1 | ||
| 72998 - COVER, REAR SEAT CUSHION, LH | ||||
| 72998-BZ070C0 |
F800..LHD..GEN COSTA RICA,BLACK,TRIM1# |
1 | ||
| 78950B - BAND ASSY, FOLD SEAT STOPPER, NO.3 | ||||
| 78980-BZ090B0 |
F800..HI..PH;F800..GCC,GEN,IDN,VN DK.GRAY,TRIM1# |
1 | ||
| 78980-BZ090B0 |
F800..LHD..GEN ECUADOR,DK.GRAY,TRIM1# |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79022-BZ070C0 |
F800..LHD..MID..GEN ECUADOR,BLACK,TRIM1# |
1 | ||
| 79022-BZ070C0 |
F800..MID..(GCC,GEN,VN) BLACK,TRIM1# |
1 | ||
| 79022-BZ160C0 |
F800..LHD..MID..GEN COSTA RICA,BLACK,TRIM1# |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79024-BZ320C0 |
F800..MID..(GCC,GEN,VN) BLACK,TRIM1# |
1 | ||
| 79024-BZ320C0 |
F800..LHD..MID..GEN ECUADOR,BLACK,TRIM1# |
1 | ||
| 79024-BZ440C0 |
F800..LHD..MID..GEN COSTA RICA,BLACK,TRIM1# |
1 | ||
| 79028A - PAD SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79027-BZ080 |
F800..LHD..GEN COSTA RICA |
1 | ||
| 79027-BZ070 |
F800..LHD..GEN ECUADOR |
1 | ||
| 79027-BZ070 |
F800..HI..PH;F800..GCC,GEN,IDN,VN |
1 | ||
| 79038A - PAD SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79037-BZ270 |
F800..LHD..GEN COSTA RICA |
1 | ||
| 79165 - BRACKET, NO.3 SEAT LEG, REAR RH | ||||
| 79318-BZ060 |
F800..LHD..GEN ECUADOR |
1 | ||
| 79318-BZ060 |
F800..HI..PH;F800..GCC,GEN,IDN,VN |
1 | ||
| 79166 - BRACKET, NO.3 SEAT LEG, REAR LH | ||||
| 79328-BZ060 |
F800..HI..PH;F800..GCC,GEN,IDN,VN |
1 | ||
| 79328-BZ060 |
F800..LHD..GEN ECUADOR |
1 | ||
| 79304A - FRAME SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79203-BZ090 |
F800..LHD..GEN COSTA RICA |
1 | ||
| 79304-BZ100 |
F800..LHD..GEN ECUADOR |
1 | ||
| 79304-BZ100 |
F800..HI..PH;F800..GCC,GEN,IDN,VN |
1 | ||
| 79370A - SPRING ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79360-BZ100 |
F800..LHD..GEN ECUADOR |
1 | ||
| 79360-BZ120 |
F800..LHD..GEN COSTA RICA |
1 | ||
| 79360-BZ100 |
F800..HI..PH;F800..GCC,GEN,IDN,VN |
1 | ||
| 82711F - CLAMP, WIRING HARNESS | ||||
| 90044-63270 |
F800..LHD..GEN ECUADOR |
1 | ||
| 90044-63270 |
F800..HI..PH;F800..GCC,GEN,IDN,VN |
1 | ||
| 90044-63270 |
F800..LHD..GEN COSTA RICA |
3 | ||
| Common parts | ||||
| 21368-BZ030 | ||||
| 47779-BZ010 | ||||
| 84139-B1010 | ||||
| 90041-19960 | ||||
| 90041-83061 | ||||
| 9004A-16038 | ||||
| 90520-01002 | ||||
| 91551-80820 | ||||
| 94151-81000 | ||||
| Linked diagrams | ||||
| 8202 | ||||
