F800LE-GQMF (2018)

Toyota Rush

Production Apr 2018 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1712-2107)2NRVE..IDN ; (1712- )2NRVE..GCC,GEN,PH,VN

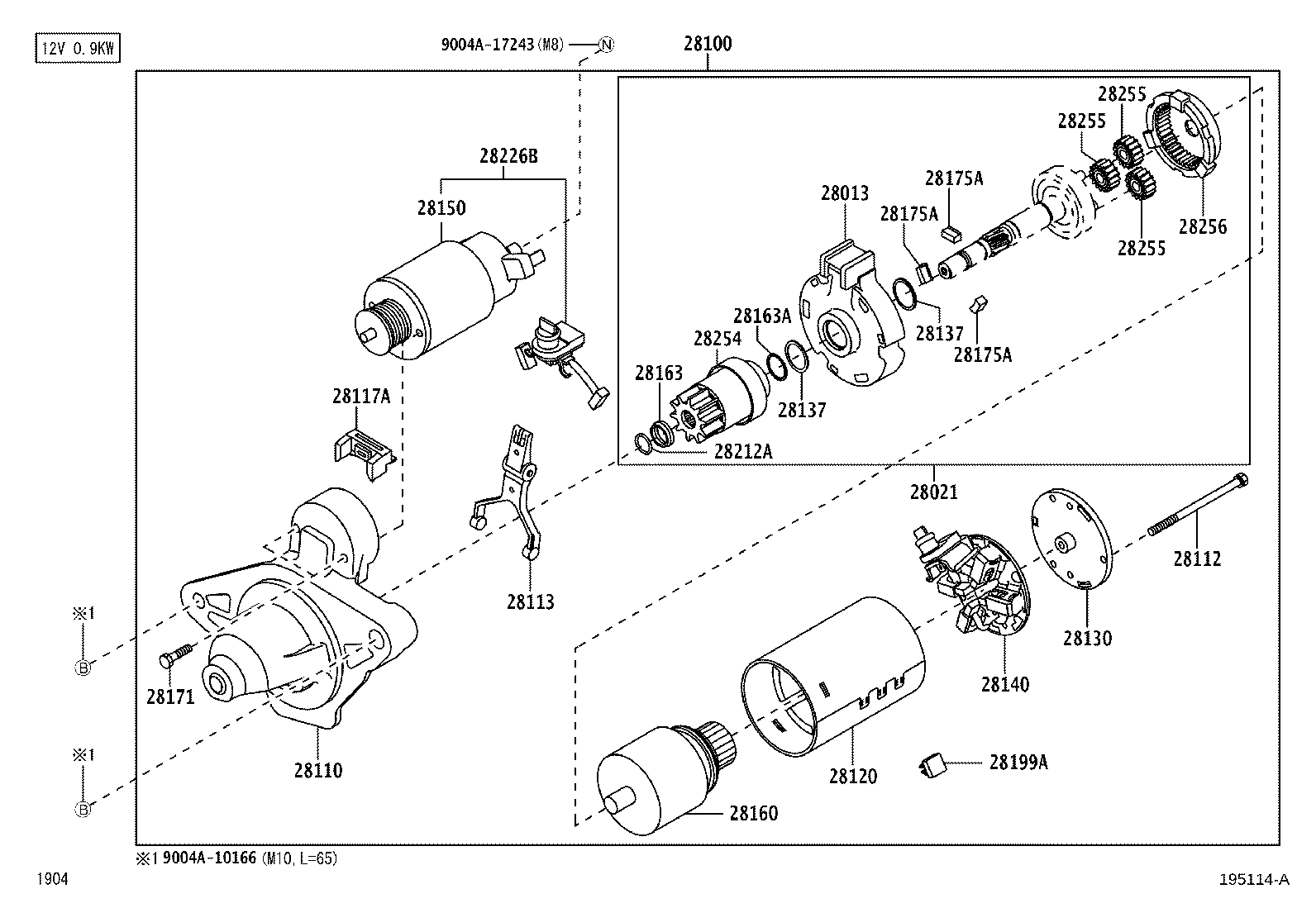

Click highlighted areas on diagram

diagram 28013 28021 28100 28110 28112 28113 28117A 28120 28130 28137 28137 28140 28150 28160 28163 28163A 28171 28175A 28175A 28175A 28199A 28212A 28226B 28254 28255 28255 28255 28256 9004A10166 9004A17243
Part # Description Qty Price
28013 - BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1
28126-BZ010

2NRVE..F800..GCC,GEN,PH,VN

 1
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-BZ050

2NRVE..F800..GCC,GEN,PH,VN

 1
28100 - STARTER ASSY
28100-BZ200

2NRVE..F800..GCC,GEN,PH,VN

12V 0.9KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-BZ170

2NRVE..F800..GCC,GEN,PH,VN

 1
28112 - BOLT, HOUSING SET
9004B-10018

2NRVE..F800..GCC,GEN,PH,VN

 3
28113 - LEVER, STARTER PINION DRIVE
28113-BZ030

2NRVE..F800..GCC,GEN,PH,VN

 1
28117A - SEAL, RUBBER
28117-BZ010

2NRVE..F800..GCC,GEN,PH,VN

 1
28120 - YOKE ASSY, STARTER
28120-BZ090

2NRVE..F800..GCC,GEN,PH,VN

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-BZ140

2NRVE..F800..GCC,GEN,PH,VN

 1
28137 - WASHER, FELT, STARTER
9004B-20007

2NRVE..F800..GCC,GEN,PH,VN

 2
28137 - WASHER, FELT, STARTER
9004B-20007

2NRVE..F800..GCC,GEN,PH,VN

 2
28140 - HOLDER ASSY, STARTER BRUSH
28140-BZ140

2NRVE..F800..GCC,GEN,PH,VN

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-BZ030

2NRVE..F800..GCC,GEN,PH,VN

 1
28160 - ARMATURE ASSY, STARTER
28160-BZ040

2NRVE..F800..GCC,GEN,PH,VN

 1
28163 - NUT OR COLLAR, PINION STOP, STARTER
28163-BZ140

2NRVE..F800..GCC,GEN,PH,VN

 1
28163A - RING, SNAP(FOR STARTER PINION STOP NUT)
9004B-52011

2NRVE..F800..GCC,GEN,PH,VN

 1
28171 - BOLT, STARTER
9004B-10015

2NRVE..F800..GCC,GEN,PH,VN

 2
28175A - GASKET, MAGNET SWITCH COVER
9004B-43001

2NRVE..F800..GCC,GEN,PH,VN

 3
28175A - GASKET, MAGNET SWITCH COVER
9004B-43001

2NRVE..F800..GCC,GEN,PH,VN

 3
28175A - GASKET, MAGNET SWITCH COVER
9004B-43001

2NRVE..F800..GCC,GEN,PH,VN

 3
28199A - PROTECTOR, DUST STARTER
28199-BZ140

2NRVE..F800..GCC,GEN,PH,VN

 1
28212A - RING, SNAP, STARTER CLUTCH HOUSING DISC
9004B-52012

2NRVE..F800..GCC,GEN,PH,VN

 1
28226B - STARTER KIT, REPAIR SERVICE
28226-BZ010

2NRVE..F800..GCC,GEN,PH,VN

 1
28254 - PINION, STARTER IDLE GEAR
28254-BZ060

2NRVE..F800..GCC,GEN,PH,VN

 1
28255 - GEAR, PLANET
28255-BZ140

2NRVE..F800..GCC,GEN,PH,VN

 3
28255 - GEAR, PLANET
28255-BZ140

2NRVE..F800..GCC,GEN,PH,VN

 3
28255 - GEAR, PLANET
28255-BZ140

2NRVE..F800..GCC,GEN,PH,VN

 3
28256 - GEAR, STARTER INTERNAL
28256-BZ020

2NRVE..F800..GCC,GEN,PH,VN

 1
Common parts
9004A-10166
9004A-17243
