F800LE-GQGFP (2018)

Toyota Rush

Production Apr 2018 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

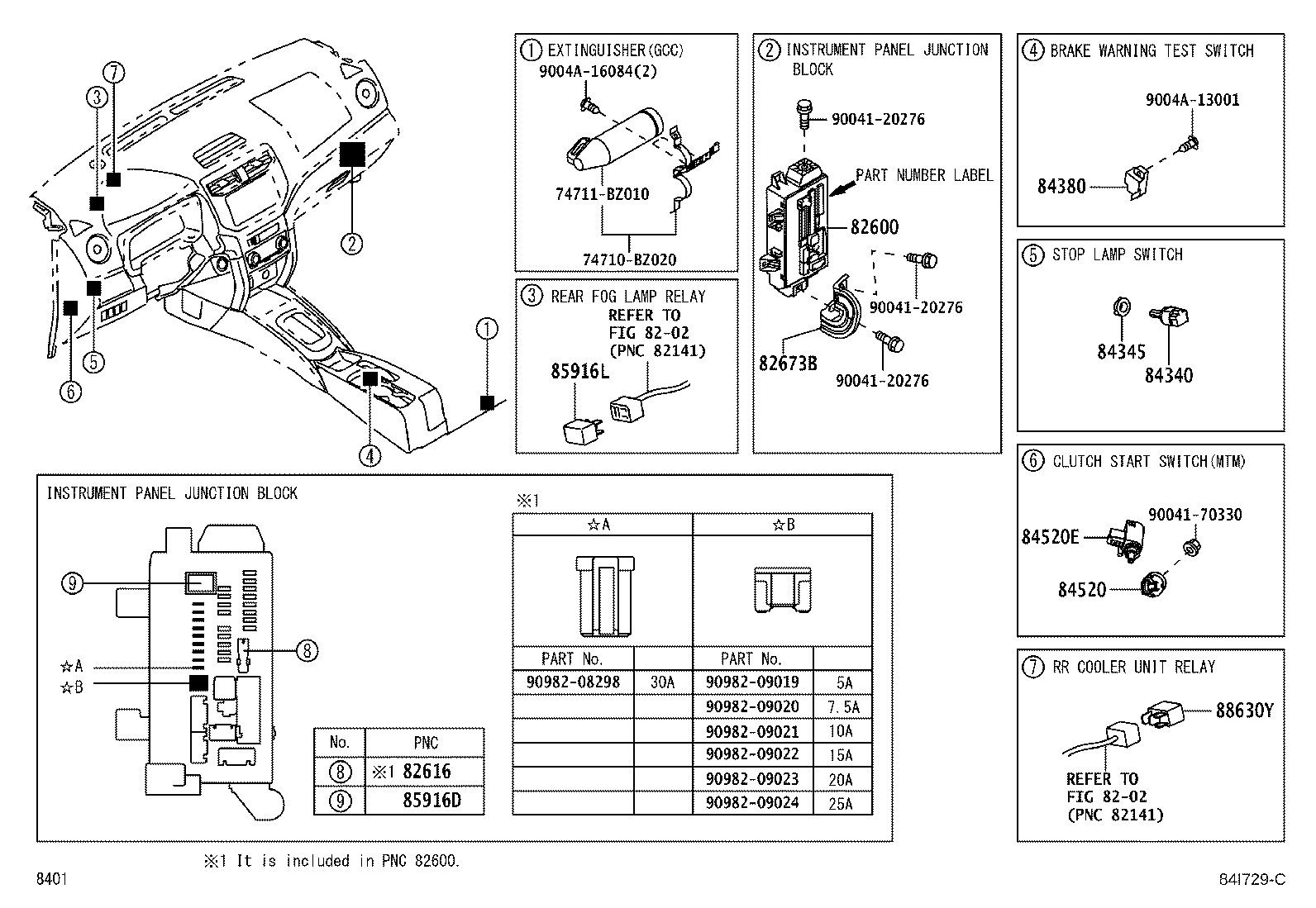

ILLUST NO. 3 OF 8(1804- )LHD

Click highlighted areas on diagram

INSTRUMENT PANEL NO.1

diagram 74710BZ020 74711BZ010 8202 8202 82600 82616 82673B 84340 84345 84380 84520 84520E 85916D 85916L 88630Y 9004120276 9004120276 9004120276 9004170330 9004A13001 9004A16084 9098208298 9098209019 9098209020 9098209021 9098209022 9098209023 9098209024
Part # Description Qty Price
82600 - BLOCK ASSY, FUSE
82600-BZ370

F800..HI..(GEN,PH,VN)

W/PART NUMBER LABEL

 1
82600-BZ371

F800..HI..(GEN,PH,VN)

W/PART NUMBER LABEL

 1
82616 - PULLER, FUSE
82616-58010

F800

 1
82673B - BRACKET, JUNCTION BLOCK
82673-BZ040

F800..LHD

 1
84340 - SWITCH ASSY, STOP LAMP
84340-B2061

F800

 1
84340-B2060

F800

 1
84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING
84345-BZ010

F800

 1
84380 - SWITCH ASSY, BRAKE WARNING TEST
84380-87Z06

F800

 1
85916D - RELAY, FOG LAMP
9004A-98006

F800

 1
88630Y - RELAY, REAR COOLER
9004A-98006

F800

 1
Common parts
74710-BZ020
74711-BZ010
90041-20276
90041-70330
9004A-13001
9004A-16084
90982-08298
90982-09019
90982-09020
90982-09021
90982-09022
90982-09023
90982-09024
Linked diagrams
8202

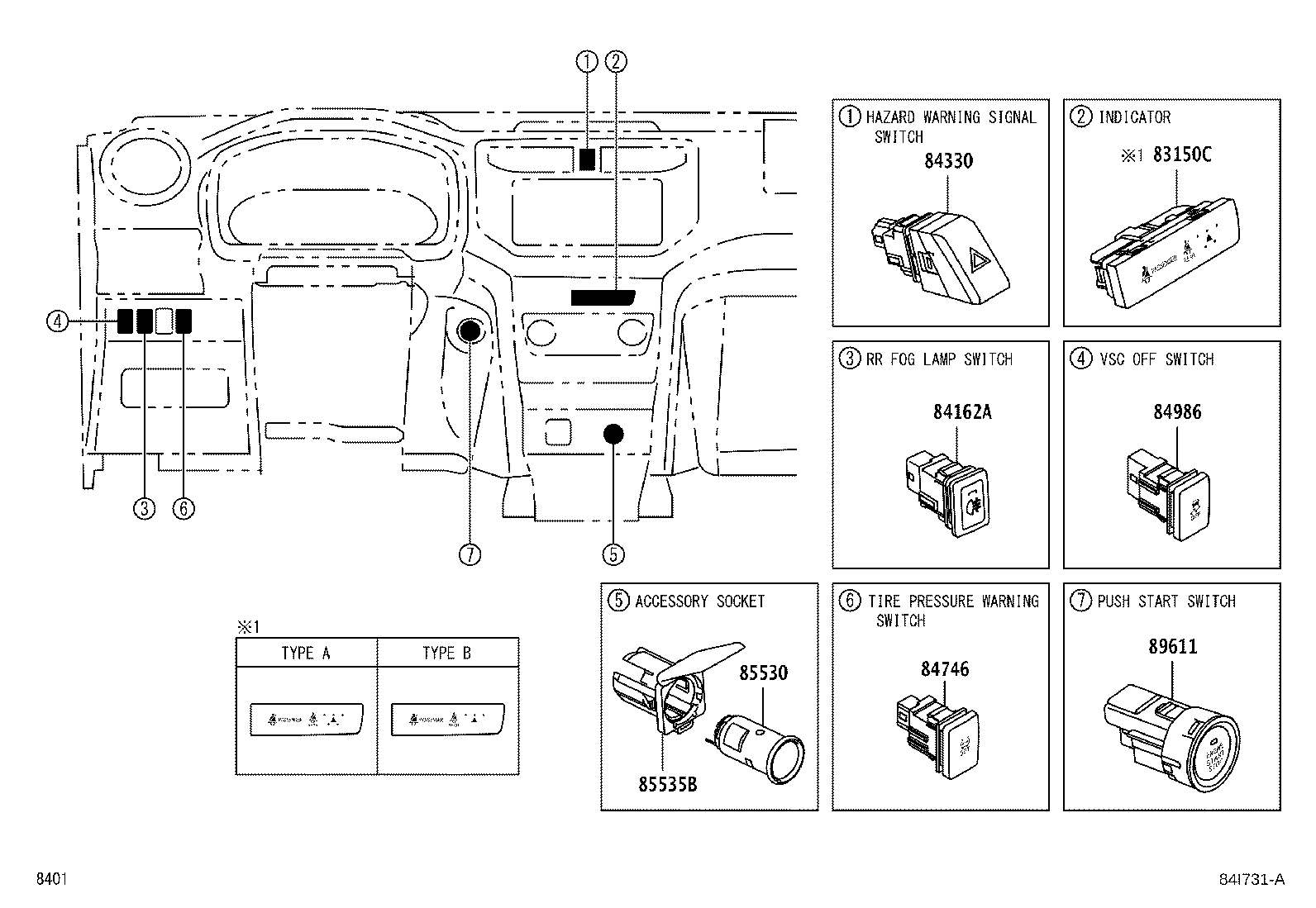

ILLUST NO. 4 OF 8(1804- )LHD

Click highlighted areas on diagram

INSTRUMENT PANEL NO.2

diagram 83150C 84162A 84330 84746 84986 85530 85535B 89611
Part # Description Qty Price
83150C - INDICATOR ASSY
83150-BZ020

F800..HI..PH;F800..GCC,GEN,IDN,VN

TYPE A

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-BZ220

F800

 1
84986 - SWITCH, VEHICLE STABILITY CONTROL
84986-BZ030

F800

 1
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-BZ080

F800..HI

 3
85535B - COVER, POWER OUTLET SOCKET, NO.1
85535-BZ060

F800

 1
85535-BZ061

F800

 1
89611 - SWITCH, PUSH START
89611-B0031

F800

 1
89611-B2061

F800

 1
89611-B0010

F800

 1

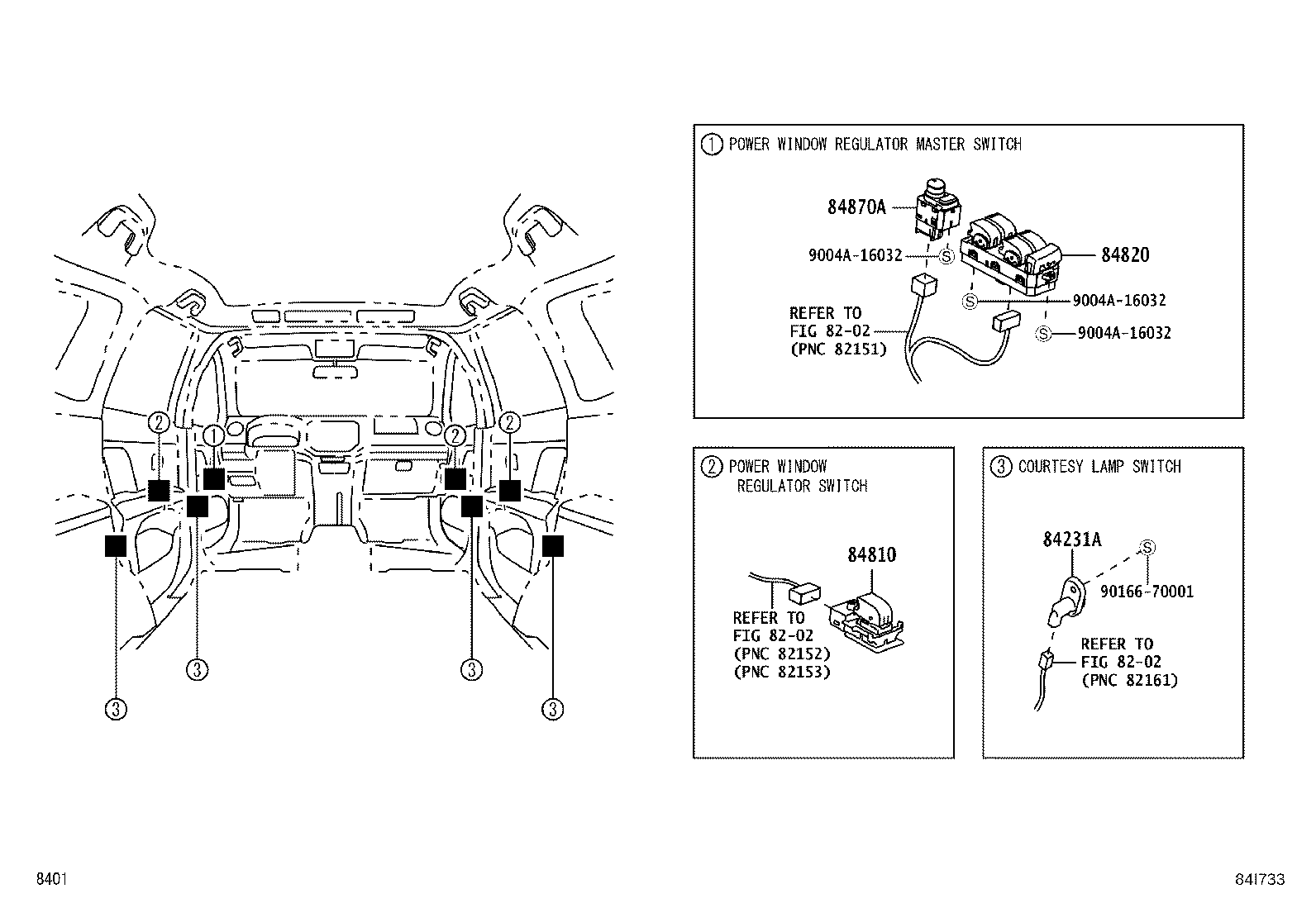

ILLUST NO. 5 OF 8(1804- )LHD

Click highlighted areas on diagram

DOOR&SHEET NO.1

diagram 8202 8202 8202 84231A 84810 84820 84870A 9004A16032 9004A16032 9004A16032 9016670001
Part # Description Qty Price
84231A - SWITCH, COURTESY LAMP
84231-BZ010

F800

 4
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-BZ130

F800

 3
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84820-BZ290

F800..LHD

 1
84870A - SWITCH ASSY, OUTER MIRROR
84870-B0020

F800..HI;F800..MID..IDN

 1
Common parts
9004A-16032
90166-70001
Linked diagrams
8202

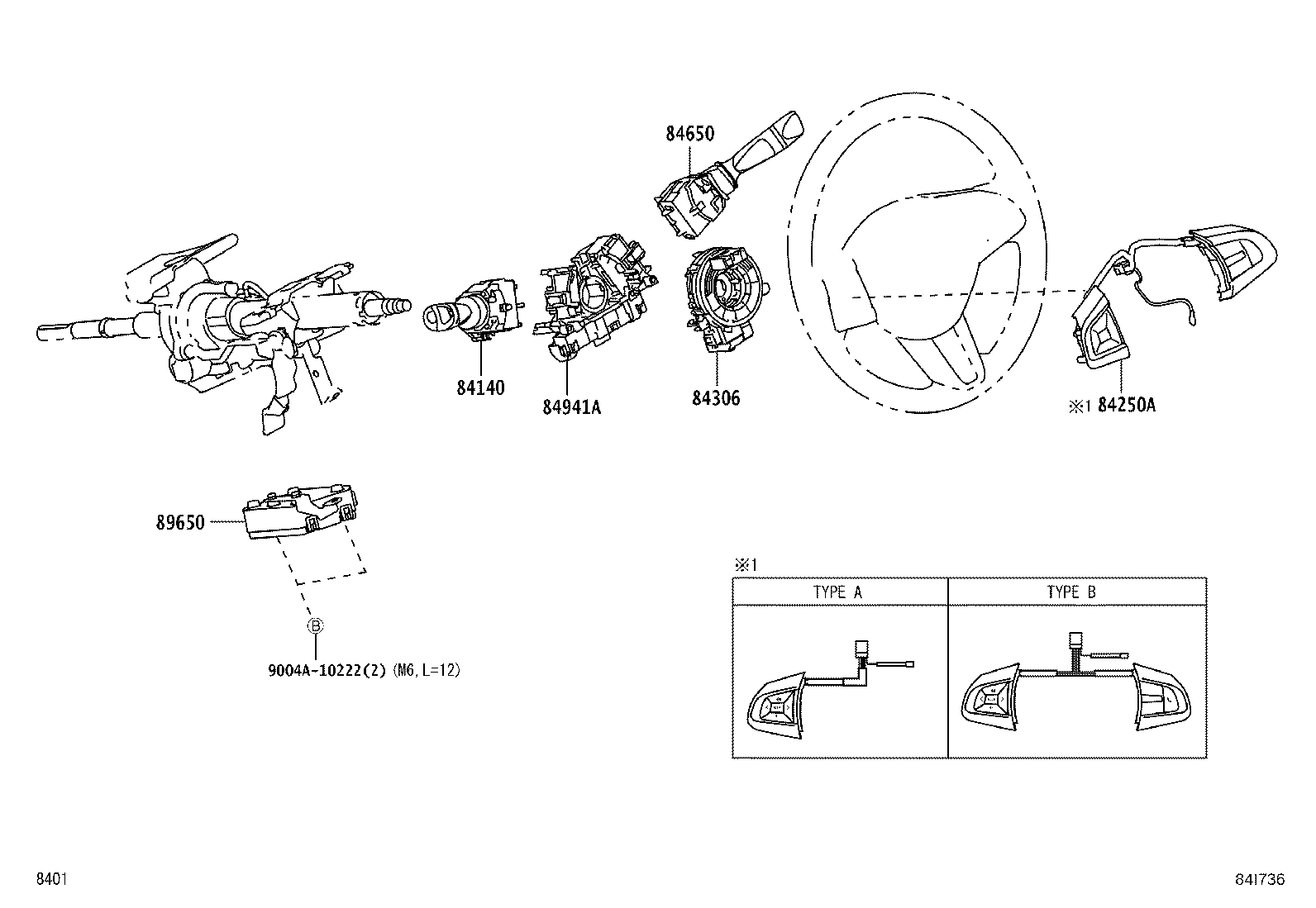

ILLUST NO. 7 OF 8(1804- )LHD

Click highlighted areas on diagram

STEERING

diagram 84140 84250A 84306 84650 84941A 89650 9004A10222
Part # Description Qty Price
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-BZ360

F800..LHD..HI

W/FOG LAMP SWITCH

 1
84250A - SWITCH ASSY, STEERING PAD
84250-BZ130B1

F800..HI

SILVER,TRIM1#,TYPE B

 1
84306 - CABLE SUB-ASSY, SPIRAL
84306-BZ160

F800

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-BZ270

F800..LHD

 1
84941A - BASE, SWITCH
84941-BZ130

F800..LHD

W/ANGLE SENSOR

 1
89650 - COMPUTER ASSY, POWER STEERING
89650-BZ250

F800..LHD

FUJITSU TEN

 1
Common parts
9004A-10222
