F800LE-GQGFG (2018)

Toyota Rush

Production Apr 2018 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1804- )LHD

Click highlighted areas on diagram

diagram 87010 87114B 88539J 88539K 88568B 88569F 88897K 88898D 9004A11281 9004A11282 9004A11282 9004A11340 9004A17221 9165340620 9165340620
Part # Description Qty Price
87010 - UNIT ASSY, AIR CONDITIONER
87010-BZ530

F800..LHD..(GCC,GEN,VN)

 1
87114B - COVER, HEATER
87114-BZ020

F800..GCC,GEN,PH,VN

CLEAN AIR FILTER-WITH D/OPT

 1
88539J - HOSE, DRAIN COOLER
88539-BZ330

F800..LHD

 1
88539K - HOSE, DRAIN COOLER
88839-BZ020

F800..LHD

 1
88568B - FILTER, AIR
88568-BZ050

F800..GCC,GEN,PH,VN

CLEAN AIR FILTER-WITH D/OPT

 1
88569F - CLAMP
88718-BZ740

F800..LHD

 1
88897K - GROMMET, (FOR COOLER PIPE)
88897-BZ190

F800..GCC,GEN,VN

 1
88898D - GROMMET
88897-87Z13

F800

 1
Common parts
9004A-11281
9004A-11282
9004A-11340
9004A-17221
91653-40620

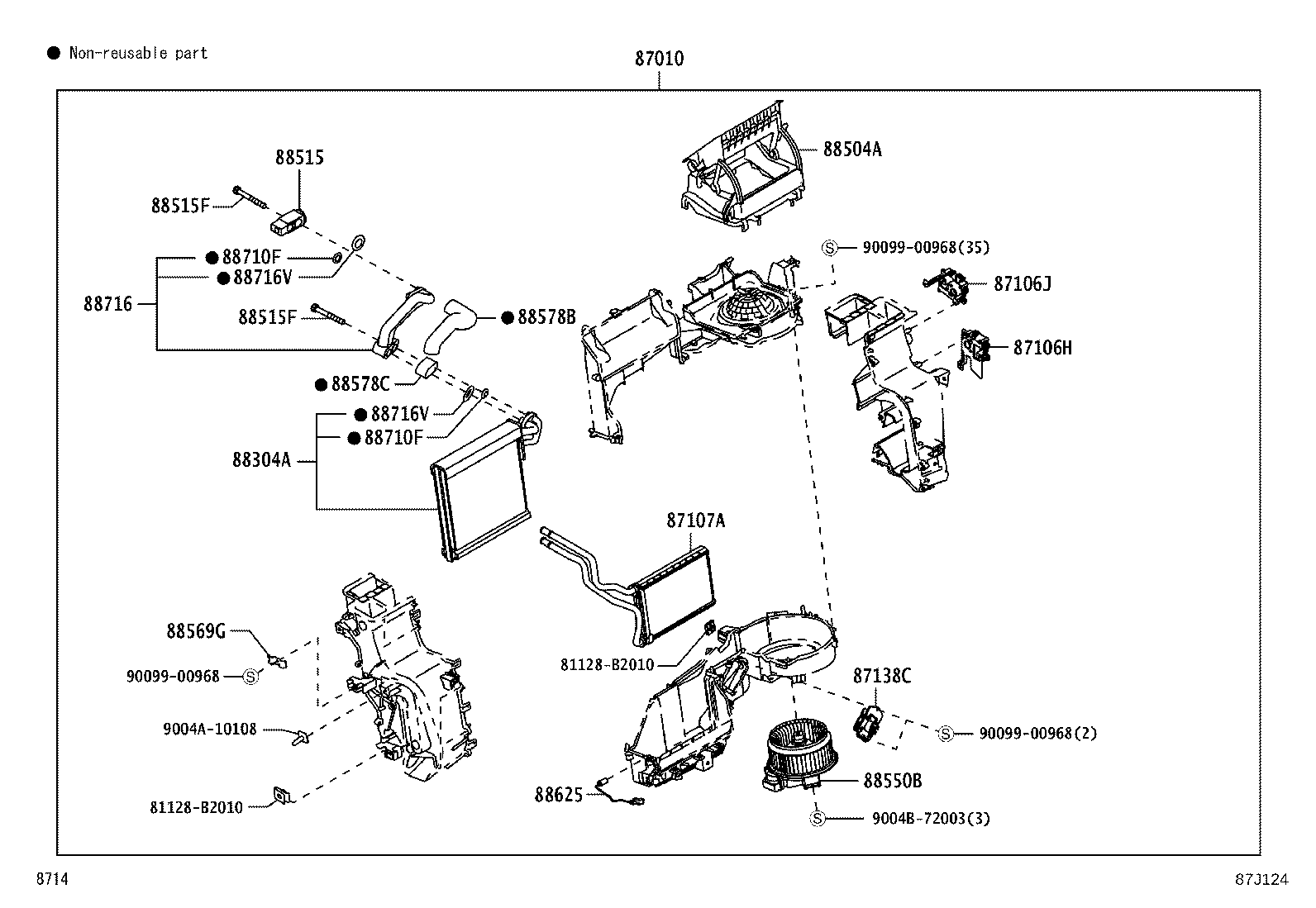

ILLUST NO. 2 OF 3(1804- )LHD..GCC,GEN,VN

Click highlighted areas on diagram

W/HEATER

diagram 81128B2010 81128B2010 87010 87106H 87106J 87107A 87138C 88304A 88504A 88515 88515F 88515F 88550B 88569G 88578B 88578C 88625 88710F 88710F 88716 88716V 88716V 9004A10108 9004B72003 9009900968 9009900968 9009900968
Part # Description Qty Price
87010 - UNIT ASSY, AIR CONDITIONER
87010-BZ530

F800..LHD..(GCC,GEN,VN)

 1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
88660-BZ040

F800..LHD..(GCC,GEN,VN)

 1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
88660-BZ020

F800..GCC,GEN,VN

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-BZ080

F800..LHD..(GCC,GEN,VN)

 1
87138C - RESISTOR, BLOWER
87138-BZ140

F800

 1
88304A - COOLER, EVAPORATOR
88501-BZ160

F800..LHD

 1
88504A - CASE SUB-ASSY, BLOWER
87103-BZ160

F800..LHD

 1
88515 - VALVE, COOLER EXPANSION
88515-B1030

F800..LHD..(GCC,GEN,VN)

 1
88515-97502

F800..LHD..(GCC,GEN,VN)

 1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
C9909-97201

F800..LHD

 4
88515F - BOLT(FOR COOLER EXPANSION VALVE)
C9909-97201

F800..LHD

 4
88550B - MOTOR ASSY, BLOWER
88550-BZ404

F800..LHD

 1
88569G - CLAMP
88898-B4030

F800..GCC,GEN,VN

 1
88578B - PACKING, COOLING UNIT, NO.1
88578-BZ590

F800..LHD

 1
88578C - PACKING, COOLING UNIT, NO.2
88578-BZC00

F800..LHD

 1
88625 - THERMISTOR, COOLER, NO.1
88625-BZ110

F800..LHD

 1
88710F - RING, O
15188-87402

F800..LHD

 2
88710F - RING, O
15188-87402

F800..LHD

 2
88716 - TUBE, LIQUID
88716-BZ840

F800..LHD

 1
88716V - RING, O(FOR COOLER UNIT)
15188-87403

F800..LHD

 2
88716V - RING, O(FOR COOLER UNIT)
15188-87403

F800..LHD

 2
Common parts
81128-B2010
9004A-10108
9004B-72003
90099-00968
