F800LE-GMMFP (2018)
Toyota Rush
Production
Apr 2018
-
Sep 9999
Engine
2NRVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

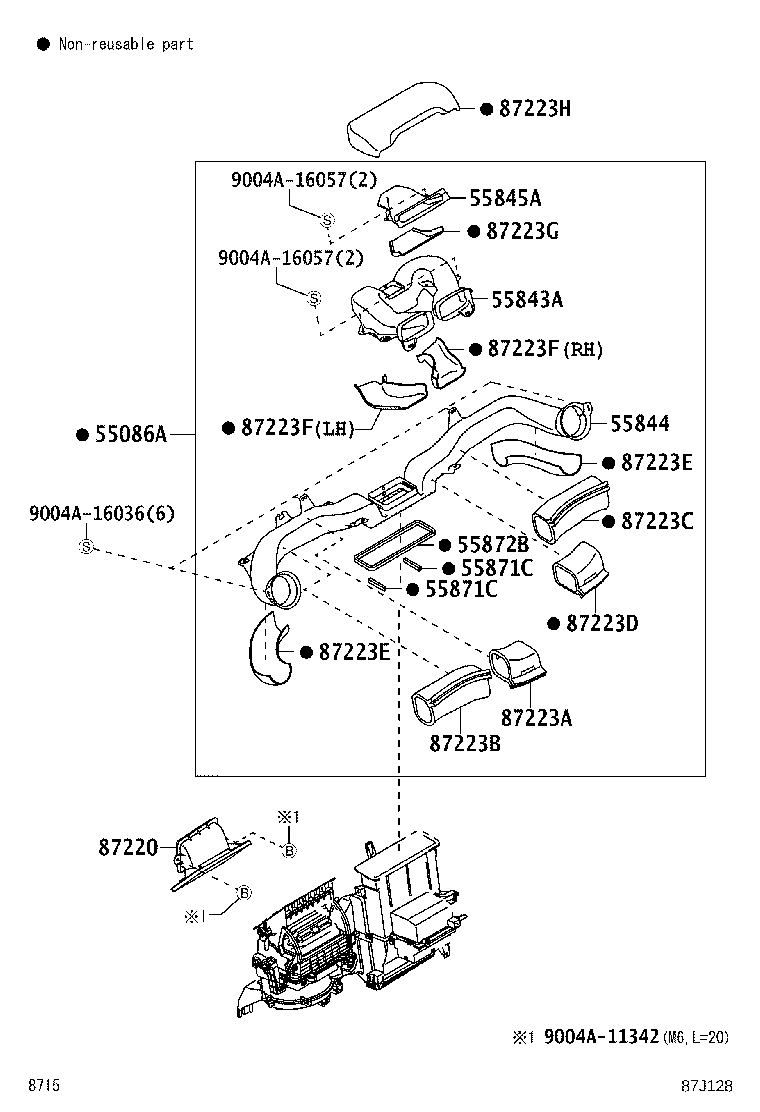

ILLUST NO. 2 OF 3(1804- )PH
Click highlighted areas on diagram
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER | ||||
| 55086-BZ250 |
F800 |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-BZ050 |
F800 |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-BZ090 |
F800 |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-BZ070 |
F800 |
1 | ||
| 55871C - SEAL, AIR DUCT | ||||
| 55871-BZ120 |
F800 |
2 | ||
| 55871C - SEAL, AIR DUCT | ||||
| 55871-BZ120 |
F800 |
2 | ||
| 55871C - SEAL, AIR DUCT | ||||
| 55871-BZ120 |
F800 |
2 | ||
| 55872B - SEAL, AIR DUCT,NO.2 | ||||
| 55872-BZ110 |
F800 |
1 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-BZ301 |
F800..LHD |
1 | ||
| 87223A - PAD, AIR DUCT | ||||
| 87223-BZ200 |
F800 |
1 | ||
| 87223B - PAD, AIR DUCT, NO.2 | ||||
| 87223-BZ350 |
F800 |
1 | ||
| 87223C - PAD, AIR DUCT, NO.3 | ||||
| 87223-BZ360 |
F800 |
1 | ||
| 87223D - PAD, AIR DUCT, NO.4 | ||||
| 87223-BZ370 |
F800 |
1 | ||
| 87223E - PAD, AIR DUCT, NO.5 | ||||
| 87223-BZ380 |
F800 |
2 | ||
| 87223E - PAD, AIR DUCT, NO.5 | ||||
| 87223-BZ380 |
F800 |
2 | ||
| 87223F - PAD, AIR DUCT, NO.6 | ||||
| 87223-BZ530 |
F800 LH |
1 | ||
| 87223-BZ400 |
F800 RH |
1 | ||
| 87223F - PAD, AIR DUCT, NO.6 | ||||
| 87223-BZ530 |
F800 LH |
1 | ||
| 87223-BZ400 |
F800 RH |
1 | ||
| 87223G - PAD, AIR DUCT, NO.7 | ||||
| 87223-BZ430 |
F800 |
1 | ||
| 87223H - PAD, AIR DUCT, NO.8 | ||||
| 87223-BZ150 |
F800..GCC,GEN,PH,VN |
1 | ||
| Common parts | ||||
| 9004A-11342 | ||||
| 9004A-16036 | ||||
| 9004A-16057 | ||||
