F800LE-GMMFP (2018)
Toyota Rush
Production
Apr 2018
-
Sep 9999
Engine
2NRVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 3(1804- )LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 88510-BZ350 |
F800..PH |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-BZ020 |
F800..GCC,GEN,PH,VN CLEAN AIR FILTER-WITH D/OPT |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-BZ330 |
F800..LHD |
1 | ||
| 88539K - HOSE, DRAIN COOLER | ||||
| 88839-BZ020 |
F800..LHD |
1 | ||
| 88568B - FILTER, AIR | ||||
| 88568-BZ050 |
F800..GCC,GEN,PH,VN CLEAN AIR FILTER-WITH D/OPT |
1 | ||
| 88569F - CLAMP | ||||
| 88718-BZ740 |
F800..LHD |
1 | ||
| 88897K - GROMMET, (FOR COOLER PIPE) | ||||
| 88897-BZ160 |
F800..IDN,PH |
1 | ||
| 88898D - GROMMET | ||||
| 88897-87Z13 |
F800 |
1 | ||
| Common parts | ||||
| 9004A-11281 | ||||
| 9004A-11282 | ||||
| 9004A-11340 | ||||
| 9004A-17221 | ||||
| 91653-40620 | ||||

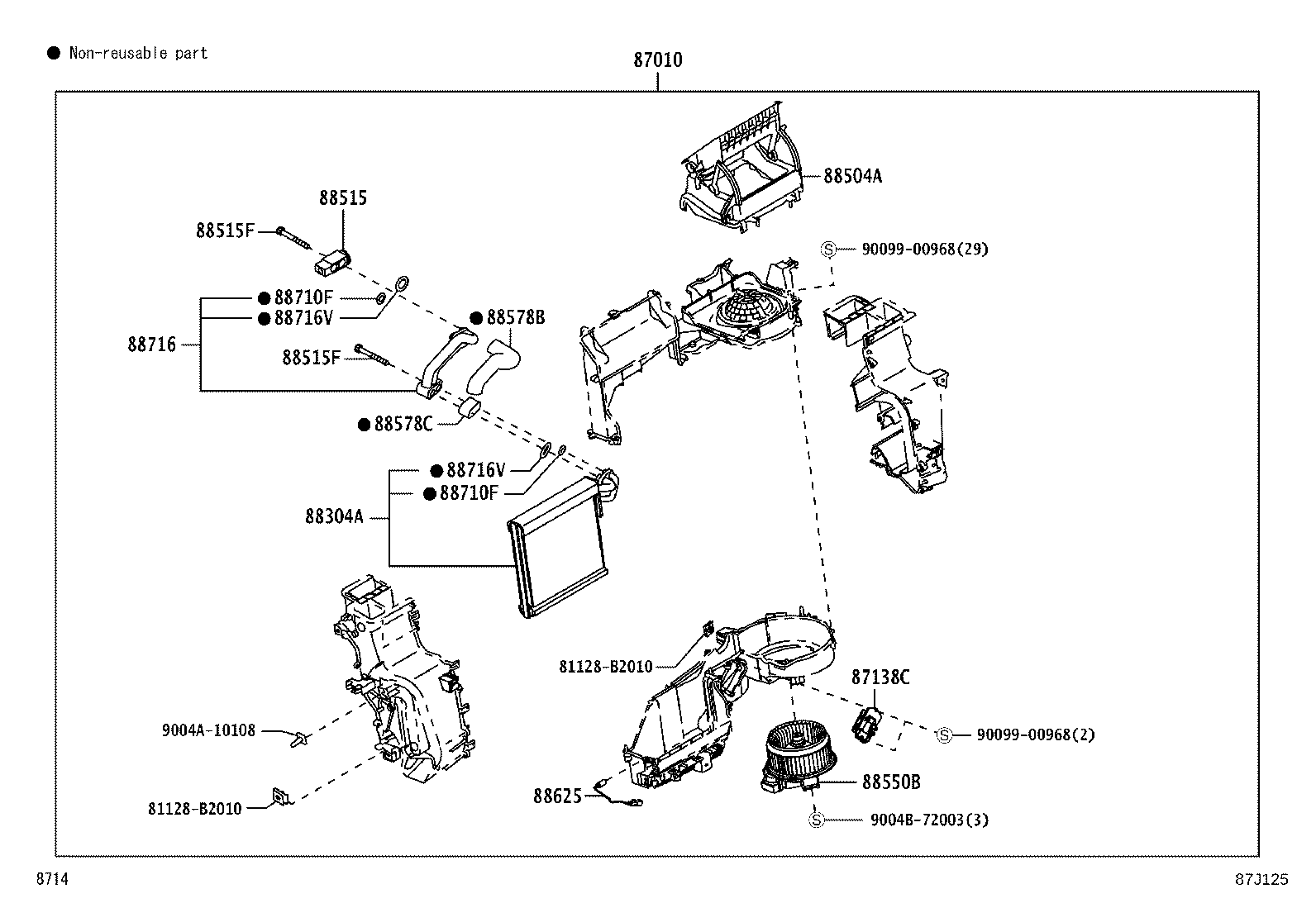

ILLUST NO. 2 OF 3(1804- )PH
Click highlighted areas on diagram
W/O HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 88510-BZ350 |
F800..PH |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-BZ140 |
F800 |
1 | ||
| 88304A - COOLER, EVAPORATOR | ||||
| 88501-BZ160 |
F800..LHD |
1 | ||
| 88504A - CASE SUB-ASSY, BLOWER | ||||
| 87103-BZ160 |
F800..LHD |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-BZ050 |
F800..PH;F800..RHD..GEN |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| C9909-97201 |
F800..LHD |
4 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| C9909-97201 |
F800..LHD |
4 | ||
| 88550B - MOTOR ASSY, BLOWER | ||||
| 88550-BZ404 |
F800..LHD |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-BZ590 |
F800..LHD |
1 | ||
| 88578C - PACKING, COOLING UNIT, NO.2 | ||||
| 88578-BZC00 |
F800..LHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-BZ110 |
F800..LHD |
1 | ||
| 88710F - RING, O | ||||
| 15188-87402 |
F800..LHD |
2 | ||
| 88710F - RING, O | ||||
| 15188-87402 |
F800..LHD |
2 | ||
| 88716 - TUBE, LIQUID | ||||
| 88716-BZ840 |
F800..LHD |
1 | ||
| 88716V - RING, O(FOR COOLER UNIT) | ||||
| 15188-87403 |
F800..LHD |
2 | ||
| 88716V - RING, O(FOR COOLER UNIT) | ||||
| 15188-87403 |
F800..LHD |
2 | ||
| Common parts | ||||
| 81128-B2010 | ||||
| 9004A-10108 | ||||
| 9004B-72003 | ||||
| 90099-00968 | ||||
