F800LE-GMMFP (2018)
Toyota Rush
Production
Apr 2018
-
Sep 9999
Engine
2NRVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

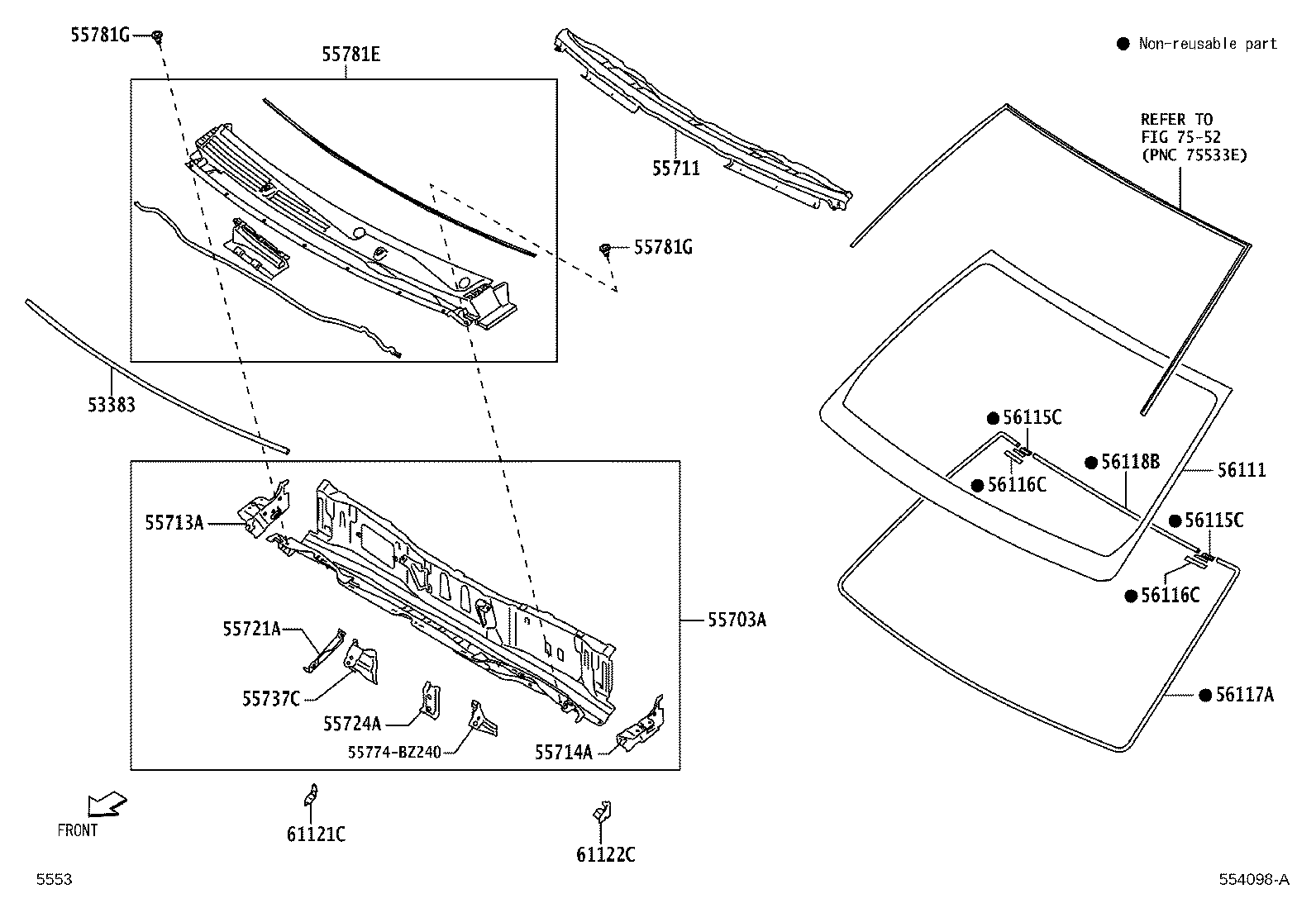

ILLUST NO. 2 OF 2(1804- )LHD
Click highlighted areas on diagram
LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53383 - SEAL, HOOD TO COWL TOP | ||||
| 53383-BZ090 |
F800 |
1 | ||
| 55703A - PANEL SUB-ASSY, COWL TOP, INNER | ||||
| 55703-BZ670 |
F800..LHD |
1 | ||
| 55711 - PANEL, COWL TOP, OUTER | ||||
| 55711-BZ300 |
F800..LHD |
1 | ||
| 55713A - PANEL, COWL TOP SIDE, RH | ||||
| 55713-BZ210 |
F800 |
1 | ||
| 55714A - PANEL, COWL TOP SIDE, LH | ||||
| 55714-BZ180 |
F800 |
1 | ||
| 55721A - BRACE, COWL TOP TO COWL, INNER NO.1 | ||||
| 55721-BZ140 |
F800 |
1 | ||
| 55724A - REINFORCEMENT, COWL TOP SIDE, LH | ||||
| 55723-BZ180 |
F800..LHD |
1 | ||
| 55737C - BRACKET, COWL TOP OUTER PANEL, NO.3 | ||||
| 55747-BZ150 |
F800..LHD |
1 | ||
| 55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-BZ130 |
F800..LHD |
1 | ||
| 55781G - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90044-67579C2 |
F800 BLACK |
2 | ||
| 55781G - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90044-67579C2 |
F800 BLACK |
2 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56111-BZ531 |
F800 W/IDN MARK |
1 | ||
| 56111-BZ530 |
F800 L/IDN MARK |
1 | ||
| 56115C - STOPPER, WINDSHIELD GLASS | ||||
| 56115-97402 |
F800 |
2 | ||
| 56115C - STOPPER, WINDSHIELD GLASS | ||||
| 56115-97402 |
F800 |
2 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-97401 |
F800 |
2 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-97401 |
F800 |
2 | ||
| 56117A - DAM, WINDOW GLASS ADHESIVE | ||||
| 56117-BZ210 |
F800 L=2966 |
1 | ||
| 56118B - DAM, WINDOW GLASS ADHESIVE, NO.2 | ||||
| 56117-BZ230 |
F800 L=760 |
1 | ||
| 61121C - PANEL, COWL SIDE, OUTER RH | ||||
| 61121-BZ050 |
F800 |
1 | ||
| 61122C - PANEL, COWL SIDE, OUTER LH | ||||
| 61122-BZ050 |
F800 |
1 | ||
| Common parts | ||||
| 55774-BZ240 | ||||
| Linked diagrams | ||||
| 7552 | ||||
