F700RE-GQMFM (2007)
Toyota Rush
Production
Dec 2007
-
Nov 2017
Engine
3SZVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0612-1503)

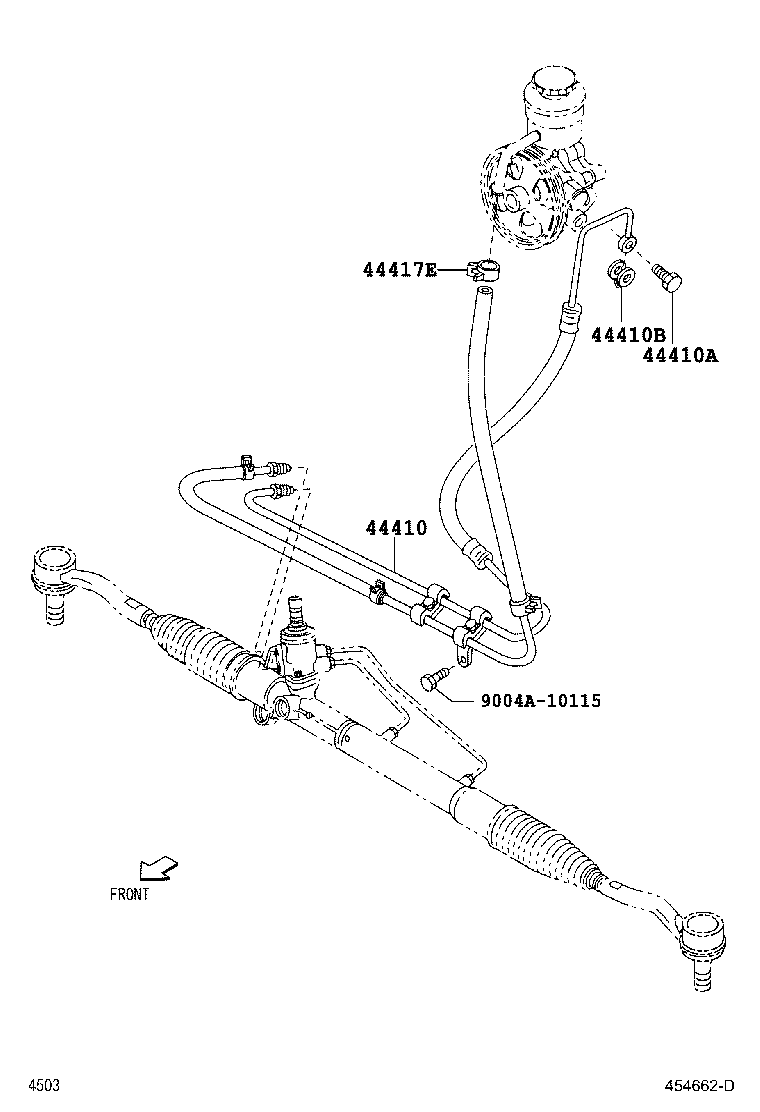

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44040-BZ050 |
F700 |
1 | ||
| 44040-BZ050 |
F700..MA |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90044-01093 |
F700..MA |
1 | ||
| 90044-01093 |
F700 |
1 | ||
| 44410B - GASKET(FOR PRESSURE FEED TUBE) | ||||
| 90044-30305 |
F700..MA |
1 | ||
| 90044-30305 |
F700 |
1 | ||
| 44417E - CLIP, HOSE(FOR RETURN TUBE TO RESERVOIR HOSE) | ||||
| 90044-67236 |
F700 |
1 | ||
| 90044-67236 |
F700..MA |
1 | ||
| Common parts | ||||
| 9004A-10115 | ||||
