F700RE-GQMFJ (2006)
Toyota Rush
Production
Dec 2006
-
Nov 2017
Engine
3SZVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0612- )

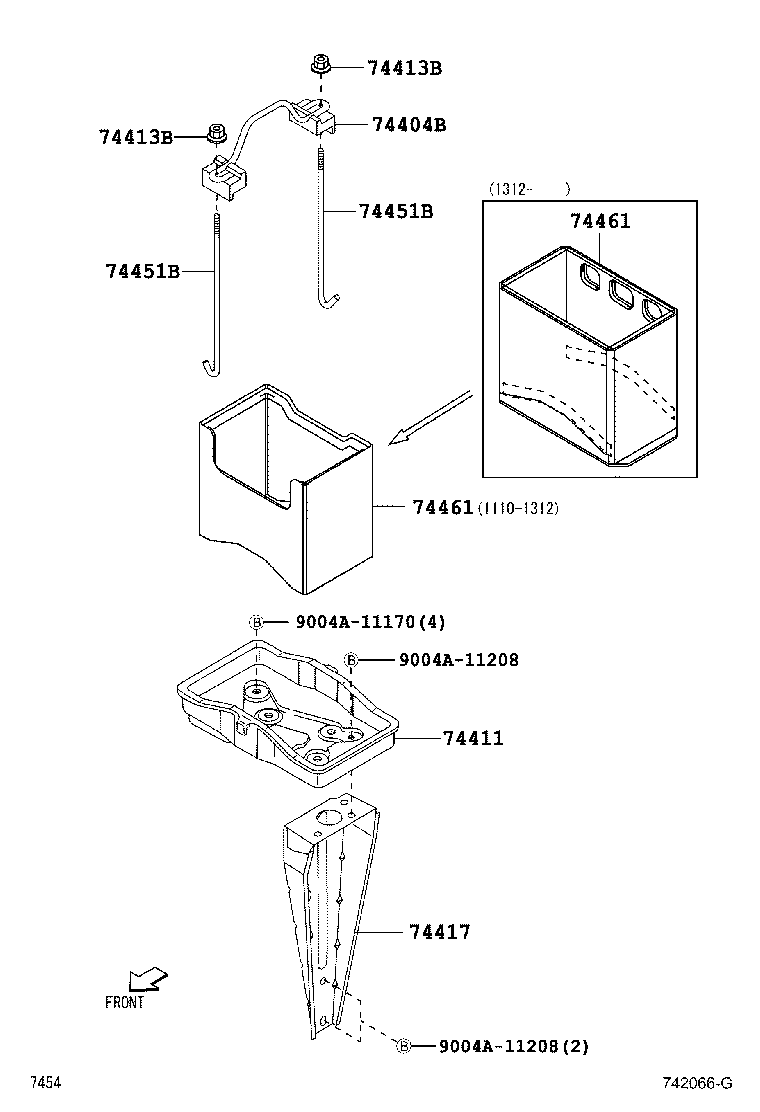

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74404B - CLAMP SUB-ASSY, BATTERY | ||||
| 74404-BZ010 |
F700 |
1 | ||
| 74404-BZ010 |
F700 |
1 | ||
| 74404-BZ010 |
F700 |
1 | ||
| 74411 - CARRIER, BATTERY | ||||
| 74411-BZ010 |
F700 |
1 | ||
| 74411-BZ010 |
F700 |
1 | ||
| 74411-BZ010 |
F700 |
1 | ||
| 74413B - NUT, WING (FOR BATTERY CLAMP BOLT) | ||||
| 90041-79111 |
F700 |
2 | ||
| 90041-79111 |
F700 |
2 | ||
| 90041-79111 |
F700 |
2 | ||
| 74413B - NUT, WING (FOR BATTERY CLAMP BOLT) | ||||
| 90041-79111 |
F700 |
2 | ||
| 90041-79111 |
F700 |
2 | ||
| 90041-79111 |
F700 |
2 | ||
| 74417 - BRACKET, BATTERY CARRIER | ||||
| 74417-BZ040 |
F700 |
1 | ||
| 74417-BZ040 |
F700 |
1 | ||
| 74417-BZ040 |
F700 |
1 | ||
| 74451B - BOLT, BATTERY CLAMP | ||||
| 74451-87Z07 |
F700 |
2 | ||
| 74451-87Z07 |
F700 |
2 | ||
| 74451-87Z07 |
F700 |
2 | ||
| 74451B - BOLT, BATTERY CLAMP | ||||
| 74451-87Z07 |
F700 |
2 | ||
| 74451-87Z07 |
F700 |
2 | ||
| 74451-87Z07 |
F700 |
2 | ||
| 74461 - COVER, BATTERY | ||||
| 74405-BZ030 |
F700 |
1 | ||
| 74405-BZ020 |
F700 |
1 | ||
| 74405-BZ030 |
F700 |
1 | ||
| 74405-B1010 |
F700 |
1 | ||
| 74461 - COVER, BATTERY | ||||
| 74405-BZ030 |
F700 |
1 | ||
| 74405-BZ020 |
F700 |
1 | ||
| 74405-BZ030 |
F700 |
1 | ||
| 74405-B1010 |
F700 |
1 | ||
| Common parts | ||||
| 9004A-11170 | ||||
| 9004A-11208 | ||||
