F700RE-GQMFJ (2006)
Toyota Rush
Production
Dec 2006
-
Nov 2017
Engine
3SZVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

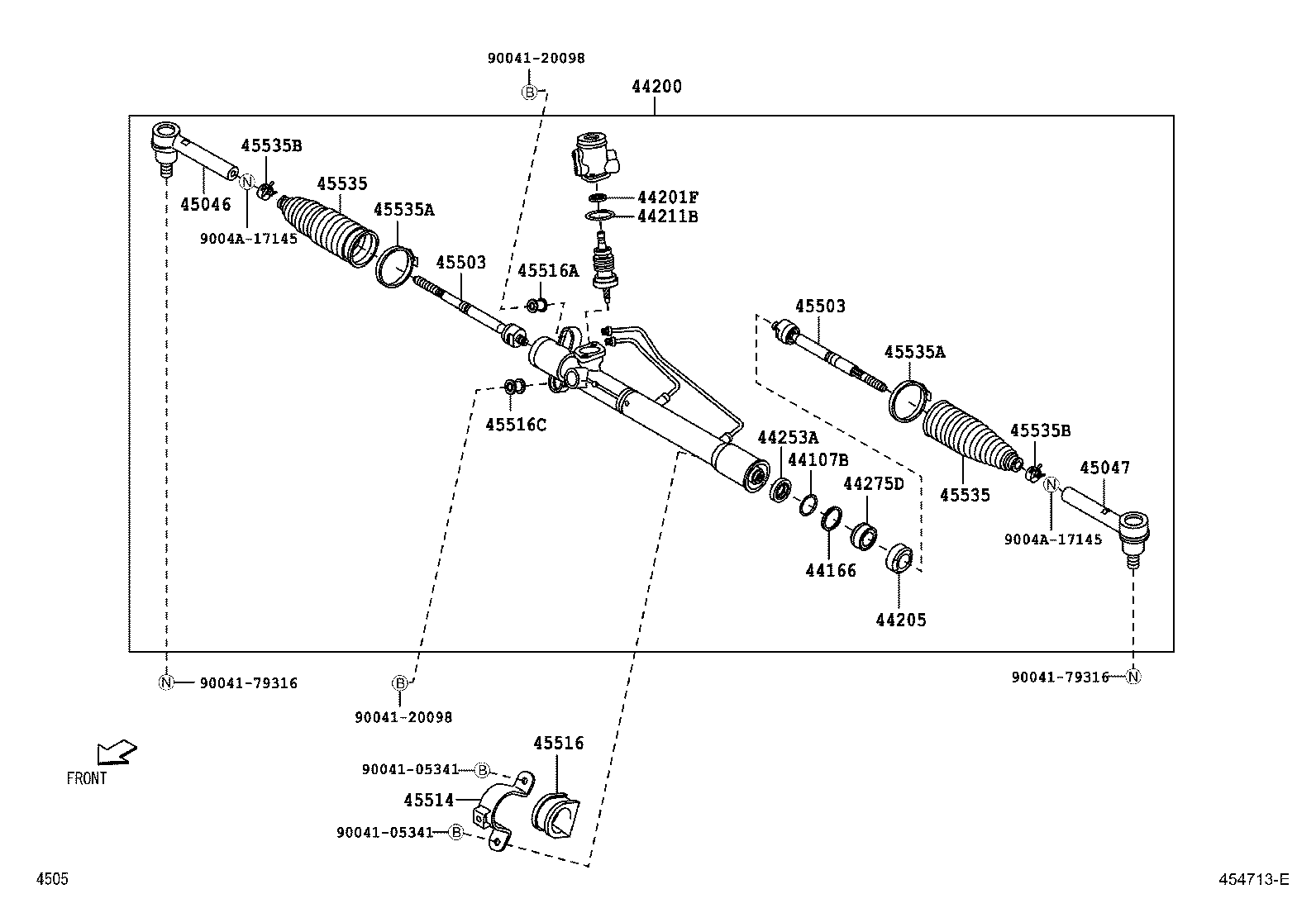

(0612-1010)IDN ; (0612-1503)MA
Click highlighted areas on diagram
HPS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 9004A-30033 |
F700 ID=35.1 |
1 | ||
| 44166 - RING, SEAL, NO.2 | ||||
| 44166-BZ080 |
F700 |
1 | ||
| 44200 - LINK ASSY, POWER STEERING | ||||
| 44200-BZ080 |
F700..IDN |
1 | ||
| 44201F - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 44269-BZ010 |
F700 |
1 | ||
| 44205 - STOPPER SUB-ASSY, CYLINDER END | ||||
| 44275-BZ070 |
F700..IDN |
1 | ||
| 44211B - RING(FOR CONTROL VALVE HOUSING) | ||||
| 9004A-30031 |
F700 |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 9004A-31044 |
F700 |
1 | ||
| 44275D - BUSH(FOR CYLINDER END STOPPER) | ||||
| 44205-BZ050 |
F700 |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-BZ130 |
F700..IDN |
1 | ||
| 45046-BZ130 |
F700 |
1 | ||
| 45046-BZ060 |
F700 |
1 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-BZ130 |
F700 |
1 | ||
| 45046-BZ130 |
F700..IDN |
1 | ||
| 45046-BZ060 |
F700 |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-BZ110 |
F700..IDN |
2 | ||
| 45503-BZ050 |
F700 |
2 | ||
| 45503-BZ110 |
F700 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-BZ110 |
F700..IDN |
2 | ||
| 45503-BZ050 |
F700 |
2 | ||
| 45503-BZ110 |
F700 |
2 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-BZ060 |
F700 |
1 | ||
| 45514-BZ060 |
F700 |
1 | ||
| 45514-BZ060 |
F700 |
1 | ||
| 45514-BZ120 |
F700 |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-BZ120 |
F700 |
1 | ||
| 45516-BZ120 |
F700 |
1 | ||
| 45516-BZ120 |
F700 |
1 | ||
| 45516A - BUSH, STEERING RACK HOUSING, NO.1 | ||||
| 45516-BZ140 |
F700 |
1 | ||
| 45516-BZ140 |
F700 |
1 | ||
| 45516-BZ140 |
F700 |
1 | ||
| 45516C - BUSH, STEERING RACK HOUSING, NO.2 | ||||
| 45516-BZ110 |
F700 |
1 | ||
| 45516-BZ110 |
F700 |
1 | ||
| 45516-BZ110 |
F700 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-BZ040 |
F700 |
2 | ||
| 45535-BZ040 |
F700 |
2 | ||
| 45535-BZ040 |
F700 |
2 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-BZ040 |
F700 |
2 | ||
| 45535-BZ040 |
F700 |
2 | ||
| 45535-BZ040 |
F700 |
2 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 15549-BZ010 |
F700..IDN |
2 | ||
| 9004A-46136 |
F700 |
2 | ||
| 15549-BZ010 |
F700 |
2 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 15549-BZ010 |
F700..IDN |
2 | ||
| 9004A-46136 |
F700 |
2 | ||
| 15549-BZ010 |
F700 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 9004A-46180 |
F700 |
2 | ||
| 9004A-46180 |
F700 |
2 | ||
| 9004A-46180 |
F700 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 9004A-46180 |
F700 |
2 | ||
| 9004A-46180 |
F700 |
2 | ||
| 9004A-46180 |
F700 |
2 | ||
| Common parts | ||||
| 90041-05341 | ||||
| 90041-20098 | ||||
| 90041-79316 | ||||
| 9004A-17145 | ||||

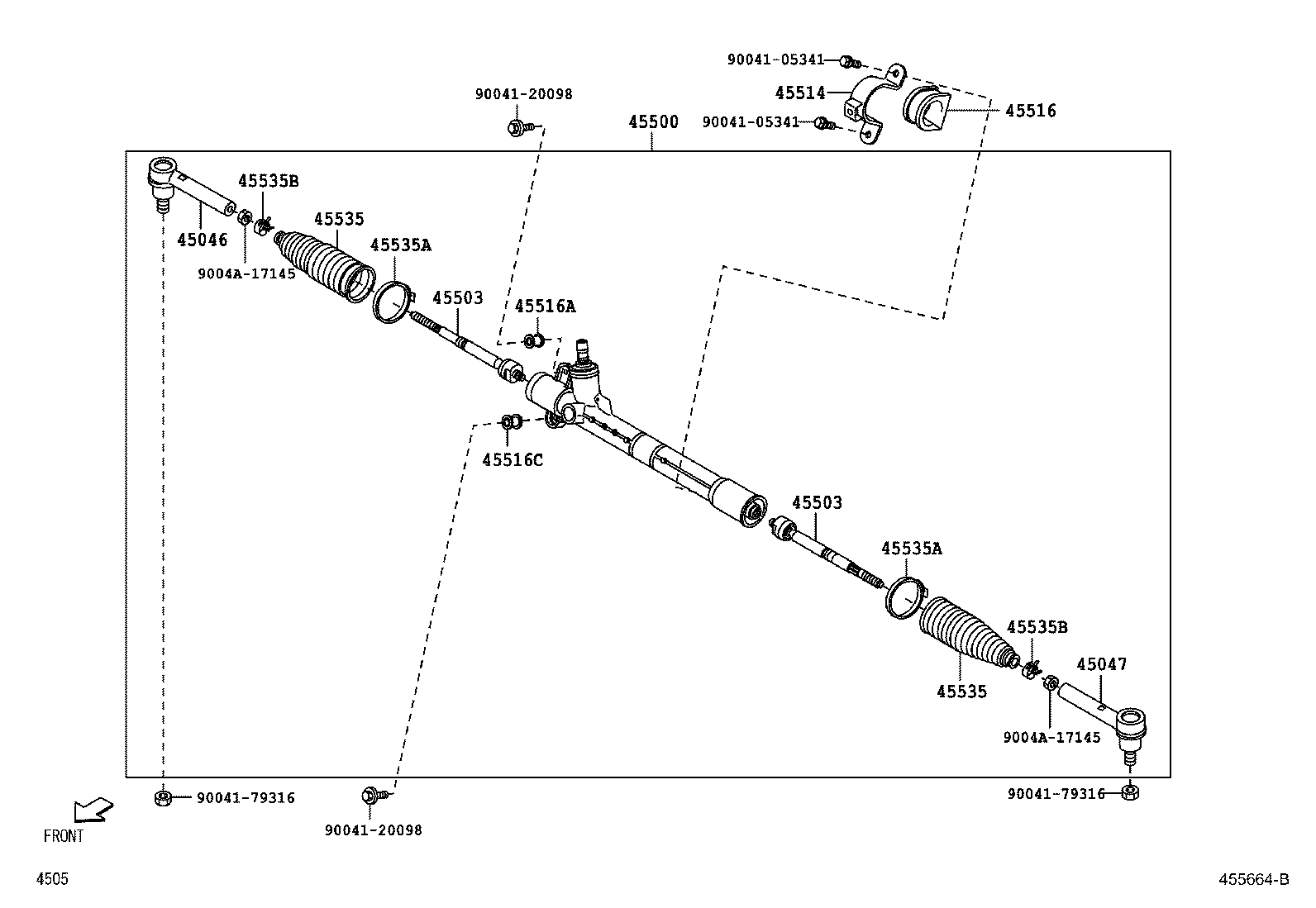

(1010-1503)IDN ; (1503- )
Click highlighted areas on diagram
EPS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-BZ130 |
F700..IDN |
1 | ||
| 45046-BZ130 |
F700 |
1 | ||
| 45046-BZ060 |
F700 |
1 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-BZ130 |
F700 |
1 | ||
| 45046-BZ130 |
F700..IDN |
1 | ||
| 45046-BZ060 |
F700 |
1 | ||
| 45500 - LINK ASSY, STEERING | ||||
| 45500-BZ022 |
F700 |
1 | ||
| 45500-BZ020 |
F700..IDN |
1 | ||
| 45500-BZ021 |
F700..IDN TIRE SIZE = 235 |
1 | ||
| 45500-BZ022 |
F700..IDN |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-BZ110 |
F700..IDN |
2 | ||
| 45503-BZ050 |
F700 |
2 | ||
| 45503-BZ110 |
F700 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-BZ110 |
F700..IDN |
2 | ||
| 45503-BZ050 |
F700 |
2 | ||
| 45503-BZ110 |
F700 |
2 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-BZ060 |
F700 |
1 | ||
| 45514-BZ060 |
F700 |
1 | ||
| 45514-BZ060 |
F700 |
1 | ||
| 45514-BZ120 |
F700 |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-BZ120 |
F700 |
1 | ||
| 45516-BZ120 |
F700 |
1 | ||
| 45516-BZ120 |
F700 |
1 | ||
| 45516A - BUSH, STEERING RACK HOUSING, NO.1 | ||||
| 45516-BZ140 |
F700 |
1 | ||
| 45516-BZ140 |
F700 |
1 | ||
| 45516-BZ140 |
F700 |
1 | ||
| 45516C - BUSH, STEERING RACK HOUSING, NO.2 | ||||
| 45516-BZ110 |
F700 |
1 | ||
| 45516-BZ110 |
F700 |
1 | ||
| 45516-BZ110 |
F700 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-BZ040 |
F700 |
2 | ||
| 45535-BZ040 |
F700 |
2 | ||
| 45535-BZ040 |
F700 |
2 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-BZ040 |
F700 |
2 | ||
| 45535-BZ040 |
F700 |
2 | ||
| 45535-BZ040 |
F700 |
2 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 15549-BZ010 |
F700..IDN |
2 | ||
| 9004A-46136 |
F700 |
2 | ||
| 15549-BZ010 |
F700 |
2 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 15549-BZ010 |
F700..IDN |
2 | ||
| 9004A-46136 |
F700 |
2 | ||
| 15549-BZ010 |
F700 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 9004A-46180 |
F700 |
2 | ||
| 9004A-46180 |
F700 |
2 | ||
| 9004A-46180 |
F700 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 9004A-46180 |
F700 |
2 | ||
| 9004A-46180 |
F700 |
2 | ||
| 9004A-46180 |
F700 |
2 | ||
| Common parts | ||||
| 90041-05341 | ||||
| 90041-20098 | ||||
| 90041-79316 | ||||
| 9004A-17145 | ||||
