F700RE-GQMFJ (2006)
Toyota Rush
Production
Dec 2006
-
Nov 2017
Engine
3SZVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0612- )E4AT

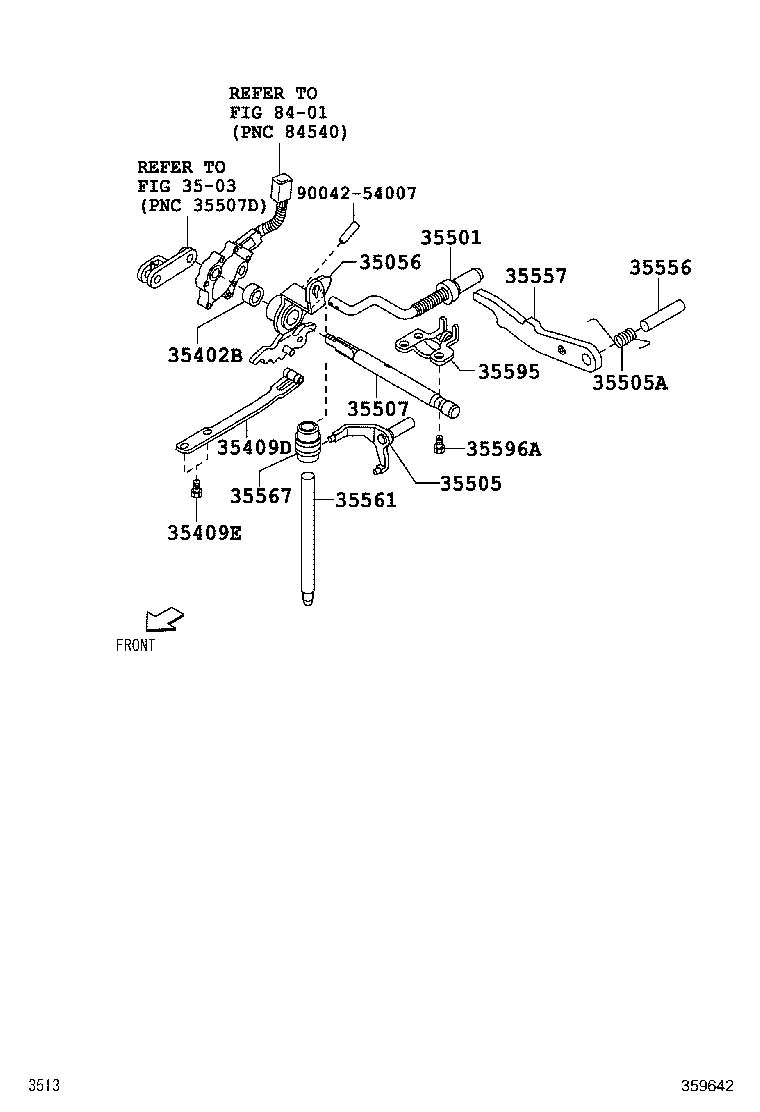

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35056 - LEVER SUB-ASSY, PARKING LOCK W/ROLLER | ||||
| 35057-97501 |
F700..E4AT |
1 | ||
| 35057-97501 |
F700..E4AT |
1 | ||
| 35057-97501 |
F700..E4AT |
1 | ||
| 35402B - SEAL,OIL(FOR MANUAL VALVE) | ||||
| 90043-11256 |
F700..E4AT |
1 | ||
| 90043-11256 |
F700..E4AT |
1 | ||
| 90043-11256 |
F700..E4AT |
1 | ||
| 35409D - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-97501 |
F700..E4AT |
1 | ||
| 35409-97501 |
F700..E4AT |
1 | ||
| 35409-97501 |
F700..E4AT |
1 | ||
| 35409E - BOLT(FOR MANUAL DETENT SPRING) | ||||
| 90041-05291 |
F700..E4AT |
2 | ||
| 90041-05291 |
F700..E4AT |
2 | ||
| 90041-05291 |
F700..E4AT |
2 | ||
| 35501 - ROD SUB-ASSY, PARKING LOCK | ||||
| 35501-97501 |
F700..E4AT |
1 | ||
| 35501-B5020 |
F700..E4AT |
1 | ||
| 35501-97501 |
F700..E4AT |
1 | ||
| 35501-97501 |
F700..E4AT |
1 | ||
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-97501 |
F700..E4AT |
1 | ||
| 35505-97501 |
F700..E4AT |
1 | ||
| 35505-97501 |
F700..E4AT |
1 | ||
| 35505A - SPRING, TORSION (FOR MANUAL VALVE LEVER) | ||||
| 90045-08388 |
F700..E4AT |
1 | ||
| 90045-08388 |
F700..E4AT |
1 | ||
| 90045-08388 |
F700..E4AT |
1 | ||
| 35507 - SHAFT SUB-ASSY, TRANSMISSION CONTROL INTERMEDIATE | ||||
| 35511-97501 |
F700..E4AT |
1 | ||
| 35511-97501 |
F700..E4AT |
1 | ||
| 35511-97501 |
F700..E4AT |
1 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-87502 |
F700..E4AT |
1 | ||
| 35556-87502 |
F700..E4AT |
1 | ||
| 35556-87502 |
F700..E4AT |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-B0010 |
F700..E4AT |
1 | ||
| 35557-B0010 |
F700..E4AT |
1 | ||
| 35557-B0010 |
F700..E4AT |
1 | ||
| 35561 - SHAFT, MANUAL VALVE LEVER | ||||
| 35568-97501 |
F700..E4AT |
1 | ||
| 35568-97501 |
F700..E4AT |
1 | ||
| 35568-97501 |
F700..E4AT |
1 | ||
| 35567 - ROD, TRANSMISSION CONTROL, 3RD | ||||
| 35567-97501 |
F700..E4AT |
1 | ||
| 35567-97501 |
F700..E4AT |
1 | ||
| 35567-97501 |
F700..E4AT |
1 | ||
| 35595 - BRACKET, PARKING LOCK PAWL | ||||
| 35595-97501 |
F700..E4AT |
1 | ||
| 35595-97501 |
F700..E4AT |
1 | ||
| 35595-97501 |
F700..E4AT |
1 | ||
| 35596A - BOLT (FOR PAWL STOPPER PLATE) | ||||
| 90041-19903 |
F700..E4AT |
3 | ||
| 90041-19903 |
F700..E4AT |
3 | ||
| 90041-19903 |
F700..E4AT |
3 | ||
| Common parts | ||||
| 90042-54007 | ||||
| Linked diagrams | ||||
| 3503 | ||||
| 8401 | ||||
