F700RE-GMMFJ (2006)
Toyota Rush
Production
Dec 2006
-
Nov 2017
Engine
3SZVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0612- )

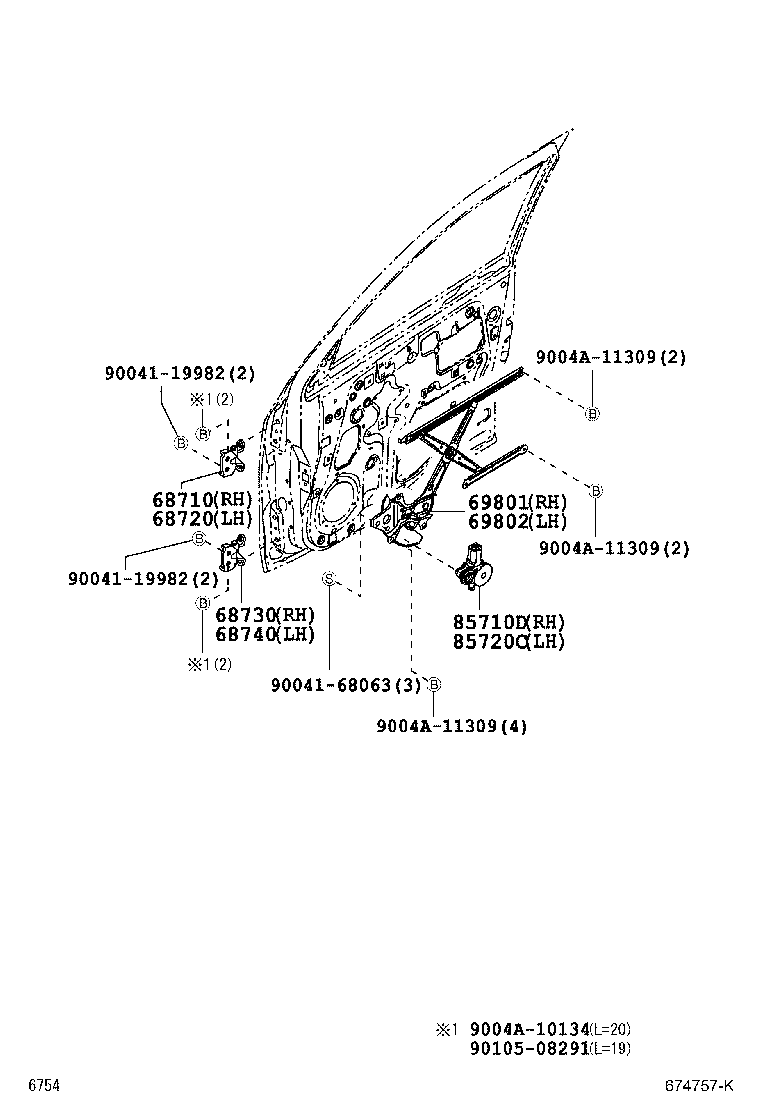

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68710 - HINGE ASSY, FRONT DOOR, UPPER RH | ||||
| 68710-BZ050 |
F700 |
1 | ||
| 68710-BZ050 |
F700 |
1 | ||
| 68710-BZ050 |
F700 |
1 | ||
| 68720 - HINGE ASSY, FRONT DOOR, UPPER LH | ||||
| 68720-BZ030 |
F700 |
1 | ||
| 68720-BZ030 |
F700 |
1 | ||
| 68720-BZ030 |
F700 |
1 | ||
| 68730 - HINGE ASSY, FRONT DOOR, LOWER RH | ||||
| 68720-BZ030 |
F700 |
1 | ||
| 68720-BZ030 |
F700 |
1 | ||
| 68720-BZ030 |
F700 |
1 | ||
| 68740 - HINGE ASSY, FRONT DOOR, LOWER LH | ||||
| 68710-BZ050 |
F700 |
1 | ||
| 68710-BZ050 |
F700 |
1 | ||
| 68710-BZ050 |
F700 |
1 | ||
| 69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH | ||||
| 69801-BZ060 |
F700 |
1 | ||
| 69801-BZ060 |
F700 |
1 | ||
| 69801-BZ160 |
F700 |
1 | ||
| 69801-BZ160 |
F700 |
1 | ||
| 69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH | ||||
| 69802-BZ160 |
F700 |
1 | ||
| 69802-BZ050 |
F700 |
1 | ||
| 69802-BZ050 |
F700 |
1 | ||
| 69802-BZ160 |
F700 |
1 | ||
| 85710D - MOTOR ASSY, POWER WINDOW REGULATOR, RH | ||||
| 85710-BZ250 |
F700 |
1 | ||
| 85710-B2030 |
F700 |
1 | ||
| 85710-BZ080 |
F700 |
1 | ||
| 85710-B2031 |
F700 |
1 | ||
| 85710-B2031 |
F700 |
1 | ||
| 85720C - MOTOR ASSY, POWER WINDOW REGULATOR, LH | ||||
| 85720-BZ080 |
F700 |
1 | ||
| 85720-BZ081 |
F700 |
1 | ||
| 85720-BZ080 |
F700 |
1 | ||
| 85720-BZ180 |
F700 |
1 | ||
| Common parts | ||||
| 90041-19982 | ||||
| 90041-68063 | ||||
| 9004A-10134 | ||||
| 9004A-11309 | ||||
| 90105-08291 | ||||
