F700RE-GMMFJ (2006)
Toyota Rush
Production
Dec 2006
-
Nov 2017
Engine
3SZVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

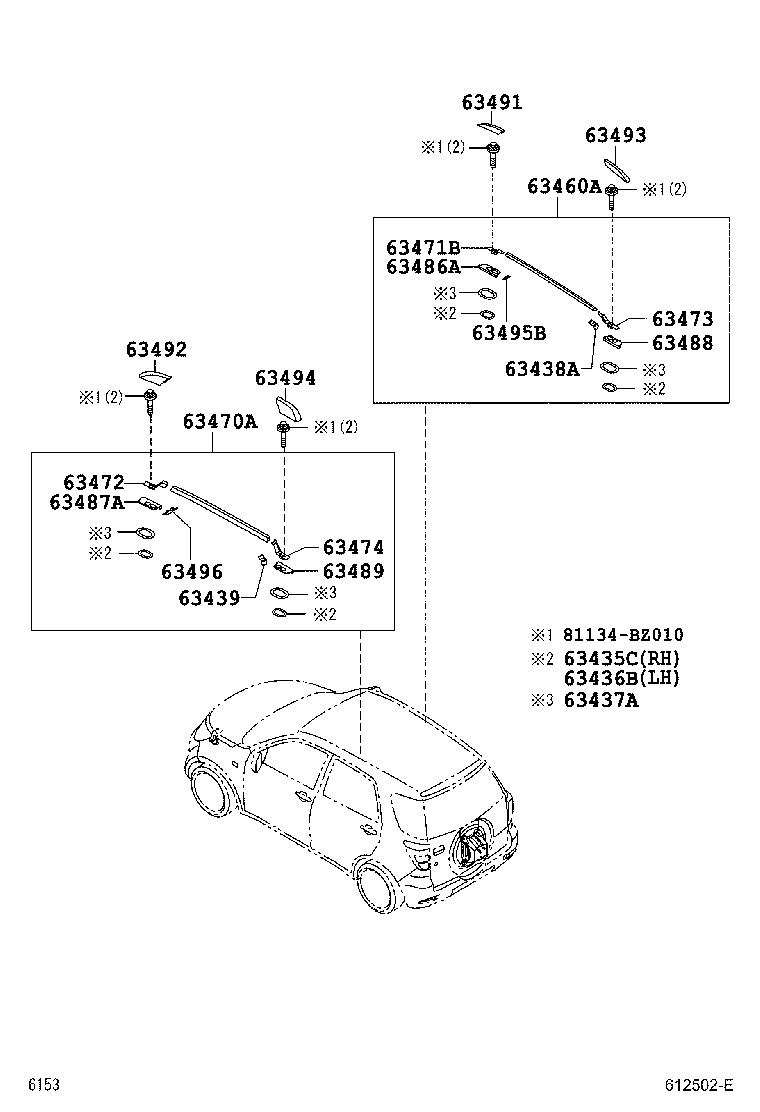

ILLUST NO. 2 OF 2(0612- )
Click highlighted areas on diagram
ROOF RACK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63435C - SEAL, ROOF CARRIER, NO.1 RH | ||||
| 63435-BZ010 |
F700 |
4 | ||
| 63435-BZ010 |
F700 |
4 | ||
| 63435-BZ010 |
F700 |
4 | ||
| 63436B - SEAL, ROOF CARRIER, NO.1 LH | ||||
| 63435-BZ010 |
F700 |
4 | ||
| 63435-BZ010 |
F700 |
4 | ||
| 63435-BZ010 |
F700 |
4 | ||
| 63437A - SEAL, ROOF CARRIER, NO.2 | ||||
| 63437-BZ010 |
F700 |
8 | ||
| 63437-BZ010 |
F700 |
8 | ||
| 63437-BZ010 |
F700 |
8 | ||
| 63438A - COVER, ROOF RACK END, NO.1 | ||||
| 63438-BZ010 |
F700 |
1 | ||
| 63438-BZ010 |
F700 |
1 | ||
| 63438-BZ010 |
F700 |
1 | ||
| 63439 - COVER, ROOF RACK END, NO.2 | ||||
| 63439-BZ010 |
F700 |
1 | ||
| 63439-BZ010 |
F700 |
1 | ||
| 63439-BZ010 |
F700 |
1 | ||
| 63460A - RACK ASSY, ROOF, RH | ||||
| 63460-BZ050 |
F700 |
1 | ||
| 63460-BZ050 |
F700 |
1 | ||
| 63460-BZ050 |
F700 |
1 | ||
| 63470A - RACK ASSY, ROOF, LH | ||||
| 63470-BZ050 |
F700 |
1 | ||
| 63470-BZ050 |
F700 |
1 | ||
| 63470-BZ050 |
F700 |
1 | ||
| 63471B - LEG, ROOF RACK, FRONT RH | ||||
| 63471-BZ010 |
F700 |
1 | ||
| 63471-BZ010 |
F700 |
1 | ||
| 63471-BZ010 |
F700 |
1 | ||
| 63472 - LEG, ROOF RACK, FRONT LH | ||||
| 63472-BZ010 |
F700 |
1 | ||
| 63472-BZ010 |
F700 |
1 | ||
| 63472-BZ010 |
F700 |
1 | ||
| 63473 - LEG, ROOF RACK, REAR RH | ||||
| 63473-BZ010 |
F700 |
1 | ||
| 63473-BZ010 |
F700 |
1 | ||
| 63473-BZ010 |
F700 |
1 | ||
| 63474 - LEG, ROOF RACK, REAR LH | ||||
| 63474-BZ010 |
F700 |
1 | ||
| 63474-BZ010 |
F700 |
1 | ||
| 63474-BZ010 |
F700 |
1 | ||
| 63486A - CUSHION, ROOF RACK LEG, FRONT RH | ||||
| 63486-BZ010 |
F700 |
1 | ||
| 63486-BZ010 |
F700 |
1 | ||
| 63486-BZ010 |
F700 |
1 | ||
| 63487A - CUSHION, ROOF RACK LEG, FRONT LH | ||||
| 63487-BZ010 |
F700 |
1 | ||
| 63487-BZ010 |
F700 |
1 | ||
| 63487-BZ010 |
F700 |
1 | ||
| 63488 - CUSHION, ROOF RACK LEG, REAR RH | ||||
| 63488-BZ010 |
F700 |
1 | ||
| 63488-BZ010 |
F700 |
1 | ||
| 63488-BZ010 |
F700 |
1 | ||
| 63489 - CUSHION, ROOF RACK LEG, REAR LH | ||||
| 63489-BZ010 |
F700 |
1 | ||
| 63489-BZ010 |
F700 |
1 | ||
| 63489-BZ010 |
F700 |
1 | ||
| 63491 - COVER, ROOF RACK LEG, FRONT RH | ||||
| 63491-BZ010 |
F700 |
1 | ||
| 63491-BZ010 |
F700 |
1 | ||
| 63491-BZ010 |
F700 |
1 | ||
| 63492 - COVER, ROOF RACK LEG, FRONT LH | ||||
| 63492-BZ010 |
F700 |
1 | ||
| 63492-BZ010 |
F700 |
1 | ||
| 63492-BZ010 |
F700 |
1 | ||
| 63493 - COVER, ROOF RACK LEG, REAR RH | ||||
| 63493-BZ010 |
F700 |
1 | ||
| 63493-BZ010 |
F700 |
1 | ||
| 63493-BZ010 |
F700 |
1 | ||
| 63494 - COVER, ROOF RACK LEG, REAR LH | ||||
| 63494-BZ010 |
F700 |
1 | ||
| 63494-BZ010 |
F700 |
1 | ||
| 63494-BZ010 |
F700 |
1 | ||
| 63495B - COVER, ROOF RACK LEG, CENTER RH | ||||
| 63495-BZ010 |
F700 |
1 | ||
| 63495-BZ010 |
F700 |
1 | ||
| 63495-BZ010 |
F700 |
1 | ||
| 63496 - COVER, ROOF RACK LEG, CENTER LH | ||||
| 63496-BZ010 |
F700 |
1 | ||
| 63496-BZ010 |
F700 |
1 | ||
| 63496-BZ010 |
F700 |
1 | ||
| Common parts | ||||
| 81134-BZ010 | ||||

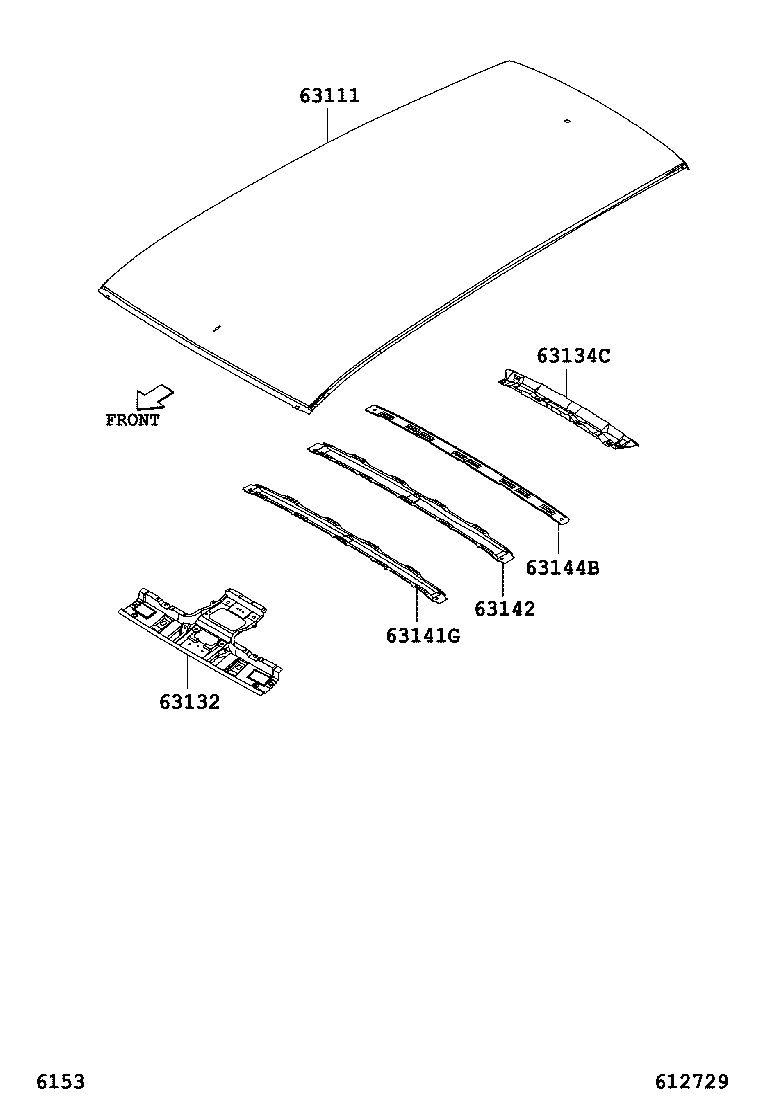

ILLUST NO. 1 OF 2(0612- )
Click highlighted areas on diagram
ROOF PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63111 - PANEL, ROOF | ||||
| 63111-BZ070 |
F700 |
1 | ||
| 63111-BZ070 |
F700 |
1 | ||
| 63111-BZ250 |
F700 |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-BZ050 |
F700 |
1 | ||
| 63132-BZ050 |
F700 |
1 | ||
| 63132-BZ050 |
F700 |
1 | ||
| 63134C - FRAME, BACK DOOR OPENING, INNER | ||||
| 63134-BZ040 |
F700 |
1 | ||
| 63134-BZ040 |
F700 |
1 | ||
| 63134-BZ040 |
F700 |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-BZ040 |
F700 |
1 | ||
| 63141-BZ040 |
F700 |
1 | ||
| 63141-BZ040 |
F700 |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-BZ030 |
F700 |
1 | ||
| 63142-BZ030 |
F700 |
1 | ||
| 63142-BZ030 |
F700 |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-BZ020 |
F700 |
1 | ||
| 63144-BZ020 |
F700 |
1 | ||
| 63144-BZ020 |
F700 |
1 | ||
