F700RE-GMDFM (2007)
Toyota Rush
Production
Dec 2007
-
Nov 2017
Engine
3SZVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0612-1503)IDN ; (1503- )

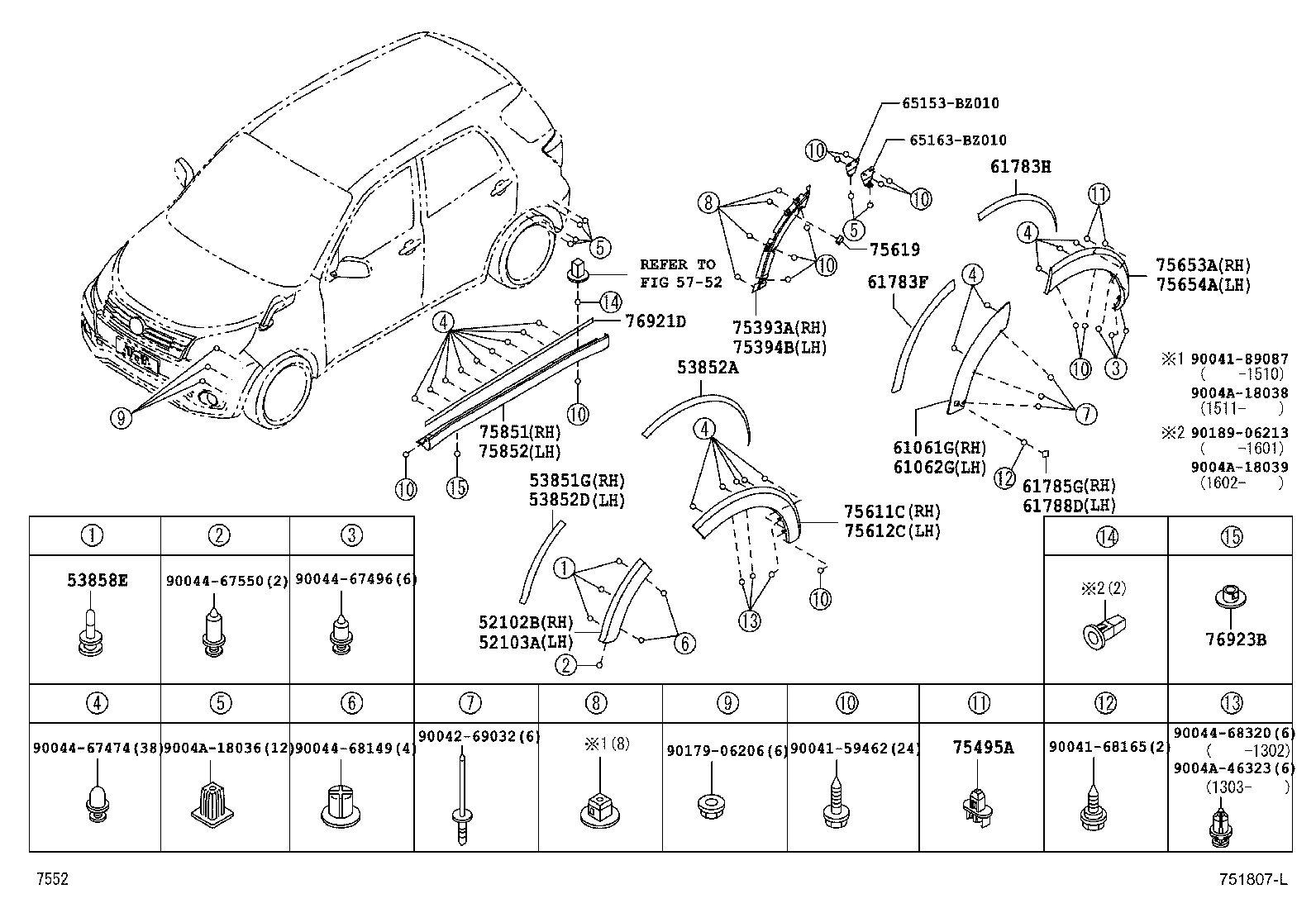

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52102B - EXTENSION SUB-ASSY, FRONT BUMPER, RH | ||||
| 52112-BZ040 |
F700 |
1 | ||
| 52103A - EXTENSION SUB-ASSY, FRONT BUMPER, LH | ||||
| 52113-BZ040 |
F700 |
1 | ||
| 53851G - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-BZ050B0 |
F700 GRAY,1E7 ,T23 ,W09 |
1 | ||
| 53851-BZ050C0 |
F700..MA BLACK,1G3 ,X12 |
1 | ||
| 53852A - PAD, FRONT WHEEL OPENING EXTENSION, NO.2 | ||||
| 53851-BZ060C0 |
F700..MA BLACK,1G3 ,X12,RH |
1 | ||
| 53851-BZ060B0 |
F700 GRAY,1E7 ,T23 ,W09,RH |
1 | ||
| 53852-BZ060B0 |
F700 GRAY,1E7 ,T23 ,W09,LH |
1 | ||
| 53852-BZ060C0 |
F700..MA BLACK,1G3 ,X12,LH |
1 | ||
| 53852D - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53852-BZ050C0 |
F700..MA BLACK,1G3 ,X12 |
1 | ||
| 53852-BZ050B0 |
F700 GRAY,1E7 ,T23 ,W09 |
1 | ||
| 53858E - BOLT, WHEEL OPENING SET | ||||
| 53858-60050 |
F700 |
6 | ||
| 61061G - EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.1 RH | ||||
| 61681-BZ020 |
F700 |
1 | ||
| 61062G - EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.1 LH | ||||
| 61682-BZ020 |
F700 |
1 | ||
| 61783F - PAD, REAR WHEEL OPENING EXTENSION NO.1 | ||||
| 61783-BZ030B0 |
F700 GRAY,1E7 ,T23 ,W09,RH |
1 | ||
| 61783-BZ030C0 |
F700..MA BLACK,1G3 ,X12,RH |
1 | ||
| 61784-BZ030B0 |
F700 GRAY,1E7 ,T23 ,W09,LH |
1 | ||
| 61784-BZ030C0 |
F700..MA BLACK,1G3 ,X12,LH |
1 | ||
| 61783H - PAD, REAE WHEEL OPENING EXTENSION, NO.2 | ||||
| 61783-BZ040C0 |
F700..MA BLACK,1G3 ,X12,RH |
1 | ||
| 61784-BZ040B0 |
F700 GRAY,1E7 ,T23 ,W09,LH |
1 | ||
| 61783-BZ040B0 |
F700 GRAY,1E7 ,T23 ,W09,RH |
1 | ||
| 61784-BZ040C0 |
F700..MA BLACK,1G3 ,X12,LH |
1 | ||
| 61785G - PAD, REAR WHEEL OPENING EXTENSION, NO.3 | ||||
| 63738-BZ030 |
F700 |
1 | ||
| 61788D - PAD, REAR WHEEL OPENING EXTENSION PAD NO.4 | ||||
| 63739-BZ020 |
F700 |
1 | ||
| 75393A - RETAINER, OUTSIDE MOULDING, NO.2 RH | ||||
| 75393-BZ030 |
F700 |
1 | ||
| 75394B - RETAINER, OUTSIDE MOULDING, NO.3 LH | ||||
| 75394-BZ030 |
F700 |
1 | ||
| 75495A - CLIP, OUTSIDE MOULDING, NO.4 | ||||
| 75495-42010 |
F700 |
4 | ||
| 75611C - MOULDING, FRONT FENDER, OUTSIDE RH | ||||
| 75611-BZ030 |
F700 |
1 | ||
| 75612C - MOULDING, FRONT FENDER, OUTSIDE LH | ||||
| 75612-BZ030 |
F700 |
1 | ||
| 75619 - SPACER, SIDE PANEL MOULDING | ||||
| 62785-BZ030 |
F700 |
2 | ||
| 75653A - MOULDING, QUARTER, OUTSIDE REAR RH | ||||
| 75653-BZ060 |
F700 |
1 | ||
| 75654A - MOULDING, QUARTER, OUTSIDE REAR LH | ||||
| 75654-BZ060 |
F700 |
1 | ||
| 75851 - MOULDING, ROCKER PANEL, RH | ||||
| 75851-BZ080 |
F700 |
1 | ||
| 75852 - MOULDING, ROCKER PANEL, LH | ||||
| 75852-BZ070 |
F700 |
1 | ||
| 76921D - PROTECTOR, SIDE MUDGUARD, NO.1 | ||||
| 76921-BZ020B0 |
F700 GRAY,1E7 ,T23 ,W09 |
2 | ||
| 76921-BZ020C0 |
F700..MA BLACK,1G3 ,X12 |
2 | ||
| 76923B - RETAINER, SIDE MUDGUARD | ||||
| 76924-52021 |
F700 |
14 | ||
| 76924-BZ010 |
F700 |
14 | ||
| Common parts | ||||
| 65153-BZ010 | ||||
| 65163-BZ010 | ||||
| 90041-59462 | ||||
| 90041-68165 | ||||
| 90041-89087 | ||||
| 90042-69032 | ||||
| 90044-67474 | ||||
| 90044-67496 | ||||
| 90044-67550 | ||||
| 90044-68149 | ||||
| 90044-68320 | ||||
| 9004A-18036 | ||||
| 9004A-18038 | ||||
| 9004A-18039 | ||||
| 9004A-46323 | ||||
| 90179-06206 | ||||
| 90189-06213 | ||||
| Linked diagrams | ||||
| 5752 | ||||
