F700RE-GMDFM (2007)
Toyota Rush
(0612-1503)S ; (1503- )

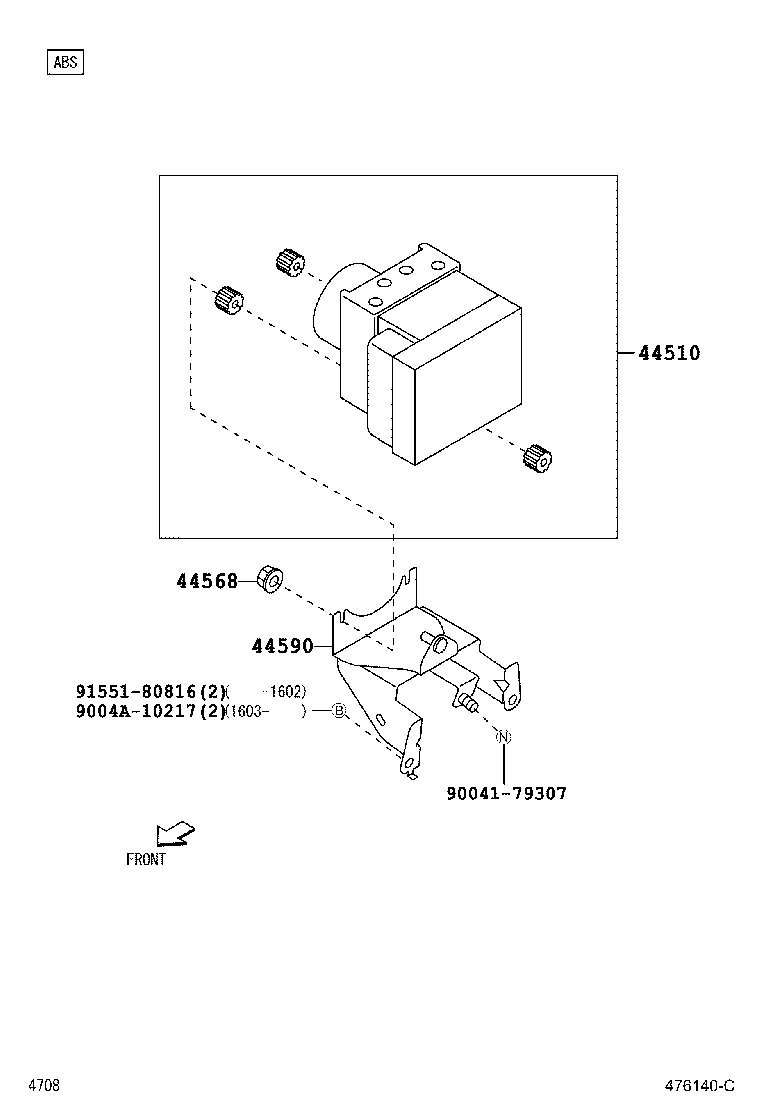

ABS ACTUATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-B0020 |
F700..S |
1 | ||
| 44050-B0020 |
F700..S ABS(ANTI-LOCK BRK SYSTM)-W/O ABS |
1 | ||
| 44050-B0020 |
F700 |
1 | ||
| 44050-B0020 |
F700..S |
1 | ||
| 44568 - NUT, BRAKE ACTUATOR | ||||
| 90041-79268 |
F700 |
2 | ||
| 90041-79268 |
F700..S |
2 | ||
| 90041-79268 |
F700..S ABS(ANTI-LOCK BRK SYSTM)-W/O ABS |
2 | ||
| 90041-79268 |
F700..S |
2 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44591-BZ050 |
F700..S |
1 | ||
| 44591-BZ050 |
F700 |
1 | ||
| 44591-BZ050 |
F700..S ABS(ANTI-LOCK BRK SYSTM)-W/O ABS |
1 | ||
| 44591-BZ050 |
F700..S |
1 | ||
| Common parts | ||||
| 90041-79307 | ||||
| 9004A-10217 | ||||
| 91551-80816 | ||||

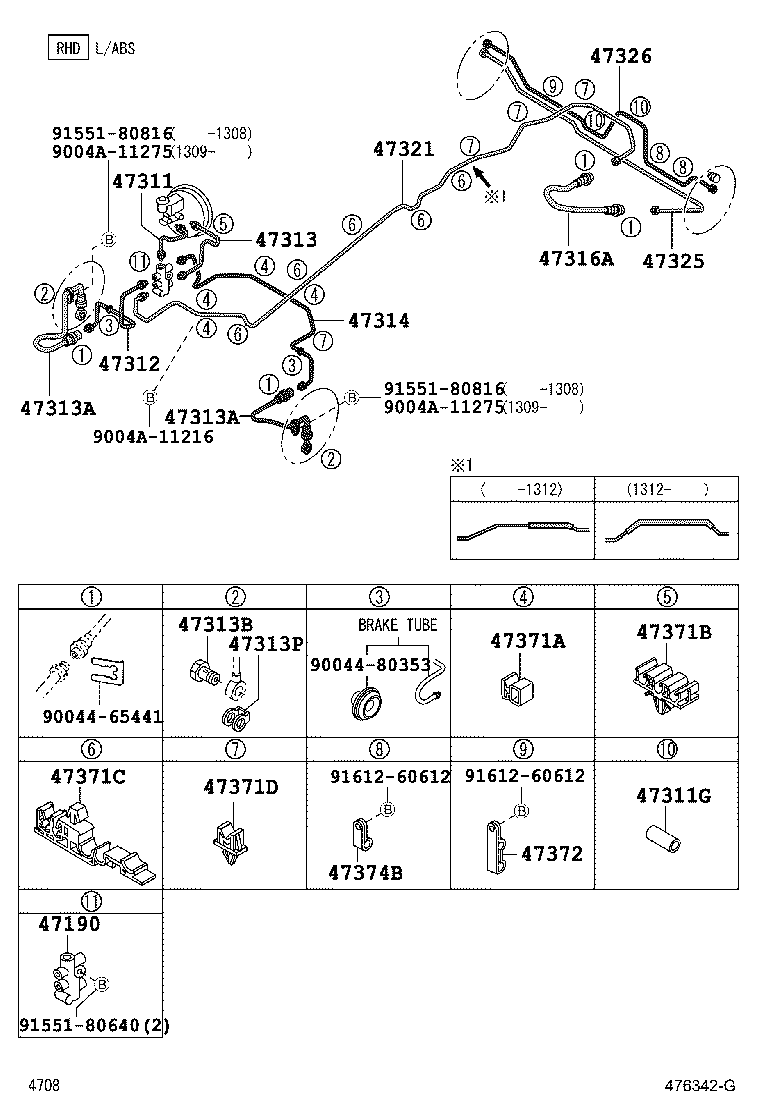

(0612-1503)
RHD L/ABS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47190 - VALVE ASSY, PROPORTIONING & BY-PASS | ||||
| 47190-B0010 |
F700..G |
1 | ||
| 47190-B0010 |
F700..S ABS(ANTI-LOCK BRK SYSTM)-W/O ABS |
1 | ||
| 47190-B0010 |
F700..G |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-BZ090 |
F700..S |
1 | ||
| 47311-BZ080 |
F700..S ABS(ANTI-LOCK BRK SYSTM)-W/O ABS |
1 | ||
| 47311-BZ080 |
F700..G |
1 | ||
| 47311-BZ080 |
F700..G |
1 | ||
| 47311-BZ090 |
F700 |
1 | ||
| 47311-BZ090 |
F700..S |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90044-46059 |
F700..S ABS(ANTI-LOCK BRK SYSTM)-W/O ABS |
2 | ||
| 9004A-44063 |
F700..G |
2 | ||
| 9004A-44063 |
F700..S ABS(ANTI-LOCK BRK SYSTM)-W/O ABS |
2 | ||
| 90044-46059 |
F700..G |
2 | ||
| 90044-46059 |
F700..G |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-BZ090 |
F700..S |
1 | ||
| 47312-BZ090 |
F700 |
1 | ||
| 47312-BZ090 |
F700..S |
1 | ||
| 47312-BZ150 |
F700..G |
1 | ||
| 47312-BZ150 |
F700..G |
1 | ||
| 47312-BZ150 |
F700..S ABS(ANTI-LOCK BRK SYSTM)-W/O ABS |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-BZ160 |
F700 |
1 | ||
| 47313-BZ010 |
F700..G |
1 | ||
| 47313-BZ010 |
F700..S ABS(ANTI-LOCK BRK SYSTM)-W/O ABS |
1 | ||
| 47313-BZ010 |
F700..G |
1 | ||
| 47313-BZ160 |
F700..S |
1 | ||
| 47313-BZ160 |
F700..S |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 9004A-94077 |
F700 |
2 | ||
| 9004A-94077 |
F700 |
2 | ||
| 9004A-94077 |
F700 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 9004A-94077 |
F700 |
2 | ||
| 9004A-94077 |
F700 |
2 | ||
| 9004A-94077 |
F700 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90044-01079 |
F700 |
2 | ||
| 90044-01079 |
F700 |
2 | ||
| 90401-10058 |
F700 |
2 | ||
| 90401-10058 |
F700 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
F700 |
2 | ||
| 47389-50020 |
F700 |
2 | ||
| 47389-97201 |
F700 |
2 | ||
| 47389-97201 |
F700 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-BZ150 |
F700..G |
1 | ||
| 47314-BZ150 |
F700..S ABS(ANTI-LOCK BRK SYSTM)-W/O ABS |
1 | ||
| 47314-BZ150 |
F700..G |
1 | ||
| 47314-BZ160 |
F700 |
1 | ||
| 47314-BZ160 |
F700..S |
1 | ||
| 47314-BZ160 |
F700..S |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 9004A-94040 |
F700 |
2 | ||
| 9004A-94040 |
F700..G |
1 | ||
| 9004A-94040 |
F700..S ABS(ANTI-LOCK BRK SYSTM)-W/O ABS |
1 | ||
| 9004A-94040 |
F700..S |
2 | ||
| 9004A-94040 |
F700..S |
2 | ||
| 9004A-94040 |
F700..G |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-BZ070 |
F700..G |
1 | ||
| 47321-BZ070 |
F700..G |
1 | ||
| 47321-BZ270 |
F700..S ABS(ANTI-LOCK BRK SYSTM)-W/O ABS |
1 | ||
| 47321-BZ080 |
F700..S |
1 | ||
| 47321-BZ270 |
F700..G |
1 | ||
| 47321-BZ080 |
F700..S |
1 | ||
| 47321-BZ080 |
F700 |
1 | ||
| 47321-BZ070 |
F700..S ABS(ANTI-LOCK BRK SYSTM)-W/O ABS |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-BZ070 |
F700 |
1 | ||
| 47325-BZ070 |
F700 |
1 | ||
| 47325-BZ070 |
F700 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-BZ090 |
F700 |
1 | ||
| 47326-BZ100 |
F700..G |
1 | ||
| 47326-BZ100 |
F700..G |
1 | ||
| 47326-BZ100 |
F700..S ABS(ANTI-LOCK BRK SYSTM)-W/O ABS |
1 | ||
| 47326-BZ090 |
F700..S |
1 | ||
| 47326-BZ090 |
F700..S |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90044-64655 |
F700..G..MA |
4 | ||
| 9004A-46299 |
F700..G |
4 | ||
| 90044-64655 |
F700..S..MA |
3 | ||
| 9004A-46299 |
F700..G |
4 | ||
| 90044-64655 |
F700..G |
4 | ||
| 90044-64655 |
F700..S |
3 | ||
| 9004A-46299 |
F700..S |
3 | ||
| 9004A-46299 |
F700 |
3 | ||
| 9004A-46299 |
F700..S |
3 | ||
| 9004A-46299 |
F700..S ABS(ANTI-LOCK BRK SYSTM)-W/O ABS |
4 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 9004A-46290 |
F700 |
1 | ||
| 9004A-46290 |
F700 |
1 | ||
| 90044-64742 |
F700 |
1 | ||
| 9004A-46290 |
F700 |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90044-64716 |
F700 |
5 | ||
| 9004A-46313 |
F700 |
5 | ||
| 9004A-46313 |
F700 |
5 | ||
| 90044-64716 |
F700 |
5 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 9004A-46296 |
F700..S |
2 | ||
| 9004A-46296 |
F700 |
2 | ||
| 9004A-46296 |
F700..G |
4 | ||
| 90044-64299 |
F700..G |
4 | ||
| 90044-64299 |
F700..S |
2 | ||
| 9004A-46296 |
F700..S ABS(ANTI-LOCK BRK SYSTM)-W/O ABS |
4 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 9004A-46094 |
F700..G |
1 | ||
| 9004A-46094 |
F700..G |
1 | ||
| 9004A-46094 |
F700..S ABS(ANTI-LOCK BRK SYSTM)-W/O ABS |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 96221-30705 |
F700..G |
2 | ||
| 96221-30705 |
F700..G |
2 | ||
| 96221-30705 |
F700 |
3 | ||
| 96221-30705 |
F700..S |
3 | ||
| 96221-30705 |
F700..S |
3 | ||
| 96221-30705 |
F700..S ABS(ANTI-LOCK BRK SYSTM)-W/O ABS |
2 | ||
| Common parts | ||||
| 90044-65441 | ||||
| 90044-80353 | ||||
| 9004A-11216 | ||||
| 9004A-11275 | ||||
| 91551-80640 | ||||
| 91551-80816 | ||||
| 91612-60612 | ||||

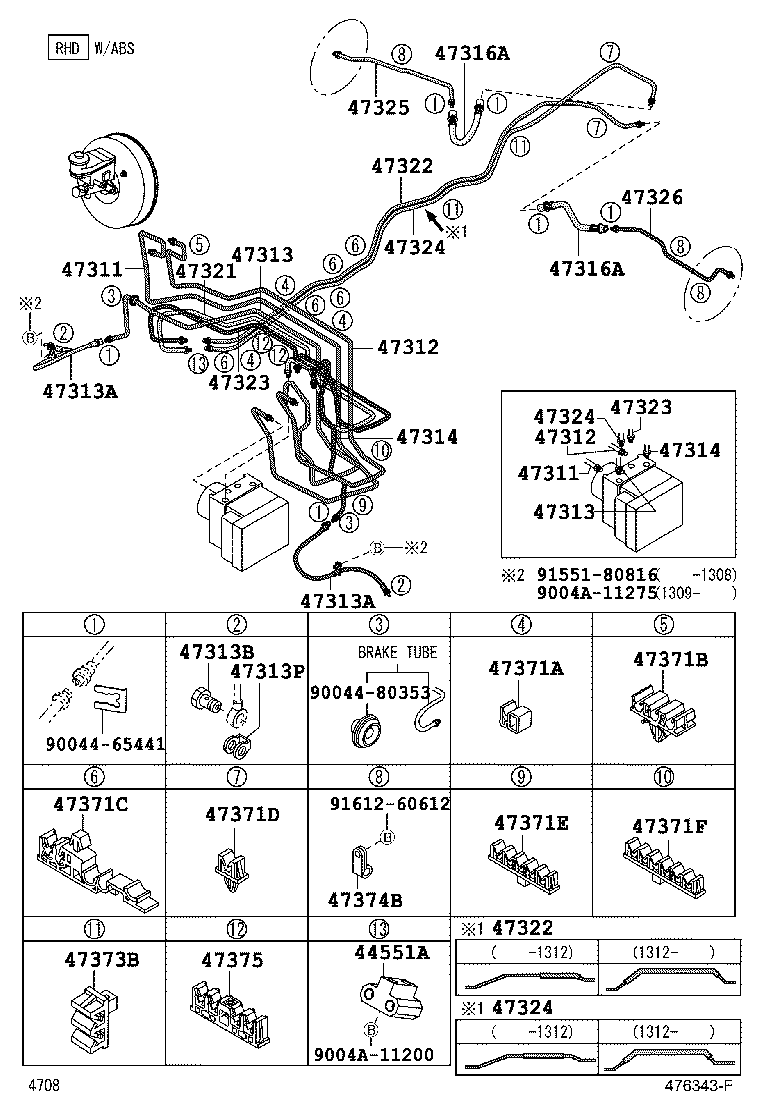

(0612-1503)S ; (1503- )
RHD W/ABS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44551A - WAY, NO.1(FOR BRAKE ACTUATOR) | ||||
| 44589-B2010 |
F700..S |
1 | ||
| 44589-B2010 |
F700 |
1 | ||
| 44589-B2010 |
F700..S |
1 | ||
| 44589-BZ020 |
F700 |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-BZ090 |
F700..S |
1 | ||
| 47311-BZ080 |
F700..S ABS(ANTI-LOCK BRK SYSTM)-W/O ABS |
1 | ||
| 47311-BZ080 |
F700..G |
1 | ||
| 47311-BZ080 |
F700..G |
1 | ||
| 47311-BZ090 |
F700 |
1 | ||
| 47311-BZ090 |
F700..S |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-BZ090 |
F700..S |
1 | ||
| 47311-BZ080 |
F700..S ABS(ANTI-LOCK BRK SYSTM)-W/O ABS |
1 | ||
| 47311-BZ080 |
F700..G |
1 | ||
| 47311-BZ080 |
F700..G |
1 | ||
| 47311-BZ090 |
F700 |
1 | ||
| 47311-BZ090 |
F700..S |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-BZ090 |
F700..S |
1 | ||
| 47312-BZ090 |
F700 |
1 | ||
| 47312-BZ090 |
F700..S |
1 | ||
| 47312-BZ150 |
F700..G |
1 | ||
| 47312-BZ150 |
F700..G |
1 | ||
| 47312-BZ150 |
F700..S ABS(ANTI-LOCK BRK SYSTM)-W/O ABS |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-BZ090 |
F700..S |
1 | ||
| 47312-BZ090 |
F700 |
1 | ||
| 47312-BZ090 |
F700..S |
1 | ||
| 47312-BZ150 |
F700..G |
1 | ||
| 47312-BZ150 |
F700..G |
1 | ||
| 47312-BZ150 |
F700..S ABS(ANTI-LOCK BRK SYSTM)-W/O ABS |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-BZ160 |
F700 |
1 | ||
| 47313-BZ010 |
F700..G |
1 | ||
| 47313-BZ010 |
F700..S ABS(ANTI-LOCK BRK SYSTM)-W/O ABS |
1 | ||
| 47313-BZ010 |
F700..G |
1 | ||
| 47313-BZ160 |
F700..S |
1 | ||
| 47313-BZ160 |
F700..S |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-BZ160 |
F700 |
1 | ||
| 47313-BZ010 |
F700..G |
1 | ||
| 47313-BZ010 |
F700..S ABS(ANTI-LOCK BRK SYSTM)-W/O ABS |
1 | ||
| 47313-BZ010 |
F700..G |
1 | ||
| 47313-BZ160 |
F700..S |
1 | ||
| 47313-BZ160 |
F700..S |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 9004A-94077 |
F700 |
2 | ||
| 9004A-94077 |
F700 |
2 | ||
| 9004A-94077 |
F700 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 9004A-94077 |
F700 |
2 | ||
| 9004A-94077 |
F700 |
2 | ||
| 9004A-94077 |
F700 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90044-01079 |
F700 |
2 | ||
| 90044-01079 |
F700 |
2 | ||
| 90401-10058 |
F700 |
2 | ||
| 90401-10058 |
F700 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
F700 |
2 | ||
| 47389-50020 |
F700 |
2 | ||
| 47389-97201 |
F700 |
2 | ||
| 47389-97201 |
F700 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-BZ150 |
F700..G |
1 | ||
| 47314-BZ150 |
F700..S ABS(ANTI-LOCK BRK SYSTM)-W/O ABS |
1 | ||
| 47314-BZ150 |
F700..G |
1 | ||
| 47314-BZ160 |
F700 |
1 | ||
| 47314-BZ160 |
F700..S |
1 | ||
| 47314-BZ160 |
F700..S |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-BZ150 |
F700..G |
1 | ||
| 47314-BZ150 |
F700..S ABS(ANTI-LOCK BRK SYSTM)-W/O ABS |
1 | ||
| 47314-BZ150 |
F700..G |
1 | ||
| 47314-BZ160 |
F700 |
1 | ||
| 47314-BZ160 |
F700..S |
1 | ||
| 47314-BZ160 |
F700..S |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 9004A-94040 |
F700 |
2 | ||
| 9004A-94040 |
F700..G |
1 | ||
| 9004A-94040 |
F700..S ABS(ANTI-LOCK BRK SYSTM)-W/O ABS |
1 | ||
| 9004A-94040 |
F700..S |
2 | ||
| 9004A-94040 |
F700..S |
2 | ||
| 9004A-94040 |
F700..G |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 9004A-94040 |
F700 |
2 | ||
| 9004A-94040 |
F700..G |
1 | ||
| 9004A-94040 |
F700..S ABS(ANTI-LOCK BRK SYSTM)-W/O ABS |
1 | ||
| 9004A-94040 |
F700..S |
2 | ||
| 9004A-94040 |
F700..S |
2 | ||
| 9004A-94040 |
F700..G |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-BZ070 |
F700..G |
1 | ||
| 47321-BZ070 |
F700..G |
1 | ||
| 47321-BZ270 |
F700..S ABS(ANTI-LOCK BRK SYSTM)-W/O ABS |
1 | ||
| 47321-BZ080 |
F700..S |
1 | ||
| 47321-BZ270 |
F700..G |
1 | ||
| 47321-BZ080 |
F700..S |
1 | ||
| 47321-BZ080 |
F700 |
1 | ||
| 47321-BZ070 |
F700..S ABS(ANTI-LOCK BRK SYSTM)-W/O ABS |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-BZ011 |
F700..S |
1 | ||
| 47322-BZ011 |
F700..S |
1 | ||
| 47322-BZ280 |
F700..S |
1 | ||
| 47322-BZ280 |
F700 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-BZ011 |
F700..S |
1 | ||
| 47322-BZ011 |
F700..S |
1 | ||
| 47322-BZ280 |
F700..S |
1 | ||
| 47322-BZ280 |
F700 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-BZ040 |
F700..S |
1 | ||
| 47323-BZ040 |
F700..S |
1 | ||
| 47323-BZ040 |
F700 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-BZ040 |
F700..S |
1 | ||
| 47323-BZ040 |
F700..S |
1 | ||
| 47323-BZ040 |
F700 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-BZ340 |
F700..S |
1 | ||
| 47324-BZ011 |
F700..S |
1 | ||
| 47324-BZ340 |
F700 |
1 | ||
| 47324-BZ011 |
F700..S |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-BZ340 |
F700..S |
1 | ||
| 47324-BZ011 |
F700..S |
1 | ||
| 47324-BZ340 |
F700 |
1 | ||
| 47324-BZ011 |
F700..S |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-BZ340 |
F700..S |
1 | ||
| 47324-BZ011 |
F700..S |
1 | ||
| 47324-BZ340 |
F700 |
1 | ||
| 47324-BZ011 |
F700..S |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-BZ070 |
F700 |
1 | ||
| 47325-BZ070 |
F700 |
1 | ||
| 47325-BZ070 |
F700 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-BZ090 |
F700 |
1 | ||
| 47326-BZ100 |
F700..G |
1 | ||
| 47326-BZ100 |
F700..G |
1 | ||
| 47326-BZ100 |
F700..S ABS(ANTI-LOCK BRK SYSTM)-W/O ABS |
1 | ||
| 47326-BZ090 |
F700..S |
1 | ||
| 47326-BZ090 |
F700..S |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90044-64655 |
F700..G..MA |
4 | ||
| 9004A-46299 |
F700..G |
4 | ||
| 90044-64655 |
F700..S..MA |
3 | ||
| 9004A-46299 |
F700..G |
4 | ||
| 90044-64655 |
F700..G |
4 | ||
| 90044-64655 |
F700..S |
3 | ||
| 9004A-46299 |
F700..S |
3 | ||
| 9004A-46299 |
F700 |
3 | ||
| 9004A-46299 |
F700..S |
3 | ||
| 9004A-46299 |
F700..S ABS(ANTI-LOCK BRK SYSTM)-W/O ABS |
4 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 9004A-46290 |
F700 |
1 | ||
| 9004A-46290 |
F700 |
1 | ||
| 90044-64742 |
F700 |
1 | ||
| 9004A-46290 |
F700 |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90044-64716 |
F700 |
5 | ||
| 9004A-46313 |
F700 |
5 | ||
| 9004A-46313 |
F700 |
5 | ||
| 90044-64716 |
F700 |
5 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 9004A-46296 |
F700..S |
2 | ||
| 9004A-46296 |
F700 |
2 | ||
| 9004A-46296 |
F700..G |
4 | ||
| 90044-64299 |
F700..G |
4 | ||
| 90044-64299 |
F700..S |
2 | ||
| 9004A-46296 |
F700..S ABS(ANTI-LOCK BRK SYSTM)-W/O ABS |
4 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90044-64699 |
F700..S |
1 | ||
| 9004A-46368 |
F700 |
1 | ||
| 90044-64591 |
F700..S |
1 | ||
| 90044-64699 |
F700 |
1 | ||
| 90044-64591 |
F700..S |
1 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90044-64596 |
F700 |
1 | ||
| 90044-64596 |
F700..S |
1 | ||
| 90044-64596 |
F700..S |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90044-64713 |
F700..S |
2 | ||
| 90044-64713 |
F700..S |
2 | ||
| 90044-64713 |
F700 |
2 | ||
| 9004A-46321 |
F700 |
2 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 96221-30705 |
F700..G |
2 | ||
| 96221-30705 |
F700..G |
2 | ||
| 96221-30705 |
F700 |
3 | ||
| 96221-30705 |
F700..S |
3 | ||
| 96221-30705 |
F700..S |
3 | ||
| 96221-30705 |
F700..S ABS(ANTI-LOCK BRK SYSTM)-W/O ABS |
2 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90044-64668 |
F700..S |
2 | ||
| 9004A-46318 |
F700 |
2 | ||
| 90044-64668 |
F700 |
2 | ||
| 90044-64668 |
F700..S |
2 | ||
| Common parts | ||||
| 90044-65441 | ||||
| 90044-80353 | ||||
| 9004A-11200 | ||||
| 9004A-11275 | ||||
| 91551-80816 | ||||
| 91612-60612 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
