Toyota Rush F700 IGNITION COIL & SPARK PLUG / GLOW PLUG

Manufacturers Home
Toyota
GR
RUSH
F700RE-GMDFM (2007)
1901 - IGNITION COIL & SPARK PLUG / GLOW PLUG

F700RE-GMDFM (2007)

Toyota Rush

Production Dec 2007 - Nov 2017

Engine 3SZVE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0612-1508)

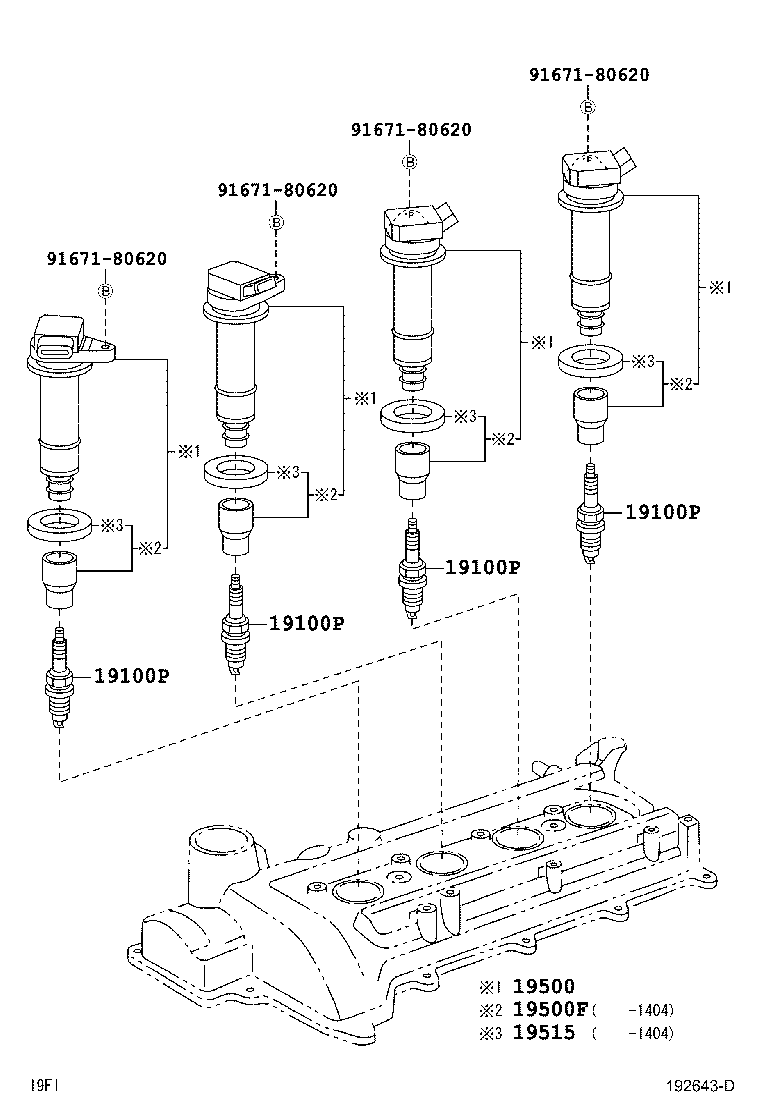

Click highlighted areas on diagram

Part #	Description	Period	Qty
19100P - PLUG, SPARK
9004A-91039	3SZVE..F700 DCPR7EA-9,NGK	12/2006 - 09/2010	4
9004A-91032	3SZVE..F700 XU22PR9,DENSO	10/2010 - 03/2015	4
9004A-91032	3SZVE..F700 XU22PR9,DENSO	12/2006 - 09/2010	4
9004A-91039	3SZVE..F700 DCPR7EA-9,NGK	10/2010 - 03/2015	4
9004A-91039	3SZVE..F700 DCPR7EA-9,NGK	03/2015 - 12/2999	4
9004A-91032	3SZVE..F700 XU22PR9,DENSO	03/2015 - 12/2999	4
19100P - PLUG, SPARK
9004A-91039	3SZVE..F700 DCPR7EA-9,NGK	12/2006 - 09/2010	4
9004A-91032	3SZVE..F700 XU22PR9,DENSO	10/2010 - 03/2015	4
9004A-91032	3SZVE..F700 XU22PR9,DENSO	12/2006 - 09/2010	4
9004A-91039	3SZVE..F700 DCPR7EA-9,NGK	10/2010 - 03/2015	4
9004A-91039	3SZVE..F700 DCPR7EA-9,NGK	03/2015 - 12/2999	4
9004A-91032	3SZVE..F700 XU22PR9,DENSO	03/2015 - 12/2999	4
19100P - PLUG, SPARK
9004A-91039	3SZVE..F700 DCPR7EA-9,NGK	12/2006 - 09/2010	4
9004A-91032	3SZVE..F700 XU22PR9,DENSO	10/2010 - 03/2015	4
9004A-91032	3SZVE..F700 XU22PR9,DENSO	12/2006 - 09/2010	4
9004A-91039	3SZVE..F700 DCPR7EA-9,NGK	10/2010 - 03/2015	4
9004A-91039	3SZVE..F700 DCPR7EA-9,NGK	03/2015 - 12/2999	4
9004A-91032	3SZVE..F700 XU22PR9,DENSO	03/2015 - 12/2999	4
19100P - PLUG, SPARK
9004A-91039	3SZVE..F700 DCPR7EA-9,NGK	12/2006 - 09/2010	4
9004A-91032	3SZVE..F700 XU22PR9,DENSO	10/2010 - 03/2015	4
9004A-91032	3SZVE..F700 XU22PR9,DENSO	12/2006 - 09/2010	4
9004A-91039	3SZVE..F700 DCPR7EA-9,NGK	10/2010 - 03/2015	4
9004A-91039	3SZVE..F700 DCPR7EA-9,NGK	03/2015 - 12/2999	4
9004A-91032	3SZVE..F700 XU22PR9,DENSO	03/2015 - 12/2999	4
19500 - COIL ASSY, IGNITION
19070-BZ060	3SZVE..F700	12/2006 - 09/2010	4
19070-BZ030	3SZVE..F700	03/2015 - 07/2015	4
19070-BZ060	3SZVE..F700	10/2010 - 03/2014	4
19070-BZ030	3SZVE..F700	04/2014 - 03/2015	4
19070-BZ031	3SZVE..F700	08/2015 - 12/2999	4
19500F - CAP, PLUG
9004C-33005	3SZVE..F700	10/2010 - 04/2014	4
9004C-33006	3SZVE..F700	08/2015 - 12/2999	4
9004C-33005	3SZVE..F700	12/2006 - 09/2010	4
19515 - GASKET, IGNITION COIL COVER, NO.1
9004C-31001	3SZVE..F700	12/2006 - 09/2010	4
9004C-31001	3SZVE..F700	10/2010 - 04/2014	4
9004C-31003	3SZVE..F700	08/2015 - 12/2999	4
Common parts
91671-80620

(1508- )

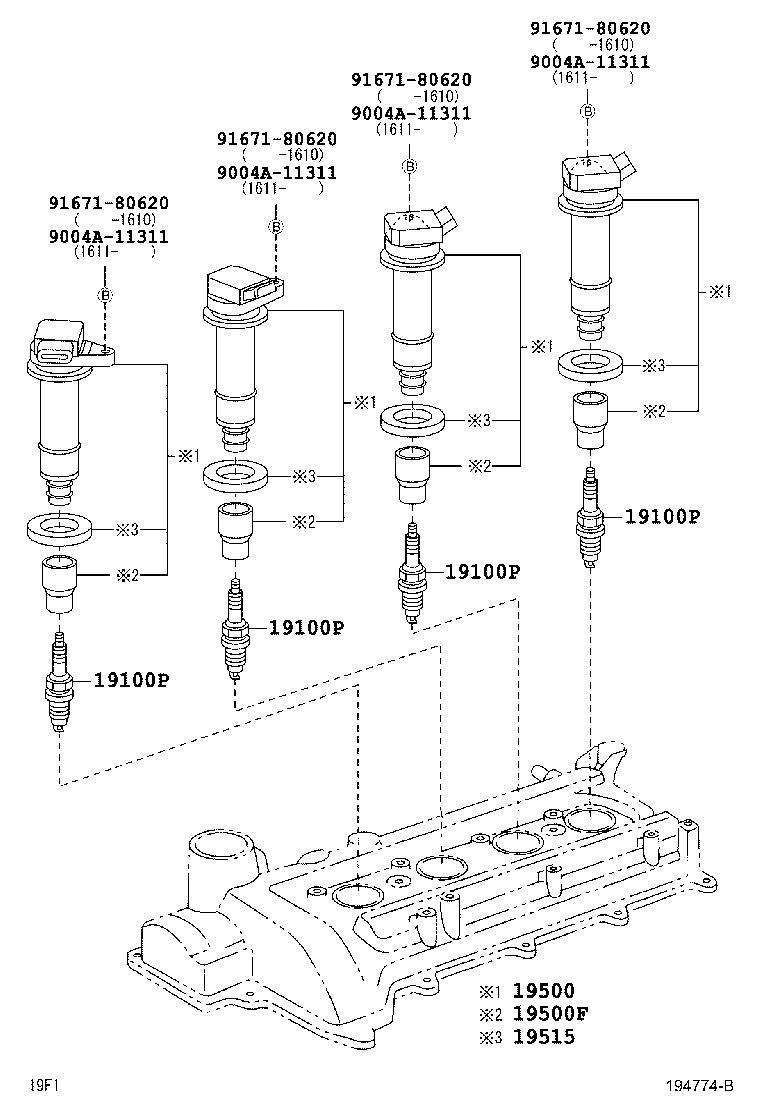

Click highlighted areas on diagram

Part #	Description	Period	Qty
19100P - PLUG, SPARK
9004A-91039	3SZVE..F700 DCPR7EA-9,NGK	12/2006 - 09/2010	4
9004A-91032	3SZVE..F700 XU22PR9,DENSO	10/2010 - 03/2015	4
9004A-91032	3SZVE..F700 XU22PR9,DENSO	12/2006 - 09/2010	4
9004A-91039	3SZVE..F700 DCPR7EA-9,NGK	10/2010 - 03/2015	4
9004A-91039	3SZVE..F700 DCPR7EA-9,NGK	03/2015 - 12/2999	4
9004A-91032	3SZVE..F700 XU22PR9,DENSO	03/2015 - 12/2999	4
19100P - PLUG, SPARK
9004A-91039	3SZVE..F700 DCPR7EA-9,NGK	12/2006 - 09/2010	4
9004A-91032	3SZVE..F700 XU22PR9,DENSO	10/2010 - 03/2015	4
9004A-91032	3SZVE..F700 XU22PR9,DENSO	12/2006 - 09/2010	4
9004A-91039	3SZVE..F700 DCPR7EA-9,NGK	10/2010 - 03/2015	4
9004A-91039	3SZVE..F700 DCPR7EA-9,NGK	03/2015 - 12/2999	4
9004A-91032	3SZVE..F700 XU22PR9,DENSO	03/2015 - 12/2999	4
19100P - PLUG, SPARK
9004A-91039	3SZVE..F700 DCPR7EA-9,NGK	12/2006 - 09/2010	4
9004A-91032	3SZVE..F700 XU22PR9,DENSO	10/2010 - 03/2015	4
9004A-91032	3SZVE..F700 XU22PR9,DENSO	12/2006 - 09/2010	4
9004A-91039	3SZVE..F700 DCPR7EA-9,NGK	10/2010 - 03/2015	4
9004A-91039	3SZVE..F700 DCPR7EA-9,NGK	03/2015 - 12/2999	4
9004A-91032	3SZVE..F700 XU22PR9,DENSO	03/2015 - 12/2999	4
19100P - PLUG, SPARK
9004A-91039	3SZVE..F700 DCPR7EA-9,NGK	12/2006 - 09/2010	4
9004A-91032	3SZVE..F700 XU22PR9,DENSO	10/2010 - 03/2015	4
9004A-91032	3SZVE..F700 XU22PR9,DENSO	12/2006 - 09/2010	4
9004A-91039	3SZVE..F700 DCPR7EA-9,NGK	10/2010 - 03/2015	4
9004A-91039	3SZVE..F700 DCPR7EA-9,NGK	03/2015 - 12/2999	4
9004A-91032	3SZVE..F700 XU22PR9,DENSO	03/2015 - 12/2999	4
19500 - COIL ASSY, IGNITION
19070-BZ060	3SZVE..F700	12/2006 - 09/2010	4
19070-BZ030	3SZVE..F700	03/2015 - 07/2015	4
19070-BZ060	3SZVE..F700	10/2010 - 03/2014	4
19070-BZ030	3SZVE..F700	04/2014 - 03/2015	4
19070-BZ031	3SZVE..F700	08/2015 - 12/2999	4
19500F - CAP, PLUG
9004C-33005	3SZVE..F700	10/2010 - 04/2014	4
9004C-33006	3SZVE..F700	08/2015 - 12/2999	4
9004C-33005	3SZVE..F700	12/2006 - 09/2010	4
19515 - GASKET, IGNITION COIL COVER, NO.1
9004C-31001	3SZVE..F700	12/2006 - 09/2010	4
9004C-31001	3SZVE..F700	10/2010 - 04/2014	4
9004C-31003	3SZVE..F700	08/2015 - 12/2999	4
Common parts
9004A-11311
91671-80620

F700RE-GMDFM (2007)

(0612-1508)

(1508- )
