F700RE-GMDFJ (2006)
Toyota Rush
Production
Dec 2006
-
Nov 2017
Engine
3SZVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0612- )

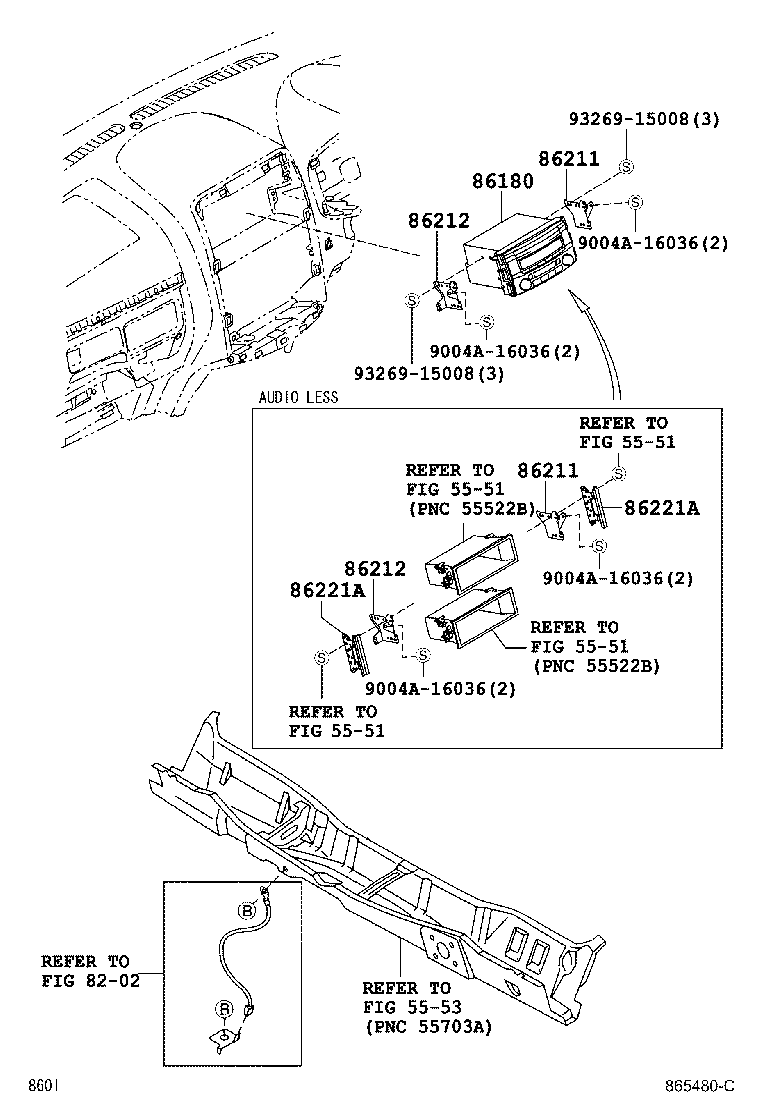

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86180 - TUNER ASSY, STEREO COMPONENT | ||||
| 86180-BZ130 |
F700..S..IDN |
1 | ||
| 86180-BZ270B0 |
F700..IDN SILVER,TRIM1#,4# |
1 | ||
| 86180-BZ140 |
F700..G..IDN |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-BZ050 |
F700 |
1 | ||
| 86211-BZ050 |
F700 |
1 | ||
| 86211-BZ130 |
F700..IDN |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-BZ050 |
F700 |
1 | ||
| 86211-BZ050 |
F700 |
1 | ||
| 86211-BZ130 |
F700..IDN |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-BZ050 |
F700 |
1 | ||
| 86212-BZ050 |
F700 |
1 | ||
| 86212-BZ130 |
F700..IDN |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-BZ050 |
F700 |
1 | ||
| 86212-BZ050 |
F700 |
1 | ||
| 86212-BZ130 |
F700..IDN |
1 | ||
| 86221A - PANEL, RADIO RECEIVER | ||||
| 86221-BZ010 |
F700 |
2 | ||
| 86221A - PANEL, RADIO RECEIVER | ||||
| 86221-BZ010 |
F700 |
2 | ||
| Common parts | ||||
| 9004A-16036 | ||||
| 93269-15008 | ||||
| Linked diagrams | ||||
| 5551 | ||||
| 5553 | ||||
| 8202 | ||||
