F700RE-GMDFJ (2006)
Toyota Rush
Production
Dec 2006
-
Nov 2017
Engine
3SZVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

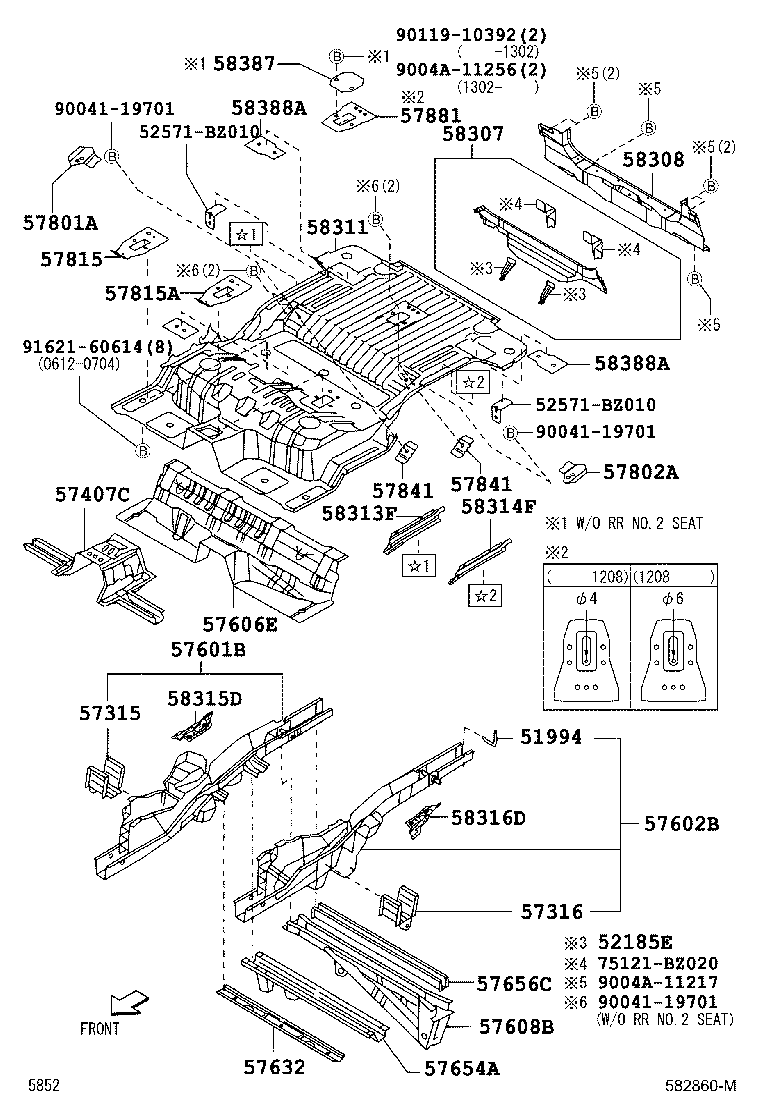

(0612-1312)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51994 - HANGER, EXHAUST PIPE, NO.4 | ||||
| 51994-BZ010 |
F700 |
1 | ||
| 51994-BZ010 |
F700 |
1 | ||
| 51994-BZ010 |
F700 |
1 | ||
| 52185E - BRACKET, REAR BUMPER SIDE MOUNTIN, RH | ||||
| 52185-BZ040 |
F700 |
2 | ||
| 52185-BZ040 |
F700 |
2 | ||
| 52185-BZ040 |
F700 |
2 | ||
| 57315 - OUTRIGGER, NO.3 RH | ||||
| 57315-BZ030 |
F700 |
1 | ||
| 57315-BZ110 |
F700 W/O SIDE STEP |
1 | ||
| 57315-BZ110 |
F700 |
1 | ||
| 57316 - OUTRIGGER, NO.3 LH | ||||
| 57316-BZ100 |
F700 W/O SIDE STEP |
1 | ||
| 57316-BZ030 |
F700 |
1 | ||
| 57316-BZ100 |
F700 |
1 | ||
| 57407C - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1 | ||||
| 57407-BZ040 |
F700 |
1 | ||
| 57407-BZ010 |
F700 |
1 | ||
| 57407-BZ040 |
F700 |
1 | ||
| 57407-BZ010 |
F700 |
1 | ||
| 57601B - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH | ||||
| 57601-BZ050 |
F700 |
1 | ||
| 57601-BZ052 |
F700 |
1 | ||
| 57601-BZ051 |
F700 |
1 | ||
| 57601-BZ052 |
F700 W/O SIDE STEP |
1 | ||
| 57602B - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH | ||||
| 57602-BZ061 |
F700 |
1 | ||
| 57602-BZ062 |
F700 |
1 | ||
| 57602-BZ062 |
F700 W/O SIDE STEP |
1 | ||
| 57602-BZ060 |
F700 |
1 | ||
| 57606E - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-BZ031 |
F700 |
1 | ||
| 57606-BZ031 |
F700 |
1 | ||
| 57606-BZ031 |
F700 |
1 | ||
| 57608B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4 | ||||
| 57608-BZ060 |
F700..G |
1 | ||
| 57608-BZ070 |
F700..S W/ABS |
1 | ||
| 57608-BZ060 |
F700..S ABS(ANTI-LOCK BRK SYSTM)-W/O ABS,L/ABS |
1 | ||
| 57608-BZ070 |
F700..S |
1 | ||
| 57608-BZ070 |
F700 |
1 | ||
| 57608-BZ060 |
F700..G L/ABS |
1 | ||
| 57632 - MEMBER, REAR FLOOR, CENTER NO.1 | ||||
| 57632-BZ010 |
F700 |
1 | ||
| 57632-BZ010 |
F700 |
1 | ||
| 57632-BZ010 |
F700 |
1 | ||
| 57654A - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57607-BZ010 |
F700 |
1 | ||
| 57607-BZ010 |
F700 |
1 | ||
| 57607-BZ010 |
F700 |
1 | ||
| 57656C - MEMBER, REAR FLOOR CROOS, NO.5 | ||||
| 57656-BZ010 |
F700 |
1 | ||
| 57656-BZ010 |
F700 |
1 | ||
| 57656-BZ010 |
F700 |
1 | ||
| 57801A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, RH | ||||
| 57787-BZ010 |
F700..IDN |
1 | ||
| 57787-BZ010 |
F700 |
1 | ||
| 57802A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, LH | ||||
| 57788-BZ010 |
F700 |
1 | ||
| 57788-BZ010 |
F700..IDN |
1 | ||
| 57815 - REINFORCEMENT, BELT ANCHOR, NO.1 | ||||
| 57815-BZ020 |
F700 |
1 | ||
| 57815-BZ020 |
F700 |
1 | ||
| 57815-BZ020 |
F700 |
1 | ||
| 57815A - REINFORCEMENT, BELT ANCHOR, RH | ||||
| 57807-BZ010 |
F700 |
1 | ||
| 57807-BZ010 |
F700 |
1 | ||
| 57807-BZ010 |
F700 |
1 | ||
| 57841 - REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT RH | ||||
| 57841-BZ010 |
F700 |
2 | ||
| 57841-BZ010 |
F700 |
2 | ||
| 57841-BZ030 |
F700 |
2 | ||
| 57841-BZ040 |
F700 |
2 | ||
| 57841 - REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT RH | ||||
| 57841-BZ010 |
F700 |
2 | ||
| 57841-BZ010 |
F700 |
2 | ||
| 57841-BZ030 |
F700 |
2 | ||
| 57841-BZ040 |
F700 |
2 | ||
| 57881 - REINFORCEMENT, BELT ANCHOR, NO.3 | ||||
| 57881-BZ010 |
F700 |
1 | ||
| 57881-BZ010 |
F700 |
1 | ||
| 57801-BZ011 |
F700 |
1 | ||
| 57881-BZ011 |
F700 |
1 | ||
| 57801-BZ011 |
F700 |
1 | ||
| 57801-BZ010 |
F700 |
1 | ||
| 57881-BZ012 |
F700 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-BZ050 |
F700 |
1 | ||
| 58307-BZ050 |
F700 |
1 | ||
| 58307-BZ050 |
F700 |
1 | ||
| 58308 - PANEL SUB-ASSY, BODY LOWER BACK, INNER | ||||
| 58308-BZ060 |
F700 |
1 | ||
| 58308-BZ060 |
F700 |
1 | ||
| 58308-BZ060 |
F700 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-BZ061 |
F700 |
1 | ||
| 58311-BZ060 |
F700 |
1 | ||
| 58311-BZ280 |
F700 |
1 | ||
| 58311-BZ280 |
F700 |
1 | ||
| 58311-BZ061 |
F700 |
1 | ||
| 58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH | ||||
| 58313-BZ010 |
F700 |
1 | ||
| 58313-BZ010 |
F700 |
1 | ||
| 58313-BZ010 |
F700 |
1 | ||
| 58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH | ||||
| 58314-BZ010 |
F700 |
1 | ||
| 58314-BZ010 |
F700 |
1 | ||
| 58314-BZ010 |
F700 |
1 | ||
| 58315D - EXTENSION, REAR FLOOR PAN, RH | ||||
| 58315-BZ020 |
F700..IDN |
1 | ||
| 58315-BZ020 |
F700 |
1 | ||
| 58316D - EXTENSION, REAR FLOOR PAN, LH | ||||
| 58316-BZ020 |
F700 |
1 | ||
| 58316-BZ020 |
F700..IDN |
1 | ||
| 58387 - PLATE, REAR FLOOR FINISH | ||||
| 58387-BZ010 |
F700..IDN |
1 | ||
| 58387-BZ010 |
F700..S..IDN |
1 | ||
| 58387-BZ010 |
F700..IDN |
1 | ||
| 58387-BZ010 |
F700..G..IDN |
1 | ||
| 58388A - BRACKET,REAR FLOOR PLATE | ||||
| 72611-BZ060 |
F700 ID MARK =T |
2 | ||
| 72611-BZ011 |
F700 |
2 | ||
| 72611-BZ011 |
F700 W/O ID MARK |
2 | ||
| 72611-BZ011 |
F700 |
2 | ||
| 58388A - BRACKET,REAR FLOOR PLATE | ||||
| 72611-BZ060 |
F700 ID MARK =T |
2 | ||
| 72611-BZ011 |
F700 |
2 | ||
| 72611-BZ011 |
F700 W/O ID MARK |
2 | ||
| 72611-BZ011 |
F700 |
2 | ||
| Common parts | ||||
| 52571-BZ010 | ||||
| 75121-BZ020 | ||||
| 90041-19701 | ||||
| 9004A-11217 | ||||
| 9004A-11256 | ||||
| 90119-10392 | ||||
| 91621-60614 | ||||

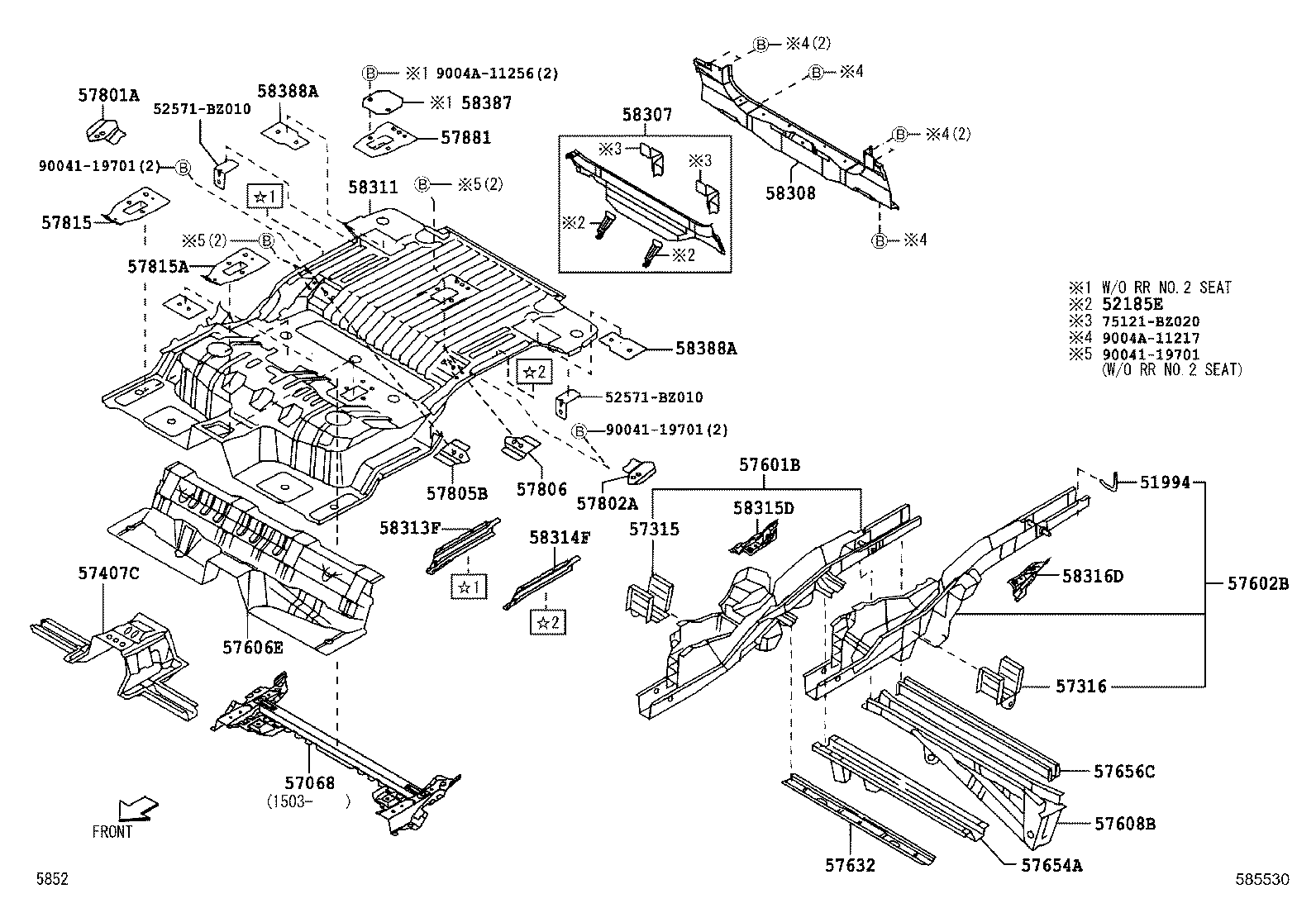

(1312- )IDN
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51994 - HANGER, EXHAUST PIPE, NO.4 | ||||
| 51994-BZ010 |
F700 |
1 | ||
| 51994-BZ010 |
F700 |
1 | ||
| 51994-BZ010 |
F700 |
1 | ||
| 52185E - BRACKET, REAR BUMPER SIDE MOUNTIN, RH | ||||
| 52185-BZ040 |
F700 |
2 | ||
| 52185-BZ040 |
F700 |
2 | ||
| 52185-BZ040 |
F700 |
2 | ||
| 57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER | ||||
| 57068-BZ090 |
F700 |
1 | ||
| 57315 - OUTRIGGER, NO.3 RH | ||||
| 57315-BZ030 |
F700 |
1 | ||
| 57315-BZ110 |
F700 W/O SIDE STEP |
1 | ||
| 57315-BZ110 |
F700 |
1 | ||
| 57316 - OUTRIGGER, NO.3 LH | ||||
| 57316-BZ100 |
F700 W/O SIDE STEP |
1 | ||
| 57316-BZ030 |
F700 |
1 | ||
| 57316-BZ100 |
F700 |
1 | ||
| 57407C - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1 | ||||
| 57407-BZ040 |
F700 |
1 | ||
| 57407-BZ010 |
F700 |
1 | ||
| 57407-BZ040 |
F700 |
1 | ||
| 57407-BZ010 |
F700 |
1 | ||
| 57601B - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH | ||||
| 57601-BZ050 |
F700 |
1 | ||
| 57601-BZ052 |
F700 |
1 | ||
| 57601-BZ051 |
F700 |
1 | ||
| 57601-BZ052 |
F700 W/O SIDE STEP |
1 | ||
| 57602B - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH | ||||
| 57602-BZ061 |
F700 |
1 | ||
| 57602-BZ062 |
F700 |
1 | ||
| 57602-BZ062 |
F700 W/O SIDE STEP |
1 | ||
| 57602-BZ060 |
F700 |
1 | ||
| 57606E - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-BZ031 |
F700 |
1 | ||
| 57606-BZ031 |
F700 |
1 | ||
| 57606-BZ031 |
F700 |
1 | ||
| 57608B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4 | ||||
| 57608-BZ060 |
F700..G |
1 | ||
| 57608-BZ070 |
F700..S W/ABS |
1 | ||
| 57608-BZ060 |
F700..S ABS(ANTI-LOCK BRK SYSTM)-W/O ABS,L/ABS |
1 | ||
| 57608-BZ070 |
F700..S |
1 | ||
| 57608-BZ070 |
F700 |
1 | ||
| 57608-BZ060 |
F700..G L/ABS |
1 | ||
| 57632 - MEMBER, REAR FLOOR, CENTER NO.1 | ||||
| 57632-BZ010 |
F700 |
1 | ||
| 57632-BZ010 |
F700 |
1 | ||
| 57632-BZ010 |
F700 |
1 | ||
| 57654A - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57607-BZ010 |
F700 |
1 | ||
| 57607-BZ010 |
F700 |
1 | ||
| 57607-BZ010 |
F700 |
1 | ||
| 57656C - MEMBER, REAR FLOOR CROOS, NO.5 | ||||
| 57656-BZ010 |
F700 |
1 | ||
| 57656-BZ010 |
F700 |
1 | ||
| 57656-BZ010 |
F700 |
1 | ||
| 57801A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, RH | ||||
| 57787-BZ010 |
F700..IDN |
1 | ||
| 57787-BZ010 |
F700 |
1 | ||
| 57802A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, LH | ||||
| 57788-BZ010 |
F700 |
1 | ||
| 57788-BZ010 |
F700..IDN |
1 | ||
| 57805B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH | ||||
| 57805-BZ070 |
F700 |
1 | ||
| 57805-BZ070 |
F700 |
1 | ||
| 57806 - REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH | ||||
| 57806-BZ050 |
F700 |
1 | ||
| 57806-BZ050 |
F700 |
1 | ||
| 57815 - REINFORCEMENT, BELT ANCHOR, NO.1 | ||||
| 57815-BZ020 |
F700 |
1 | ||
| 57815-BZ020 |
F700 |
1 | ||
| 57815-BZ020 |
F700 |
1 | ||
| 57815A - REINFORCEMENT, BELT ANCHOR, RH | ||||
| 57807-BZ010 |
F700 |
1 | ||
| 57807-BZ010 |
F700 |
1 | ||
| 57807-BZ010 |
F700 |
1 | ||
| 57881 - REINFORCEMENT, BELT ANCHOR, NO.3 | ||||
| 57881-BZ010 |
F700 |
1 | ||
| 57881-BZ010 |
F700 |
1 | ||
| 57801-BZ011 |
F700 |
1 | ||
| 57881-BZ011 |
F700 |
1 | ||
| 57801-BZ011 |
F700 |
1 | ||
| 57801-BZ010 |
F700 |
1 | ||
| 57881-BZ012 |
F700 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-BZ050 |
F700 |
1 | ||
| 58307-BZ050 |
F700 |
1 | ||
| 58307-BZ050 |
F700 |
1 | ||
| 58308 - PANEL SUB-ASSY, BODY LOWER BACK, INNER | ||||
| 58308-BZ060 |
F700 |
1 | ||
| 58308-BZ060 |
F700 |
1 | ||
| 58308-BZ060 |
F700 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-BZ061 |
F700 |
1 | ||
| 58311-BZ060 |
F700 |
1 | ||
| 58311-BZ280 |
F700 |
1 | ||
| 58311-BZ280 |
F700 |
1 | ||
| 58311-BZ061 |
F700 |
1 | ||
| 58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH | ||||
| 58313-BZ010 |
F700 |
1 | ||
| 58313-BZ010 |
F700 |
1 | ||
| 58313-BZ010 |
F700 |
1 | ||
| 58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH | ||||
| 58314-BZ010 |
F700 |
1 | ||
| 58314-BZ010 |
F700 |
1 | ||
| 58314-BZ010 |
F700 |
1 | ||
| 58315D - EXTENSION, REAR FLOOR PAN, RH | ||||
| 58315-BZ020 |
F700..IDN |
1 | ||
| 58315-BZ020 |
F700 |
1 | ||
| 58316D - EXTENSION, REAR FLOOR PAN, LH | ||||
| 58316-BZ020 |
F700 |
1 | ||
| 58316-BZ020 |
F700..IDN |
1 | ||
| 58387 - PLATE, REAR FLOOR FINISH | ||||
| 58387-BZ010 |
F700..IDN |
1 | ||
| 58387-BZ010 |
F700..S..IDN |
1 | ||
| 58387-BZ010 |
F700..IDN |
1 | ||
| 58387-BZ010 |
F700..G..IDN |
1 | ||
| 58388A - BRACKET,REAR FLOOR PLATE | ||||
| 72611-BZ060 |
F700 ID MARK =T |
2 | ||
| 72611-BZ011 |
F700 |
2 | ||
| 72611-BZ011 |
F700 W/O ID MARK |
2 | ||
| 72611-BZ011 |
F700 |
2 | ||
| 58388A - BRACKET,REAR FLOOR PLATE | ||||
| 72611-BZ060 |
F700 ID MARK =T |
2 | ||
| 72611-BZ011 |
F700 |
2 | ||
| 72611-BZ011 |
F700 W/O ID MARK |
2 | ||
| 72611-BZ011 |
F700 |
2 | ||
| Common parts | ||||
| 52571-BZ010 | ||||
| 75121-BZ020 | ||||
| 90041-19701 | ||||
| 9004A-11217 | ||||
| 9004A-11256 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
