F700RE-GMDFJ (2006)
Toyota Rush
Production
Dec 2006
-
Nov 2017
Engine
3SZVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0612-1503)

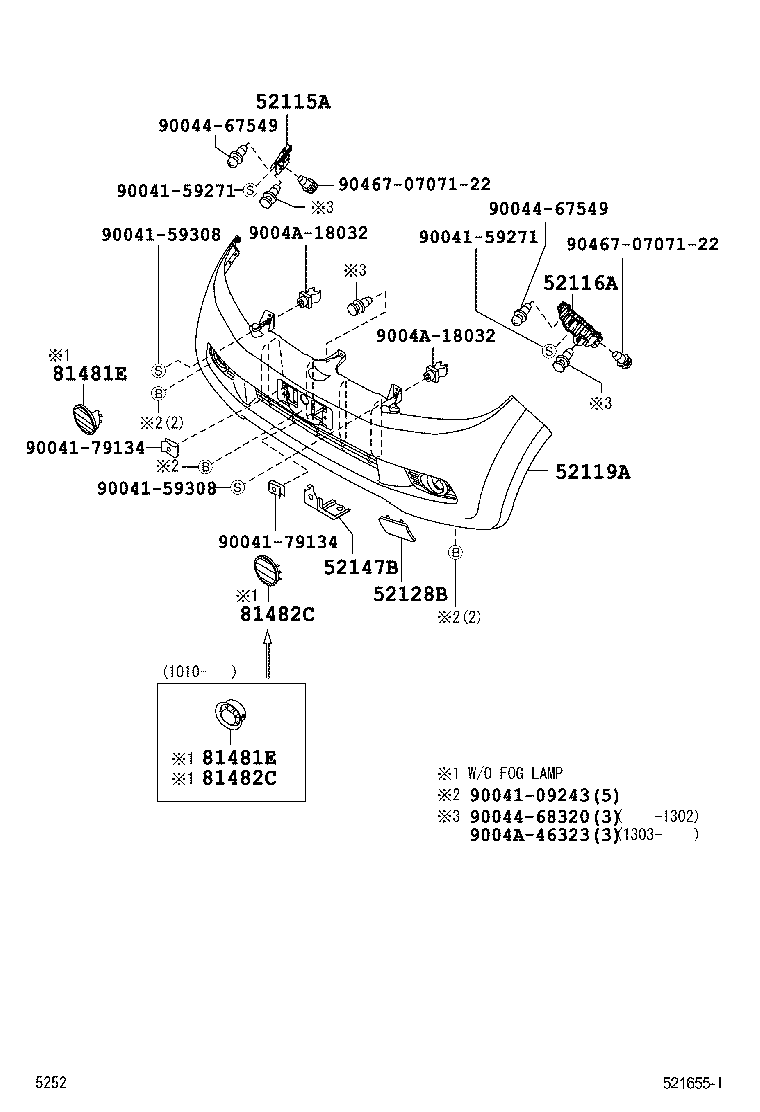

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-BZ050 |
F700 |
1 | ||
| 52115-BZ050 |
F700 |
1 | ||
| 52115-BZ050 |
F700 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-BZ050 |
F700 |
1 | ||
| 52116-BZ050 |
F700 |
1 | ||
| 52116-BZ050 |
F700 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-BZ110 |
F700 |
1 | ||
| 52119-BZ710 |
F700..IDN |
1 | ||
| 52119-BZG70 |
F700..S;F700..G..IDN |
1 | ||
| 52119-BZ860 |
F700..IDN |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-BZ170 |
F700 |
1 | ||
| 52128-BZ060 |
F700 |
1 | ||
| 52128-BZ070 |
F700 |
1 | ||
| 52147B - BRACKET, FRONT BUMPER MOUNTING | ||||
| 52147-BZ060 |
F700 |
1 | ||
| 52147-BZ060 |
F700 |
1 | ||
| 52147-BZ060 |
F700 |
1 | ||
| Common parts | ||||
| 90041-09243 | ||||
| 90041-59271 | ||||
| 90041-59308 | ||||
| 90041-79134 | ||||
| 90044-67549 | ||||
| 90044-68320 | ||||
| 9004A-18032 | ||||
| 9004A-46323 | ||||
| 90467-0707122 | ||||
(1503- )

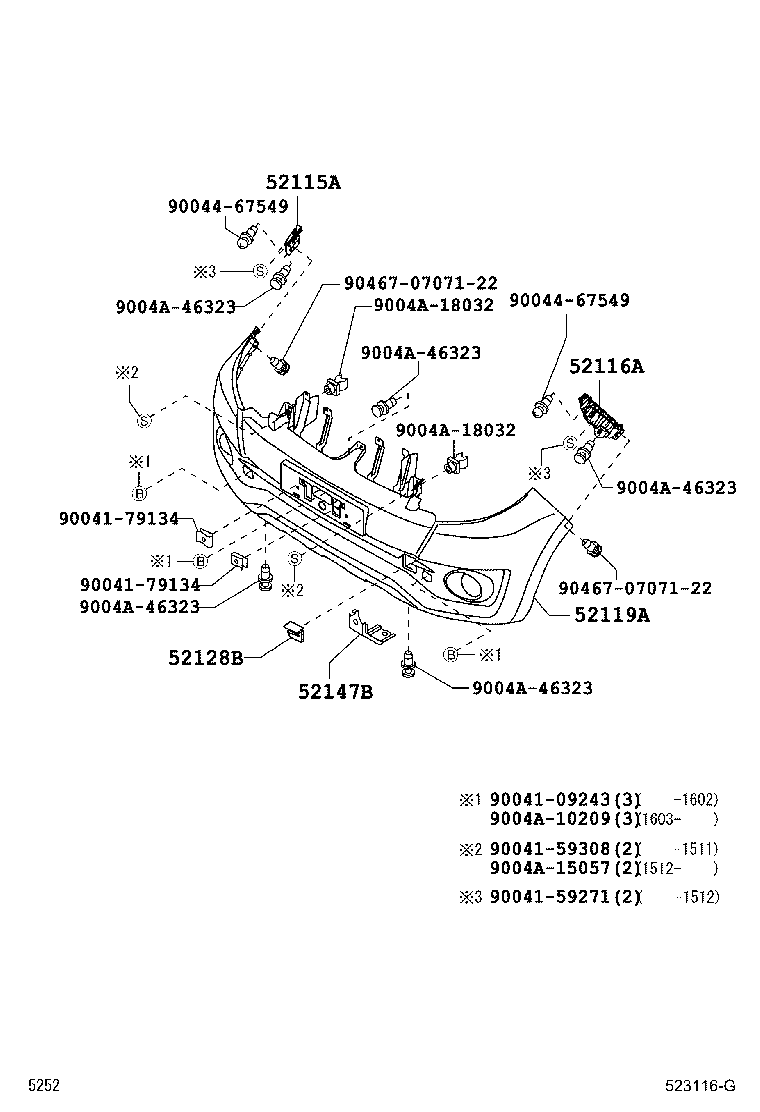

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-BZ050 |
F700 |
1 | ||
| 52115-BZ050 |
F700 |
1 | ||
| 52115-BZ050 |
F700 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-BZ050 |
F700 |
1 | ||
| 52116-BZ050 |
F700 |
1 | ||
| 52116-BZ050 |
F700 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-BZ110 |
F700 |
1 | ||
| 52119-BZ710 |
F700..IDN |
1 | ||
| 52119-BZG70 |
F700..S;F700..G..IDN |
1 | ||
| 52119-BZ860 |
F700..IDN |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-BZ170 |
F700 |
1 | ||
| 52128-BZ060 |
F700 |
1 | ||
| 52128-BZ070 |
F700 |
1 | ||
| 52147B - BRACKET, FRONT BUMPER MOUNTING | ||||
| 52147-BZ060 |
F700 |
1 | ||
| 52147-BZ060 |
F700 |
1 | ||
| 52147-BZ060 |
F700 |
1 | ||
| Common parts | ||||
| 90041-09243 | ||||
| 90041-59271 | ||||
| 90041-59308 | ||||
| 90041-79134 | ||||
| 90044-67549 | ||||
| 9004A-10209 | ||||
| 9004A-15057 | ||||
| 9004A-18032 | ||||
| 9004A-46323 | ||||
| 90467-0707122 | ||||
