Toyota Rush F700 FRONT SPRING & SHOCK ABSORBER

Manufacturers Home
Toyota
GR
RUSH
F700RE-GMDFJ (2006)
4803 - FRONT SPRING & SHOCK ABSORBER

F700RE-GMDFJ (2006)

Toyota Rush

Production Dec 2006 - Nov 2017

Engine 3SZVE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

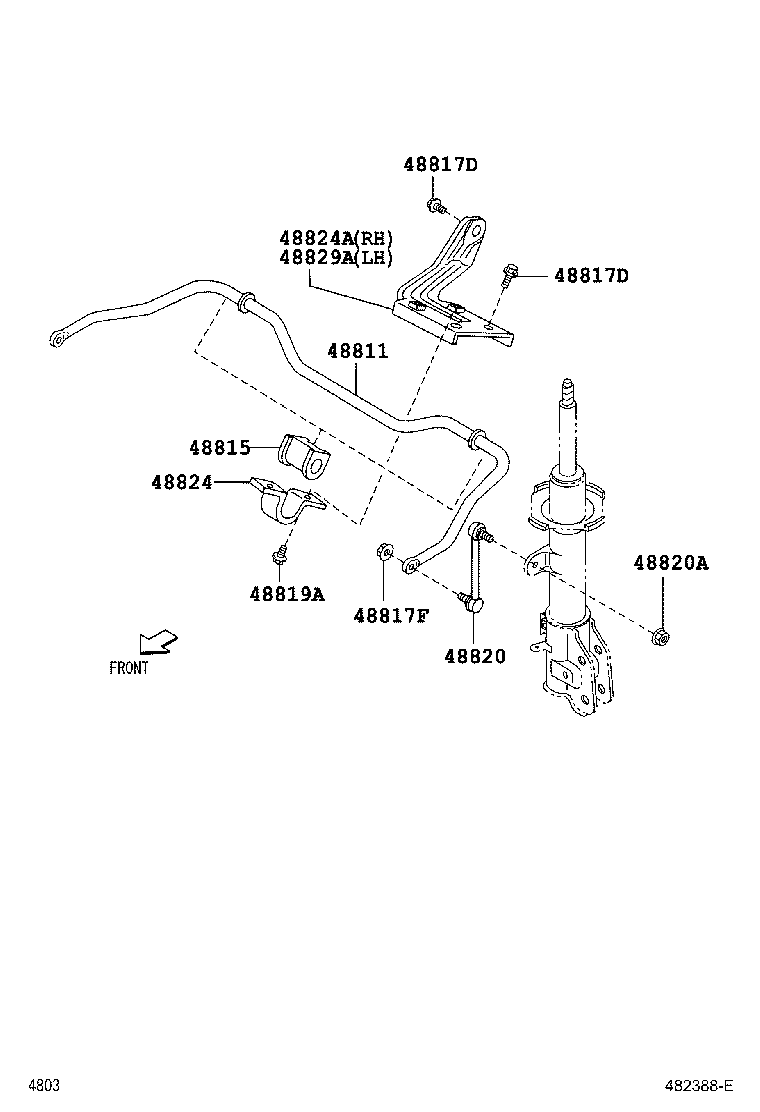

(0612- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
48811 - BAR, STABILIZER, FRONT
48811-BZ120	F700	03/2015 - 12/2999	1
48811-BZ120	F700..IDN	10/2010 - 03/2015	1
48811-BZ050	F700	12/2006 - 09/2010	1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-BZ010	F700	12/2006 - 09/2010	2
48815-BZ110	F700..IDN	10/2010 - 03/2015	2
48815-BZ110	F700	03/2015 - 12/2999	2
48817D - BOLT(FOR FRONT STABILIZER)
90041-20093	F700	10/2010 - 12/2010	6
90041-20093	F700	12/2006 - 09/2010	6
90041-20261	F700	03/2015 - 12/2015	6
90041-20261	F700	01/2011 - 03/2015	6
48817D - BOLT(FOR FRONT STABILIZER)
90041-20093	F700	10/2010 - 12/2010	6
90041-20093	F700	12/2006 - 09/2010	6
90041-20261	F700	03/2015 - 12/2015	6
90041-20261	F700	01/2011 - 03/2015	6
48817F - NUT(FOR FRONT STABILIZER BAR)
90041-70260	F700	10/2010 - 03/2015	2
9004A-17249	F700	10/2015 - 09/2017	2
90041-70260	F700	03/2015 - 09/2015	2
90041-70260	F700	12/2006 - 09/2010	2
9004A-17255	F700 M12	09/2017 - 12/2999	2
48819A - BOLT, FRONT STABILIZER
91671-80825	F700	01/2011 - 03/2015	4
91671-80825	F700	03/2015 - 04/2016	4
90041-20093	F700	10/2010 - 12/2010	4
90041-20093	F700	12/2006 - 09/2010	4
48820 - LINK ASSY, FRONT STABILIZER
48820-B0020	F700	12/2006 - 09/2010	2
48820-BZ070	F700	12/2015 - 12/2999	2
48820-B0020	F700	10/2010 - 03/2015	2
48820-B0020	F700	03/2015 - 11/2015	2
48820A - NUT(FOR FRONT STABILIZER LINK)
90041-70260	F700	10/2010 - 03/2015	2
90041-70260	F700	12/2006 - 09/2010	2
90041-70260	F700	03/2015 - 09/2015	2
9004A-17249	F700	10/2015 - 09/2017	2
9004A-17255	F700 M12	09/2017 - 12/2999	2
48824 - BRACKET, STABILIZER, FRONT
48824-BZ010	F700	12/2006 - 09/2010	2
48824-BZ010	F700	03/2015 - 12/2999	2
48824-BZ010	F700	10/2010 - 03/2015	2
48824A - BRACKET, FRONT STABILIZER, NO.1 RH
48809-BZ010	F700	12/2006 - 09/2010	1
48809-BZ010	F700	10/2010 - 03/2015	1
48809-BZ010	F700	03/2015 - 12/2999	1
48829A - BRACKET, FRONT STABILIZER, NO.1 LH
48807-BZ010	F700	12/2006 - 09/2010	1
48807-BZ010	F700	03/2015 - 12/2999	1
48807-BZ010	F700	10/2010 - 03/2015	1

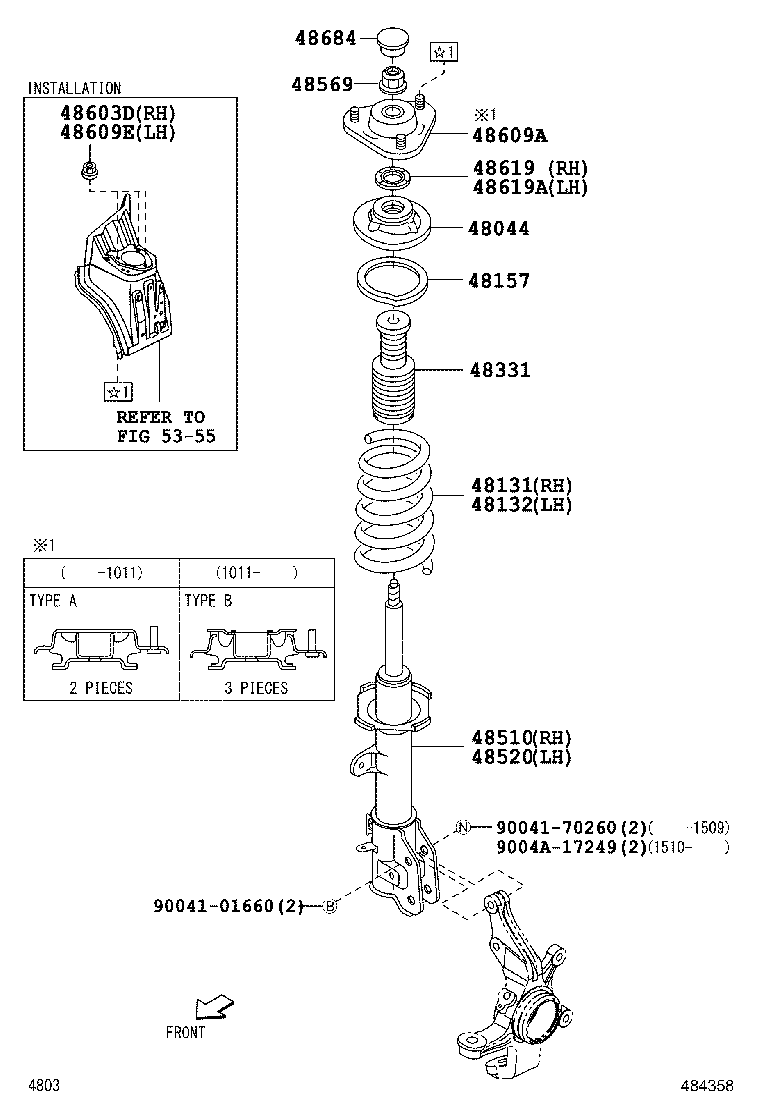

(0612- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
48044 - SEAT SUB-ASSY, FRONT SPRING, NO.1
48044-BZ050	F700	03/2015 - 12/2999	2
48044-BZ050	F700	12/2006 - 09/2010	2
48044-BZ050	F700	10/2010 - 03/2015	2
48131 - SPRING, FRONT COIL, RH
48131-BZ210	F700..IDN	12/2006 - 09/2010	1
48131-BZ800	F700	03/2015 - 12/2999	1
48131-BZ880	F700..S..IDN TRD RUSH SPECAL EDITION	02/2016 - 12/2999	1
48131-BZ500	F700..IDN TIRE SIZE = 235	10/2010 - 03/2015	1
48132 - SPRING, FRONT COIL, LH
48131-BZ210	F700..IDN	12/2006 - 09/2010	1
48131-BZ500	F700..IDN TIRE SIZE = 235	10/2010 - 03/2015	1
48131-BZ880	F700..S..IDN TRD RUSH SPECAL EDITION	02/2016 - 12/2999	1
48131-BZ800	F700	03/2015 - 12/2999	1
48157 - INSULATOR, FRONT COIL SPRING, UPPER
48157-BZ010	F700	03/2015 - 12/2999	2
48157-BZ010	F700	12/2006 - 09/2010	2
48157-BZ010	F700	10/2010 - 03/2015	2
48331 - BUMPER, FRONT SPRING, NO.1
48331-BZ060	F700	12/2006 - 09/2010	2
48331-BZ060	F700	10/2010 - 03/2015	2
48331-BZ060	F700	03/2015 - 12/2999	2
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-BZ300	F700..S..IDN MARK 48510-BZ300	12/2006 - 09/2010	1
48510-BZ630	F700..S..IDN MARK 48510-BZ630,ABS(ANTI-LOCK BRK SYSTM)-W/O ABS	06/2011 - 03/2015	1
48510-BZ630	F700..G..IDN MARK 48510-BZ630	10/2010 - 03/2015	1
48510-BZ650	F700..S..IDN MARK 48510-BZ650	10/2010 - 03/2015	1
48510-BZC10	F700 MARK 48510-BZC10	03/2015 - 12/2999	1
48510-BZ450	F700..G..IDN MARK 48510-BZ450	12/2006 - 09/2010	1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48520-BZ700	F700 MARK 48520-BZ700	03/2015 - 12/2999	1
48520-BZ280	F700..S..IDN MARK 48520-BZ280	12/2006 - 09/2010	1
48520-BZ540	F700..S..IDN MARK 48520-BZ540	10/2010 - 03/2015	1
48520-BZ880	F700..S..IDN MARK 48520-BZ880,TRD RUSH SPECAL EDITION	02/2016 - 12/2999	1
48520-BZ530	F700..S..IDN MARK 48520-BZ530,ABS(ANTI-LOCK BRK SYSTM)-W/O ABS	06/2011 - 03/2015	1
48510-BZD20	F700..S..IDN MARK 48510-BZD20,TRD RUSH SPECAL EDITION	02/2016 - 12/2999	1
48520-BZ450	F700..G..IDN MARK 48520-BZ450	12/2006 - 09/2010	1
48520-BZ530	F700..G..IDN MARK 48520-BZ530	10/2010 - 03/2015	1
48569 - NUT, SHOCK ABSORBER PISTON
90041-77012	F700	12/2006 - 06/2008	2
90041-77017	F700	07/2008 - 09/2010	2
90041-77017	F700	03/2015 - 12/2999	2
90041-77017	F700	10/2010 - 03/2015	2
48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
90041-79303	F700	12/2006 - 09/2010	3
9004A-17256	F700	10/2015 - 12/2999	3
90041-79303	F700	10/2010 - 03/2015	3
90041-79303	F700	03/2015 - 09/2015	3
48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION
48609-BZ011	F700 TYPE B	03/2015 - 12/2999	2
48609-BZ010	F700	12/2006 - 09/2010	2
48609-BZ010	F700 TYPE A	10/2010 - 11/2010	2
48609-BZ011	F700 TYPE B	11/2010 - 03/2015	2
48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
9004A-17256	F700	10/2015 - 12/2999	3
90041-79303	F700	12/2006 - 09/2010	3
90041-79303	F700	10/2010 - 03/2015	3
90041-79303	F700	03/2015 - 09/2015	3
48619 - BEARING, STRUT MOUNTING, RH
90043-85174	F700 RH	10/2010 - 03/2015	1
90043-85174	F700 RH	12/2006 - 09/2010	1
90043-85174	F700 RH	03/2015 - 12/2999	1
48619A - BEARING, STRUT MOUNTING, LH
90043-85174	F700 LH	12/2006 - 09/2010	1
90043-85174	F700 LH	10/2010 - 03/2015	1
90043-85174	F700 LH	03/2015 - 12/2999	1
48684 - COVER, BEARING DUST
48684-BZ010	F700	03/2015 - 12/2999	2
48684-BZ010	F700	10/2010 - 03/2015	2
48684-BZ010	F700	12/2006 - 09/2010	2
Common parts
90041-01660
90041-70260
9004A-17249
