F700RE-GMDFJ (2006)
Toyota Rush
Production
Dec 2006
-
Nov 2017
Engine
3SZVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

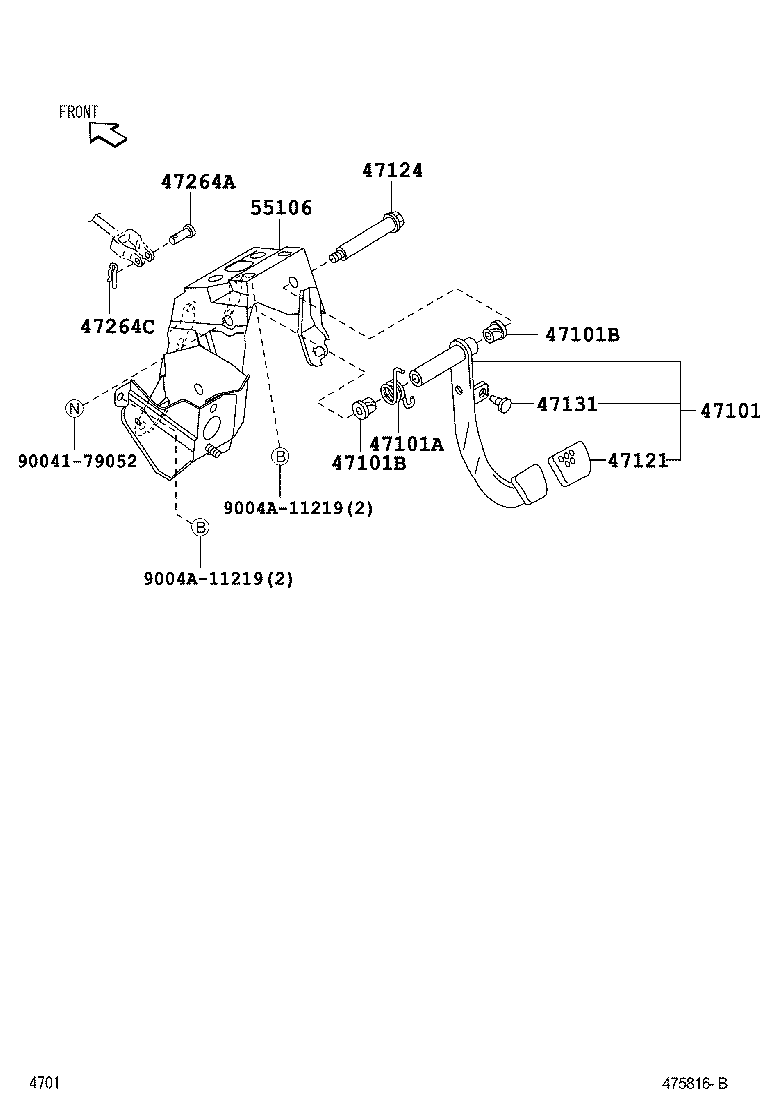

(0612-1010)5F..IDN ; (0612-1503)5F..MA
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101 - PEDAL SUB-ASSY, BRAKE | ||||
| 47110-BZ400 |
F700..5F |
1 | ||
| 47110-BZ011 |
F700..5F |
1 | ||
| 47110-BZ011 |
F700..5F |
1 | ||
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 9004A-50038 |
F700..5F |
1 | ||
| 9004A-50038 |
F700..5F |
1 | ||
| 47146-BZ060 |
F700 |
1 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 9004A-38021 |
F700 |
2 | ||
| 9004A-38021 |
F700 |
2 | ||
| 9004A-38021 |
F700 |
2 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 9004A-38021 |
F700 |
2 | ||
| 9004A-38021 |
F700 |
2 | ||
| 9004A-38021 |
F700 |
2 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 31321-BZ010 |
F700..5F |
1 | ||
| 31321-BZ010 |
F700..5F |
1 | ||
| 31321-BZ010 |
F700..5F |
1 | ||
| 47124 - SHAFT, BRAKE PEDAL | ||||
| 47124-B0010 |
F700 |
1 | ||
| 47124-B0010 |
F700 |
1 | ||
| 47124-BZ030 |
F700 |
1 | ||
| 47131 - CUSHION(FOR STOP LAMP SWITCH) | ||||
| 9004A-54003 |
F700 |
1 | ||
| 9004A-54003 |
F700 |
1 | ||
| 9004A-54003 |
F700 |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90042-40151 |
F700 |
1 | ||
| 90042-40075 |
F700 |
1 | ||
| 90042-40075 |
F700 |
1 | ||
| 90042-40151 |
F700 |
1 | ||
| 47264C - CLIP(FOR PUSH ROD CLEVIS PIN) | ||||
| 90044-68337 |
F700 |
1 | ||
| 90044-68076 |
F700 |
1 | ||
| 90044-68337 |
F700 |
1 | ||
| 90044-68076 |
F700 |
1 | ||
| 55106 - SUPPORT SUB-ASSY, BRAKE PEDAL | ||||
| 55106-BZ161 |
F700..5F..IDN |
1 | ||
| 55106-BZ070 |
F700..5F |
1 | ||
| 55106-BZ370 |
F700 |
1 | ||
| Common parts | ||||
| 90041-79052 | ||||
| 9004A-11219 | ||||
(1010-1503)5F..IDN
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101 - PEDAL SUB-ASSY, BRAKE | ||||
| 47110-BZ400 |
F700..5F |
1 | ||
| 47110-BZ011 |
F700..5F |
1 | ||
| 47110-BZ011 |
F700..5F |
1 | ||
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 9004A-50038 |
F700..5F |
1 | ||
| 9004A-50038 |
F700..5F |
1 | ||
| 47146-BZ060 |
F700 |
1 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 9004A-38021 |
F700 |
2 | ||
| 9004A-38021 |
F700 |
2 | ||
| 9004A-38021 |
F700 |
2 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 9004A-38021 |
F700 |
2 | ||
| 9004A-38021 |
F700 |
2 | ||
| 9004A-38021 |
F700 |
2 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 31321-BZ010 |
F700..5F |
1 | ||
| 31321-BZ010 |
F700..5F |
1 | ||
| 31321-BZ010 |
F700..5F |
1 | ||
| 47124 - SHAFT, BRAKE PEDAL | ||||
| 47124-B0010 |
F700 |
1 | ||
| 47124-B0010 |
F700 |
1 | ||
| 47124-BZ030 |
F700 |
1 | ||
| 47131 - CUSHION(FOR STOP LAMP SWITCH) | ||||
| 9004A-54003 |
F700 |
1 | ||
| 9004A-54003 |
F700 |
1 | ||
| 9004A-54003 |
F700 |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90042-40151 |
F700 |
1 | ||
| 90042-40075 |
F700 |
1 | ||
| 90042-40075 |
F700 |
1 | ||
| 90042-40151 |
F700 |
1 | ||
| 47264C - CLIP(FOR PUSH ROD CLEVIS PIN) | ||||
| 90044-68337 |
F700 |
1 | ||
| 90044-68076 |
F700 |
1 | ||
| 90044-68337 |
F700 |
1 | ||
| 90044-68076 |
F700 |
1 | ||
| 55106 - SUPPORT SUB-ASSY, BRAKE PEDAL | ||||
| 55106-BZ161 |
F700..5F..IDN |
1 | ||
| 55106-BZ070 |
F700..5F |
1 | ||
| 55106-BZ370 |
F700 |
1 | ||
| Common parts | ||||
| 90041-79052 | ||||
| 9004A-11219 | ||||

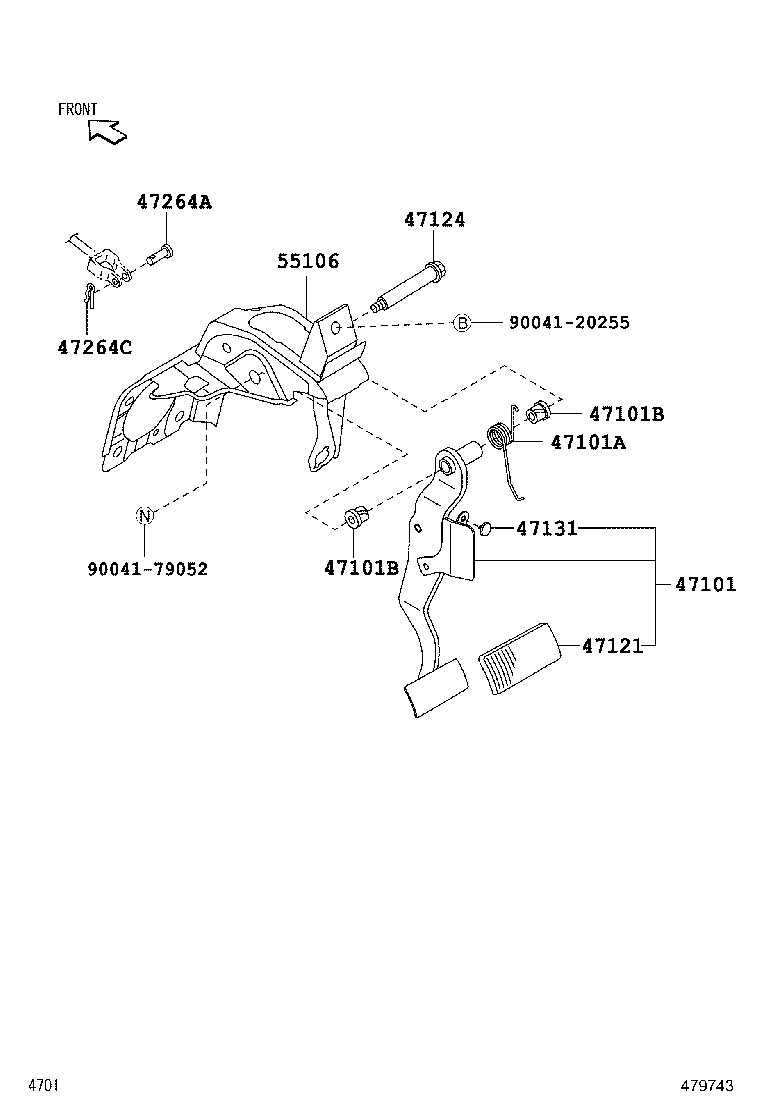

(1503- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101 - PEDAL SUB-ASSY, BRAKE | ||||
| 47110-BZ011 |
F700..5F |
1 | ||
| 47110-BZ400 |
F700..5F |
1 | ||
| 47110-BZ011 |
F700..5F |
1 | ||
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 9004A-50038 |
F700..5F |
1 | ||
| 9004A-50038 |
F700..5F |
1 | ||
| 47146-BZ060 |
F700 |
1 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 9004A-38021 |
F700 |
2 | ||
| 9004A-38021 |
F700 |
2 | ||
| 9004A-38021 |
F700 |
2 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 9004A-38021 |
F700 |
2 | ||
| 9004A-38021 |
F700 |
2 | ||
| 9004A-38021 |
F700 |
2 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 31321-BZ010 |
F700..5F |
1 | ||
| 31321-BZ010 |
F700..5F |
1 | ||
| 31321-BZ010 |
F700..5F |
1 | ||
| 47124 - SHAFT, BRAKE PEDAL | ||||
| 47124-B0010 |
F700 |
1 | ||
| 47124-B0010 |
F700 |
1 | ||
| 47124-BZ030 |
F700 |
1 | ||
| 47131 - CUSHION(FOR STOP LAMP SWITCH) | ||||
| 9004A-54003 |
F700 |
1 | ||
| 9004A-54003 |
F700 |
1 | ||
| 9004A-54003 |
F700 |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90042-40151 |
F700 |
1 | ||
| 90042-40075 |
F700 |
1 | ||
| 90042-40075 |
F700 |
1 | ||
| 90042-40151 |
F700 |
1 | ||
| 47264C - CLIP(FOR PUSH ROD CLEVIS PIN) | ||||
| 90044-68337 |
F700 |
1 | ||
| 90044-68076 |
F700 |
1 | ||
| 90044-68337 |
F700 |
1 | ||
| 90044-68076 |
F700 |
1 | ||
| 55106 - SUPPORT SUB-ASSY, BRAKE PEDAL | ||||
| 55106-BZ161 |
F700..5F..IDN |
1 | ||
| 55106-BZ070 |
F700..5F |
1 | ||
| 55106-BZ370 |
F700 |
1 | ||
| Common parts | ||||
| 90041-20255 | ||||
| 90041-79052 | ||||
