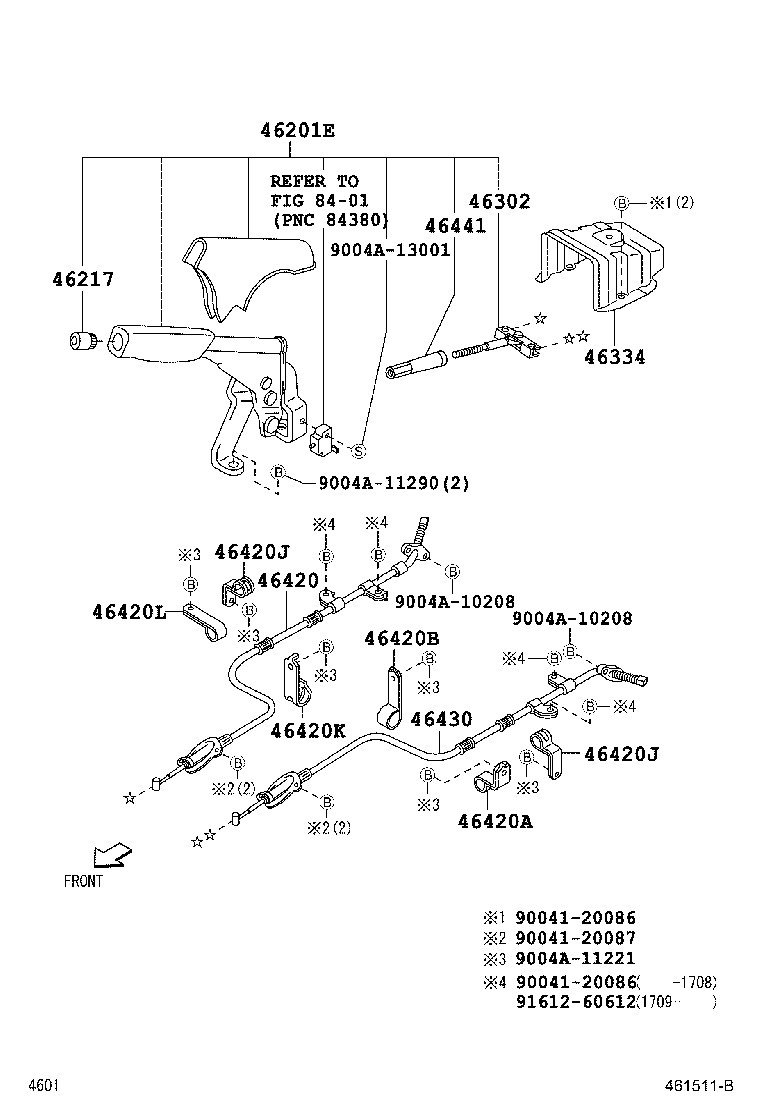

Toyota Rush F700 PARKING BRAKE & CABLE

Part #	Description	Period	Qty
46201E - LEVER SUB-ASSY, PARKING BRAKE
46210-BZ020C0	F700 BLACK,TRIM1#	03/2015 - 12/2999	1
46210-BZ020B0	F700 DK.GRAY,TRIM1#	10/2010 - 07/2013	1
46210-BZ020E0	F700 SANDAL WOOD,TRIM4#	12/2006 - 09/2010	1
46210-BZ020C0	F700 BLACK,TRIM1#	07/2013 - 03/2015	1
46210-BZ020E1	F700 ASH BROWN,TRIM4#	10/2010 - 03/2015	1
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-BZ010	F700	07/2013 - 03/2015	1
46217-BZ010B0	F700..S;F700..5F..G..IDN DK.GRAY	12/2006 - 09/2010	1
46217-BZ010E0	F700 SANDAL WOOD	12/2006 - 09/2010	1
46217-BZ010	F700	03/2015 - 12/2999	1
46302 - ROD SUB-ASSY, PARKING BRAKE PULL, NO.1
46302-87Z03	F700	12/2006 - 09/2010	1
46302-87Z03	F700	10/2010 - 03/2015	1
46302-87Z03	F700	03/2015 - 12/2999	1
46334 - PROTECTOR, INTERMEDIATE LEVER
46334-BZ010	F700	10/2010 - 03/2015	1
46334-BZ010	F700	12/2006 - 09/2010	1
46334-BZ010	F700	03/2015 - 12/2999	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-BZ051	F700	12/2006 - 10/2009	1
46420-BZ120	F700	10/2010 - 03/2015	1
46420-BZ120	F700	03/2015 - 12/2999	1
46420-BZ052	F700	11/2009 - 09/2010	1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
9004A-46126	F700	03/2015 - 12/2999	1
9004A-46126	F700	12/2006 - 09/2010	1
9004A-46126	F700	10/2010 - 03/2015	1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
9004A-46133	F700	10/2010 - 03/2015	1
9004A-46133	F700	12/2006 - 09/2010	1
9004A-46133	F700	03/2015 - 12/2999	1
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
9004A-46134	F700	12/2006 - 09/2010	2
9004A-46134	F700	10/2010 - 03/2015	2
9004A-46134	F700	03/2015 - 12/2999	2
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
9004A-46134	F700	12/2006 - 09/2010	2
9004A-46134	F700	10/2010 - 03/2015	2
9004A-46134	F700	03/2015 - 12/2999	2
46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE)
46467-BZ010	F700	03/2015 - 12/2999	1
46467-BZ010	F700	12/2006 - 09/2010	1
46467-BZ010	F700	10/2010 - 03/2015	1
46420L - CLAMP, NO.5(FOR PARKING BRAKE CABLE)
9004A-46133	F700	12/2006 - 09/2010	1
9004A-46316	F700	04/2013 - 03/2015	1
9004A-46133	F700	10/2010 - 04/2013	1
9004A-46316	F700	03/2015 - 12/2999	1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-BZ110	F700	10/2010 - 04/2013	1
46430-BZ111	F700	04/2013 - 03/2015	1
46430-BZ111	F700	03/2015 - 12/2999	1
46430-BZ032	F700 TYPE A	11/2009 - 09/2010	1
46430-BZ031	F700 TYPE A	12/2006 - 10/2009	1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-87Z04	F700	03/2015 - 12/2999	1
46441-87Z04	F700	12/2006 - 09/2010	1
46441-87Z04	F700	10/2010 - 03/2015	1
Common parts
90041-20086
90041-20087
9004A-10208
9004A-11221
9004A-11290
9004A-13001
91612-60612
Linked diagrams
8401

F700RE-GMDFJ (2006)

(0612- )
