F700RE-GMDFJ (2006)
Toyota Rush
Production
Dec 2006
-
Nov 2017
Engine
3SZVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0612- )

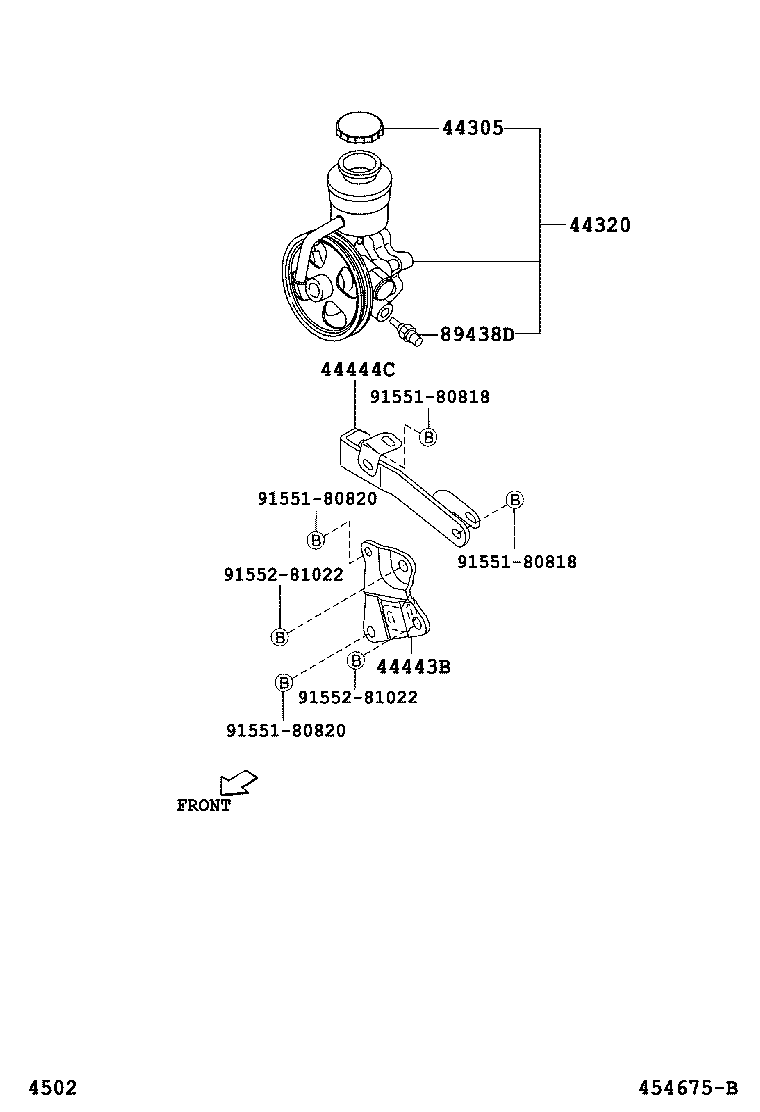

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-BZ010 |
F700 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44310-BZ120 |
F700 |
1 | ||
| 44443B - BRACKET, VANE PUMP | ||||
| 44443-BZ050 |
F700 |
1 | ||
| 44444C - STAY, VANE PUMP, REAR | ||||
| 44444-BZ030 |
F700 |
1 | ||
| 89438D - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89438-BZ010 |
F700 |
1 | ||
| Common parts | ||||
| 91551-80818 | ||||
| 91551-80820 | ||||
| 91552-81022 | ||||
