F700RE-GMDFJ (2006)
Toyota Rush
(0612-1404)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

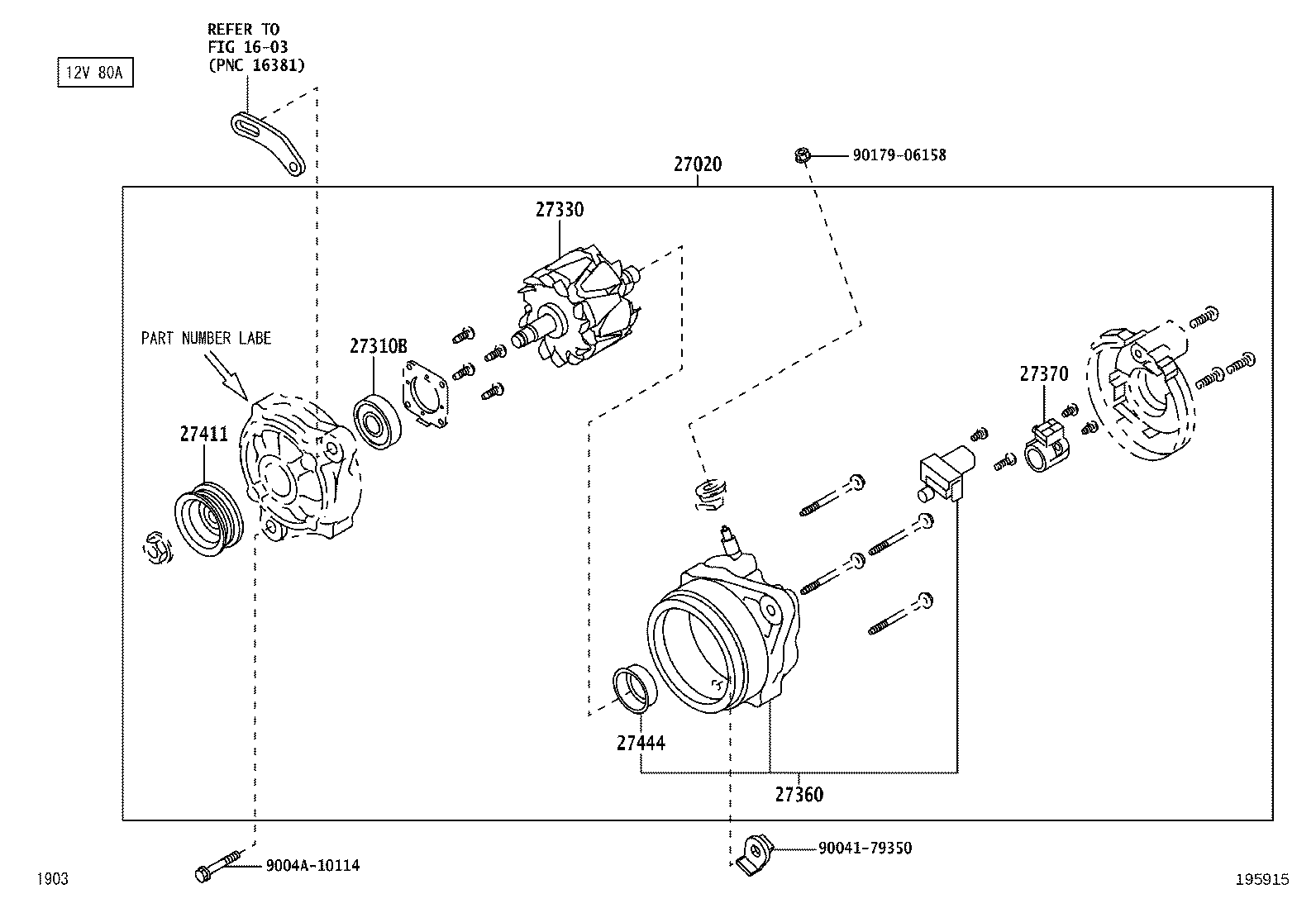

| 27020 - ALTERNATOR ASSY | ||||
| 27060-BZ110 |
3SZVE..F700 12V 80A |
1 | ||
| 27060-BZ280 |
3SZVE..F700 12V 80A,W/PART NUMBER LABEL |
1 | ||
| 27060-BZ270 |
3SZVE..F700 12V 80A,W/PART NUMBER LABEL |
1 | ||
| 27060-BZ270 |
3SZVE..F700 12V 80A,W/PART NUMBER LABEL |
1 | ||
| 27060-BZ110 |
3SZVE..F700 12V 80A,W/PART NUMBER LABEL |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27791-87703 |
3SZVE..F700 |
1 | ||
| 9004C-37008 |
3SZVE..F700 ASSY,NO.27060BZ270 |
1 | ||
| 27791-87703 |
3SZVE..F700 ASSY,NO.27060BZ110 |
1 | ||
| 9004C-37002 |
3SZVE..F700 ASSY,NO.27060BZ110 |
1 | ||
| 9004B-37012 |
3SZVE..F700 |
1 | ||
| 9004B-37012 |
3SZVE..F700 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-BZ030 |
3SZVE..F700 ASSY,NO.27060BZ110 |
1 | ||
| 27330-BZ060 |
3SZVE..F700 ASSY,NO.27060BZ270 |
1 | ||
| 27330-BZ060 |
3SZVE..F700 ASSY,NO.27060BZ270 |
1 | ||
| 27330-BZ030 |
3SZVE..F700 |
1 | ||
| 27330-BZ060 |
3SZVE..F700 ASSY,NO.27060BZ280 |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-BZ040 |
3SZVE..F700 ASSY,NO.27060BZ270 |
1 | ||
| 27360-BZ010 |
3SZVE..F700 |
1 | ||
| 27360-BZ040 |
3SZVE..F700 ASSY,NO.27060BZ270 |
1 | ||
| 27360-BZ100 |
3SZVE..F700 ASSY,NO.27060BZ280 |
1 | ||
| 27360-BZ010 |
3SZVE..F700 ASSY,NO.27060BZ110 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-BZ020 |
3SZVE..F700 |
1 | ||
| 27370-BZ020 |
3SZVE..F700 |
1 | ||
| 27370-BZ020 |
3SZVE..F700 |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-BZ030 |
3SZVE..F700 |
1 | ||
| 27411-BZ030 |
3SZVE..F700 |
1 | ||
| 27411-BZ030 |
3SZVE..F700 |
1 | ||
| Common parts | ||||
| 90041-79350 | ||||
| 9004A-10114 | ||||
| 90179-06158 | ||||
| Linked diagrams | ||||
| 1603 | ||||
(1404- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-BZ110 |
3SZVE..F700 12V 80A |
1 | ||
| 27060-BZ280 |
3SZVE..F700 12V 80A,W/PART NUMBER LABEL |
1 | ||
| 27060-BZ270 |
3SZVE..F700 12V 80A,W/PART NUMBER LABEL |
1 | ||
| 27060-BZ270 |
3SZVE..F700 12V 80A,W/PART NUMBER LABEL |
1 | ||
| 27060-BZ110 |
3SZVE..F700 12V 80A,W/PART NUMBER LABEL |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27791-87703 |
3SZVE..F700 |
1 | ||
| 9004C-37008 |
3SZVE..F700 ASSY,NO.27060BZ270 |
1 | ||
| 27791-87703 |
3SZVE..F700 ASSY,NO.27060BZ110 |
1 | ||
| 9004C-37002 |
3SZVE..F700 ASSY,NO.27060BZ110 |
1 | ||
| 9004B-37012 |
3SZVE..F700 |
1 | ||
| 9004B-37012 |
3SZVE..F700 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-BZ030 |
3SZVE..F700 ASSY,NO.27060BZ110 |
1 | ||
| 27330-BZ060 |
3SZVE..F700 ASSY,NO.27060BZ270 |
1 | ||
| 27330-BZ060 |
3SZVE..F700 ASSY,NO.27060BZ270 |
1 | ||
| 27330-BZ030 |
3SZVE..F700 |
1 | ||
| 27330-BZ060 |
3SZVE..F700 ASSY,NO.27060BZ280 |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-BZ040 |
3SZVE..F700 ASSY,NO.27060BZ270 |
1 | ||
| 27360-BZ010 |
3SZVE..F700 |
1 | ||
| 27360-BZ040 |
3SZVE..F700 ASSY,NO.27060BZ270 |
1 | ||
| 27360-BZ100 |
3SZVE..F700 ASSY,NO.27060BZ280 |
1 | ||
| 27360-BZ010 |
3SZVE..F700 ASSY,NO.27060BZ110 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-BZ020 |
3SZVE..F700 |
1 | ||
| 27370-BZ020 |
3SZVE..F700 |
1 | ||
| 27370-BZ020 |
3SZVE..F700 |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-BZ030 |
3SZVE..F700 |
1 | ||
| 27411-BZ030 |
3SZVE..F700 |
1 | ||
| 27411-BZ030 |
3SZVE..F700 |
1 | ||
| 27444 - PACKING, ALTERNATOR BEARING COVER | ||||
| 27444-BZ010 |
3SZVE..F700 |
1 | ||
| 27444-BZ010 |
3SZVE..F700 |
1 | ||
| Common parts | ||||
| 90041-79350 | ||||
| 9004A-10114 | ||||
| 90179-06158 | ||||
| Linked diagrams | ||||
| 1603 | ||||
