F700RE-GMDFJ (2006)
Toyota Rush
Production
Dec 2006
-
Nov 2017
Engine
3SZVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0612- )

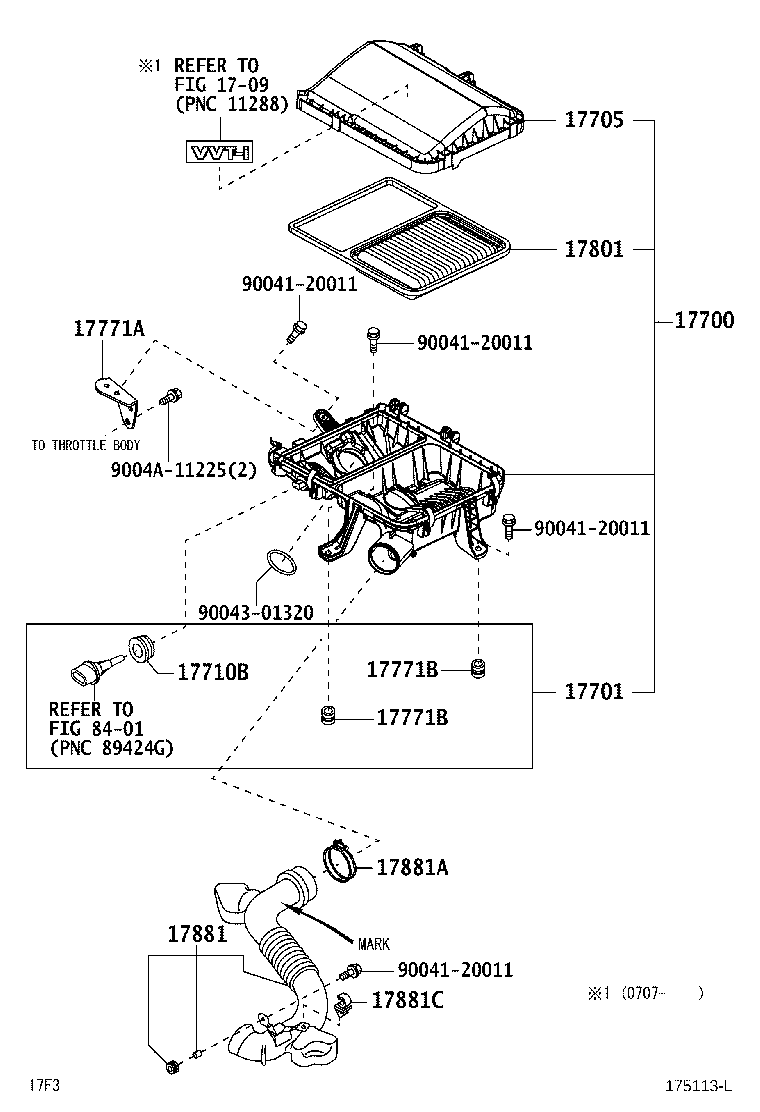

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-BZ070 |
3SZVE..F700 |
1 | ||
| 17700-BZ071 |
3SZVE..F700 |
1 | ||
| 17700-BZ071 |
3SZVE..F700 |
1 | ||
| 17700-BZ190 |
3SZVE..F700 |
1 | ||
| 17700-BZ190 |
3SZVE..F700 |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-BZ091 |
3SZVE..F700 |
1 | ||
| 17701-BZ091 |
3SZVE..F700 |
1 | ||
| 17701-BZ090 |
3SZVE..F700 |
1 | ||
| 17701-BZ080 |
3SZVE..F700 |
1 | ||
| 17701-BZ090 |
3SZVE..F700 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-BZ071 |
3SZVE..F700 |
1 | ||
| 17705-BZ071 |
3SZVE..F700 |
1 | ||
| 17705-BZ071 |
3SZVE..F700 |
1 | ||
| 17705-BZ070 |
3SZVE..F700 |
1 | ||
| 17710B - GROMMET | ||||
| 90044-80530 |
3SZVE..F700 |
1 | ||
| 90044-80530 |
3SZVE..F700 |
1 | ||
| 90044-80530 |
3SZVE..F700 |
1 | ||
| 17771A - BRACKET, AIR CLEANER | ||||
| 17771-BZ090 |
3SZVE..F700 |
1 | ||
| 17771-BZ090 |
3SZVE..F700 |
1 | ||
| 17771-BZ090 |
3SZVE..F700 |
1 | ||
| 17771B - GROMMET(FOR AIR CLEANER BRACKET) | ||||
| 90044-80392 |
3SZVE..F700 |
2 | ||
| 90044-80392 |
3SZVE..F700 |
2 | ||
| 90044-80392 |
3SZVE..F700 |
2 | ||
| 17771B - GROMMET(FOR AIR CLEANER BRACKET) | ||||
| 90044-80392 |
3SZVE..F700 |
2 | ||
| 90044-80392 |
3SZVE..F700 |
2 | ||
| 90044-80392 |
3SZVE..F700 |
2 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-BZ050 |
3SZVE..F700 |
1 | ||
| 17801-BZ050 |
3SZVE..F700 |
1 | ||
| 17801-BZ050 |
3SZVE..F700 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-BZ092 |
3SZVE..F700 |
1 | ||
| 17881-BZ092 |
3SZVE..F700 |
1 | ||
| 17881-BZ090 |
3SZVE..F700 |
1 | ||
| 17881-BZ091 |
3SZVE..F700 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 9004A-46128 |
3SZVE..F700 |
1 | ||
| 9004A-46128 |
3SZVE..F700 |
1 | ||
| 9004A-46128 |
3SZVE..F700 |
1 | ||
| 17881C - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90044-64563 |
3SZVE..F700 |
1 | ||
| 90044-64563 |
3SZVE..F700 |
1 | ||
| 9004A-46364 |
3SZVE..F700 |
1 | ||
| 90044-64563 |
3SZVE..F700 |
1 | ||
| Common parts | ||||
| 90041-20011 | ||||
| 90043-01320 | ||||
| 9004A-11225 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||
