AZE151R-FHPSKQ (2010)

Toyota Rukus

Production Mar 2010 - Dec 2015
Engine 2AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1003- )

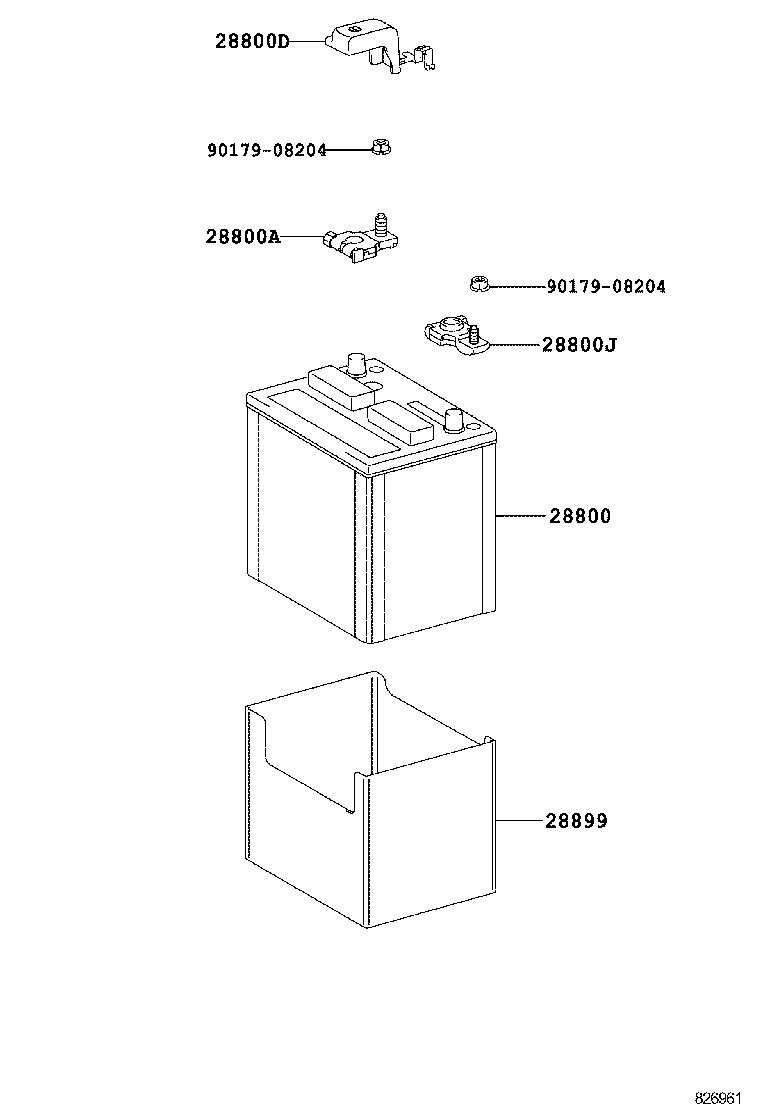

Click highlighted areas on diagram

diagram 28800 28800A 28800D 28800J 28899 9017908204 9017908204
Part # Description Qty Price
28800 - BATTERY
28800-42061

2AZFE..AZE151

55D23L,FURUKAWA

 1
28800-42062

2AZFE..AZE151

55D23L,FURUKAWA

 1
28800-42041

2AZFE..AZE151

55D23L,YUASA

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05054

2AZFE..AZE151

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-12490

2AZFE..AZE151

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06070

2AZFE..AZE151

 1
28899 - INSULATOR, BATTERY
28899-27040

2AZFE..AZE151

 1
Common parts
90179-08204
